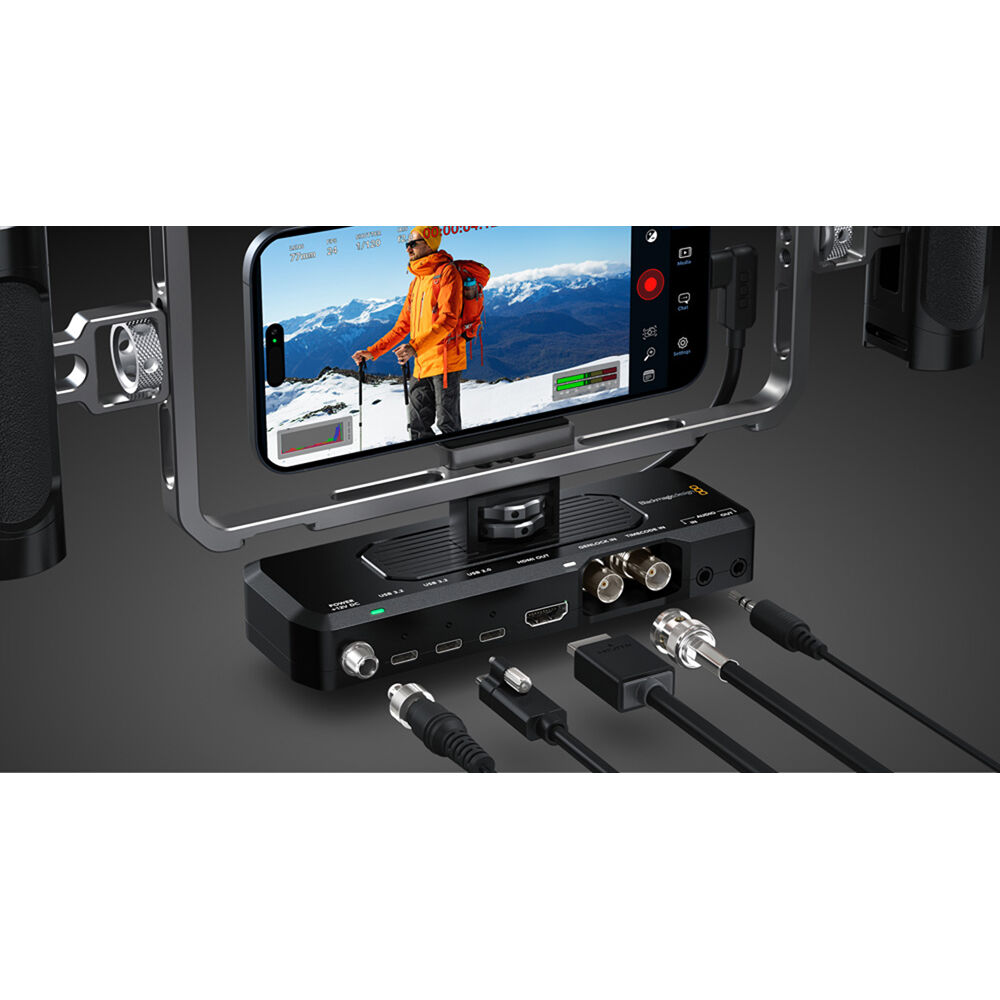

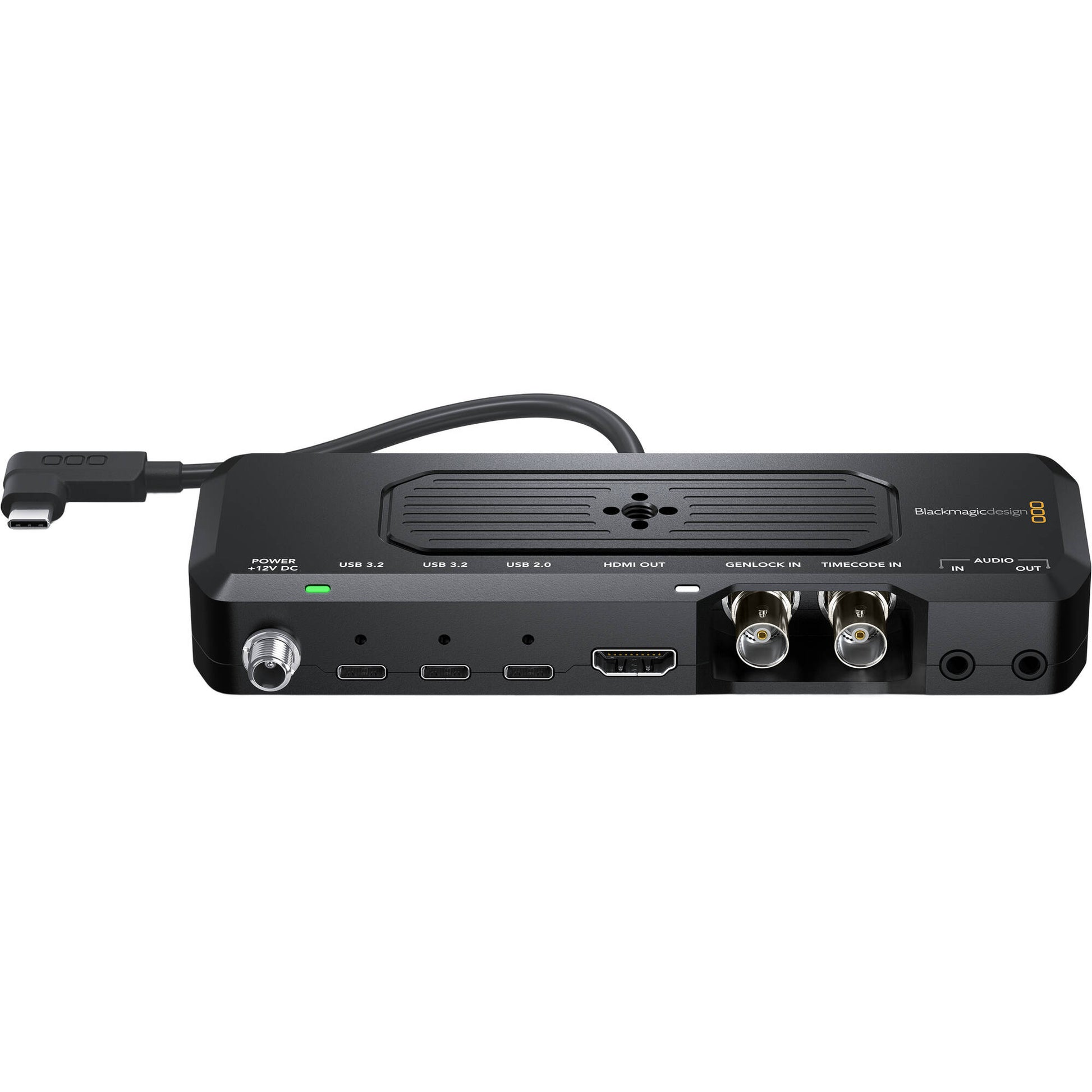

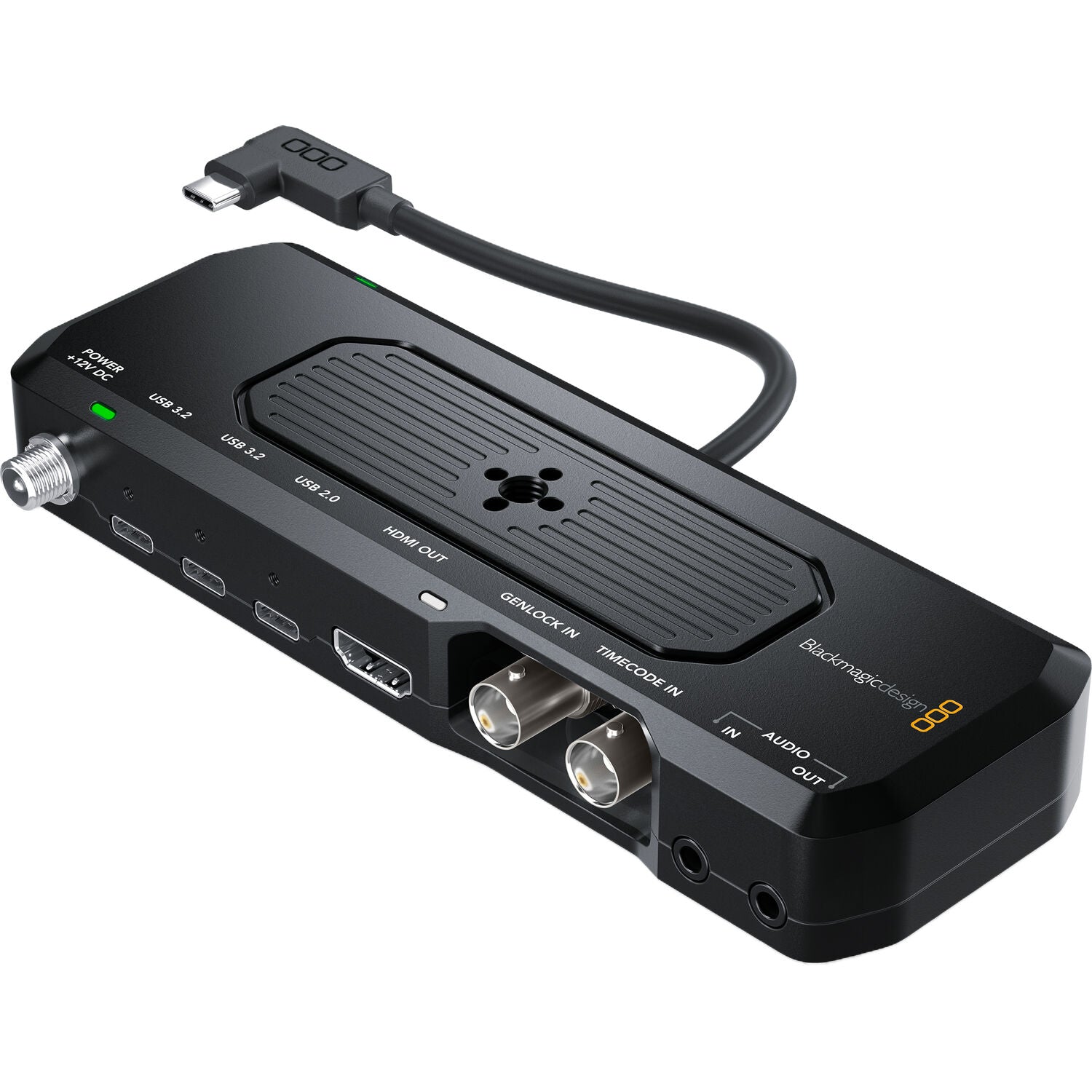

Leverage the power of the iPhone and incorporate it within a professional production by using the Camera ProDock from Blackmagic Design. Connect the ProDock to your iPhone 17 Pro or Pro Max via the attached USB-C cable. This gives the iPhone access to the ProDocks assortment of interfaces. You have BNC genlock and timecode connections for keeping shots in sync, three USB-C ports for lens/camera control accessories or storage, an HDMI output for monitoring, and two 3.5mm ports for a microphone or headphones. The ProDock also supports the BlackMagic Camera app on the iPhone, which offers high-end features, such as ProRes RAW shooting and genlock.
Additional Details
Synchronize cameras and LED walls for flick-free production with your iPhone
Use timecode data to sync shots during editing, such as with DaVinci Resolve
1/4"-20 pin lock mounting points on top and bottom for attaching to your rig
BLACKMAGICDESIGN Camera ProDock
Key Specifications
Compatibility
Apple iPhone 17 Pro / iPhone 17 Pro Max
Inputs / Outputs
USB I/O
1 x USB-C 2.0 Female Input/Output 2 x USB-C 3.0 / 3.1 / 3.2 Gen 1 Female Input/Output
Video I/O
1x HDMI Output
Audio I/O
1x 1/8" / 3.5 mm Mic Input 1x 1/8" / 3.5 mm Headphone Output
Other Ports
1 x BNC (Genlock) 1 x BNC (Timecode)
Wireless
Mobile App Compatible
Yes: iOS Only
App Name
BlackMagic Camera
Power
Power Source
Plug-In Power (Included)
DC Input Power
12 VDC
Physical
Mounting
Multiple 1/4"-20 Pin Lock
Color
Black
Packaging Info
Package Weight
1.885 lb
Box Dimensions (L × W × H)
10.7 x 4.9 x 3"
