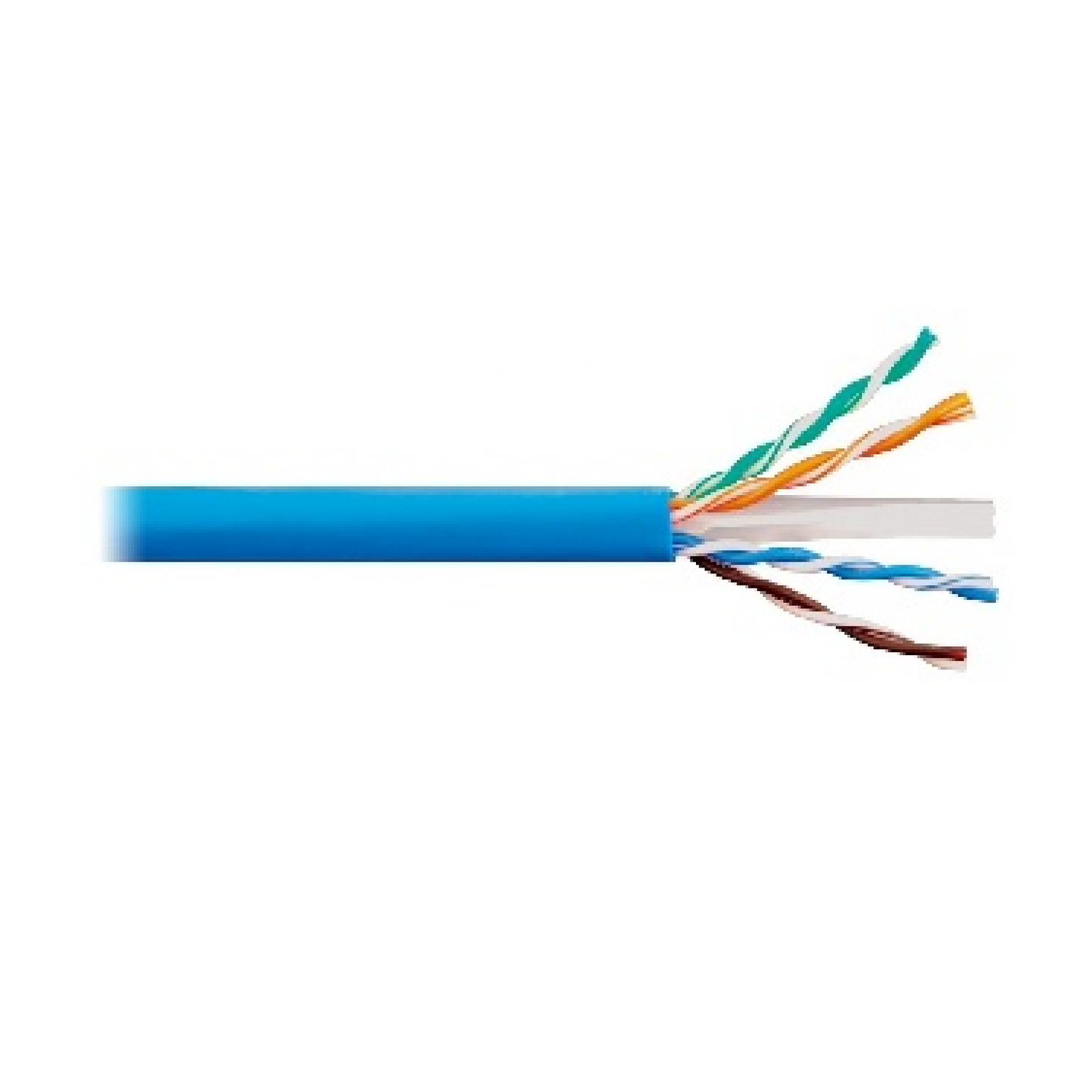

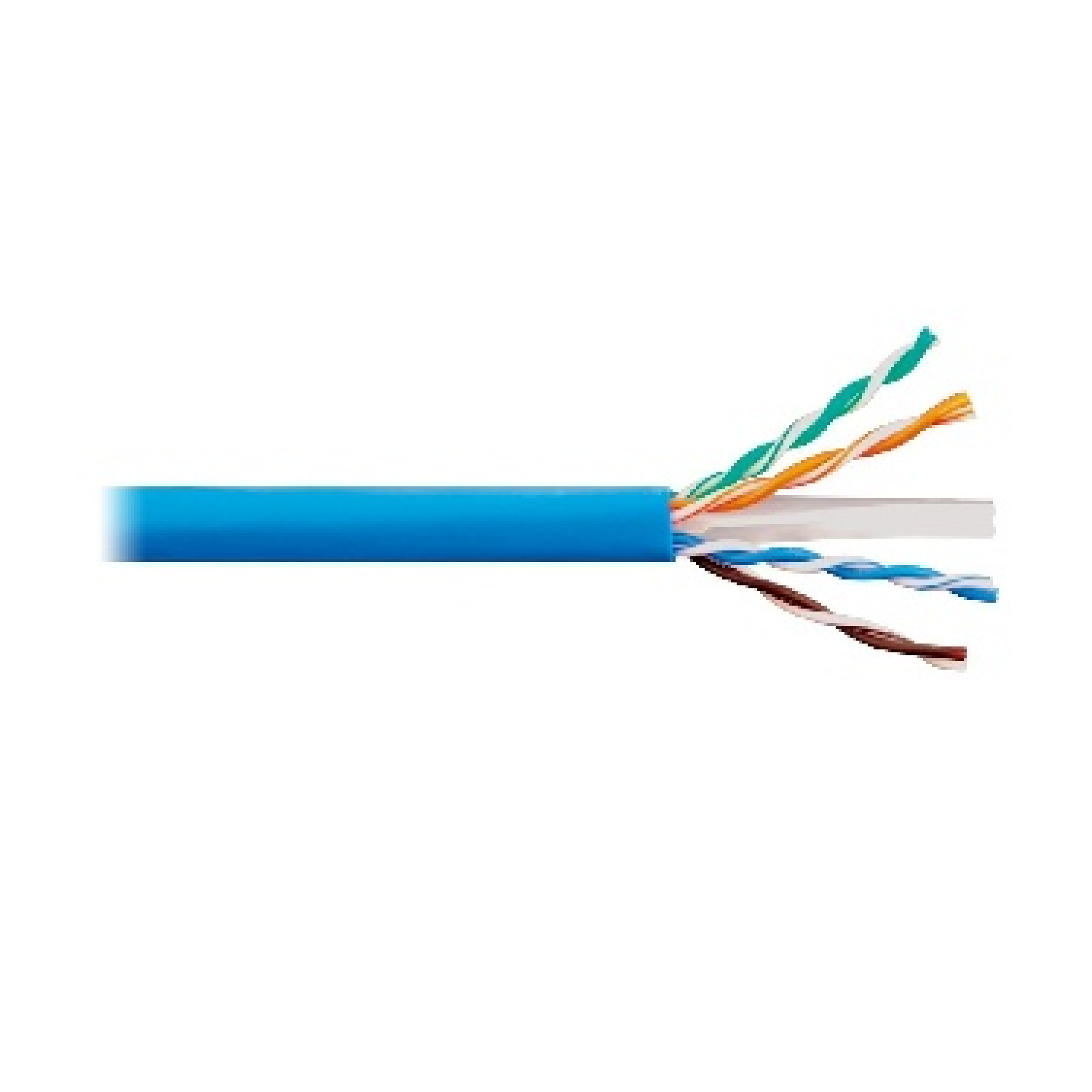

CAT6 7814A
CAT6 7814A
BELDEN
Price for Inquiry
UNIT: PIECE/S
Product Code: SKU:BELD-CAT67814-CHN-6614
Key Features
Authorized Dealer
Certified Quality Products
After-Sales Support
Secure Payments
BELDEN CAT6 7814A
BELDEN CAT6 7814A
|
Key Specifications |
|
|
Number of Pairs |
4 |
|
Total Number of Conductors |
8 |
|
Conductor |
|
|
AWG |
24 AWG |
|
Stranding |
Solid |
|
Conductor Material |
Bare Annealed Copper |
|
Insulation |
|
|
Insulation Material |
Thermoplastic Polyolefin |
|
Pair Color Code |
White/Blue & Blue White/Orange & Orange White/Green & Green White/Brown & Brown |
|
Outer Jacket |
|
|
Jacket Material |
PVC |
|
Ripcord |
Yes |
|
Physical Specifications |
|
|
Overall Nominal Diameter |
5.80 ± 0.50 mm |
|
Bulk Cable Weight |
36.3 kg/km |
|
Maximum Recommended Pulling Tension |
110 N |
|
Minimum Bend Radius (Installation) |
25.4 mm |
|
Environmental |
|
|
Operating Temperature Range |
-20°C to +80°C |
BELDEN CAT6 7814A Accessories
- No accessories available.
