Key Specifications

Speaker Type

Passive Loudspeaker

Configuration

2-Way, Bass-Reflex

Total Passive Power Handling

175 W RMS / 350 W Program / 700 W Peak

Nominal Impedance

8 Ohms

Drivers

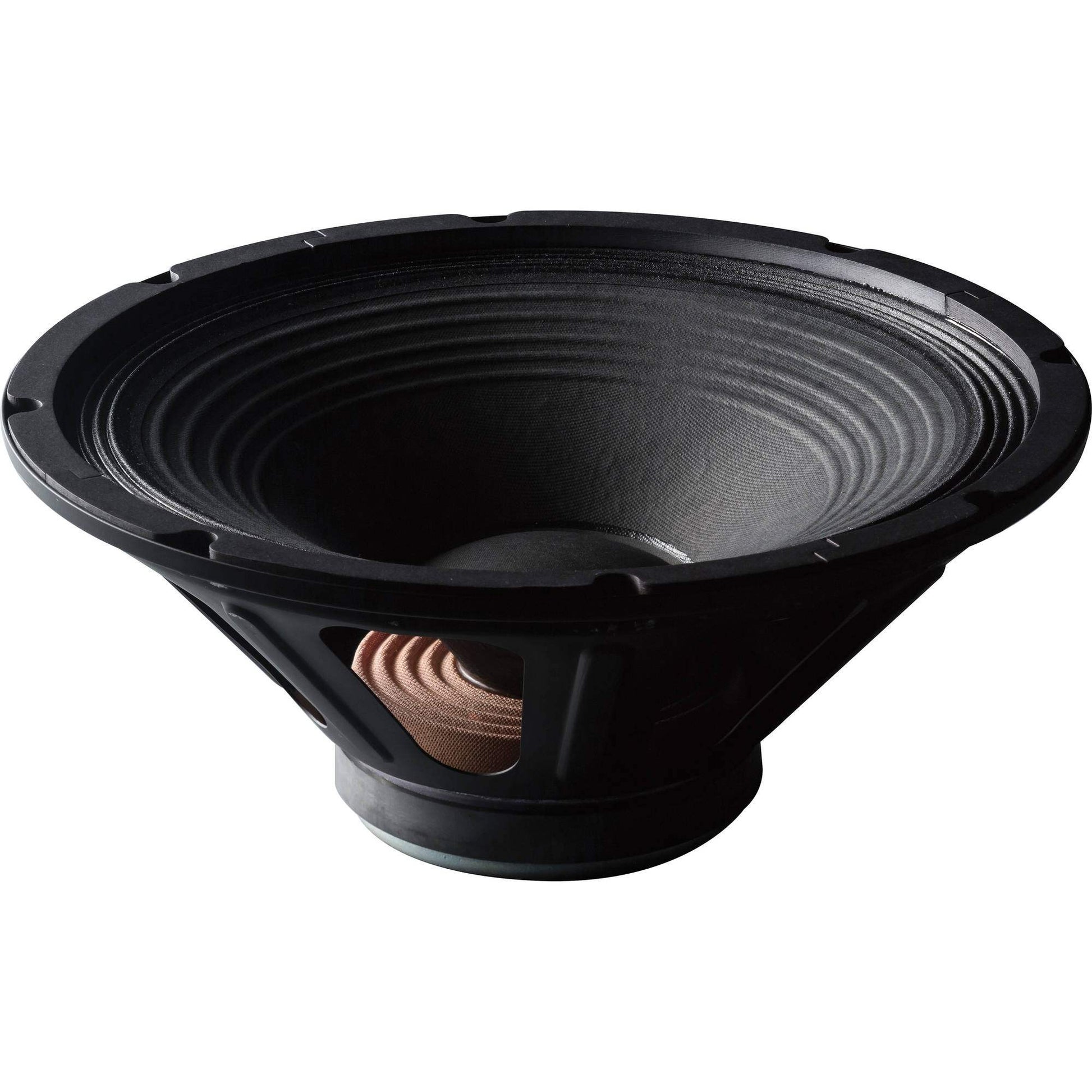

LF Driver

1x 10" / 25.4 cm Woofer
Voice Coil: 2" / 5.1 cm
Magnet: Ferrite

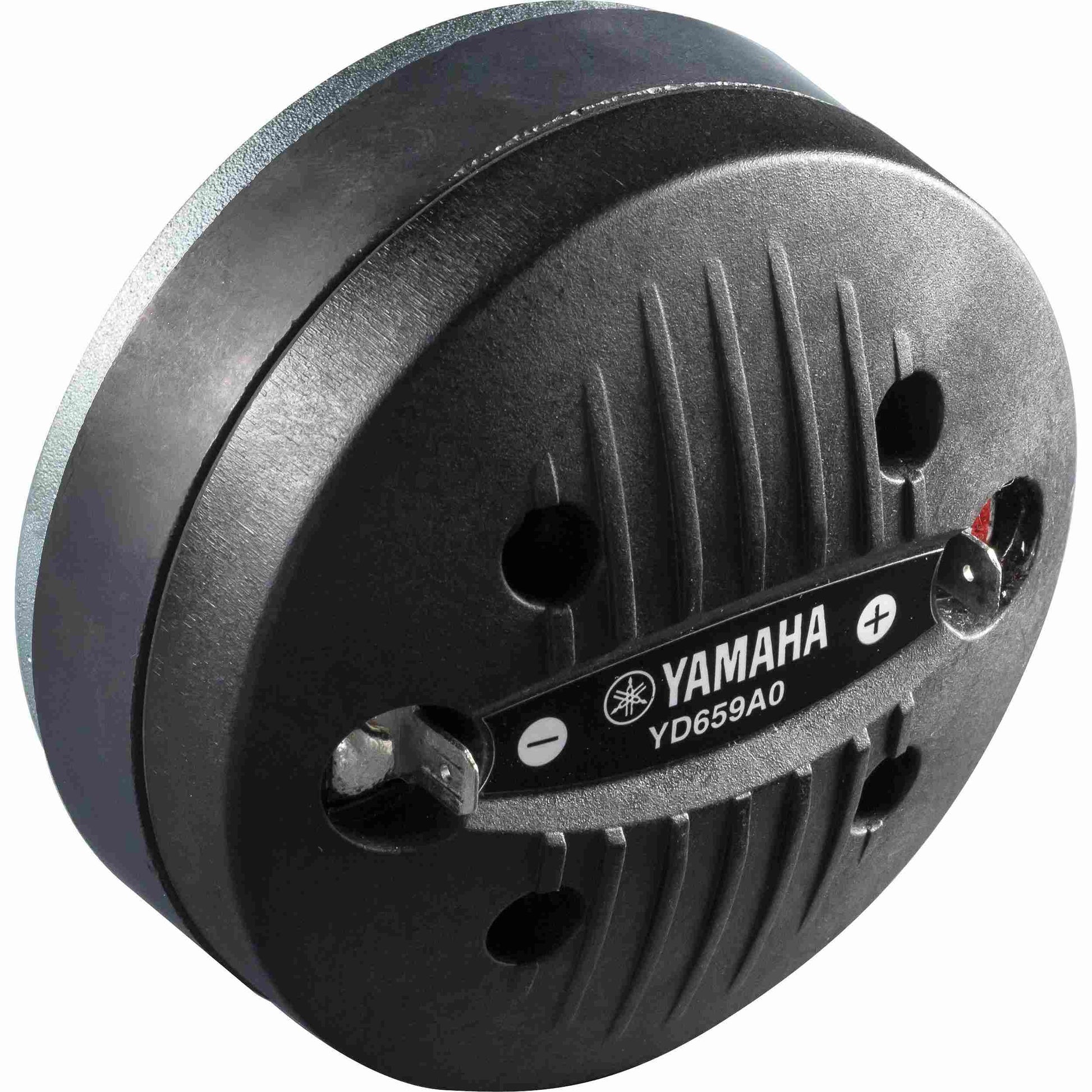

HF Driver

1x 2" / 50.8 mm Compression Driver
Voice Coil: 1" / 25.4 mm
Magnet: Ferrite

Performance

Frequency Range / Response

50 Hz – 20 kHz (-10 dB)

Maximum SPL

123 dB SPL (Peak)

Sensitivity

94 dB SPL

Coverage Angle

90° H × 60° V

Crossover Frequency

2800 Hz

EQ & Filters

No

Connectivity

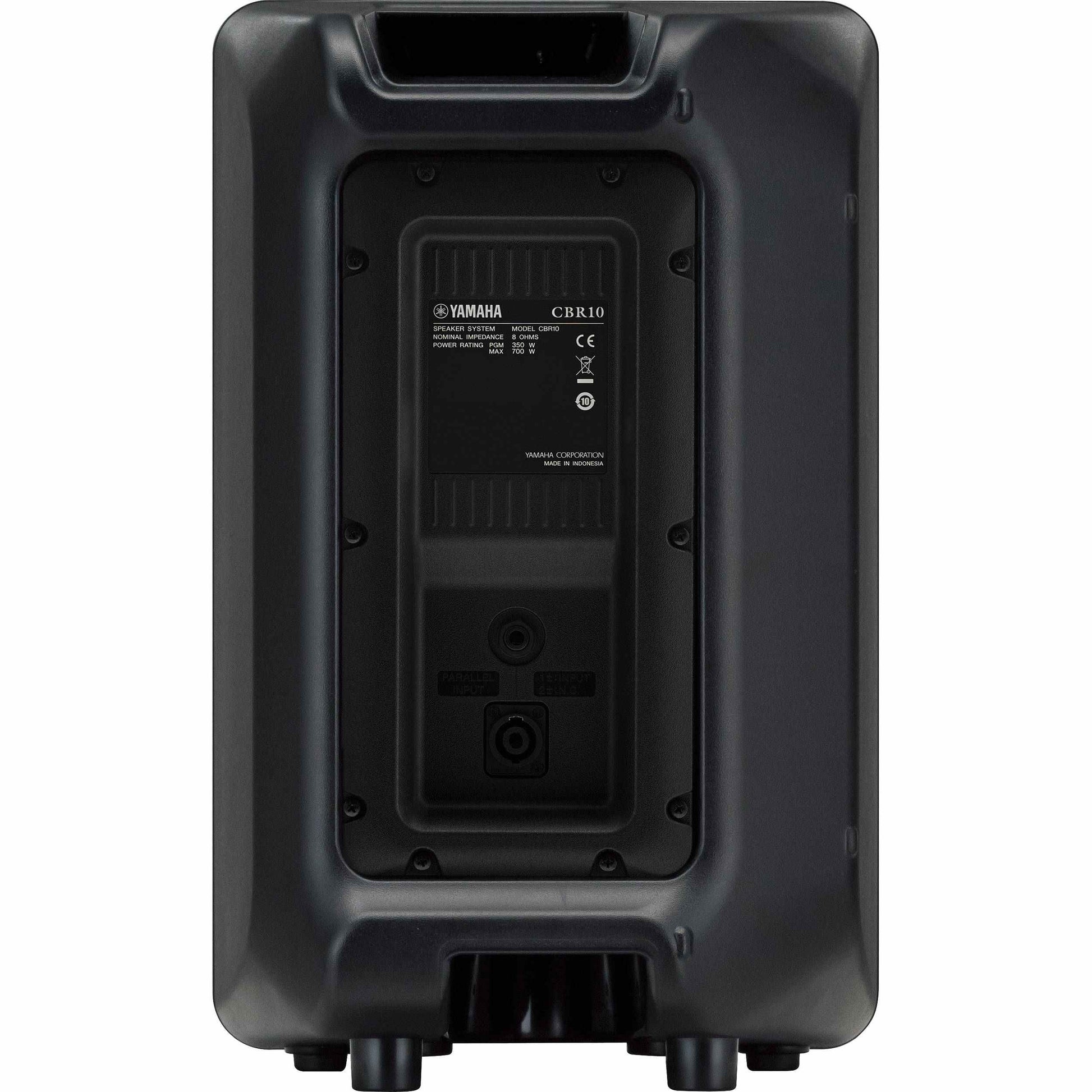

Audio I/O

1x speakON NL4 Input
1x 1/4" TS Input

Physical

Color

Black

Handles

1x Top

Construction Material

Plastic

Environmental Resistance

No

Dimensions (H × W × D)

12.1 × 19.4 × 11.4" / 30.8 × 49.3 × 28.9 cm

Weight

20.7 lb / 9.4 kg

Packaging Info

Package Weight

27.7 lb

Box Dimensions (L × W × H)

22.8 × 15.6 × 15.2"
