CBR12
CBR12
YAMAHA
UNIT: PIECE/S
Product Code: SKU:YAMH-CBR12-CHN-466
Key Features

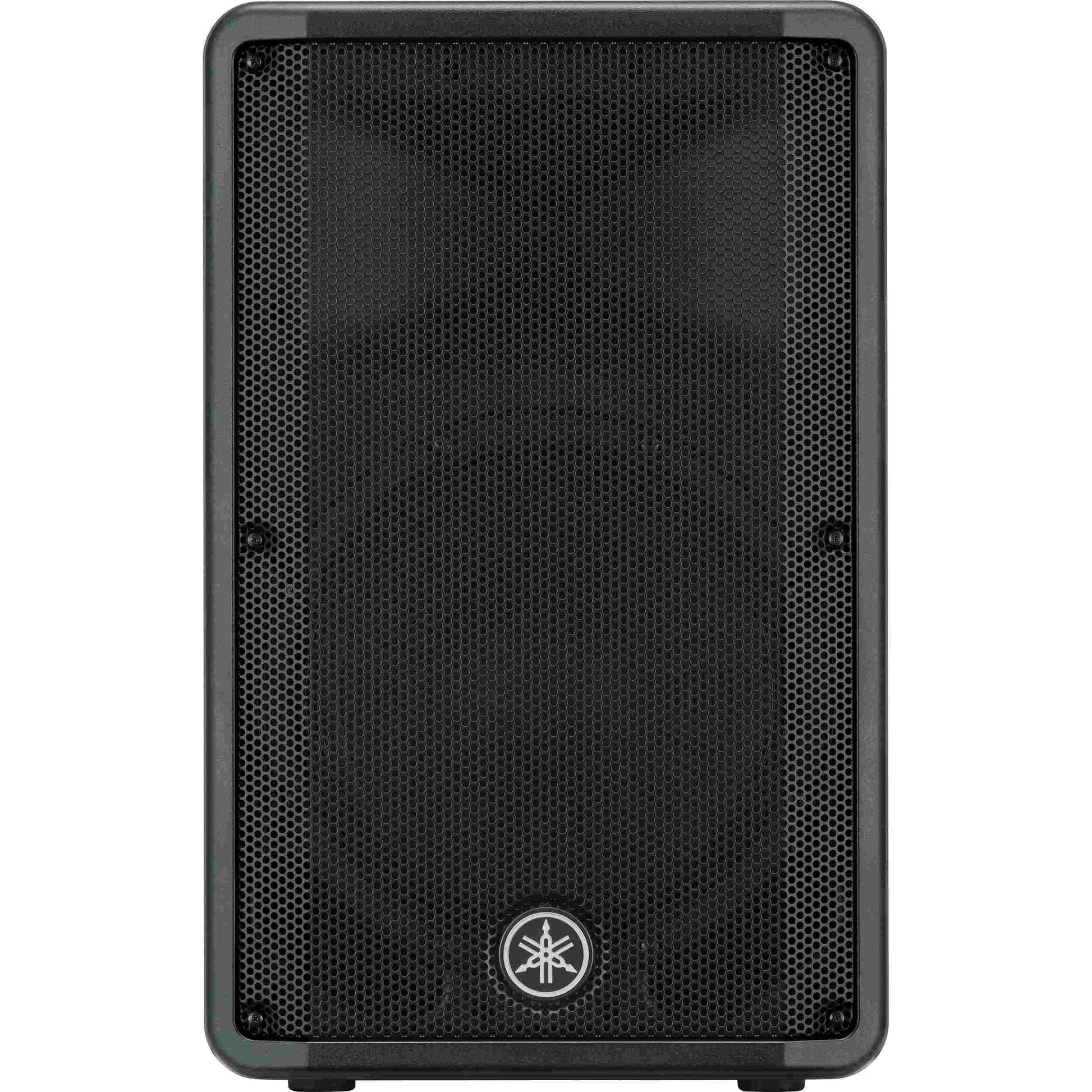

YAMAHA CBR12
YAMAHA CBR12
|
Key Specifications |
|
|
Speaker Type |
Passive Loudspeaker |
|
Configuration |
2-Way, Bass-Reflex |
|
Total Passive Power Handling |
175 W RMS / 350 W Program / 700 W Peak |
|
Nominal Impedance |
8 Ohms |
|
Drivers |
|
|

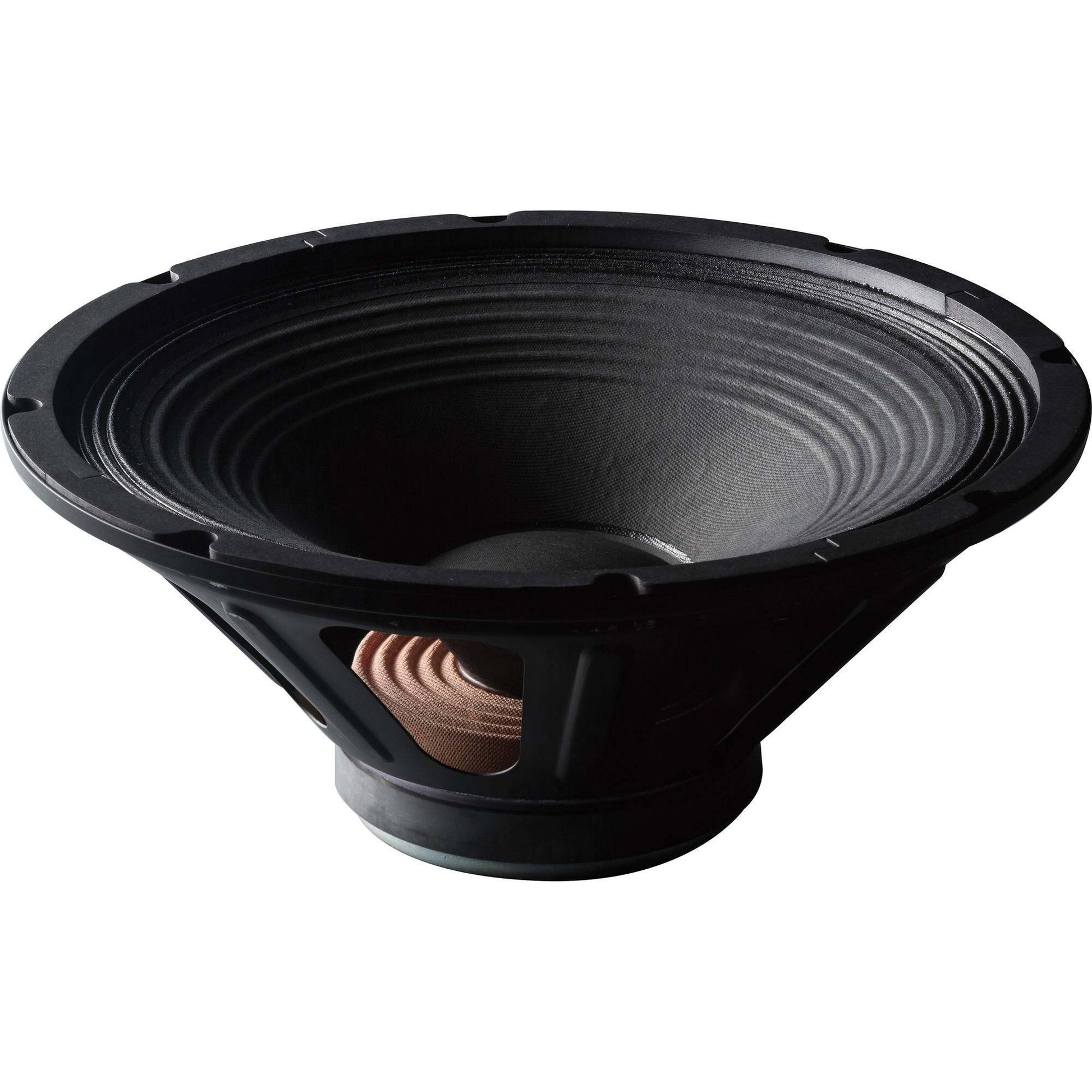

LF Driver |
1x 12" / 30.5 cm Woofer |
|

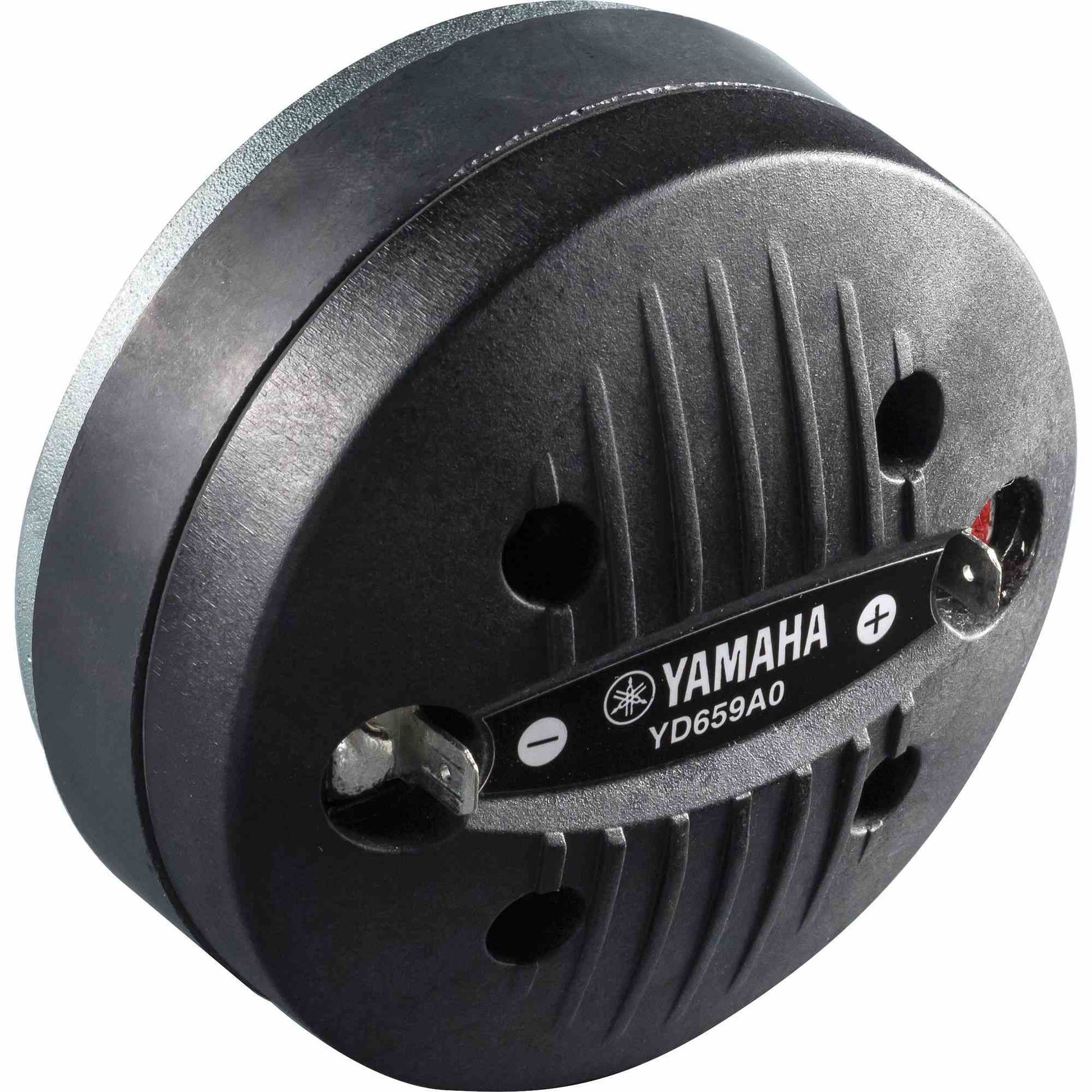

HF Driver |
1x 2" / 50.8 mm Compression Driver |
|
Performance |
|
|
Frequency Range / Response |
48 Hz – 20 kHz (-10 dB) |
|
Maximum SPL |
125 dB SPL (Peak) |
|
Sensitivity |
96 dB SPL |
|
Coverage Angle |
90° H × 60° V |
|
Crossover Frequency |
2100 Hz |
|
EQ & Filters |
No |
|

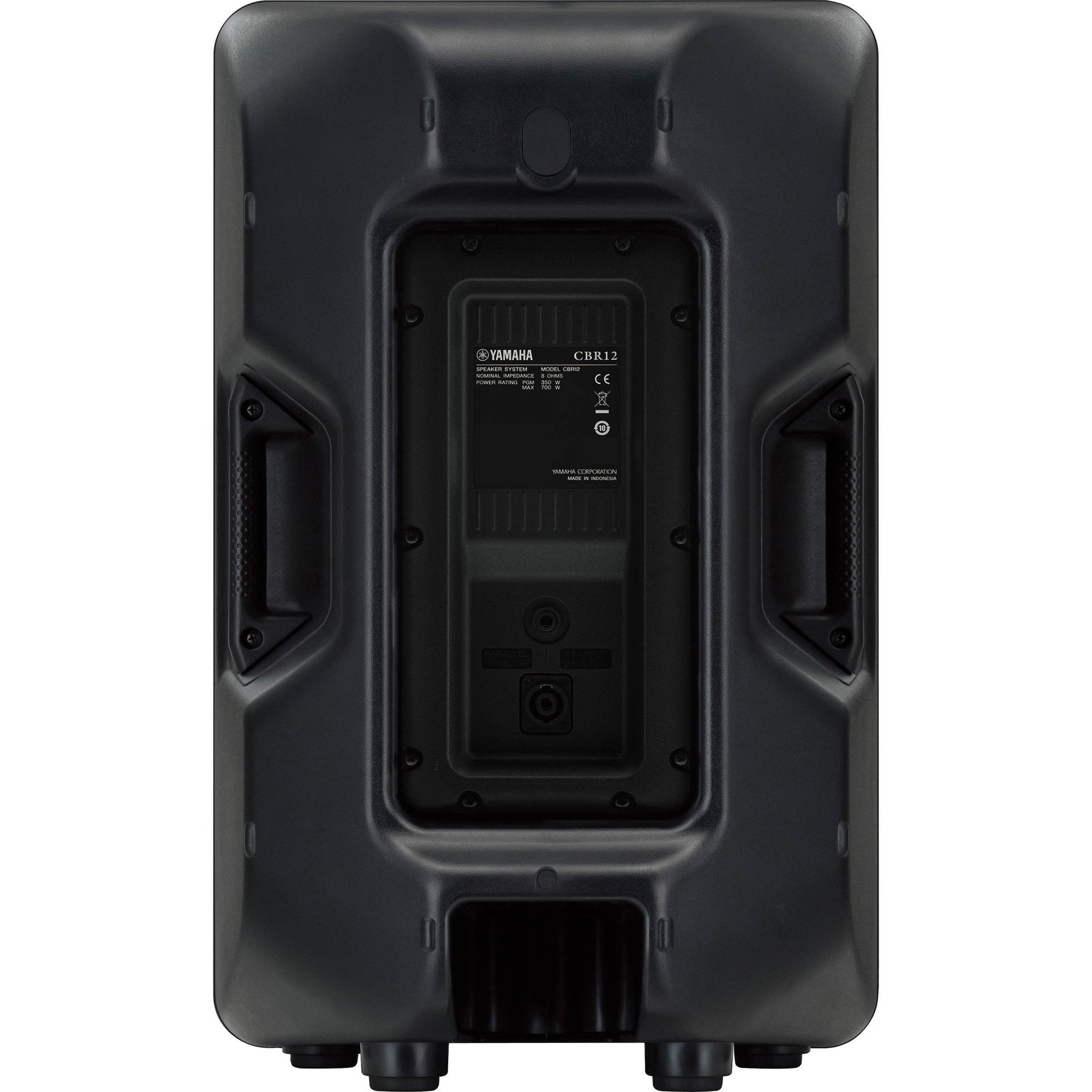

Connectivity |
|
|
Audio I/O |
1x speakON NL4 Input |
|
Physical |
|
|
Color |
Black |
|
Handles |
2x Side |
|
Construction Material |
Plastic |
|
Environmental Resistance |
No |
|
Dimensions (H × W × D) |
14.8 × 23.7 × 13.7" / 37.6 × 60.1 × 34.8 cm |
|
Weight |
30.6 lb / 13.9 kg |
|
Packaging Info |
|
|
Package Weight |
38.6 lb |
|
Box Dimensions (L × W × H) |
26 × 18 × 17" |
YAMAHA CBR12 Accessories
- No accessories available.
