CBR15
CBR15
YAMAHA
UNIT: PIECE/S
Product Code: SKU:YAMH-CBR15-CHN-700
Key Features

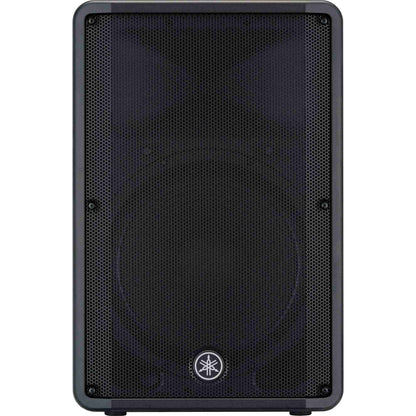

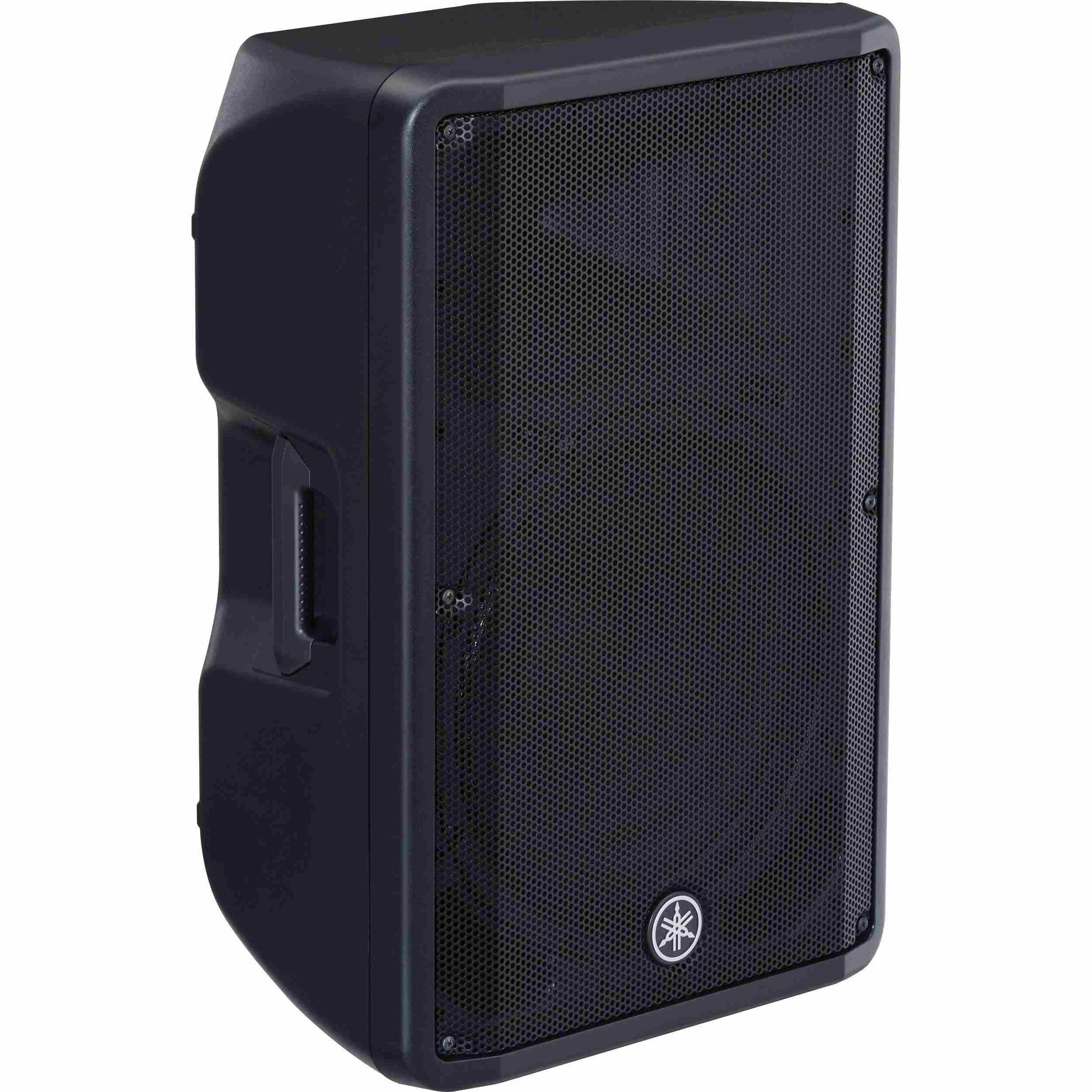

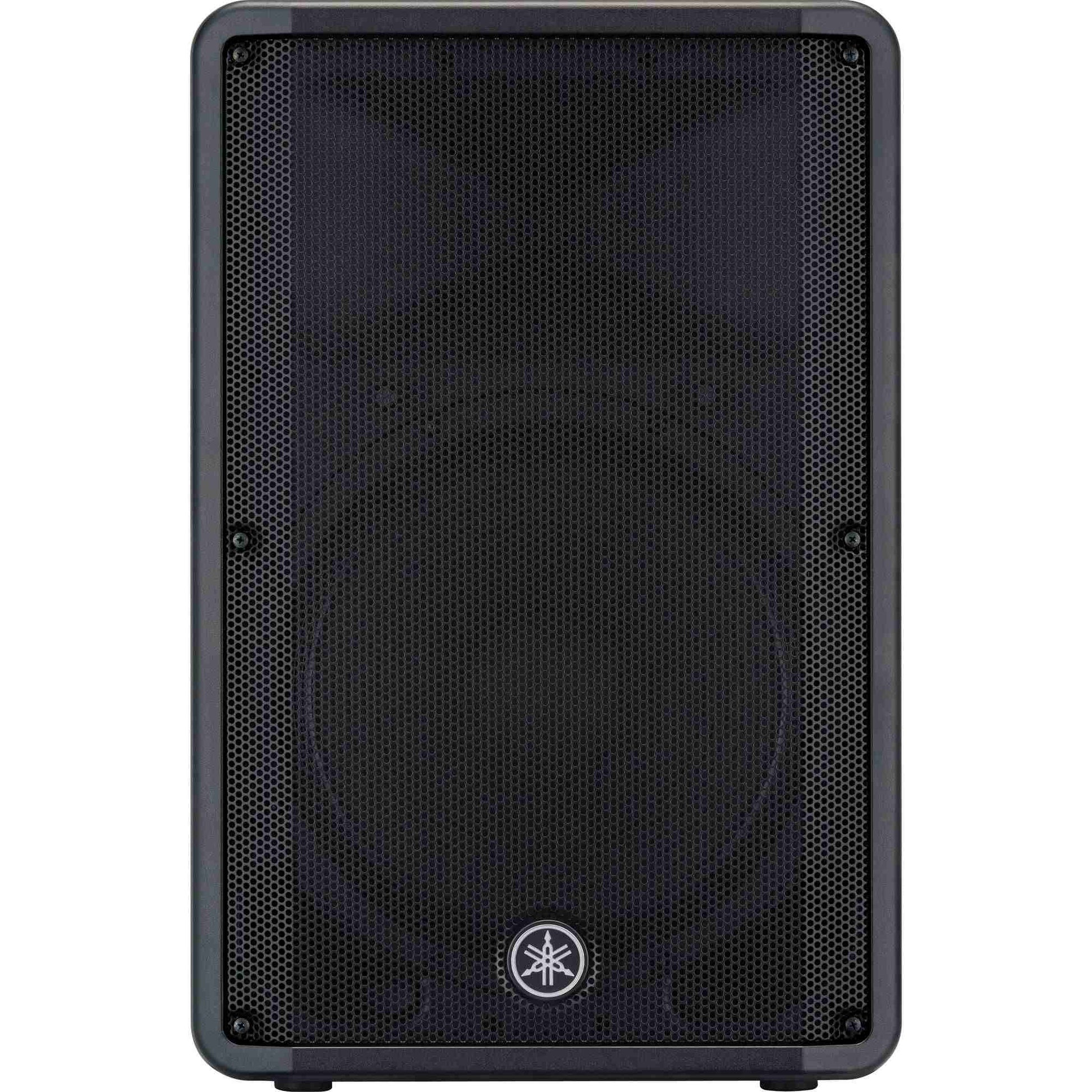

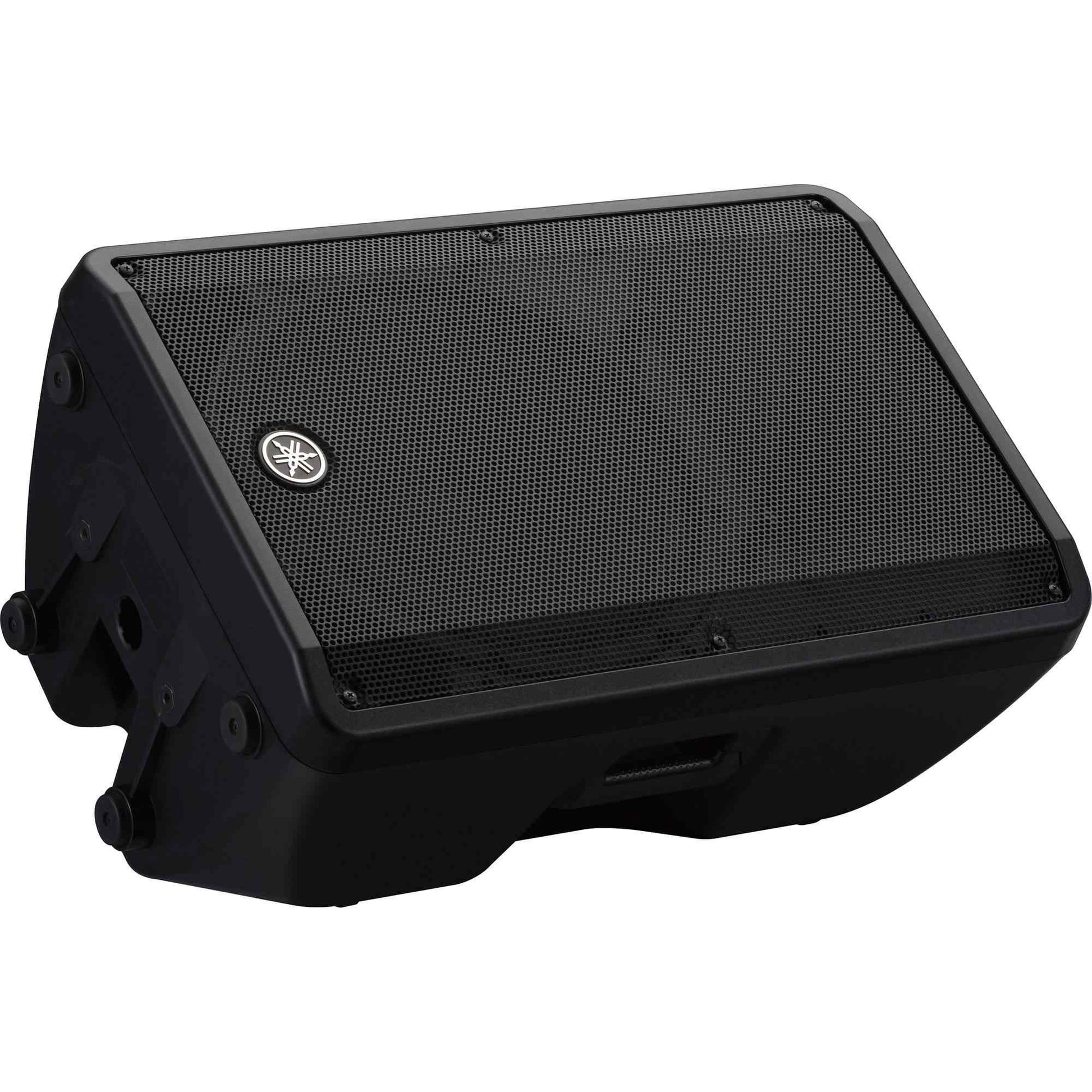

YAMAHA CBR15
YAMAHA CBR15
|
Key Specifications |
|
|
Speaker Type |
Passive Loudspeaker |
|
Configuration |
2-Way, Bass-Reflex |
|
Total Passive Power Handling |
250 W RMS / 500 W Program / 1000 W Peak |
|
Nominal Impedance |
8 Ohms |
|
Drivers |
|
|

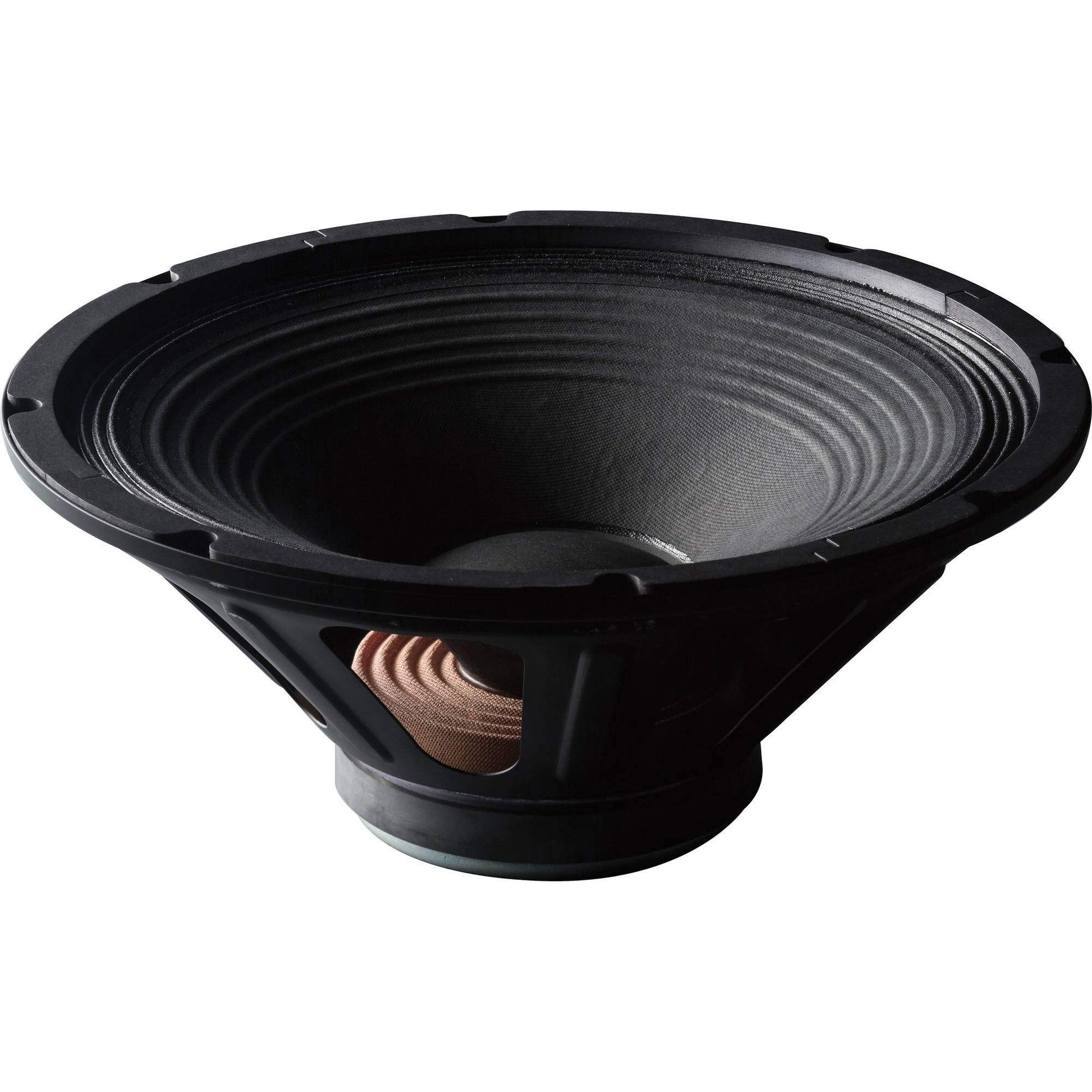

LF Driver |
1x 15" / 38 cm Woofer |
|

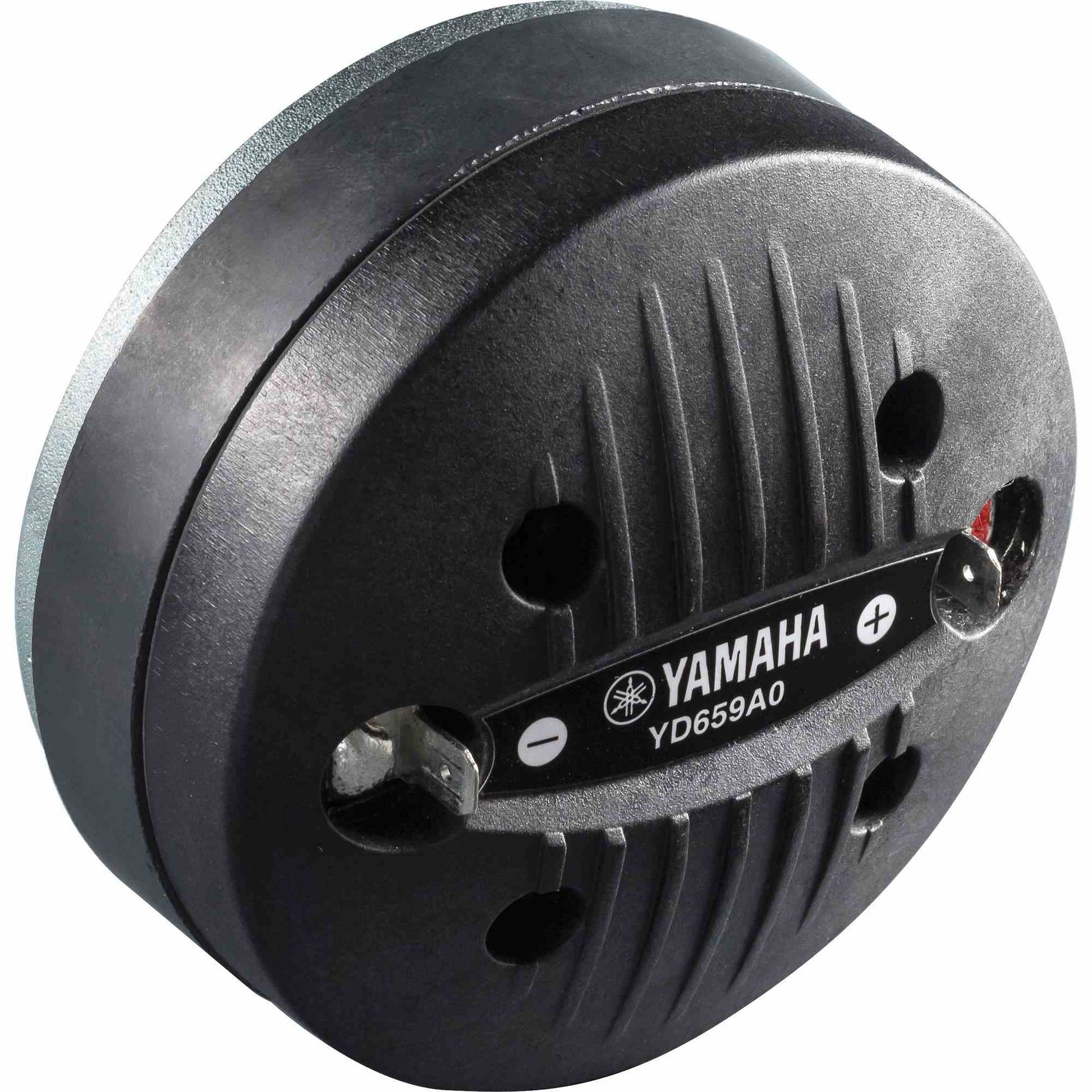

HF Driver |
1x 2.5" / 63.5 mm Compression Driver |
|
Performance |
|
|
Frequency Range / Response |
46 Hz – 20 kHz (-10 dB) |
|
Maximum SPL |
126 dB SPL (Peak) |
|
Sensitivity |
96 dB SPL |
|
Coverage Angle |
90° H × 60° V |
|
Crossover Frequency |
2000 Hz |
|
EQ & Filters |
No |
|

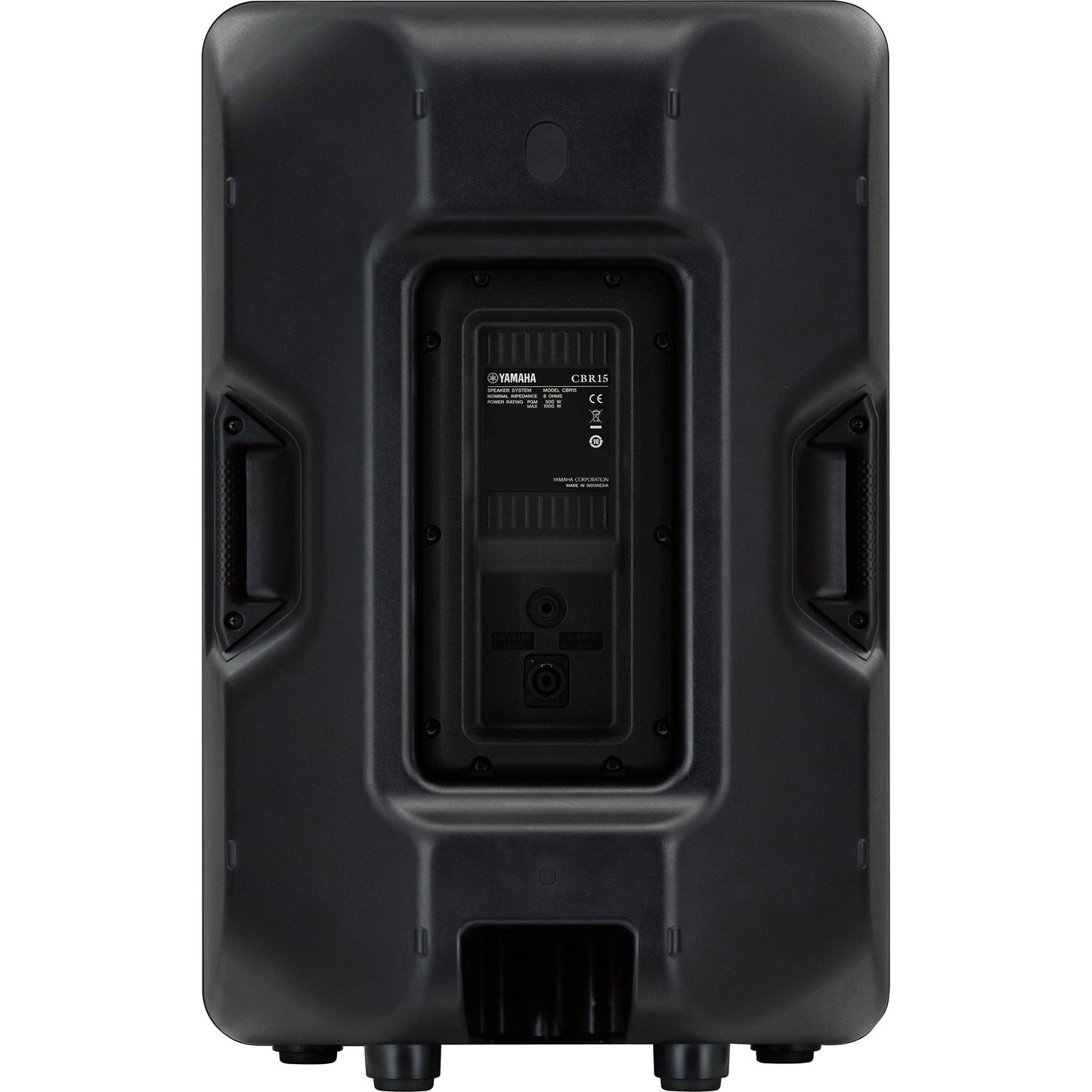

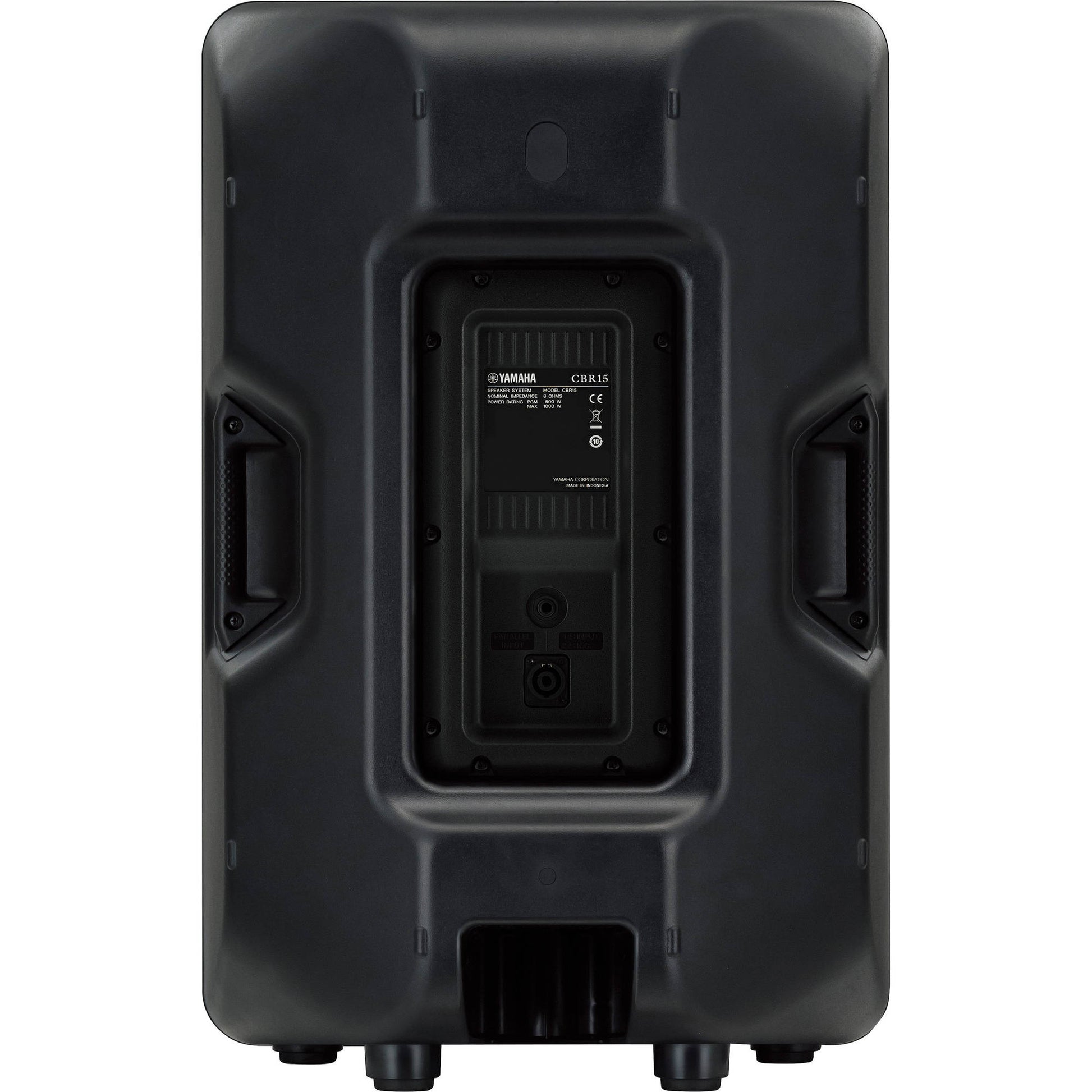

Connectivity |
|
|
Audio I/O |
1x speakON NL4 Input |
|
Physical |
|
|
Color |
Black |
|
Handles |
2x Side |
|
Construction Material |
Plastic |
|
Environmental Resistance |
No |
|
Dimensions (H × W × D) |
17.9 × 27.6 × 14.9" / 45.5 × 70 × 37.8 cm |
|
Weight |
39 lb / 17.7 kg |
|
Packaging Info |
|
|
Package Weight |
49.2 lb |
|
Box Dimensions (L × W × H) |
31 × 21 × 18.5" |
YAMAHA CBR15 Accessories
- No accessories available.
