Key Specifications

Drivers

Eight 50 mm (2 in) Full-Range

Performance

• Frequency Range (-10dB): 80 Hz – 20 kHz
• Frequency Response (±3 dB): 80 Hz – 20 kHz (music mode)
• Coverage Angle: Vertical 20° (1.5 kHz - 16 kHz, ±10°); Horizontal 150° (ave, 1 kHz – 4 kHz, ±20°)
• Sensitivity: 93 dB (speech mode, 2 kHz - 14 kHz); 89 dB (music mode, 300 Hz - 18 kHz)
• Maximum SPL (1m): Speech mode: 115 dB cont ave (121 peak); Music mode: 111 dB cont ave (117 peak)

Power & Impedance

• Power Rating: 150W (600W peak), 2 hrs; 100 W (400W peak), 100 hrs
• Impedance: 8 ohms
• Transformer Taps: 60W, 30W, 15W, (7.5W at 70V only), and 8Ω thru, via switch

Physical

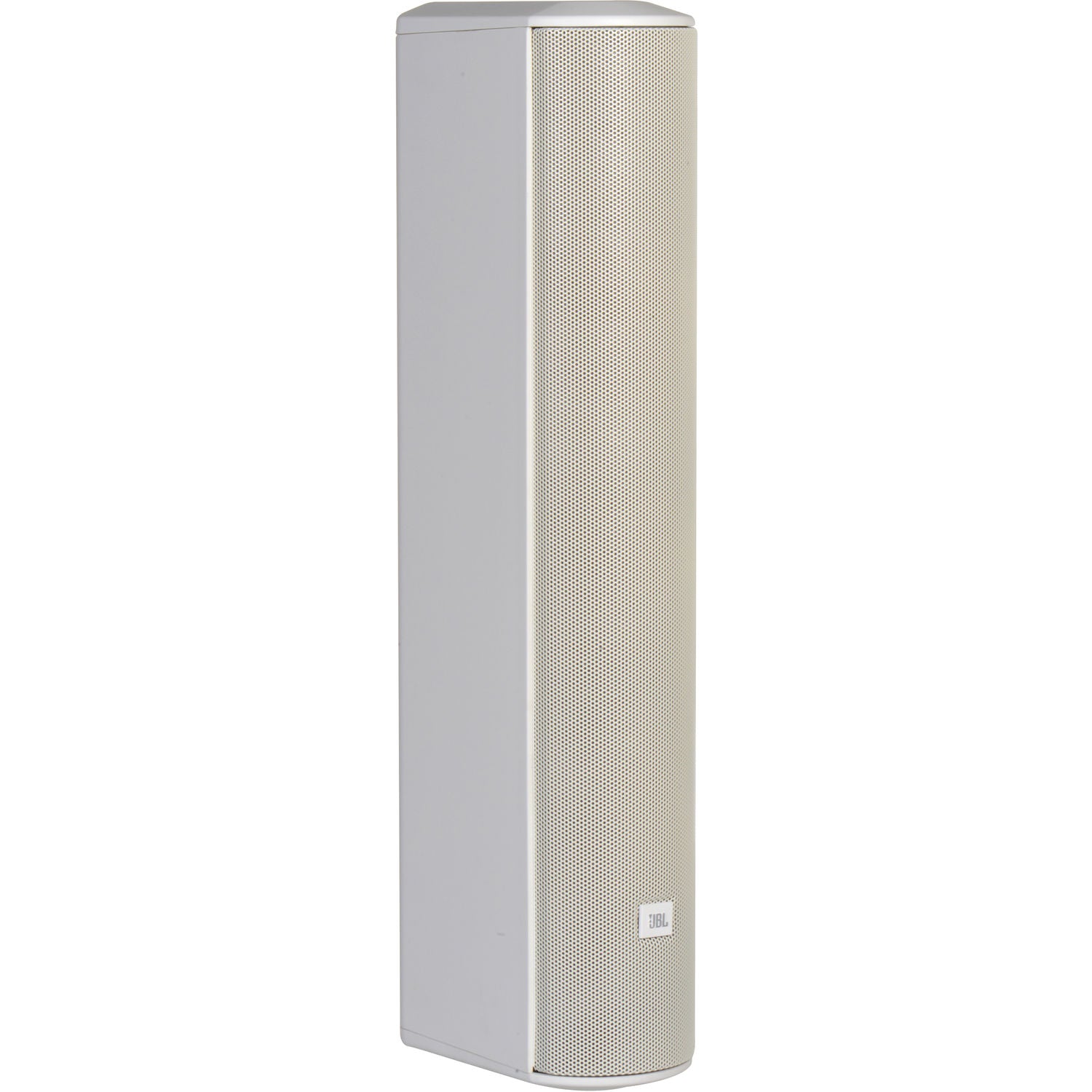

• Enclosure: Fiberglass reinforced ABS cabinet, painted aluminum grille
• Outdoor Capability: IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.
• Color: Black or White (-WH)

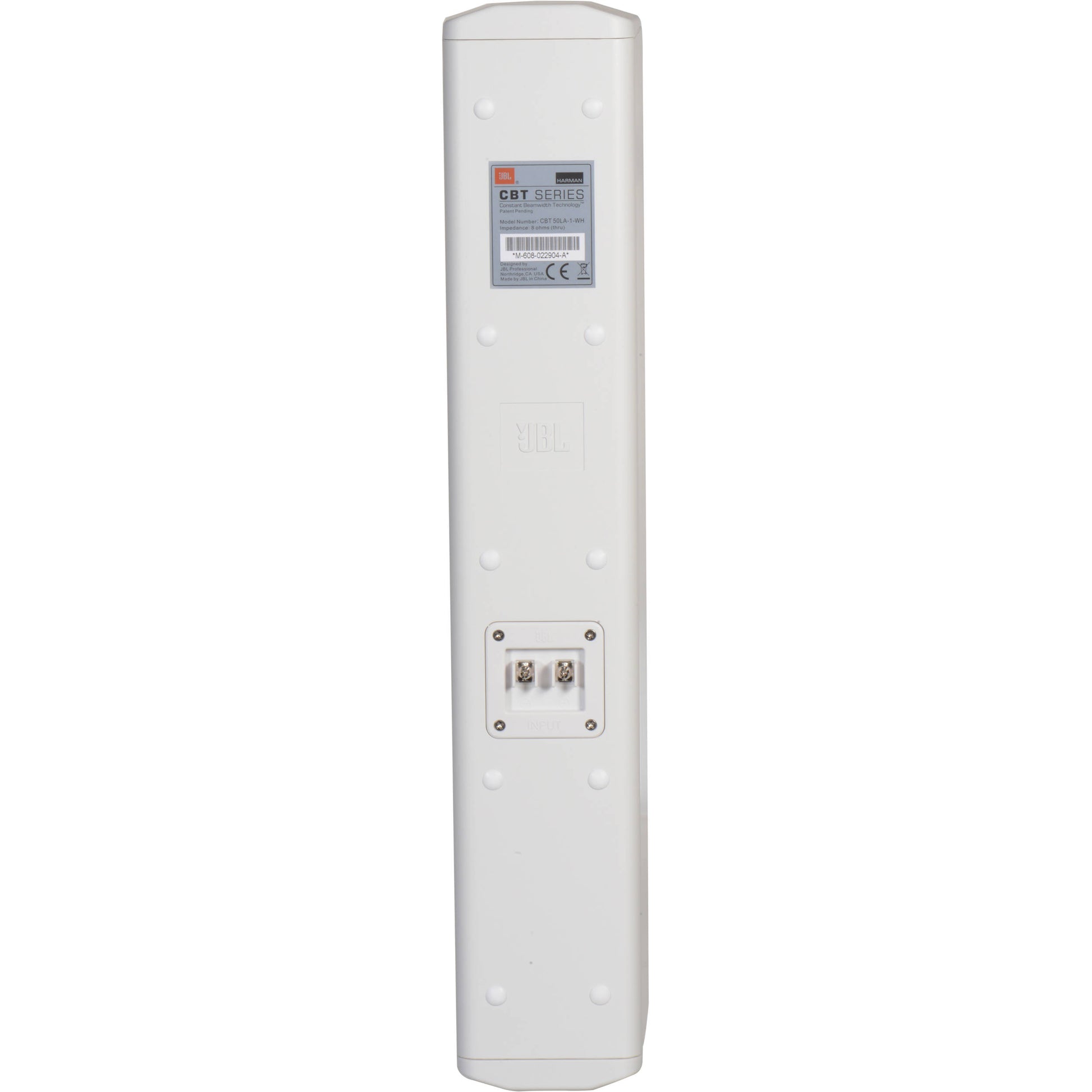

• Insert Points: Ten M6 insert points on back panel.
• Mounting: Included swivel (pan) / tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming, continuously adjustable ±15 degree tilt. Ten threaded mounting points located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount® 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.
• Dimensions (H x W x D): 528 x 99 x 153 mm (20.8 x 3.9 x 6.0 in)
• Net Weight: 4.1 kg (9.0 lb)

Accessories

• Included: Swivel (pan) / tilt wall bracket
• Optional: MTC-PC2 terminal panel cover, MTC-CBT-FM1 flush-mount low-profile wall-mount bracket, MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm speaker stand
