Key Specifications

Speaker

• Speaker Type: Passive Column Array
• Configuration: 2-Way
• Enclosure Type: Sealed
• Total Passive Power Handling: 350 W / 1400 W Peak (100 Hours), 500 W / 2000 W Peak (2 Hours)
• Nominal Impedance: 8 Ohms
• Constant Voltage / Transformer Taps: No

Drivers

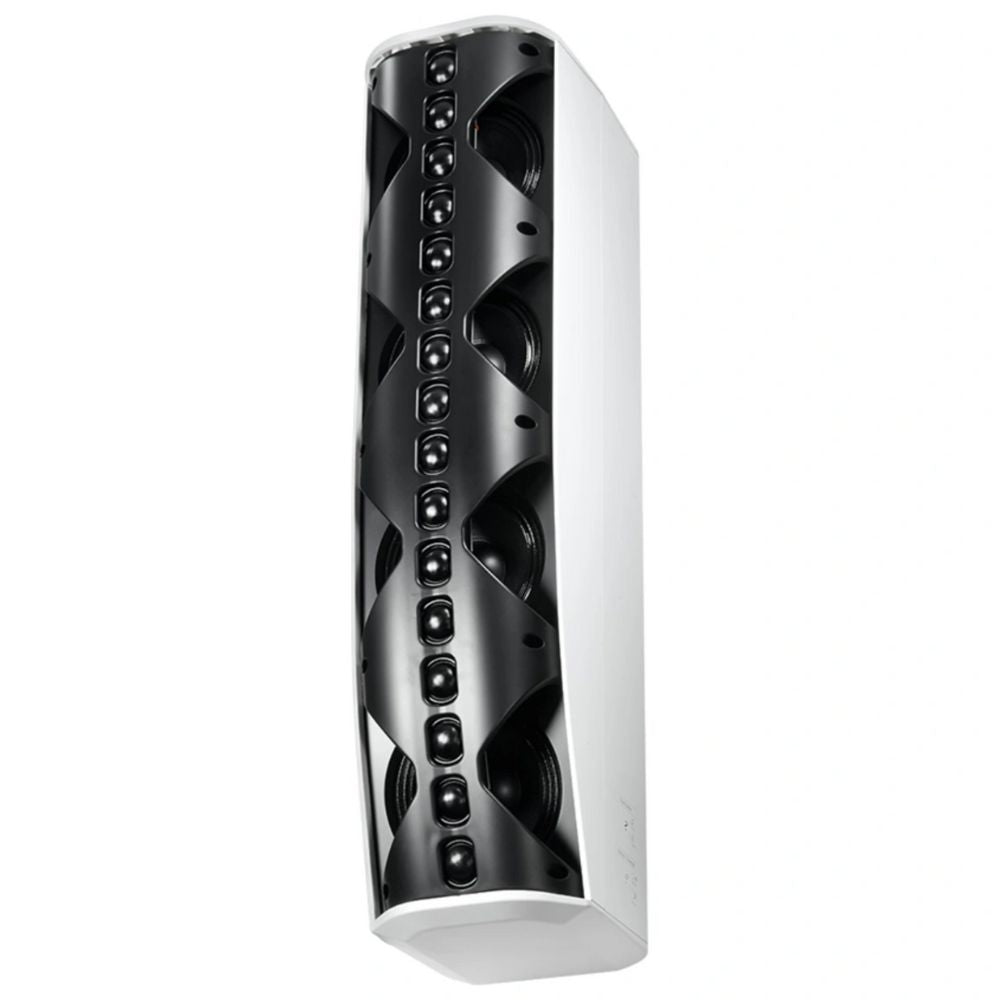

• LF Driver: 4x 5" / 12.7 cm Cone, Voice Coil: 1.5" / 38.1 mm, Magnet: Neodymium
• HF Driver: 16x 1" / 25.4 mm Tweeter, Voice Coil: 0.6" / 16 mm, Magnet: Neodymium

Performance

• Frequency Range/Response: 60 Hz to 20 kHz (-10 dB)
• Maximum SPL: 131 dB (Narrow, Peak, Speech EQ), 125 dB (Continuous, Narrow, Speech EQ), 126 dB (Music EQ, Narrow, Peak), 120 dB (Continuous, Music EQ, Narrow), 129 dB (Broad, Peak, Speech EQ), 123 dB (Broad, Continuous, Speech EQ), 125 dB (Broad, Music EQ, Peak), 119 dB (Broad, Continuous, Music EQ)
• Speaker Sensitivity: 98 dB (Narrow, Speech EQ), 93 dB (Narrow, Music EQ), 96 dB (Broad, Speech EQ), 92 dB (Broad, Music EQ)
• Coverage Angle: 150° H x 25° V at 500 Hz (Narrow), 150° H x 45° V at 500 Hz (Broad)
• Protections: Overload

Signal Processing

• EQ & Filters: No

Connectivity

• Audio I/O: 2x Push Terminal Input

Physical

• Color: White
• Mounting: 10 x M6 Bracket Point (Rear)
• Handles: No
• Construction Material: ABS, Fiberglass
• Environmental Resistance: No
• Dimensions: 54.6 x 6.7 x 9.3" / 1388 x 170 x 237 mm
• Weight: 45 lb / 20.4 kg

Packaging Info

• Package Weight: 31.8 lb
• Box Dimensions (L x W x H): 36.5 x 13.5 x 12.8"
