Key Specifications

Speaker Type

Active Line Array Loudspeaker

Configuration

2-Way

Total Output Power

250 W RMS / 500 W Program / 1000 W Peak

LF Driver

1 x 10" / 25.4 cm Woofer
Voice Coil: 2.5" / 63.5 mm

HF Driver

6 x 2" / 50.8 mm Tweeters

Enclosure Type

Bass-Reflex

Amplifier Class

Class-D

Drivers

LF Driver

1 x 10" / 25.4 cm Woofer
Voice Coil: 2.5" / 63.5 mm

HF Driver

6 x 2" / 50.8 mm Tweeters

Performance

Coverage Angle

120° H x 15° V

Protections

DC Fault
Overcurrent
Overvoltage
Thermal
Undervoltage

Signal Processing

Crossover Frequency

420 Hz

EQ & Filters

No

Dynamic Processing

Compression
HF Limiter
Limiter

Alignment Delay

No

Digital Signal Processing

No

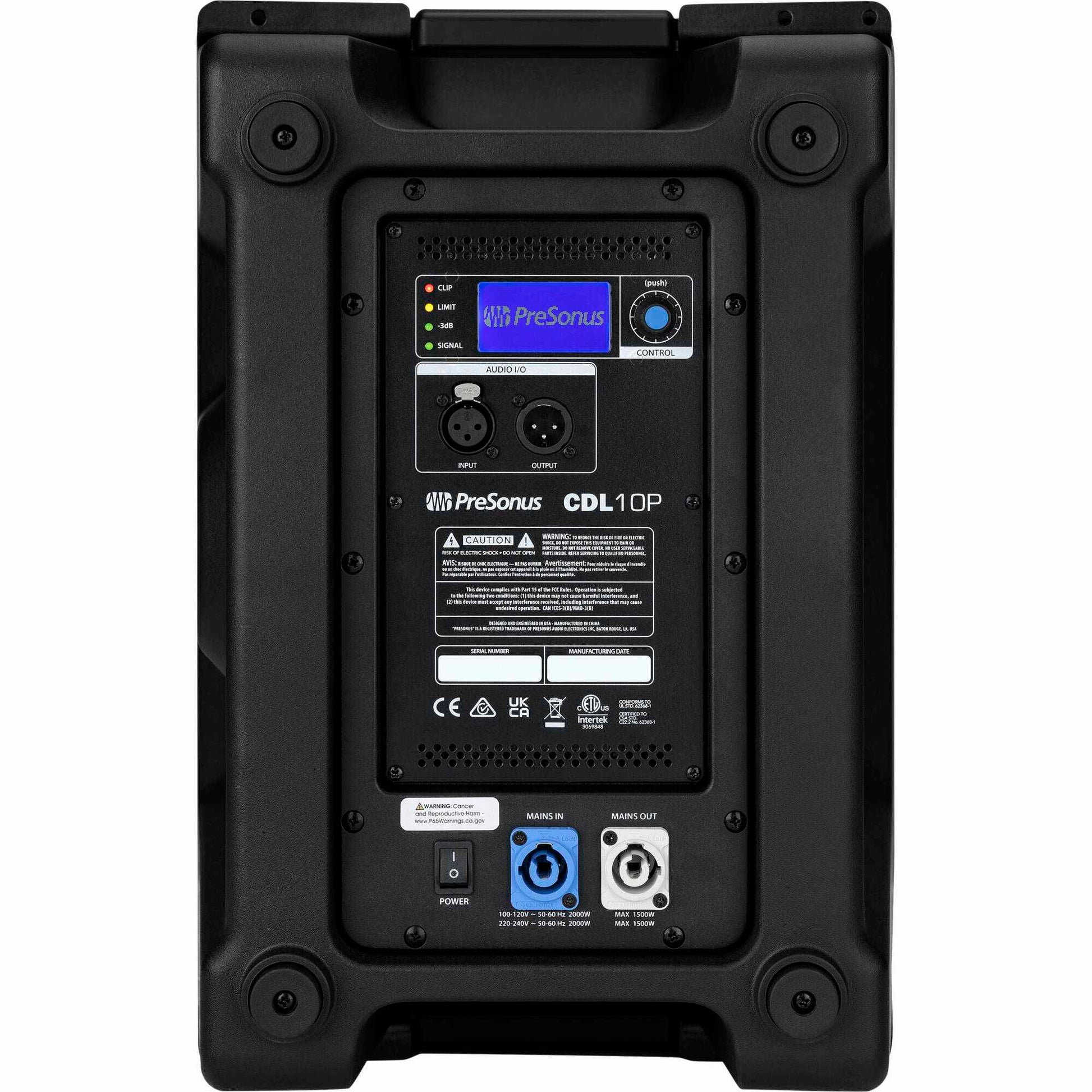

Connectivity

Audio I/O

1 x XLR 3-Pin Line Input
1 x XLR 3-Pin Output

Network I/O

No

USB I/O

No

Wireless

No

Mobile App Compatible

No

Power

AC Input Power

90 to 260 VAC, 50 / 60 Hz

AC Power I/O

1 x powerCON Input
1 x powerCON Output

Physical

Color

Black

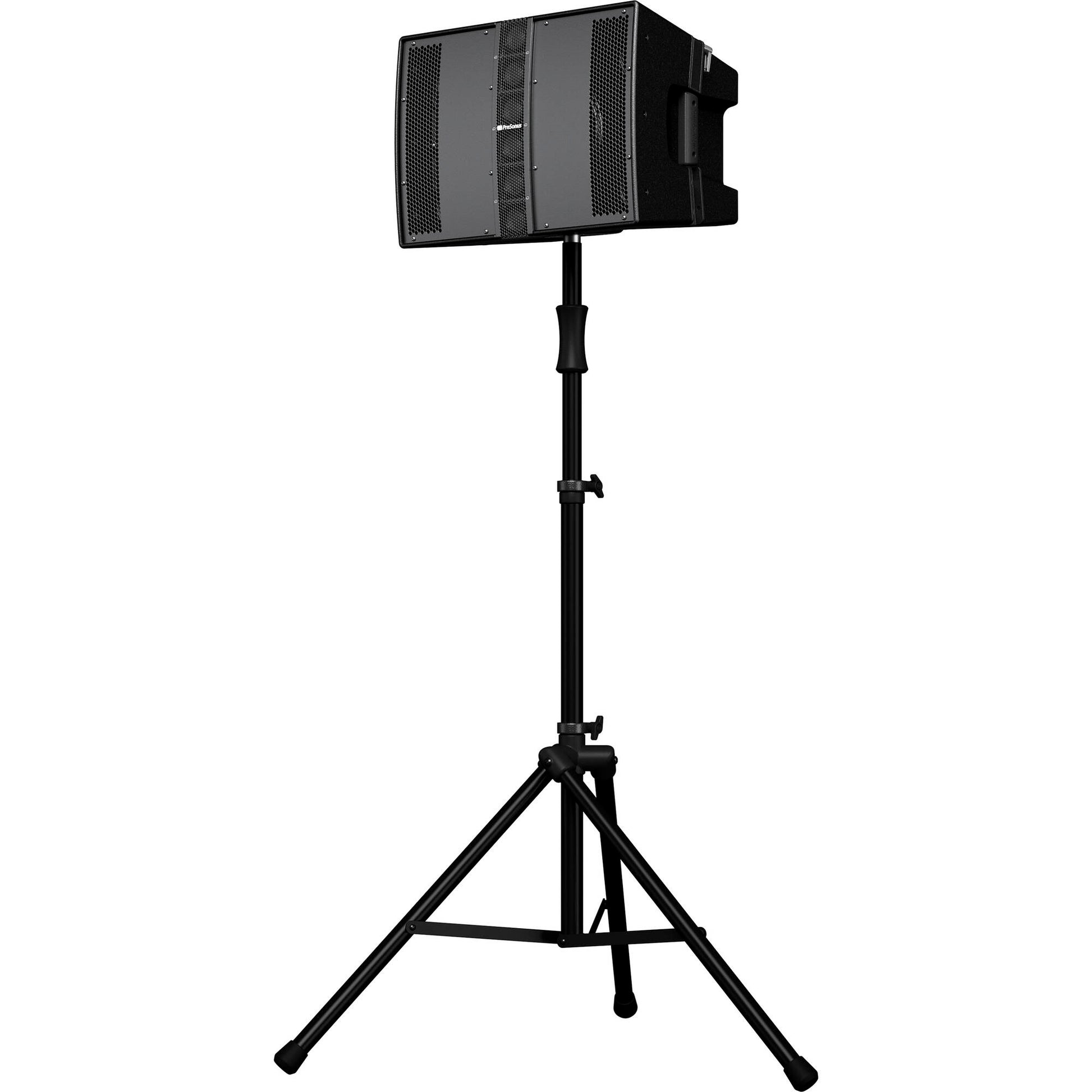

Mounting

Stand Mount
1 x 1.38" / 35 mm Dual-Angle Pole Socket

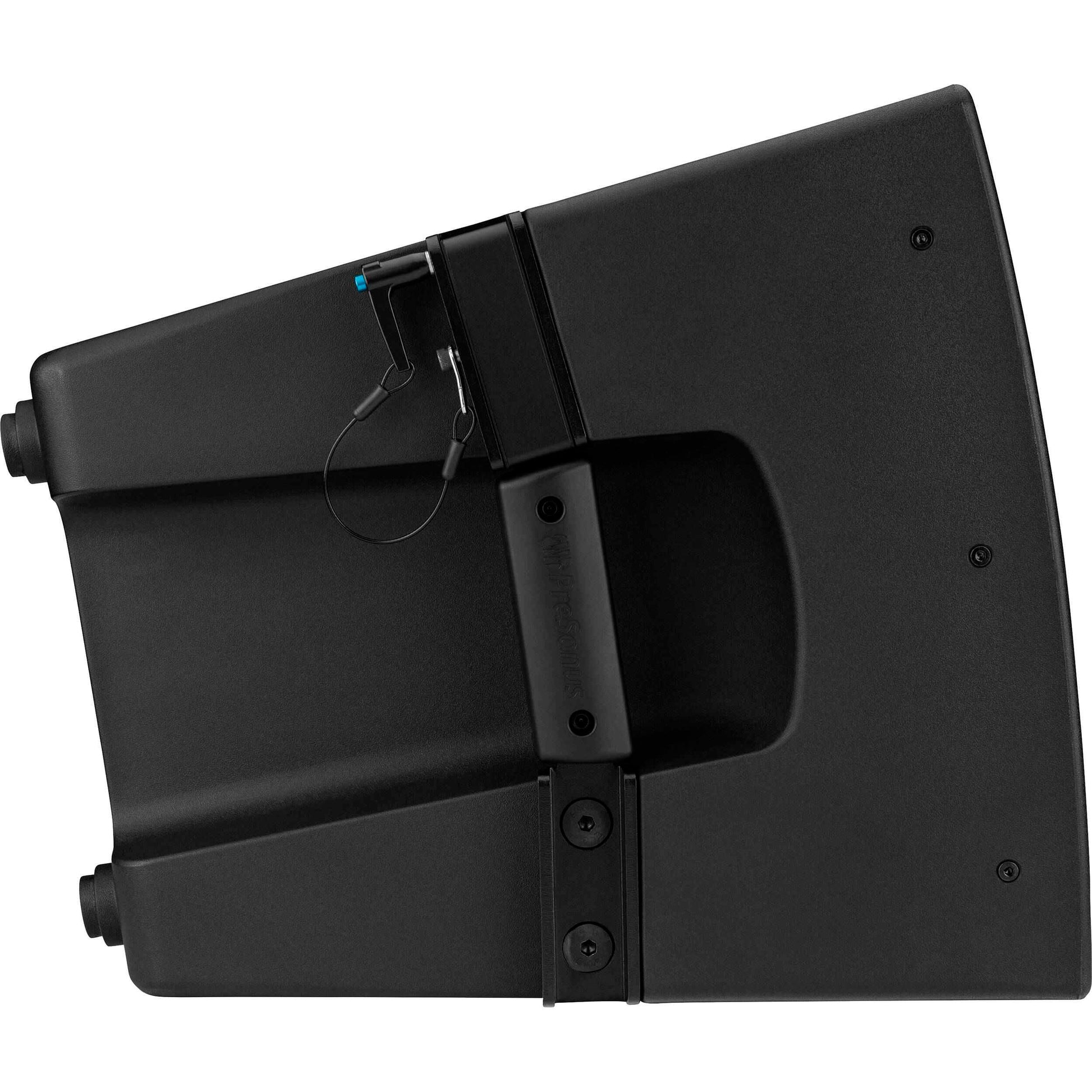

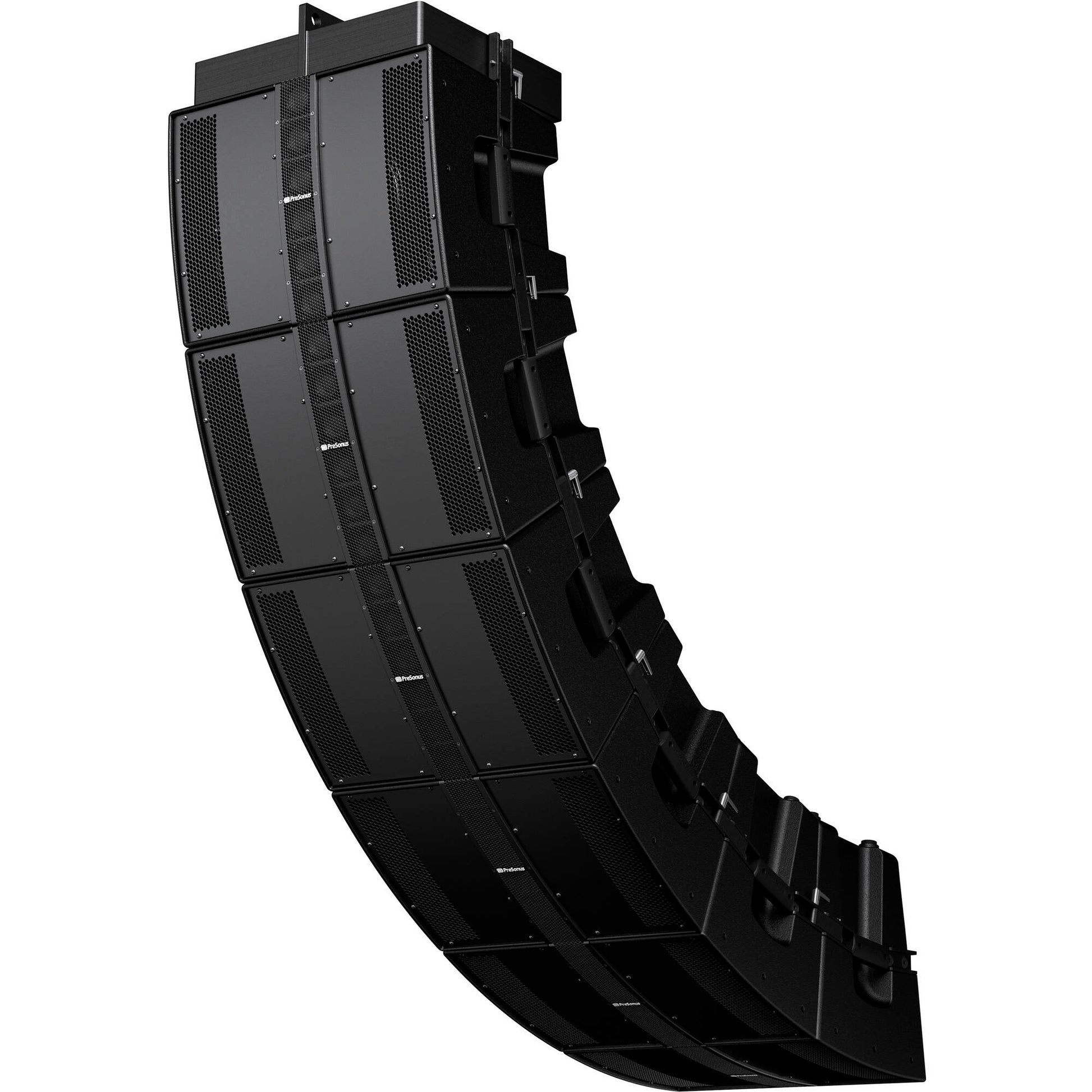

Suspension Points

Integrated Rigging

Construction Material

Metal Grille, Polypropylene

Environmental Resistance

No

Dimensions (W x H x D)

19.6 x 16.1 x 14.3" / 49.8 x 40.9 x 36.3 cm

Weight

46.8 lb / 21.2 kg

Packaging Info

Package Weight

56 lb

Box Dimensions (L x W x H)

23 x 19.38 x 18.5"
