Key Specifications

Speaker Type

Active Loudspeaker

Configuration

2-Way

Total Output Power

500 W RMS / 1000 W Program / 2000 W Peak

Drivers

LF Driver

1 x 12" / 30.5 cm Woofer
Voice Coil: 2.5" / 63.5 mm

HF Driver

8 x 2" / 50.8 mm Tweeter
Voice Coil: 1" / 25.4 mm

Performance

Frequency Range / Response

42 Hz to 19 kHz (-10 dB)
48 Hz to 18 kHz (-3 dB)

Maximum SPL

130 dB

Coverage Angle

120° H x 15° V

Protections

DC Fault, Overcurrent, Overvoltage, Thermal, Undervoltage

Signal Processing

Crossover Frequency

420 Hz

EQ & Filters

8-Band EQ, High-Pass Filter

Dynamic Processing

Compression, HF Limiter, Limiter

Alignment Delay

Up to 800 ms (880' / 268.22 m)

Connectivity

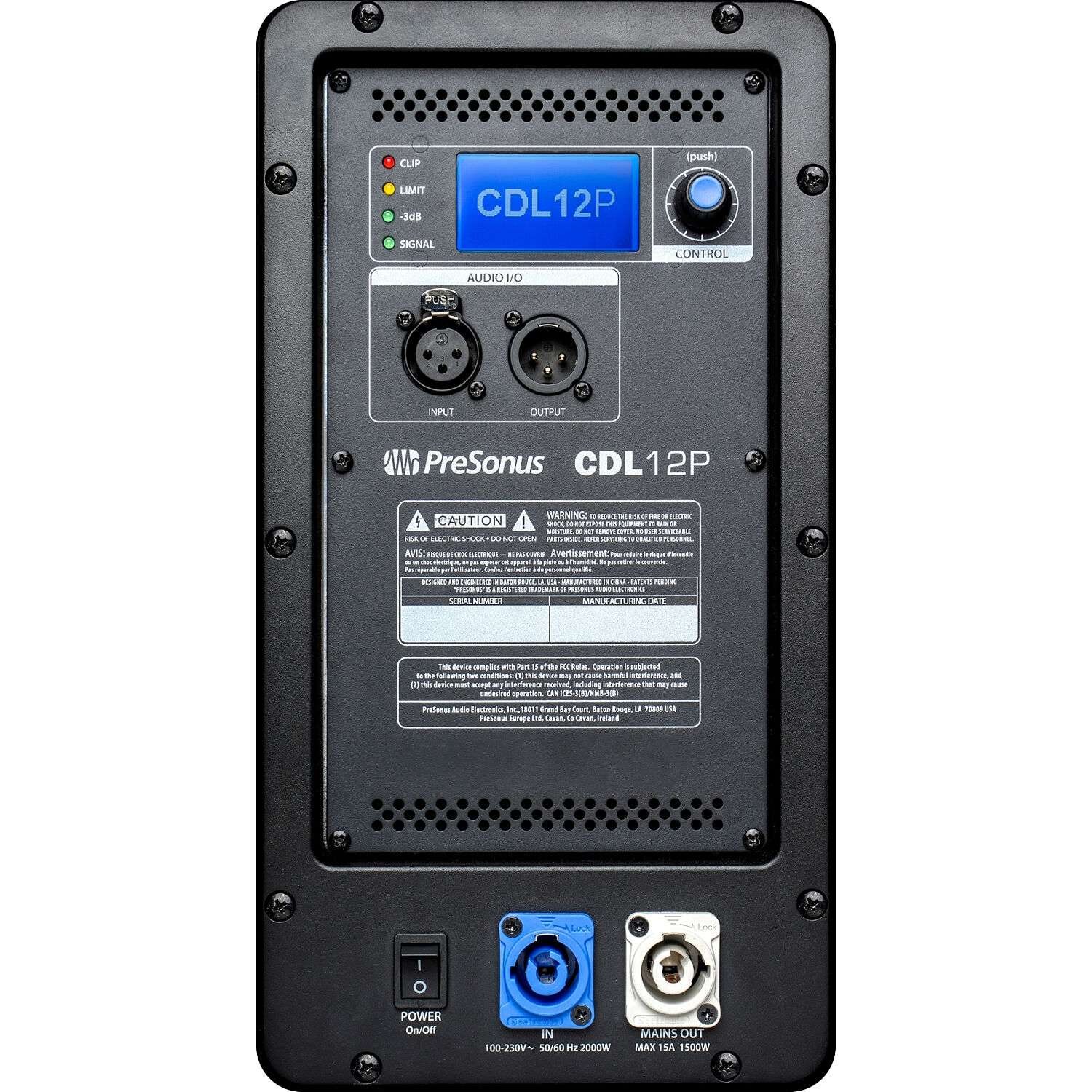

Audio I/O

1 x XLR 3-Pin Line Input
1 x XLR 3-Pin Output

Wireless

No

Mobile App Compatible

No

Power

AC Input Power

90 to 260 VAC, 50 / 60 Hz

AC Power I/O

1 x powerCON Input
1 x powerCON Output

Current Consumption

4.2 A (1/8 Power)

Physical

Color

Black

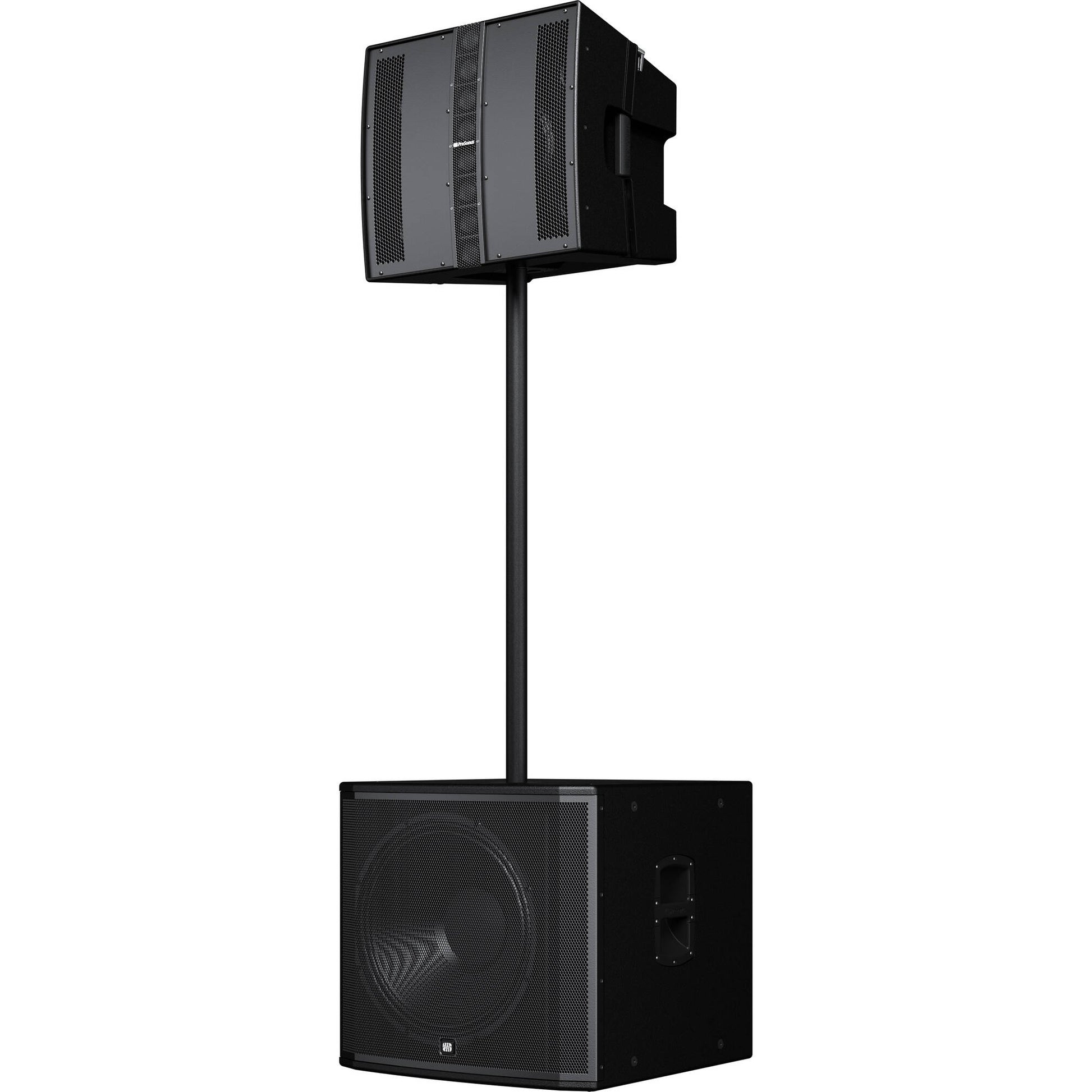

Mounting

Stand Mount
1 x 1.38" / 35 mm Pole Socket (Top)

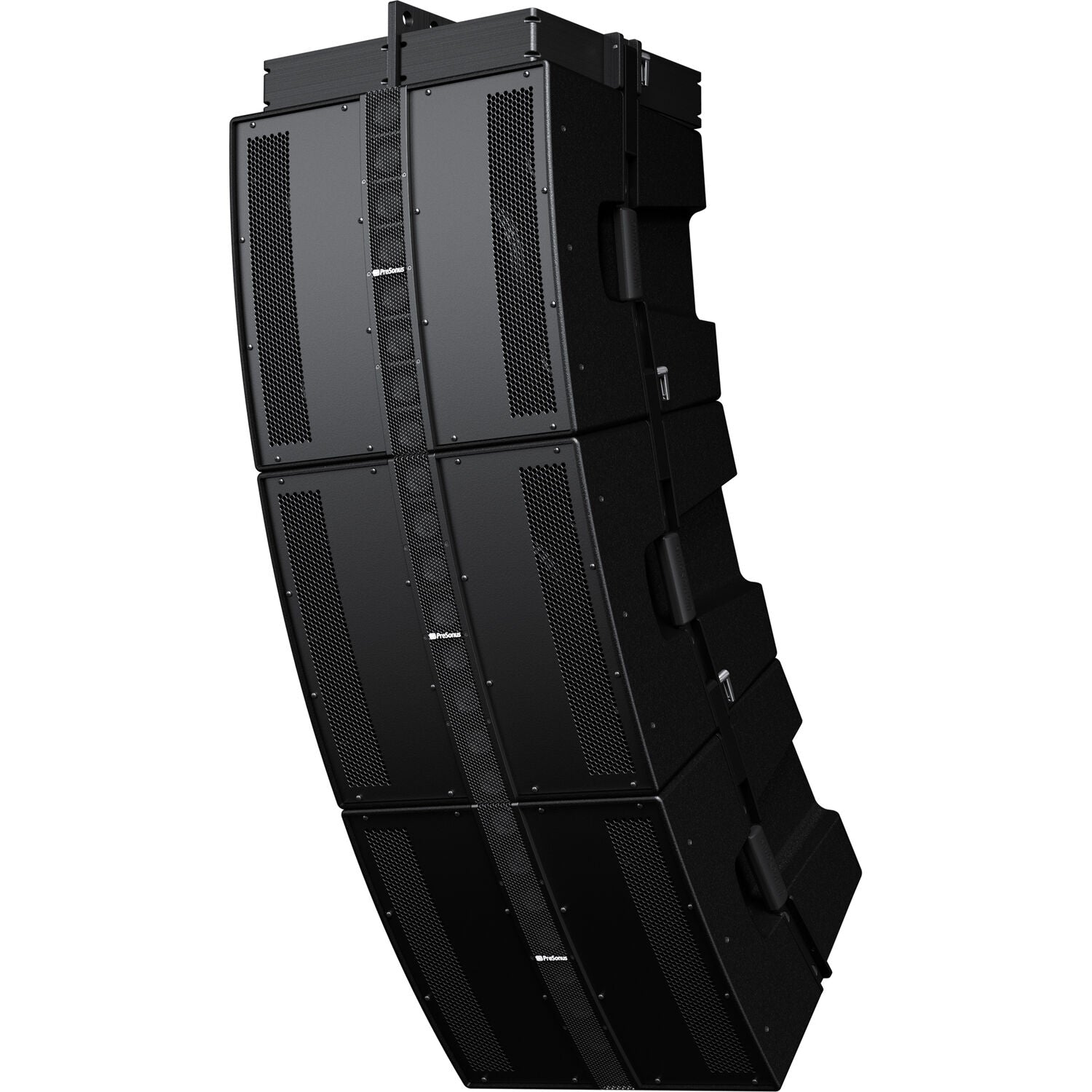

Integrated Rigging

Construction Material

Metal Grille, Polypropylene

Dimensions

18.6 x 20.8 x 17.5" / 472.4 x 528.3 x 444.5 mm

Weight

63 lb / 28.6 kg

Packaging Info

Package Weight

71 lb

Box Dimensions (L x W x H)

24 x 23 x 21.5"
