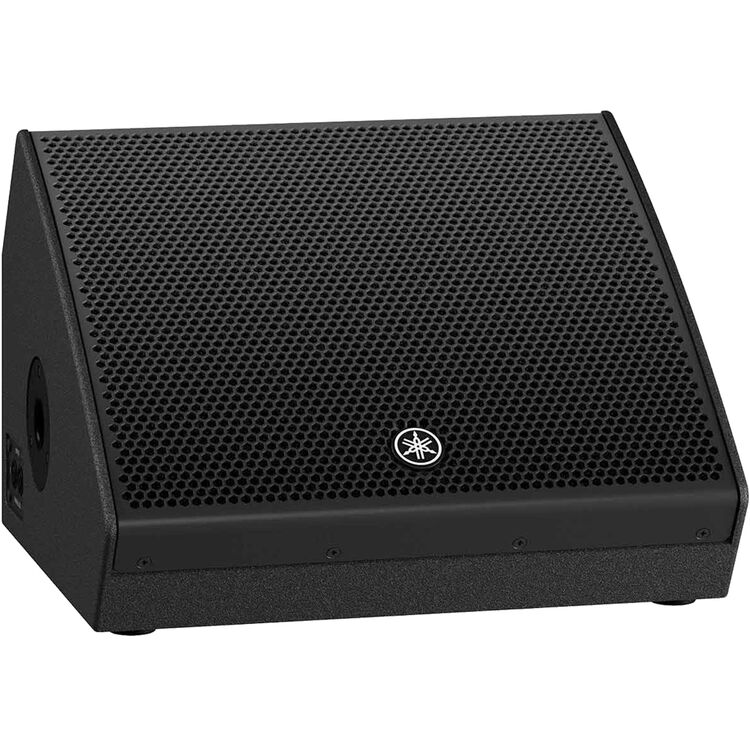

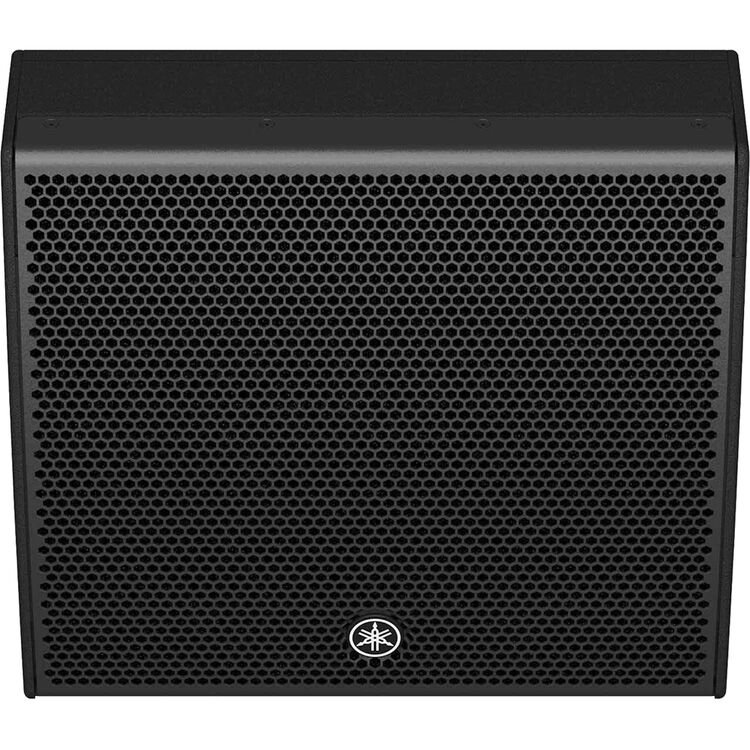

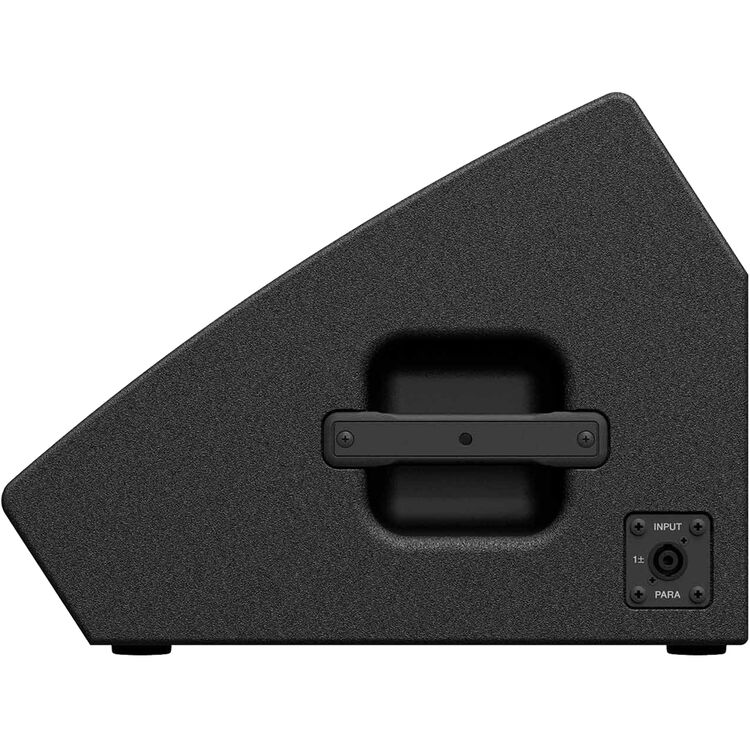

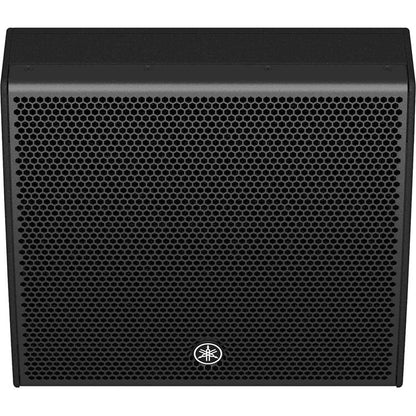

YAMAHA CHR12M
YAMAHA CHR12M
|
Key Specifications |
|
|
Speaker Type |
Passive Loudspeaker / Stage Monitor |
|
Configuration |
2-Way, Bass-Reflex |
|
Total Passive Power Handling |
250 W RMS / 500 W Program / 1000 W Peak |
|
Nominal Impedance |
8 Ohms |
|
Drivers |
|
|
LF Driver |
1x 12" / 30.5 cm Woofer |
|
HF Driver |
1x 1.75" / 44.45 mm Horn-Loaded Compression Driver |
|
Performance |
|
|
Frequency Range / Response |
61 Hz – 20 kHz (-10 dB) |
|
Maximum SPL |
123 dB |
|
Coverage Angle |
90° H × 90° V |
|
Crossover Frequency |
1500 Hz |
|
EQ & Filters |
No |
|
Connectivity |
|
|
Audio I/O |
3x speakON NL4 Thru / Output / Input |
|
Physical |
|
|
Color |
Black |
|
Mounting |
1 × 1.38" / 35 mm Pole Socket (Bottom) |
|
Handles |
1x Side |
|
Construction Material |
Perforated Metal Grille, Plywood, Polyurethane |
|
Environmental Resistance |
No |
|
Dimensions (H × W × D) |
19.7 × 17.9 × 13.5" / 500.4 × 454.7 × 342.9 mm |
|
Weight |
34.4 lb / 15.6 kg |
|
Packaging Info |
|
|
Package Weight |
47.15 lb |
|
Box Dimensions (L × W × H) |
22 × 21.5 × 18" |
YAMAHA CHR12M Accessories
- No accessories available.
