Key Specifications

Family

Contractor Series 240V

Line Voltage

240 Volts

AC Voltage Input Range

180–270 VAC, 50 / 60 Hz

AC Cord

1.5 mm² × 3, 2.5 m long, black, IEC C19 (female) to Schuko CEE 7/7 (male)

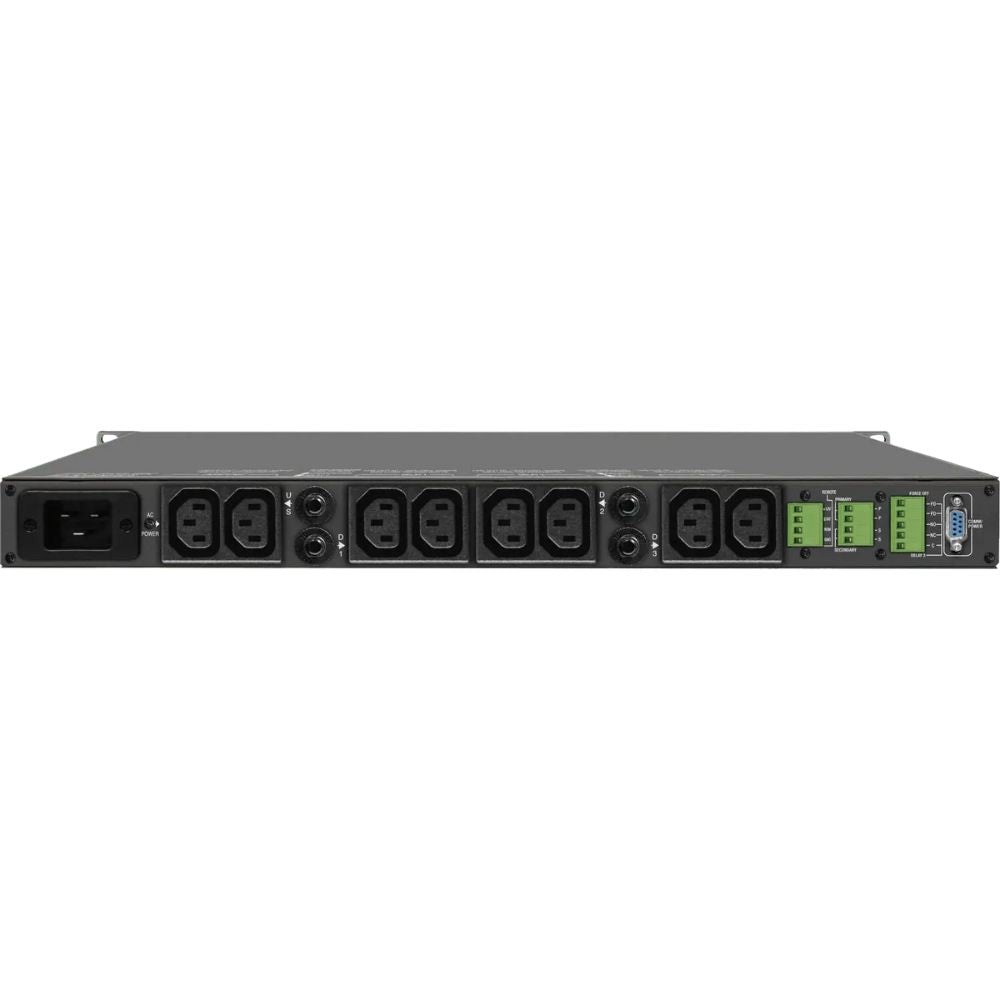

Rear Panel Outlets

1 × IEC C13 pair (Unswitched)
3 × IEC C13 pairs (Sequenced, each pair controlled by separate relay)

Front Panel Outlet

1 × IEC C13 (Unswitched)

Surge / Under-Overvoltage Protection

AC Surge Protection, Series Multi-Stage Protection (SMP)

Spike Protection Mode

Line to Neutral, Zero Ground Leakage

Spike Clamping Voltage

375 V peak @ 6,000 V / 3,000 A

Response Time

1 nanosecond

Maximum Surge Current

6,500 A

AC Undervoltage Protection

EVS, 175 VAC ±3 VAC

AC Overvoltage Protection

EVS, 275 VAC ±5 VAC

AC Overvoltage Reset Modes

Manual and Auto-reset (Configurable)

AC Filtering

LiFT

Noise Attenuation

Linear: 10 dB @ 10 kHz, 40 dB @ 100 kHz, 50 dB @ 500 kHz

Operating Temperature Range

5 °C (40 °F) to 40 °C (105 °F)

Humidity Range

< 90% RH (Relative Humidity)

Keyswitch

Front panel, 3-position (On / Off / Remote)

Keys

Included, 1 pair

Pushbutton Switch

Front panel, hidden by security cover

Circuit Breaker

Front panel pushbutton, 20 A thermal breaker

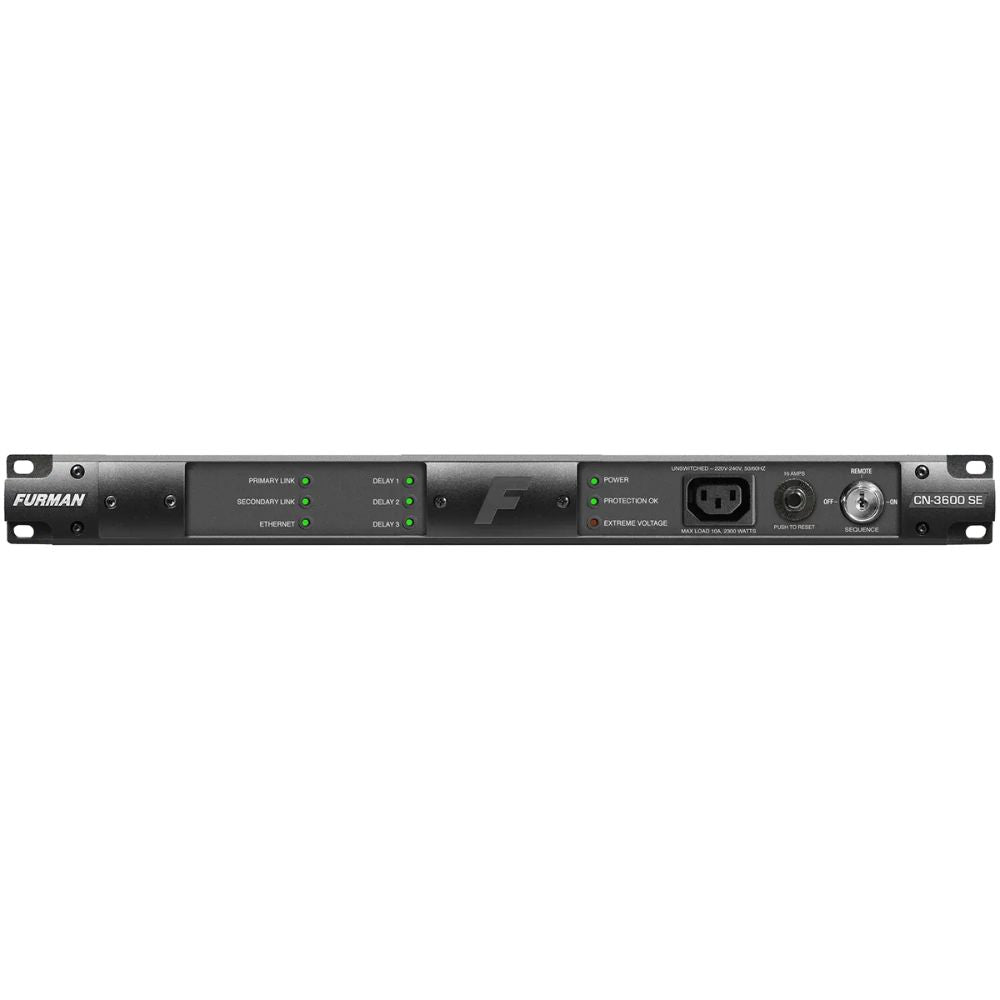

Front Panel Diagnostic Indicators

Primary Link, Secondary Link, Ethernet, Remote Off,
Delay 1, Delay 2, Delay 3, Power, Protection OK,
Extreme Voltage

Front Panel DIP Switches

1 / 2 / 4 Minute Delay, Force Off NO/NC,
12V Mode On/Off, BND Mode On,
Momentary/Maintained, Primary/Secondary,
EVS Reset Auto/Manual

Potentiometer

Front panel, hidden by security cover, fine-tune delay adjustment

Control / Status / Triggering (Rear Panel)

Remote Terminal +5–30 VDC In, 12 VDC (12 mA) Out

SmartSequencing

Phoenix 4-pin connector, screw terminals, Primary & Secondary links (current loop – 1000 ft nominal)

Remote Terminal

Phoenix 4-pin connector with screw terminals (+12V, STAT, REM, GND) – Class 2 wiring

Force Off / Delay 3 Terminal

Phoenix 5-pin connector with screw terminals (FORCE OFF, DELAY 3) – Class 2 wiring

RS-232 Compatible

Yes, DB-9 connector

Voltmeter

Available via RS-232, ±2 VAC accuracy

Ammeter

Available via RS-232, ±1 A accuracy

Power Consumption (No Load)

10 W

Safety Agency

NRTL-C, RoHS Compliant

UPC

654061028499

Proposition 65 Warning

WARNING: Cancer and Reproductive Harm – https://www.P65Warnings.ca.gov
