Key Specifications

Product / Accessory Type

Bass Amplifier Head

Channel Configuration

Single Channel

Acoustic & Electrical Specifications

Amplifier Output Power

600 W Continuous / 1200 W Peak Power Output

Minimum Load Impedance

4 Ohms Minimum Load

Tone Control & Equalization

4-Band Active Equalizer (Bass, Low Mid, High Mid, Treble) with Overdrive Control

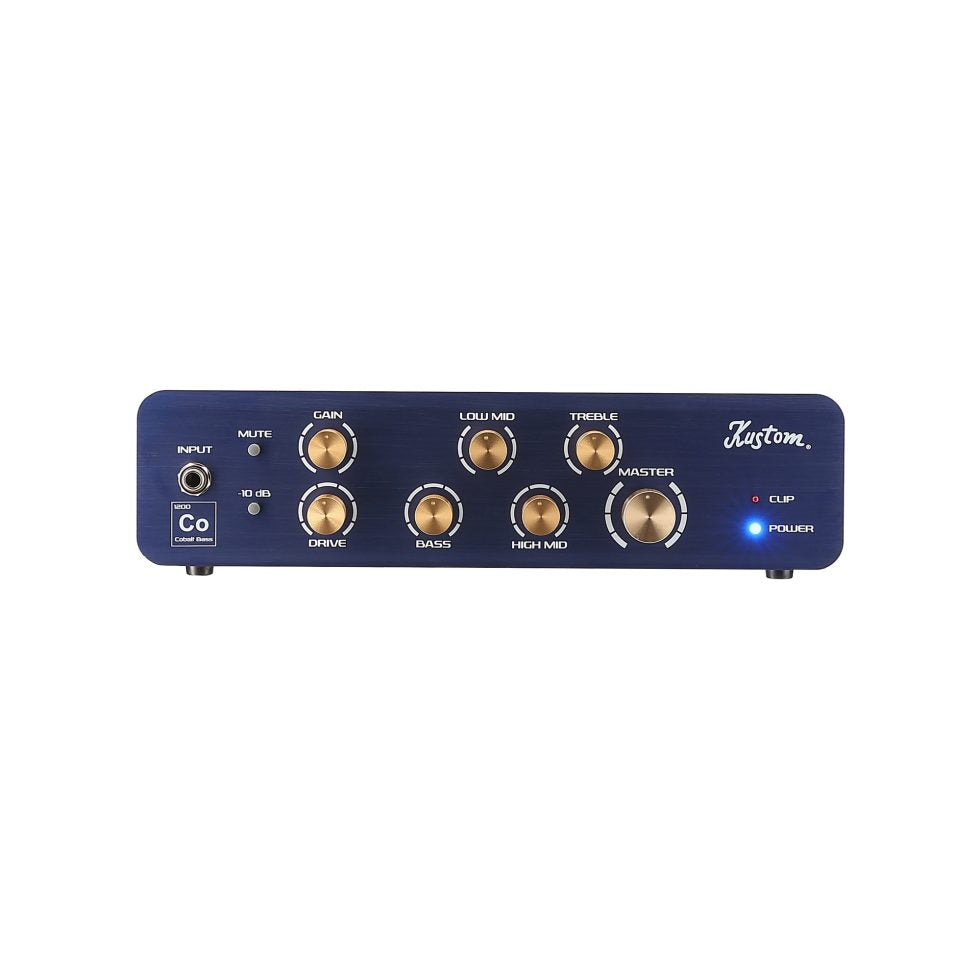

Front Panel Controls & Switches

Gain, Drive, Bass, Low Mid, High Mid, Treble, Master Volume, Mute Switch, -10 dB Input Pad Attenuation Switch

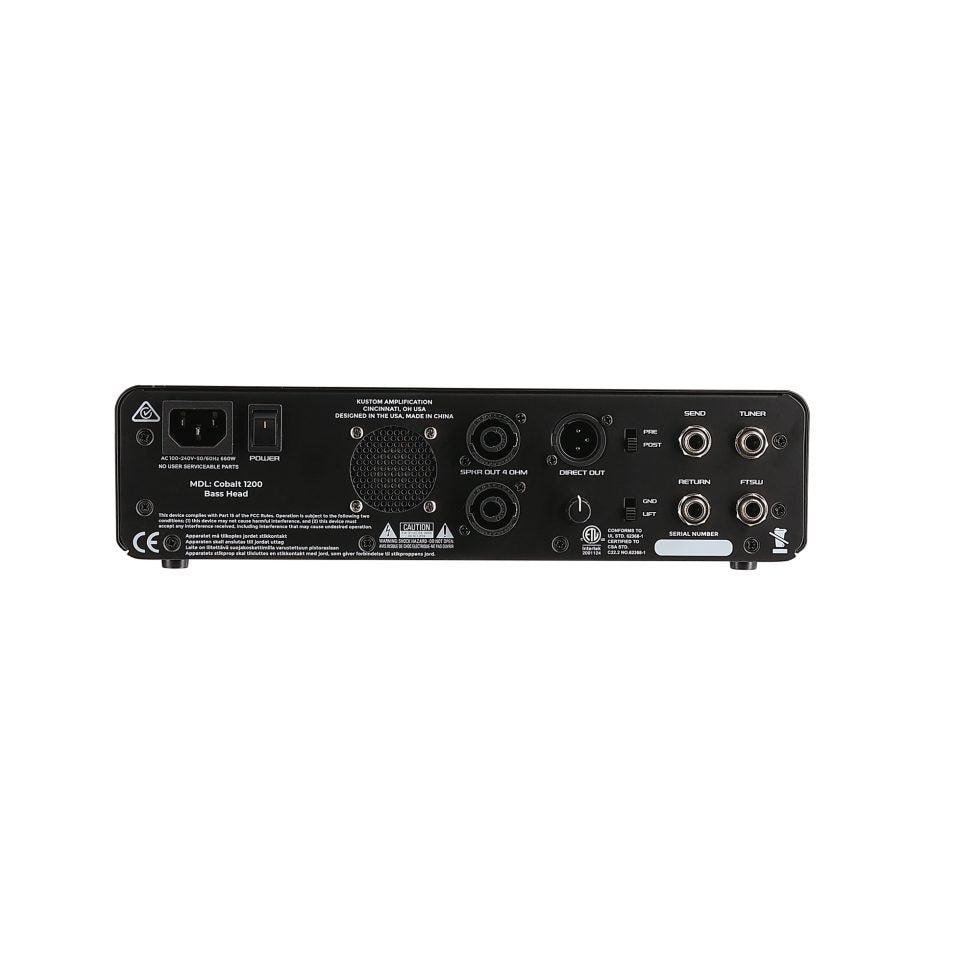

Connectivity & Expansion Specifications

Instrument Inputs

1/4" Instrument Input with -10 dB Pad Switch

Direct Line Output Interface

XLR Direct Output (DI Out) with Dedicated Level Control, Pre/Post-EQ Switch & Ground Lift Switch

Loudspeaker & Auxiliary Outputs

2x Speaker Output Jacks (4-Ohm Min), Dedicated Tuner Line Output

Effects & Footswitch Routing

Effects Loop Send / Return, Remote Footswitch Jack (Mute Function)
