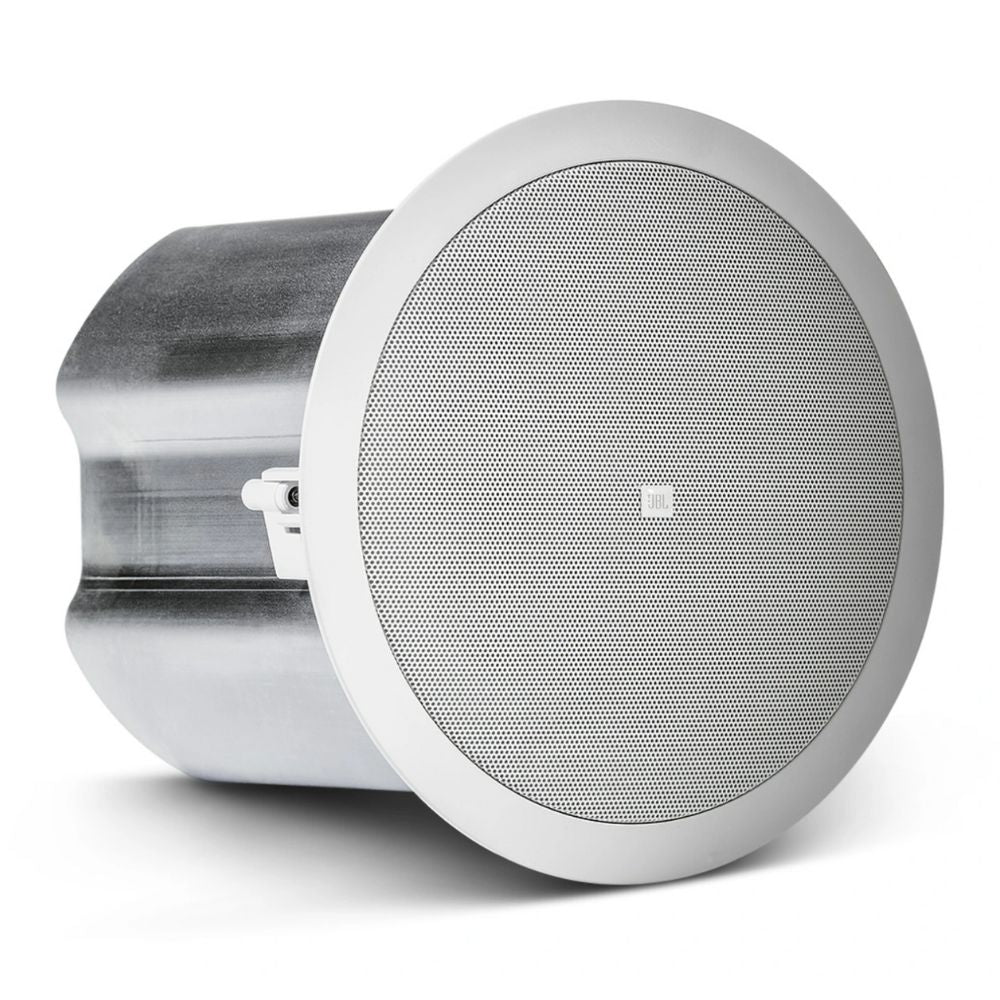

Key Specifications

Frequency Range

62 Hz to 20 kHz at -10 dB

Frequency Response

96 Hz to 15 kHz at ±3 dB

Power Capacity

• At Lo-Z: 100 W continuous program power, 50 W continuous pink noise
• Note: Continuous Pink Noise Rating is IEC-shaped pink noise with a 6 dB crest factor for 100 hours continuously. Continuous Program Power is a conservative expression of the system's ability to handle normal speech and music program material, and is defined as 3 dB above the Continuous Pink Noise Rating.

Nominal Sensitivity

91 dB

Nominal Coverage Angle

110° conical coverage

Directivity

• Directivity Factor (Q): 7.8
• Directivity Index (DI): 8.2 dB

Maximum SPL

Rated: 108 dB @ 3.3' / 1.0 m average, 116 dB peak

Nominal Impedance

8 Ohms (in direct/bypass 8-Ohm setting)

Transformer Taps

30 W, 15 W, 7.5 W @ 70 or 100 V (plus 3.8 W @ 70 V only)

Crossover Network

12 dB/oct (2nd order) low-pass to LF driver, 12 dB/oct (2nd order) high-pass to HF driver

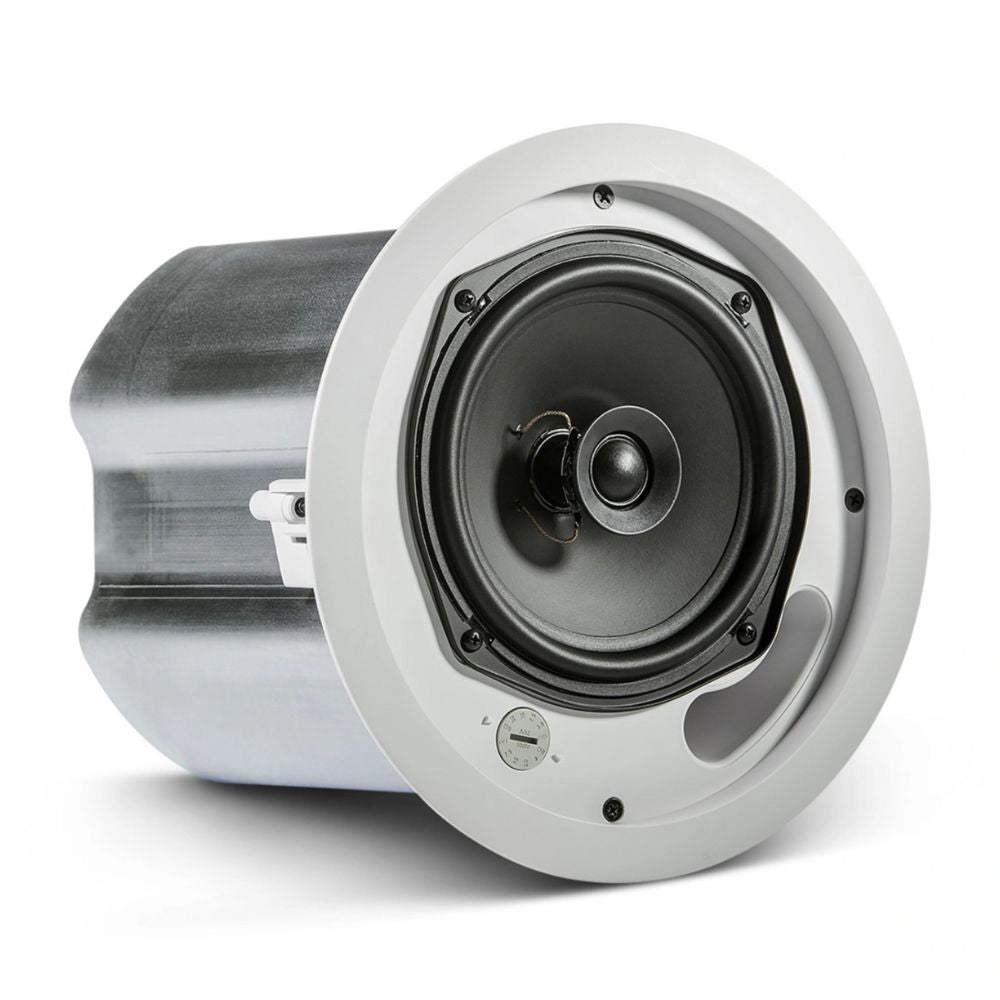

Transducer

• LF Driver: 6.5" / 165.1 mm with polypropylene cone, butyl rubber surround, anodized aluminum voice coil former, high-temperature voice coil
• HF Driver: 0.75" / 19.00 mm, highly damped treated-silk dome, Kapton voice coil, liquid cooling, wide dispersion waveguide

Input Connector

Removable locking 4-pin connector with screw-down terminals. Maximum wire size 12 AWG (2.5 mm2)

Wiring Connector

• Pin 1 = + In
• Pin 2 = - In
• Pin 3 = + Loop Thru
• Pin 4 = - Loop Thru

Strain Relief

For 2 cables or 2 flex conduits via coupled clamping mechanism

Materials

• ABS baffle with UL94-V0 and UL94-5VB flame class fire rating
• Zinc-plated steel backcan

Safety Agency Approvals

• UL1480, UL2043, NFPA90, and NFPA70; S7232/UL Listed
• Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant
• Baffle meets UL94-V0 and UL94-5VB flammability rating
• In accordance with IEC60849/EN60849 systems

Attachment

• Safety Seismic: One point, top surface

Ceiling Cutout Size

Circular cutout with 8.8" / 223.5 mm diameter (cardboard cutout template included)

Ceiling Thickness

Up to 1.5" / 38.1 mm with stock dog-ears (MTC-TCD thick-ceiling dog-ears sold separately for up to 2.4" / 60.9 mm ceiling thicknesses)

Dimensions

• Each Speaker: 10.0 x 8.8" / 253 x 225.0 mm (Depth measured from back of the baffle)

Weight

Each Speaker: 7.4 lb / 3.4 kg

Packaging Info

Package Weight

24 lb

Box Dimensions (L x W x H)

27 x 14 x 12"
