Key Specifications

Speaker

• Active/Passive: Passive
• Number of Included Speakers: 2
• Speaker Configuration: 2-Way
• Power Handling: For 100 Hours: 75 W RMS, 300 W Peak; For 2 Hours: 200 W Program, 100 W RMS, 400 W Peak

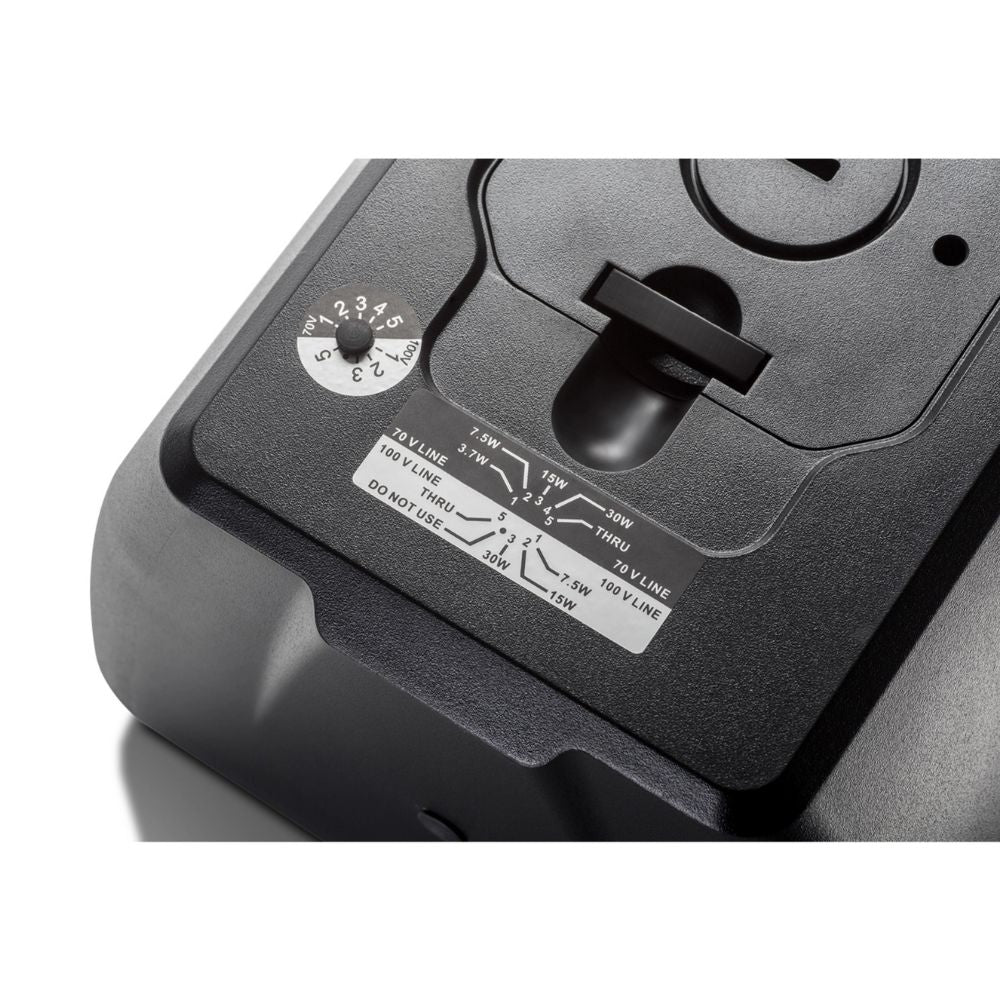

• Constant Voltage / Transformer Taps: 100 V (30 / 15 / 7.5 W or 8 Ohms Bypass); 70 V (30 / 15 / 7.5 / 3.7 W or 8 Ohms Bypass)
• Impedance: 8 Ohms (Thru Setting)

Drivers

• HF Driver: 0.75" / 19 mm PEI Tweeter
• LF Driver: 5.25" / 13.5 cm Fiberglass Woofer

Performance

• Frequency Response: 60 Hz to 20 kHz ±10 dB, 85 Hz to 17 kHz ±3 dB
• Sensitivity: 90 dB
• Coverage Angle: 100° H x 100° V
• Directivity: 6 (Directivity/Q Factor), 7.6 dB (Directivity Index)
• Crossover: 12 dB/Octave
• Recommended High-Pass Filter: 60 Hz, 24 dB/Octave
• Maximum Input Voltage: 25.3 V RMS, 50.6 V Peak
• Transformer Insertion Loss: <0.94 dB

Connectivity

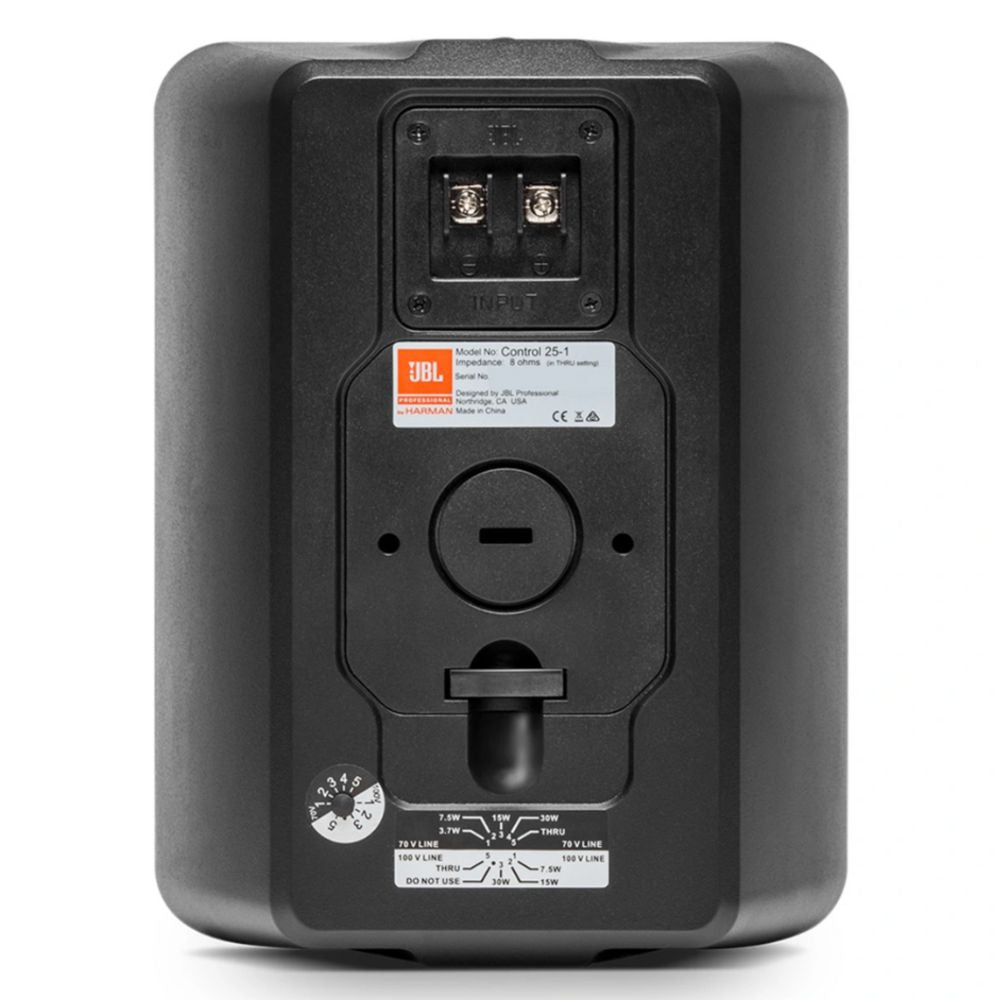

• Inputs/Outputs: Screw Terminal
• Maximum Wire Gauge: 12 AWG / 2.5 mm

Physical

• Certifications: RoHS, UL
• Environmental Resistance: Dust/Water-Resistant (IP44)
• Color: Black
• Construction Material: High-Impact Polystyrene, Metal Grille
• Dimensions: 9.6 x 7.4 x 5.7" / 243 x 188 x 145 mm
• Weight: 7.5 lb / 3.4 kg

Packaging Info

• Package Weight: 18 lb
• Box Dimensions (L x W x H): 16 x 12 x 11"
