Key Specifications

Speaker

• Active/Passive: Passive
• Number of Included Speakers: 2
• Speaker Configuration: 2-Way
• Power Handling: For 100 Hours: 200 W Program, 100 W RMS

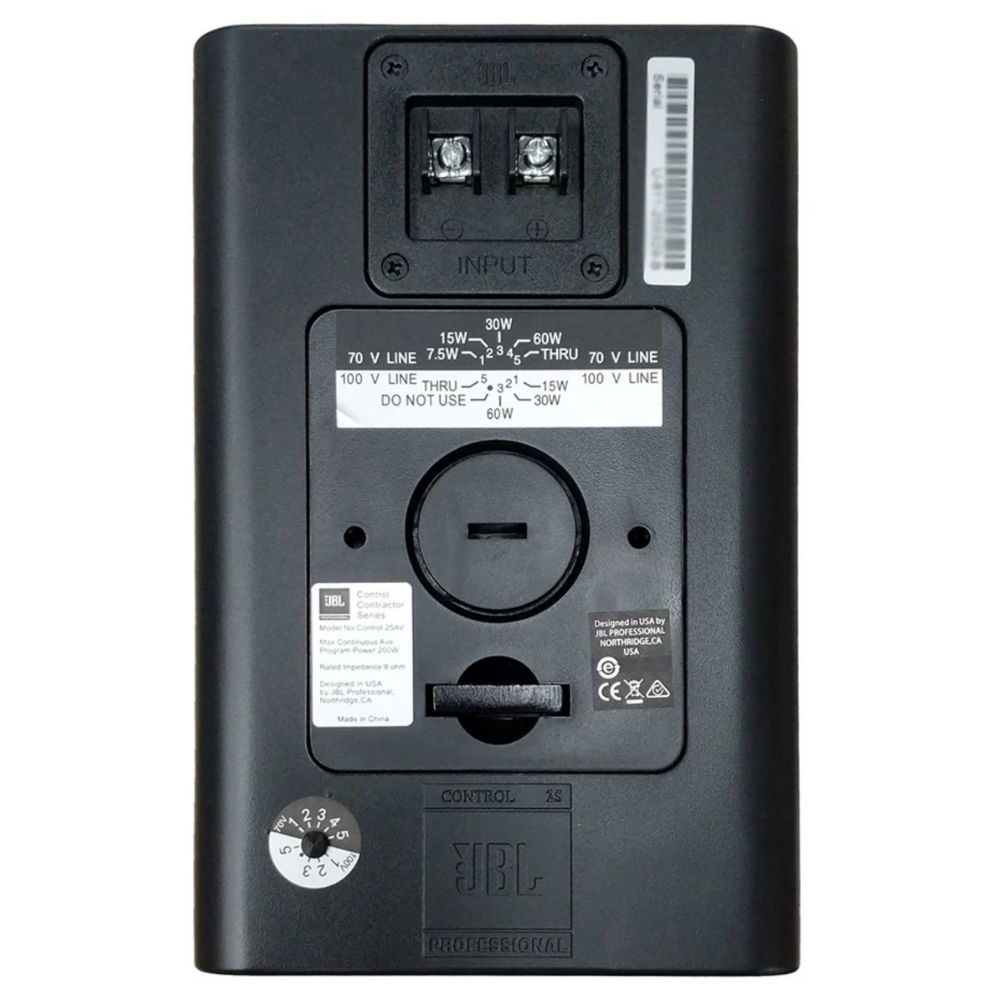

• Constant Voltage / Transformer Taps:
  • 100 V: 15 / 30 / 60 W or 8 Ohms Bypass
  • 70 V: 7.5 / 15 / 30 / 60 W or 8 Ohms Bypass
• Impedance: 6.7 Ohms (Minimum), 8 Ohms (Thru Setting)
• Shielded: Yes

Drivers

• HF Driver: 0.75" / 2 cm Titanium-Coated PEI Tweeter
• LF Driver: 5.25" / 13.5 cm Polypropylene-Coated Paper Woofer
• LF Voice Coil: 1" / 2.5 cm

Performance

• Frequency Range: 70 Hz to 23 kHz -10 dB
• Maximum SPL: 113 dB (Peak), 107 dB (Continuous)
• Sensitivity: 87 dB SPL
• Coverage Angle: 100° H x 100° V
• Directivity: 4.9 (Directivity/Q Factor), 6.9 dB (Directivity Index)
• Crossover: Low-Pass: 12 dB/Octave, High-Pass: 12 dB/Octave
• Protections: AC Fuse, Overvoltage

Connectivity

• Inputs/Outputs: Screw Terminal
• Maximum Wire Gauge: 12 AWG

Physical

• Certifications: UL
• Environmental Resistance: Water-Resistant (IPX4)
• Color: Black
• Rotation Range: 44° H x 37° V (Ball Mount), 44° H x 44° V (Bracket Mount)
• Construction Material: High-Impact Polystyrene, Stainless Steel Grille
• Dimensions: 9.3 x 7.4 x 6.3" / 23.6 x 18.6 x 15.9 cm
• Weight: 9 lb / 4 kg

Packaging Info

• Package Weight: 20.45 lb
• Box Dimensions (L x W x H): 15.5 x 11 x 9.5"
