Key Specifications

Speaker

• Active/Passive: Passive
• Number of Included Speakers: 2
• Speaker Configuration: 2-Way
• Power Handling:
  • For 100 Hours: 90 W RMS, 360 W Peak
  • For 2 Hours: 240 W Program, 120 W RMS, 480 W Peak
• Constant Voltage / Transformer Taps:
  • 100 V: 60 / 30 / 15 W or 8 Ohms Bypass
  • 70 V: 60 / 30 / 15 / 7.5 W or 8 Ohms Bypass
• Impedance: 8 Ohms (Thru Setting)

Drivers

• HF Driver: 1" / 25 mm PEI Tweeter
• LF Driver: 8" / 20 cm Fiberglass Woofer

Performance

• Frequency Response: 45 Hz to 20 kHz ±10 dB, 62 Hz to 16 kHz ±3 dB
• Sensitivity: 91 dB
• Coverage Angle: 100° H x 100° V
• Directivity: 7.3 (Directivity/Q Factor), 8.3 dB (Directivity Index)
• Crossover: Low-Pass: 12 dB/Octave, High-Pass: 6 dB/Octave
• Recommended High-Pass Filter:
  • 15 / 7.5 W, Low-Z: 45 Hz, 24 dB/Octave
  • 30 W: 55 Hz, 24 dB/Octave
  • 60 W: 65 Hz, 24 dB/Octave
• Maximum Input Voltage: 27.5 V RMS, 55 V Peak
• Transformer Insertion Loss: <0.94 dB

Connectivity

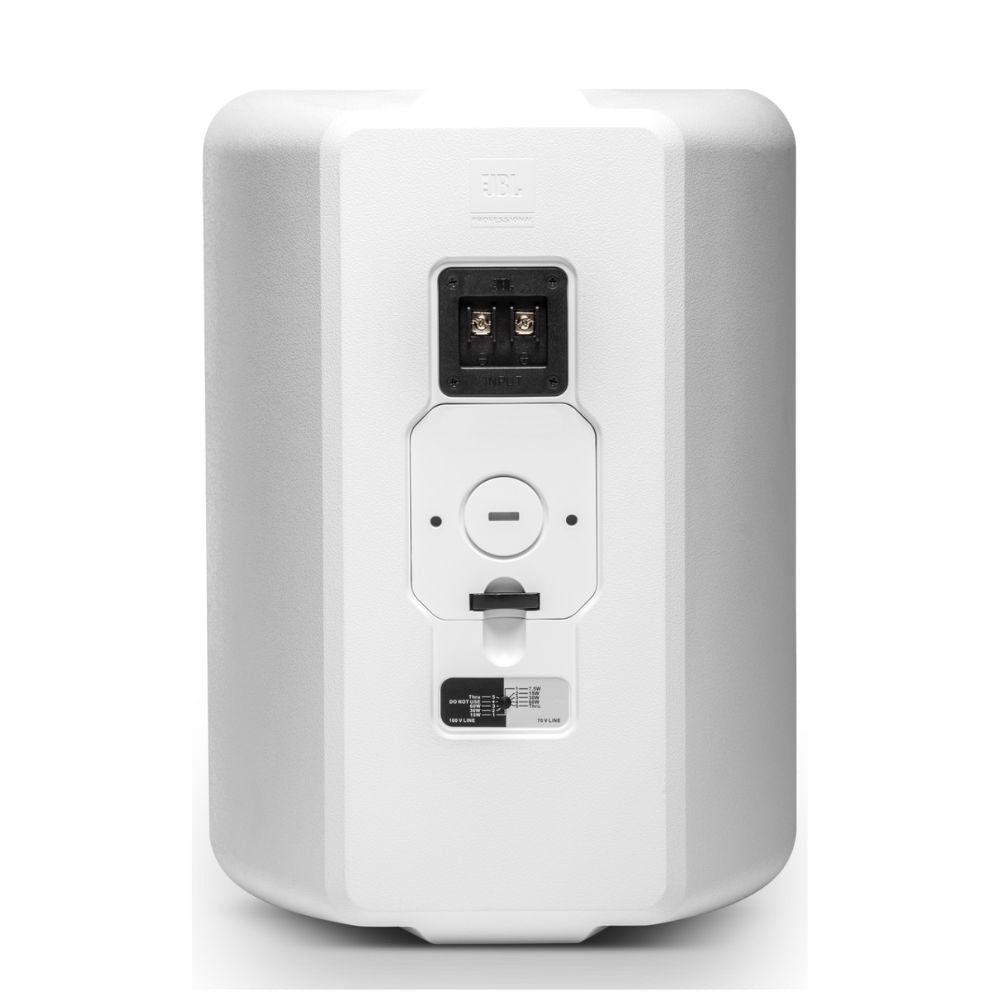

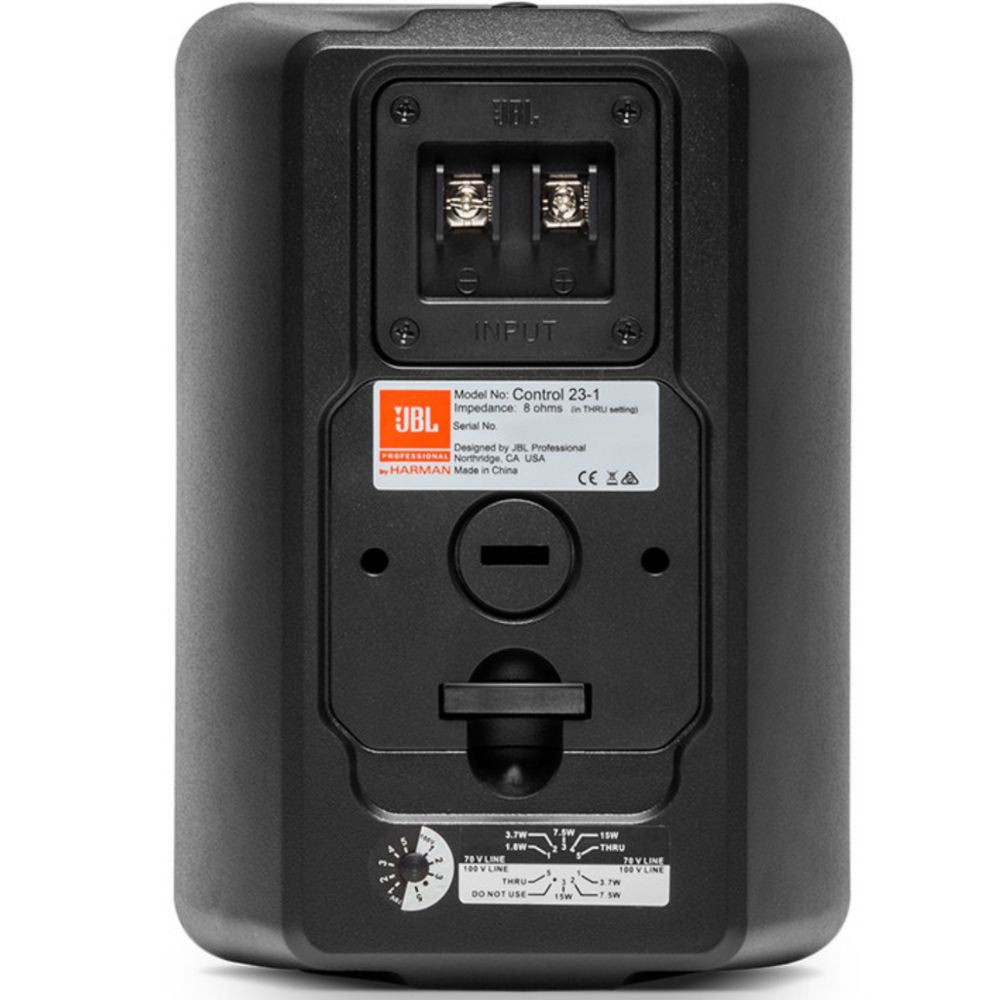

• Inputs/Outputs: Screw Terminal
• Maximum Wire Gauge: 12 AWG / 2.5 mm

Physical

• Certifications: RoHS, UL
• Environmental Resistance: Dust/Water-Resistant (IP44)

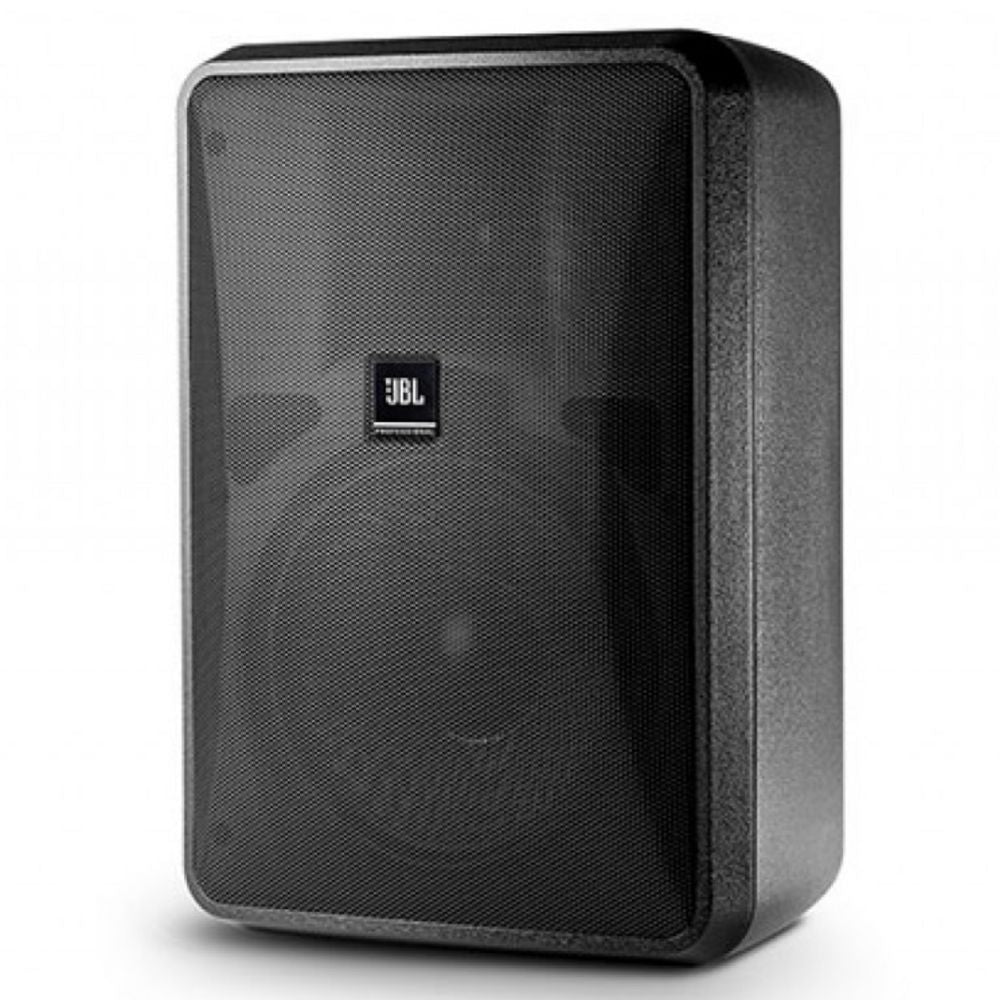

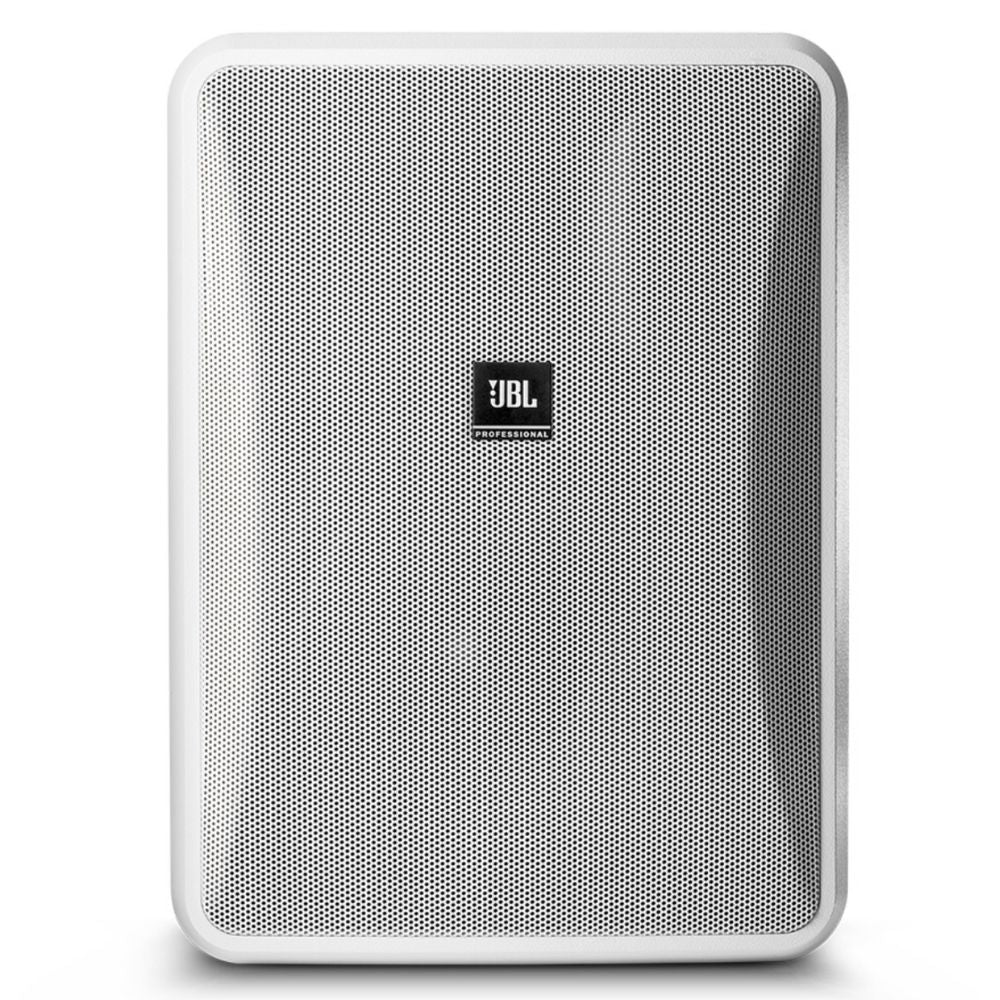

• Color: Black, White
• Construction Material: High-Impact Polystyrene, Metal Grille
• Dimensions: 15.2 x 11.1 x 8.6" / 386 x 282 x 219 mm
• Weight: 15 lb / 6.8 kg

Packaging Info

• Package Weight: 33.5 lb
• Box Dimensions (L x W x H): 22 x 17 x 13.54"
