Key Specifications

Performance

• Frequency Response: 33 Hz to 19 kHz at -10 dB, 42 Hz to 14 kHz at ±3 dB
• Power Rating: Continuous: 250 W, Peak: 1000 W (2 Hours); Continuous: 200 W, Peak: 800 W (100 Hours)
• Maximum SPL: Continuous: 116 dB, Peak: 123 dB at 1m
• Nominal Sensitivity: 92 dB
• Coverage Angle: 110 x 110°
• Directivity Factor: 5.7, Averaged 500 Hz to 10 kHz
• Directivity Index: 7.3 dB, Averaged 500 Hz to 10 kHz
• Nominal Impedance: 8 Ohms
• Crossover Type: 2nd Order Low-Pass, 2nd Order High-Pass, Plus Conjugate Shaping Circuitry
• Transformer Taps: 70 V: 150 W, 75 W, 38 W, 19 W; 100 V: 150 W, 75 W, 38 W
• Insertion Loss: <0.65 dB at Any Tap Setting
• Thru Setting: 8 Ohms Nominal
• Recommended Protective High-Pass: 40 Hz (24 dB/oct) for Any Transformer Tap and for 8 Ohms Operation

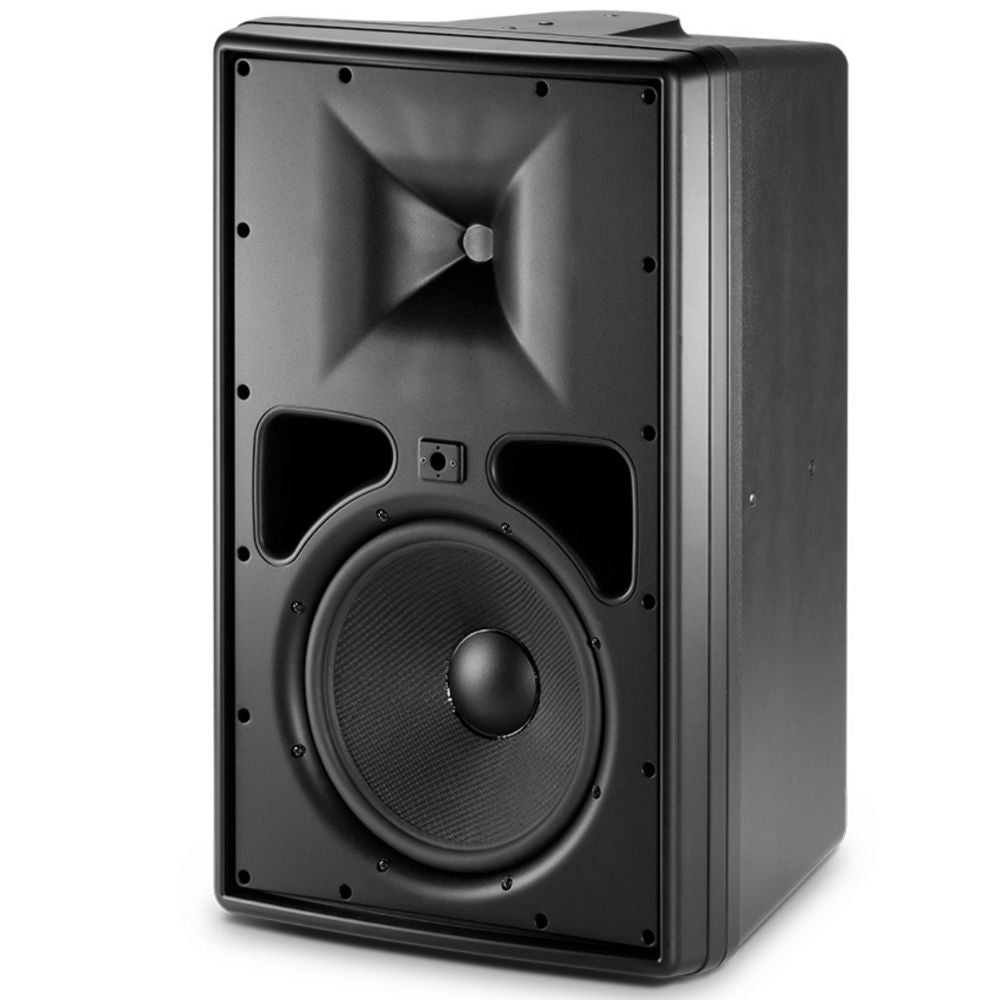

Transducers

• Low Frequency Transducer: 10" / 250 mm Woven-Fiberglass Cone with Pure Butyl Rubber Surround, 2" / 52 mm Voice Coil on High-Temperature Fiberglass Voice Coil Former, Optimized Cone Geometry, Linear Suspension Spider, FEA-Optimized Motor Construction, and Aluminum Ring on Pole Piece
• High Frequency Transducer: JBL 2414H-C Compression Driver with 1" / 25 mm Diaphragm and Voice Coil Diameter, High-Temperature Polymer Diaphragm, JBL-Patented Design, Fluid-Cooled

Enclosure & Grille

• Enclosure: High-Impact Polystyrene (HIPS) with 10% Glass Fill Plus Patent-Pending Internal 5 mm Foamed Polyurethane Secondary Mold for Additional Cabinet Density

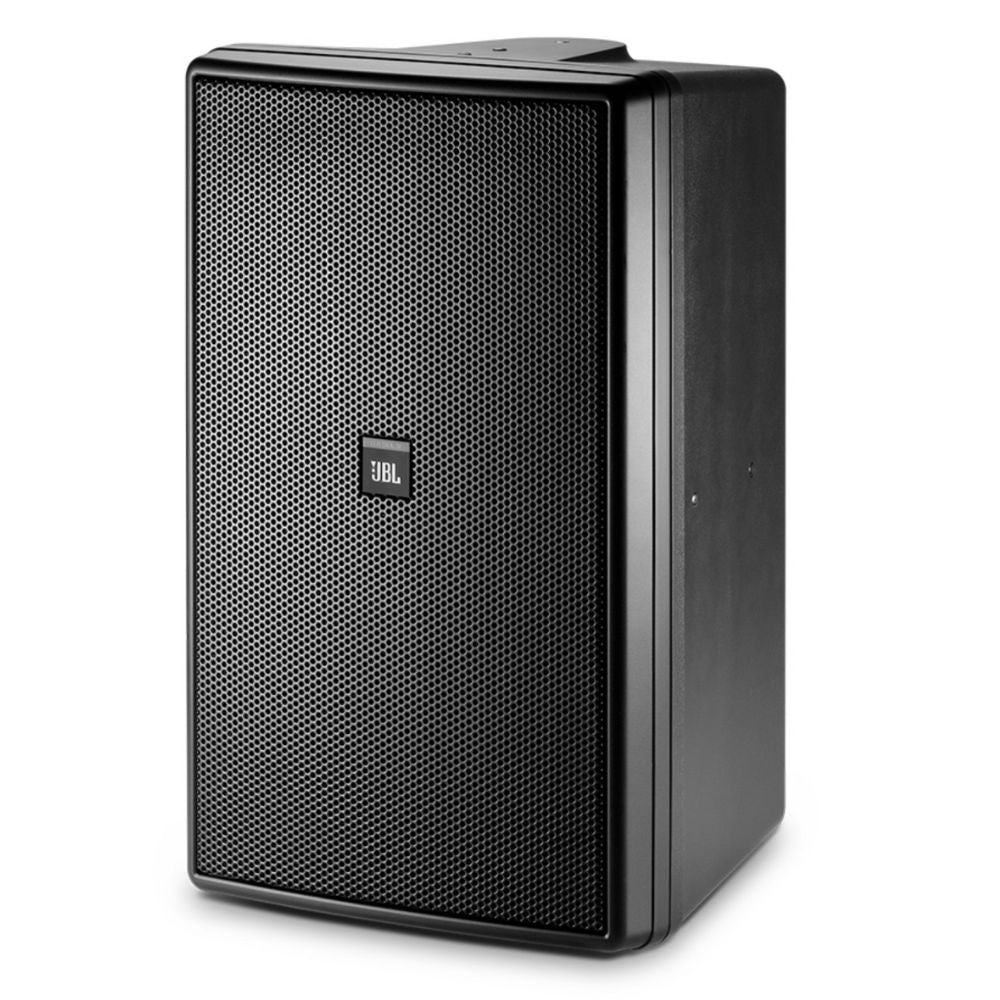

• Grille: Zinc-Plated and Thermoset-Composite Coated Steel, WeatherMax Multi-Layer Foam with Tight-Weave Mesh Vapor Barrier

Installation & Termination

• Installation: InvisiBall Wall-Mounting System Included; 10 x 6 mm Attachment Points on Cabinet for Suspending or for Optional U-Bracket; 1 x 6 mm Secondary Safety Attachment Point on Back Panel
• Termination: Screw-Down Terminal Strip, Zinc-Plated Copper Based, Nickel-Plated Metal Screws and Washers; Accepts up to 9 mm Outside and 4 mm Inside Open Lugs (#6, #8, or #10 Lug), Plus Bare Wire (up to 12 AWG / 2.5 mm)

Environmental & Safety

• Environmental: IP55 per IEC529; Exceeds MilSpec 810 for Humidity, Salt Spray, Temperature, and UV; Passes MilStd-202F for Salt Spray
• Agency Rating: Transformer is Listed per UL1876

Physical

• Dimensions: 23.3 x 14.6 x 13.5" / 59.3 x 37.2 x 34.5 cm
• Weight: 41.5 lb / 18.8 kg

Packaging Info

Package Weight

47.2 lb

Box Dimensions (L x W x H)

27 x 19 x 18"
