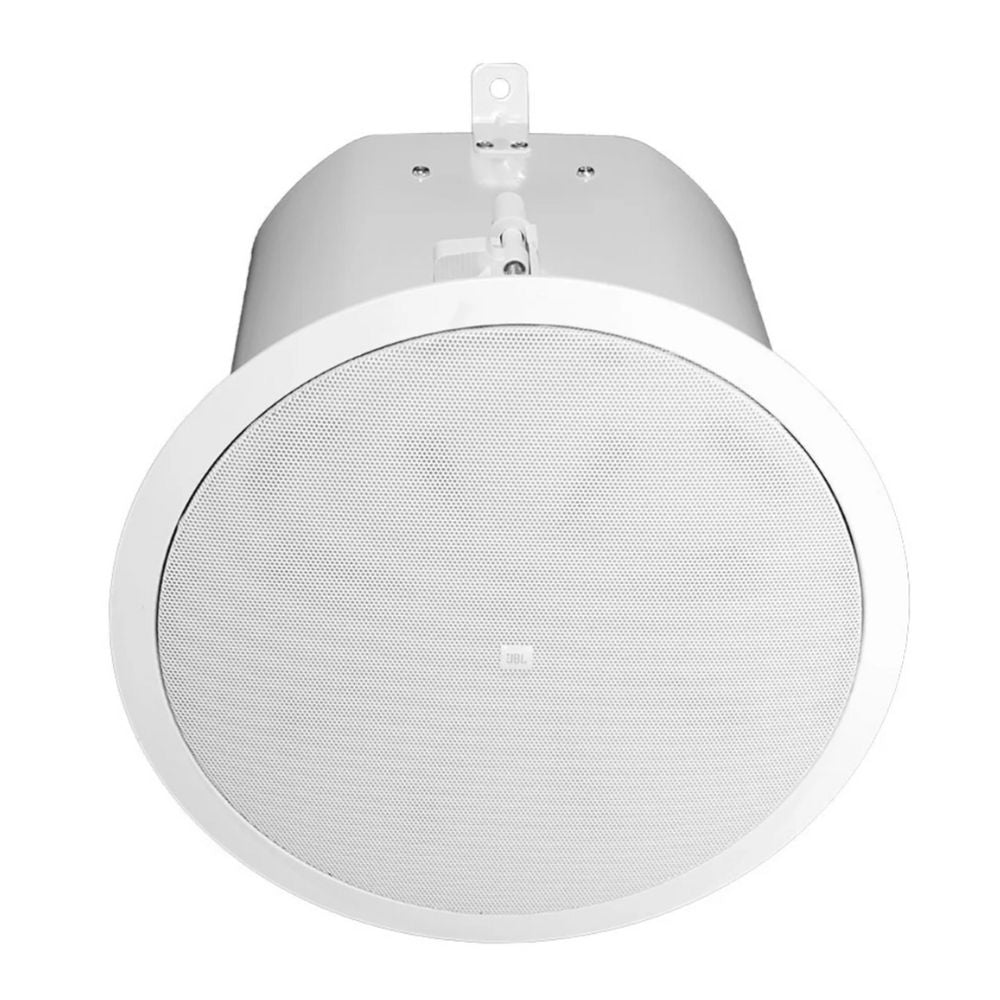

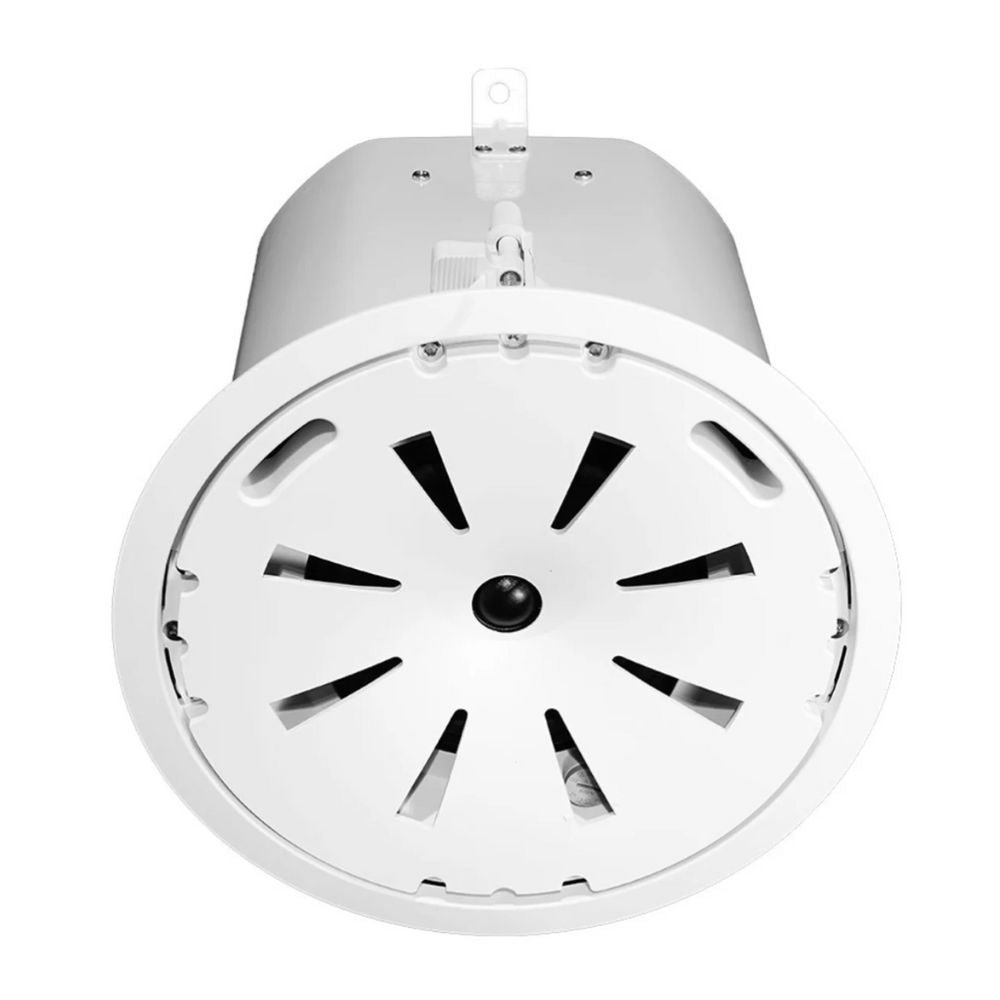

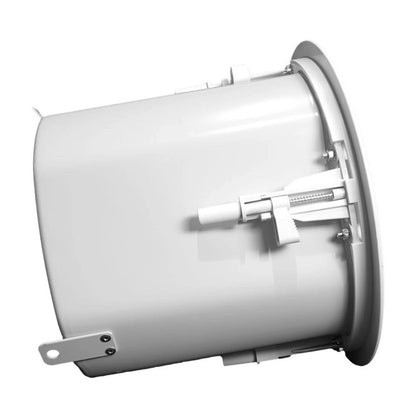

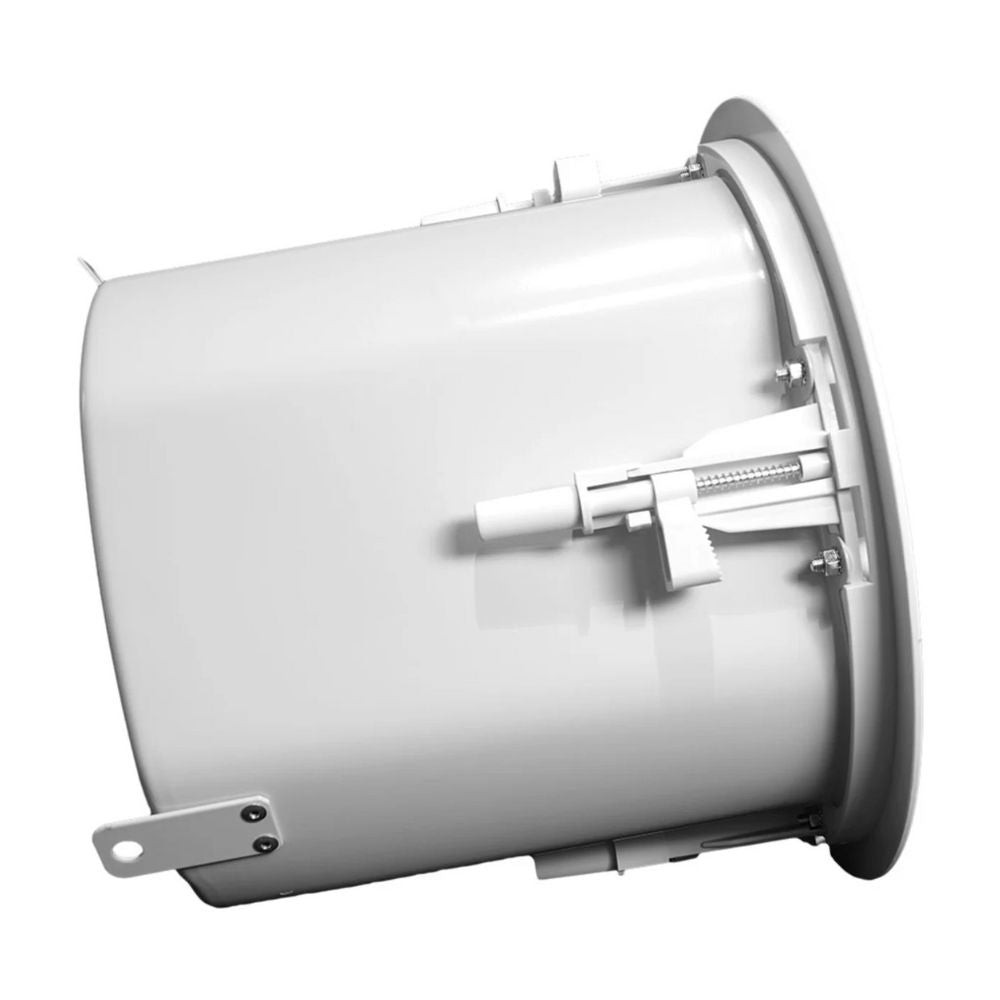

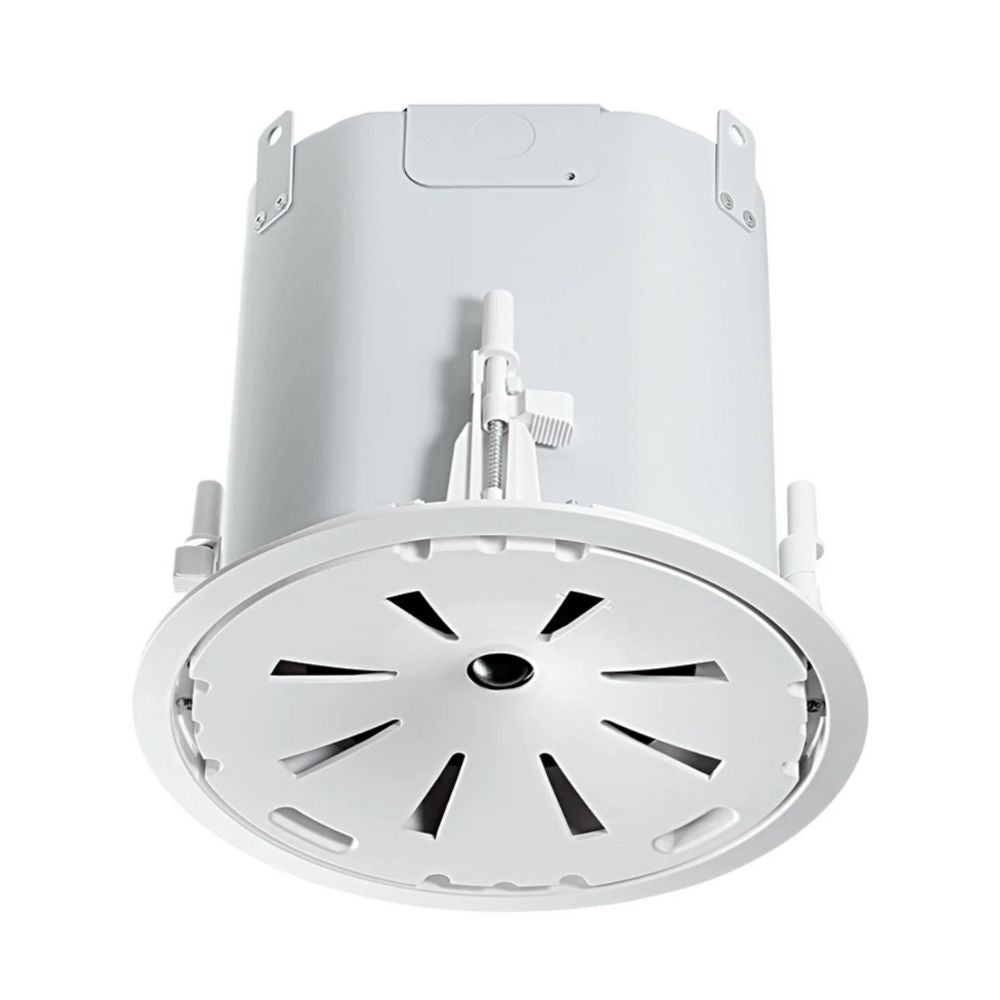

Sold as a pair, the white JBL Control 47C/T is a passive 6.5" coaxial ceiling loudspeaker with a multi-tap transformer designed for voice amplification and foreground music reproduction in a variety of venues ranging from boardrooms to bistros. The 60W transformer allows the Control 47C/T to be driven by 70V, 100V, or 8-Ohm power amplifiers (available separately). Each Control 47C/T is equipped with a durable 6.5" polypropylene woofer and a 1" soft dome tweeter, yielding a frequency response of 75 Hz to 17 kHz, and a continuous program power capacity of 150W. Removable locking input connectors, detachable grilles, cutout templates, paint shields, and C-ring / tile rail suspension systems contribute to easy installation.
In-ceiling coaxial loudspeakers with integrated backcansIncludes grilles and C-ring / tile rail suspension systemsConsistent 120° broadband pattern control featuring JBL's conical Radiation Boundary Integrator (RBI) technologyMulti-tap transformer enables use with 70V/100V constant-voltage systems, and offers a bypass position for use in an 8-Ohm setup150W continuous program power handlingDurable 6.5" woofer with polypropylene cone and butyl surround1" soft dome tweeter with internal damping and ferrofluid cooling75 Hz to 17 kHz frequency response (±3 dB), 55 Hz to 20 kHz frequency range (-10 dB)Removable locking 2-pin input connectorsIncludes installation accessories
JBL Control 47C/T
Key Specifications
Speaker
Active or Passive: Passive
Drivers
LF Driver: 6.5" / 16.5 cm Woofer with Polypropylene Cone, Butyl Rubber Surround, Copper-Clad Coil, and Vented Aluminum Former
HF Driver: 1" / 2.5 cm Ferrofluid-Cooled Soft Dome Tweeter with Dampening
High-Frequency Waveguide: 10" / 25 cm
Performance
Frequency Range: 55 Hz to 20 kHz (-10 dB)
Frequency Response: 75 Hz to 17 kHz (±3 dB)
Coverage Pattern: 120° Conical
Directivity Factor: 6.5
Directivity Index: 7.9 dB
Power Capacity: Continuous Program Power: 150 W, Continuous Pink Noise: 75 W
Nominal Sensitivity: 91 dB
Maximum SPL: Average: 110 dB (at 1 m), Peak: 116 dB (at 1 m)
Power & Connectivity
Nominal Impedance: Bypass Mode: 8 Ohms
Transformer Taps: Watts at 70 V: 7.5, 15, 30, 60; Watts at 100 V: 15, 30, 60
Insertion Loss: At 7.5 W: 0.58 dB; At 15 W: 0.61 dB; At 30 W: 0.70 dB; At 60 W: 0.76 dB
Input: 2x Removable Locking 2-Pin Connectors with Screw-Down Terminals
Maximum Wire Gauge: 12 AWG
Physical & Installation
Shielded: No
Cutout Size: 11.1" / 28.2 cm
Ceiling Thickness: Accommodates Tiles/Drywall up to 2.8" / 7 cm Thick
Dimensions: 12.0 x 10.2" / 30.5 x 25.9 cm (From Back of Baffle)
Weight: 11 lb / 5 kg
Safety Rating: UL 1480, UL 2043, NFPA 90, NFPA 70, S7232/UL, UL 1876, IEC 60849 / EN 60849
