The Bose Professional ControlCenter CC-1 Zone Controller is a remote, end-user interface for use with Bose FreeSpace amplifiers, PowerShare amplifiers, and ControlSpace processors. This passive controller features a linear potentiometer with a large knob to provide volume control. Channel selection is achieved via the 8 DIP switch bank.
The unit fits 1-gang electrical boxes and supports Decora-style wall plate covers (available separately). The CC-1 uses Cat 5 wiring and can be daisy-chained via the two RJ-45 connectors for simplified wiring. Included is a sheet of color-matched, pre-printed labels, with two blanks for custom labeling.

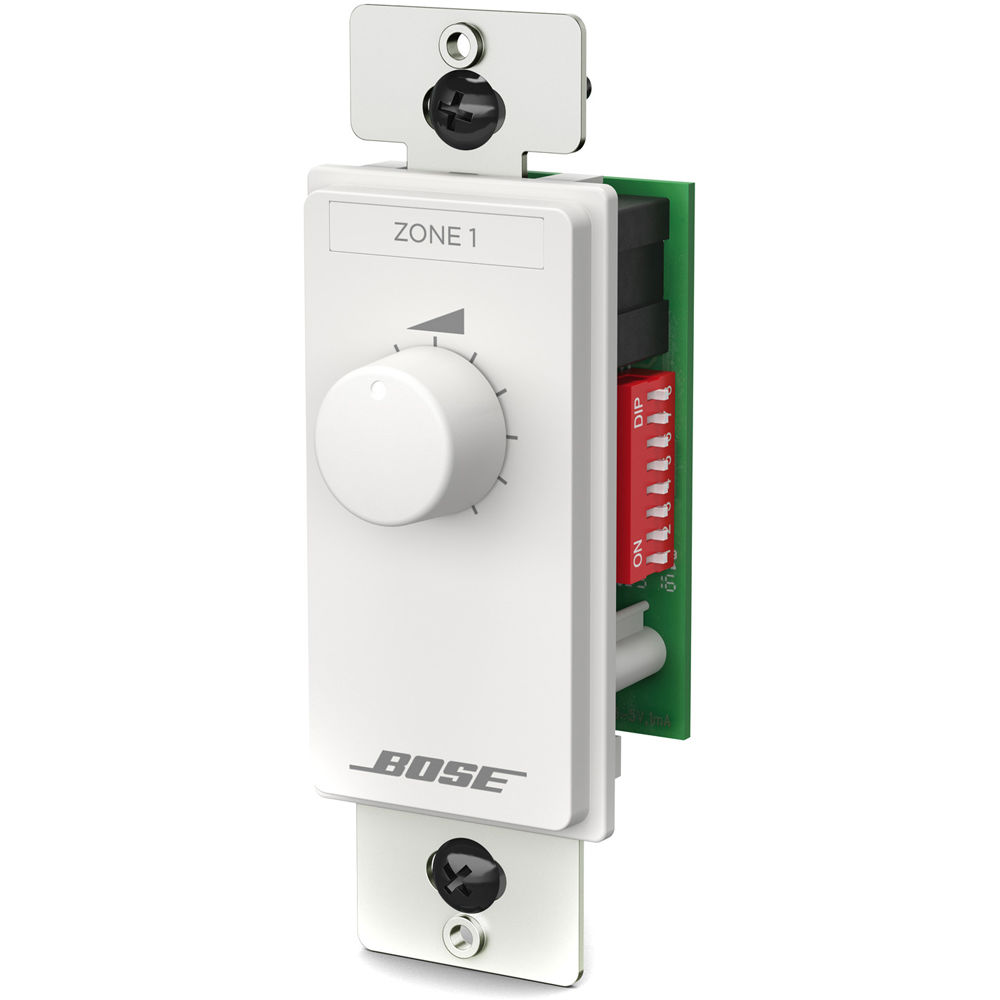

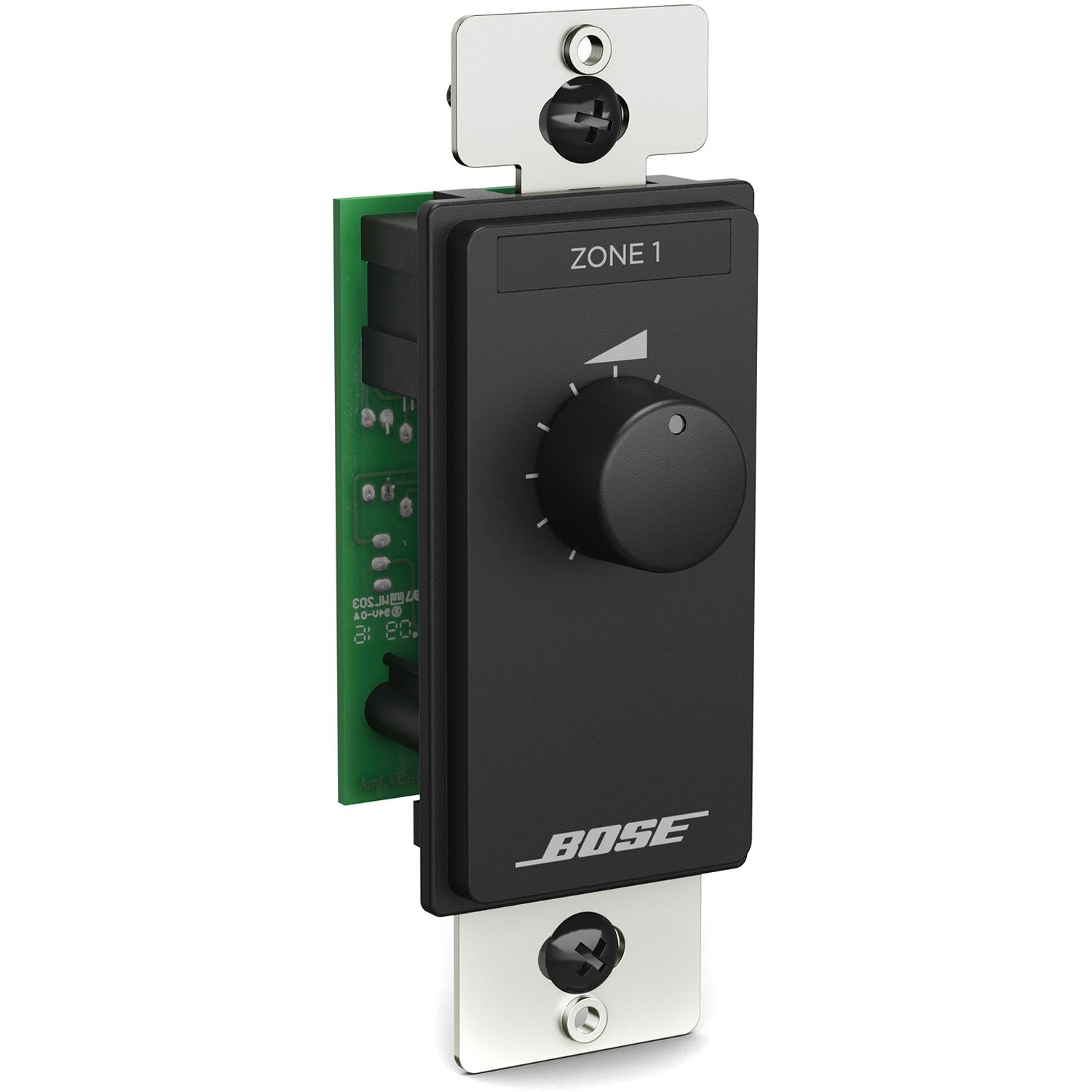

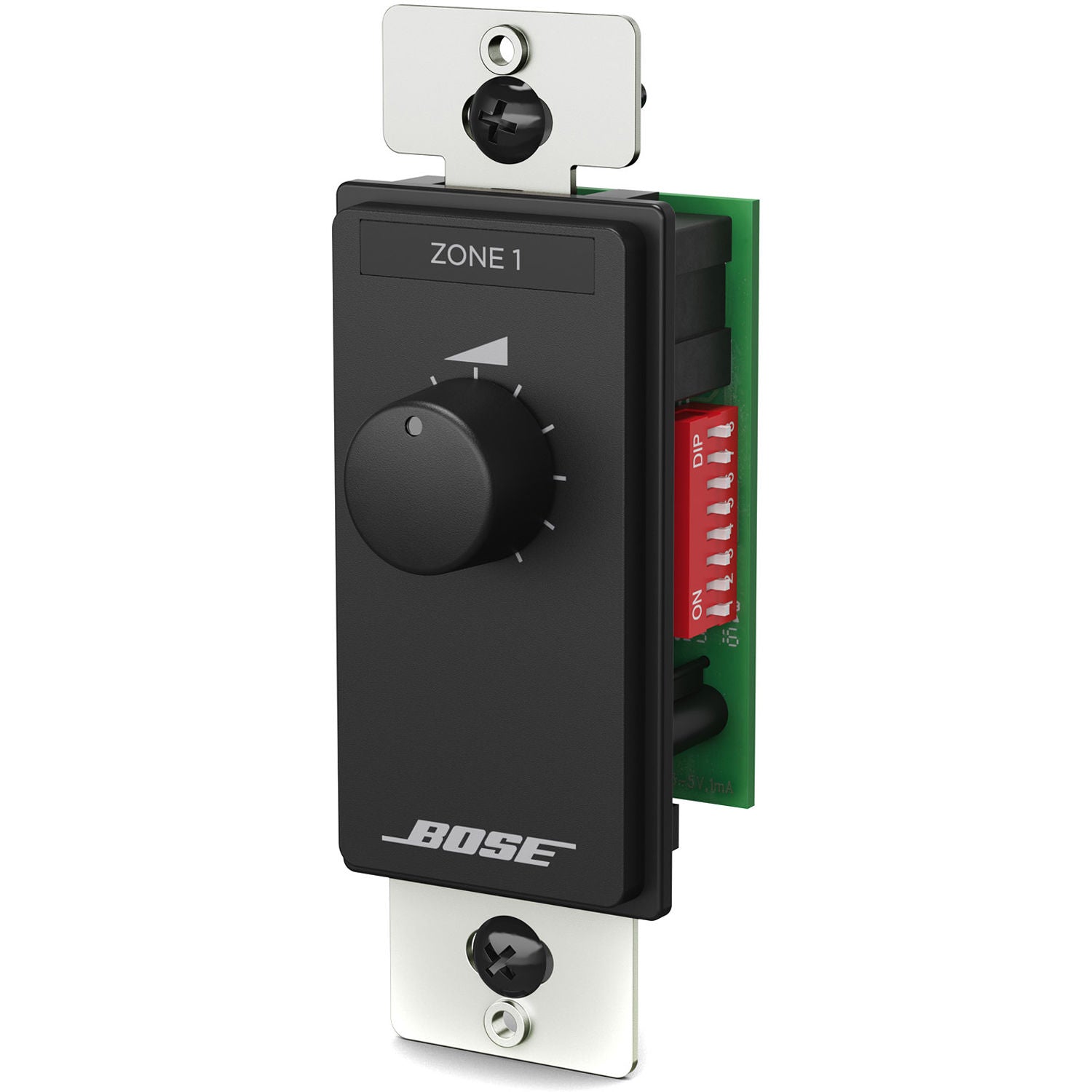

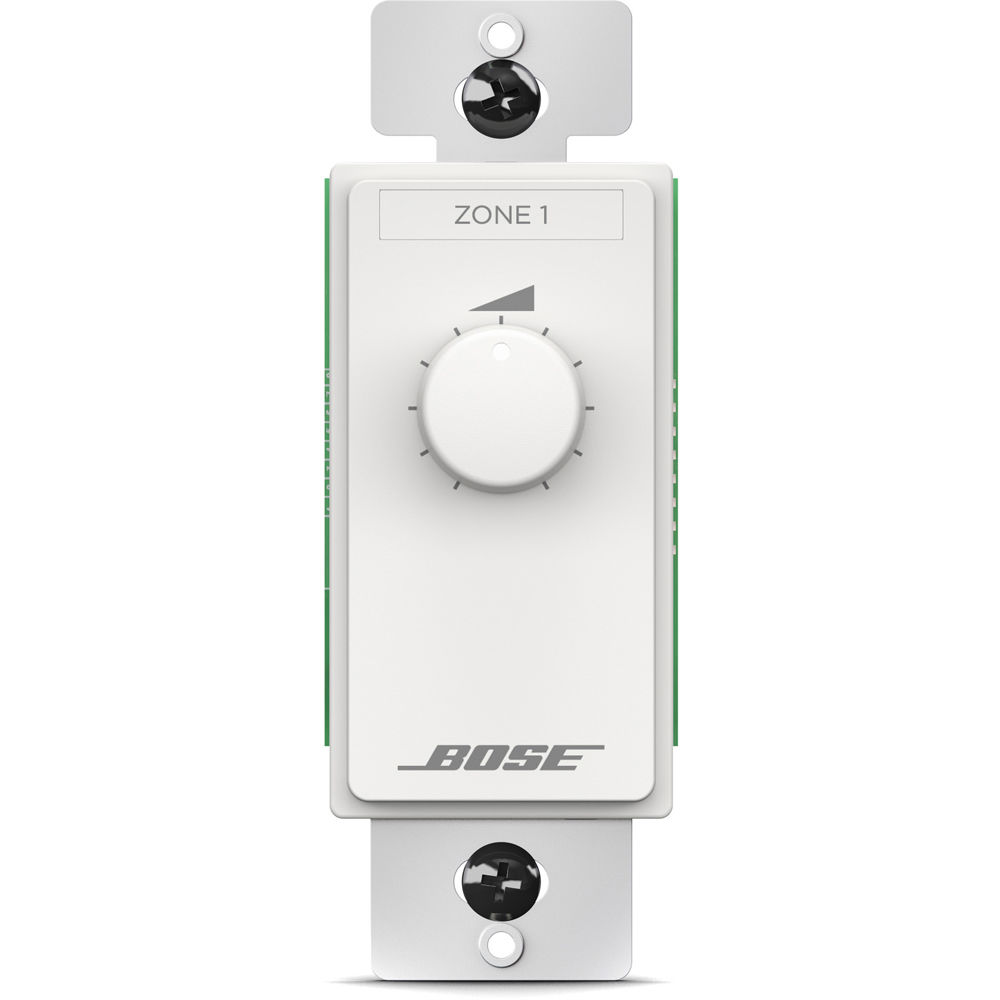

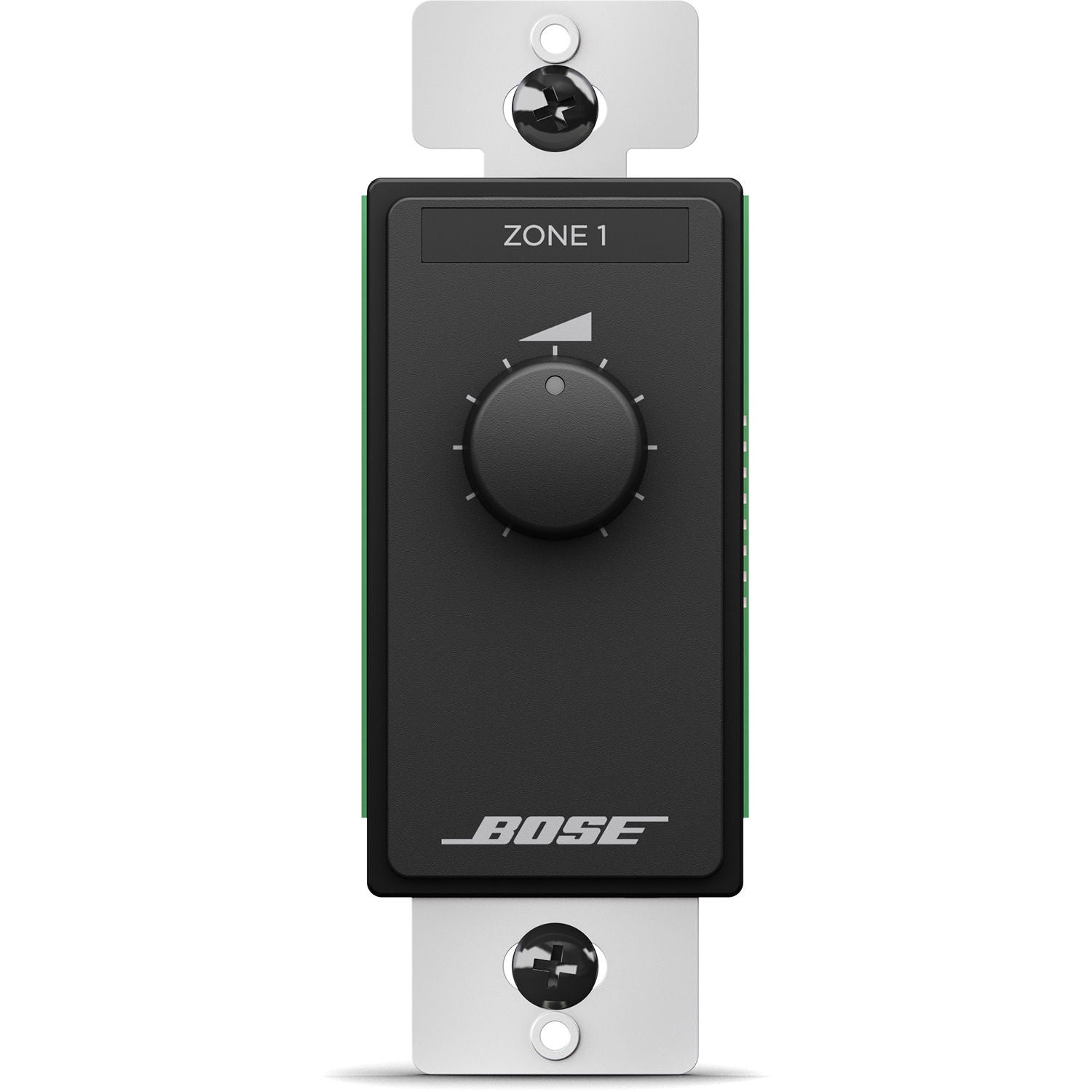

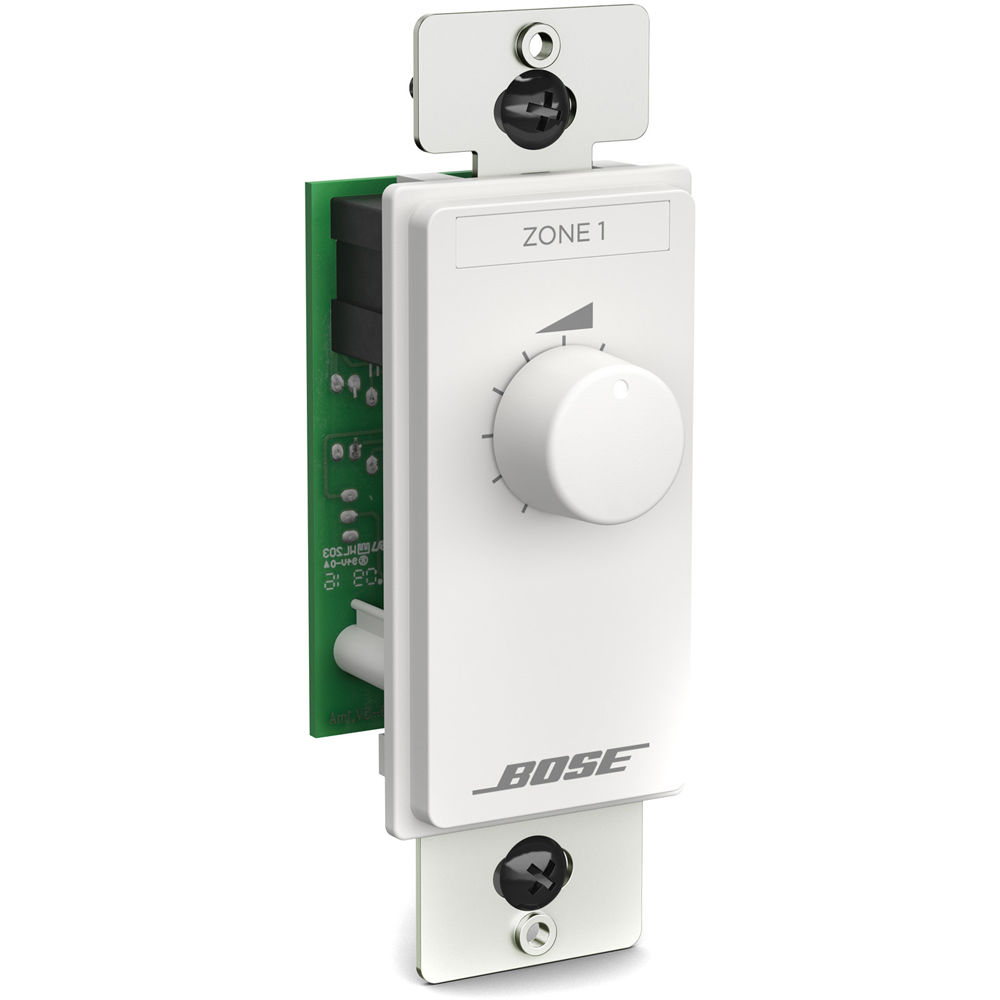

BOSE ControlCenter CC-1 Zone Controller
Key Specifications
Compatibility
Compatible Devices
FreeSpace IZA 250-LZ and IZA 190-HZ Amplifiers FreeSpace IZA 2120-LZ/HZ and ZA 2120-LZ/HZ Amplifiers FreeSpace DXA 2120 Amplifier PowerShare PS602 and PS604 Amplifiers ControlSpace ESP-00 II, ESP-880, ESP-1240, ESP-4120, and ESP-1600 Engineered Sound Processors
Connectors
Type

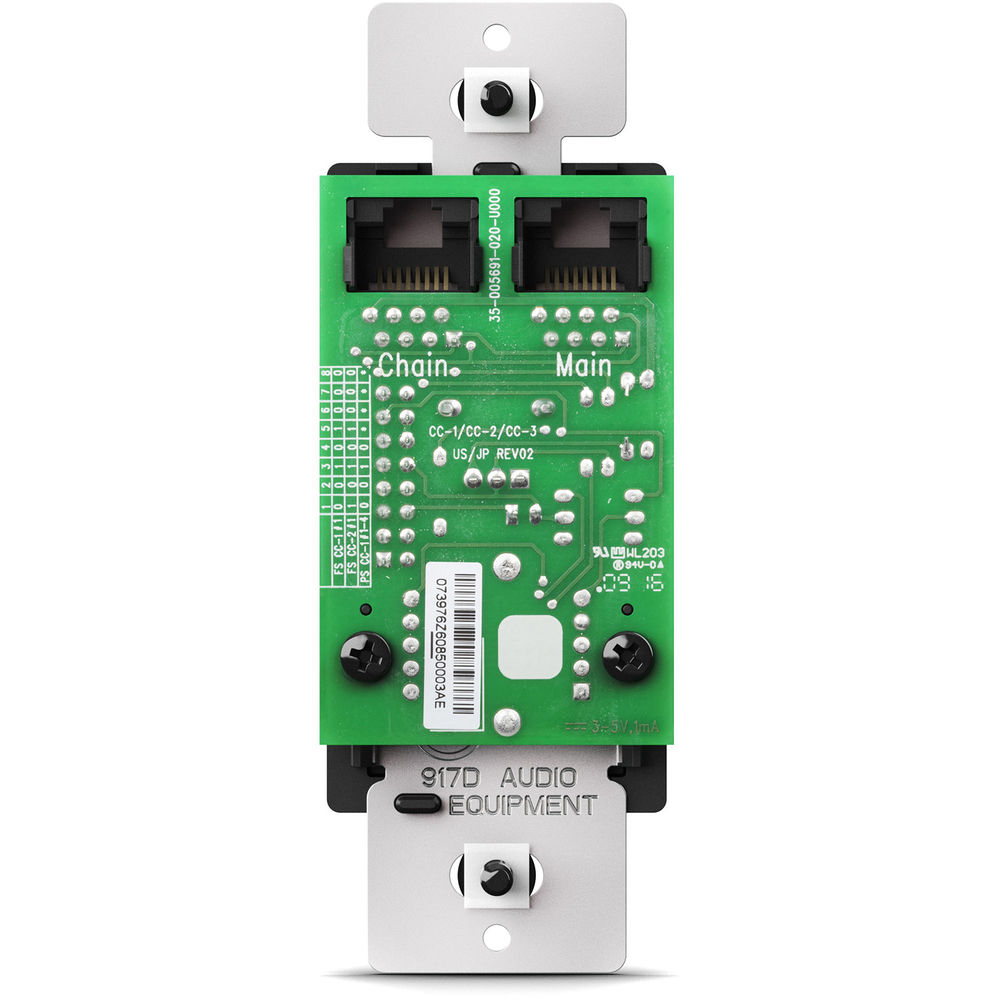

2 x RJ-45, Allows for Daisy-Chaining, TIA/EIA 568B Wiring Standard
Settings
Channel Selection
8 DIP Switch Bank
Type
Controller Type
Passive Controller, Linear Potentiometer, 0 Ohm to 10 Kilohms
Cable Requirements
Cable Type
Cat 5
Maximum Cable Length
2000' / 609 m for FreeSpace and PowerShare Amplifiers 500' / 152 m for ControlSpace Processors (Shielded Cable) 100' / 30 m for ControlSpace Processors (Unshielded Cable)
Physical
Electrical Box Size
1-Gang
Color
Black, White
Dimensions (W x H x D)
Face Plate: 1.5 × 2.6 × 0.7" / 38 × 66 × 19 mm Total: 1.5 × 4.1 × 1.4" / 38 × 105 × 36 mm
Packaging Info
Package Weight
0.335 lb
Box Dimensions (LxWxH)
6 × 5 × 2"
