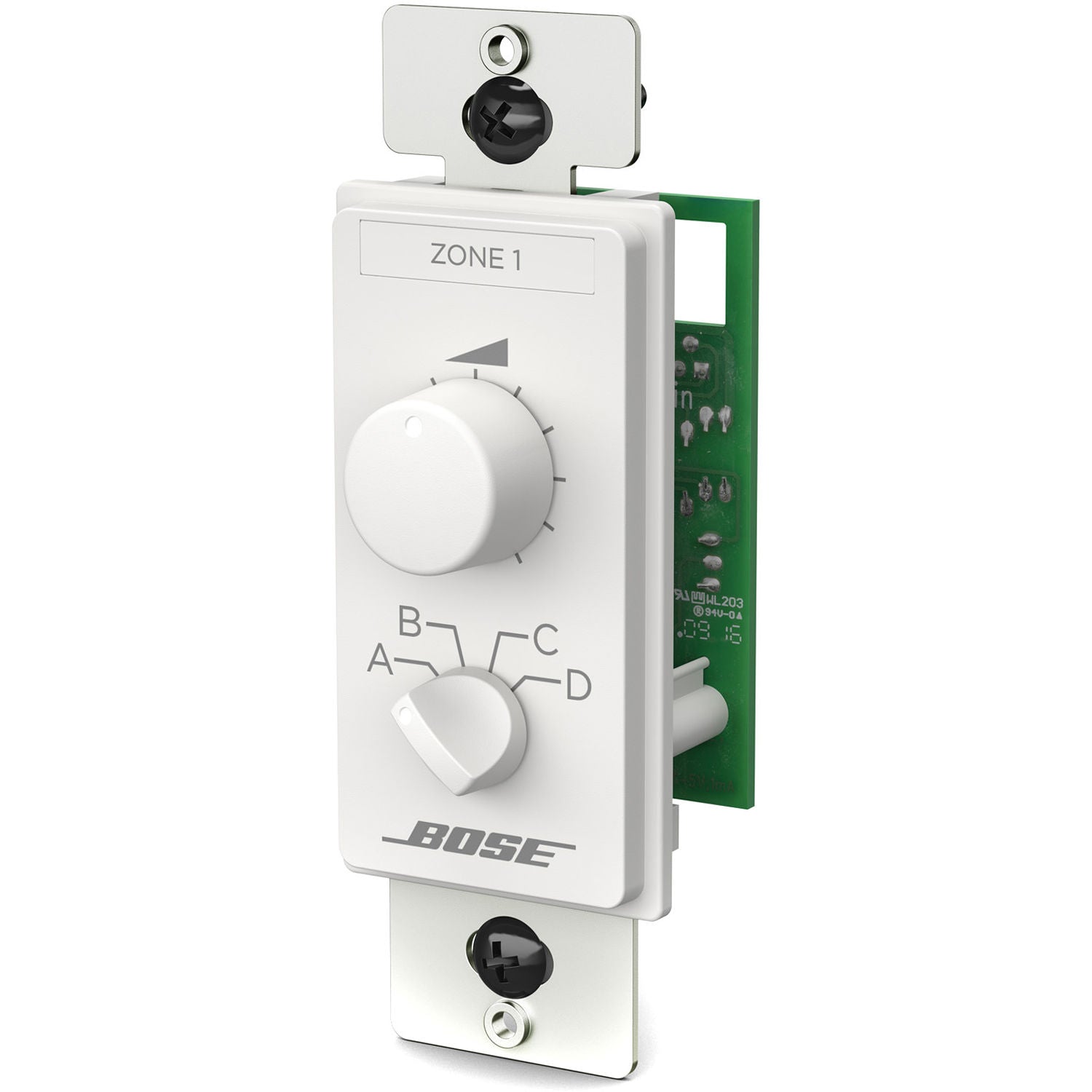

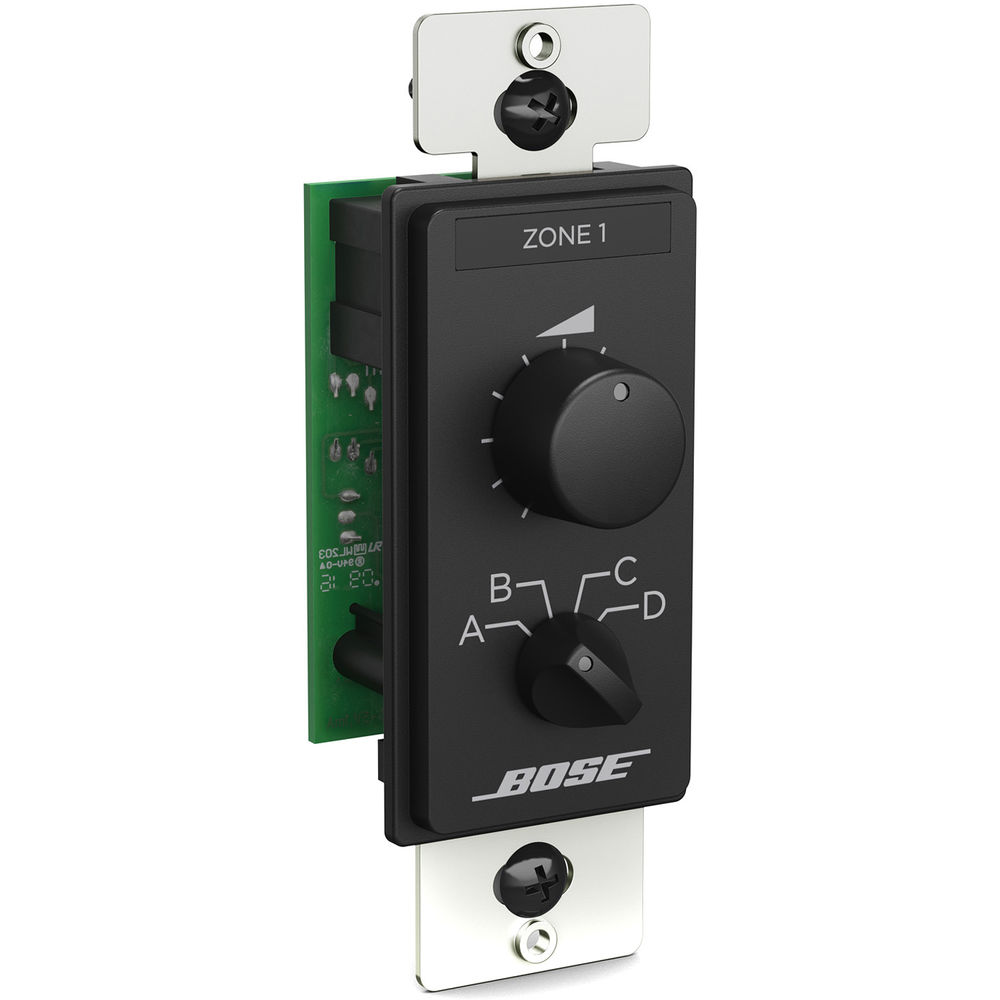

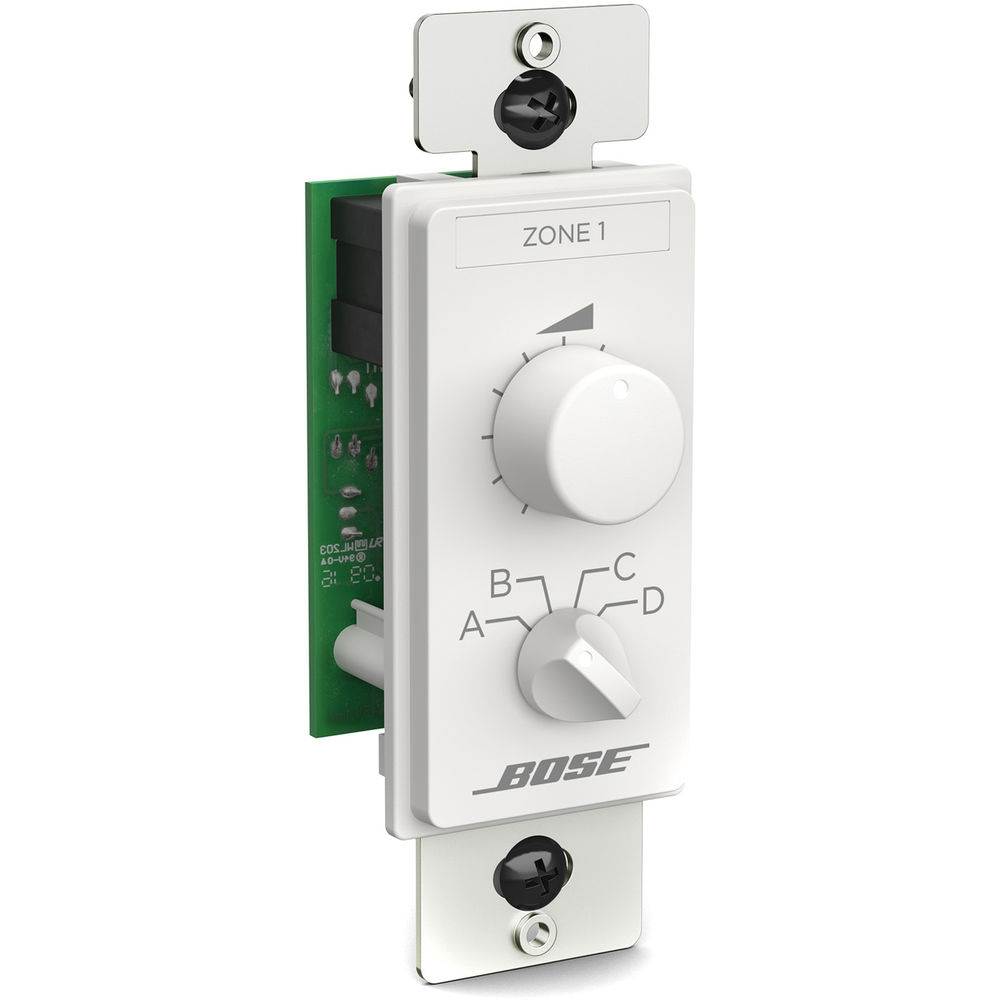

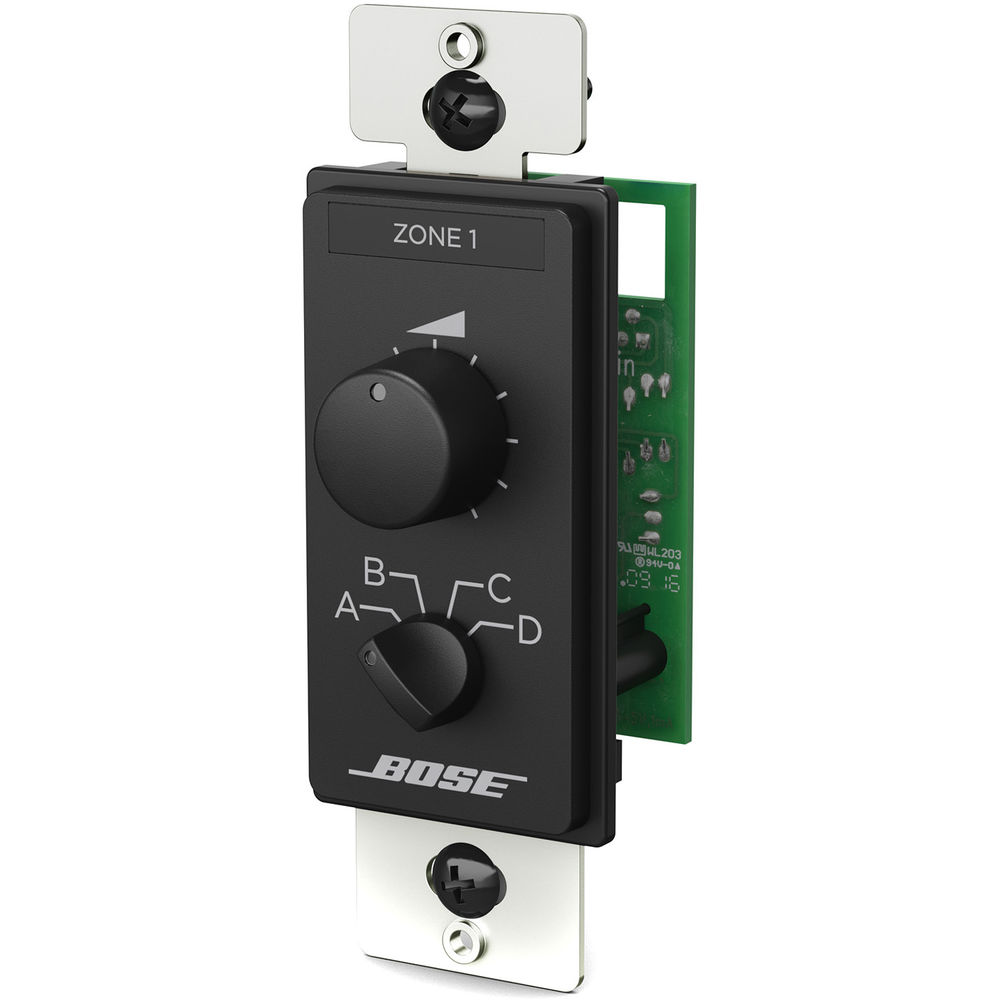

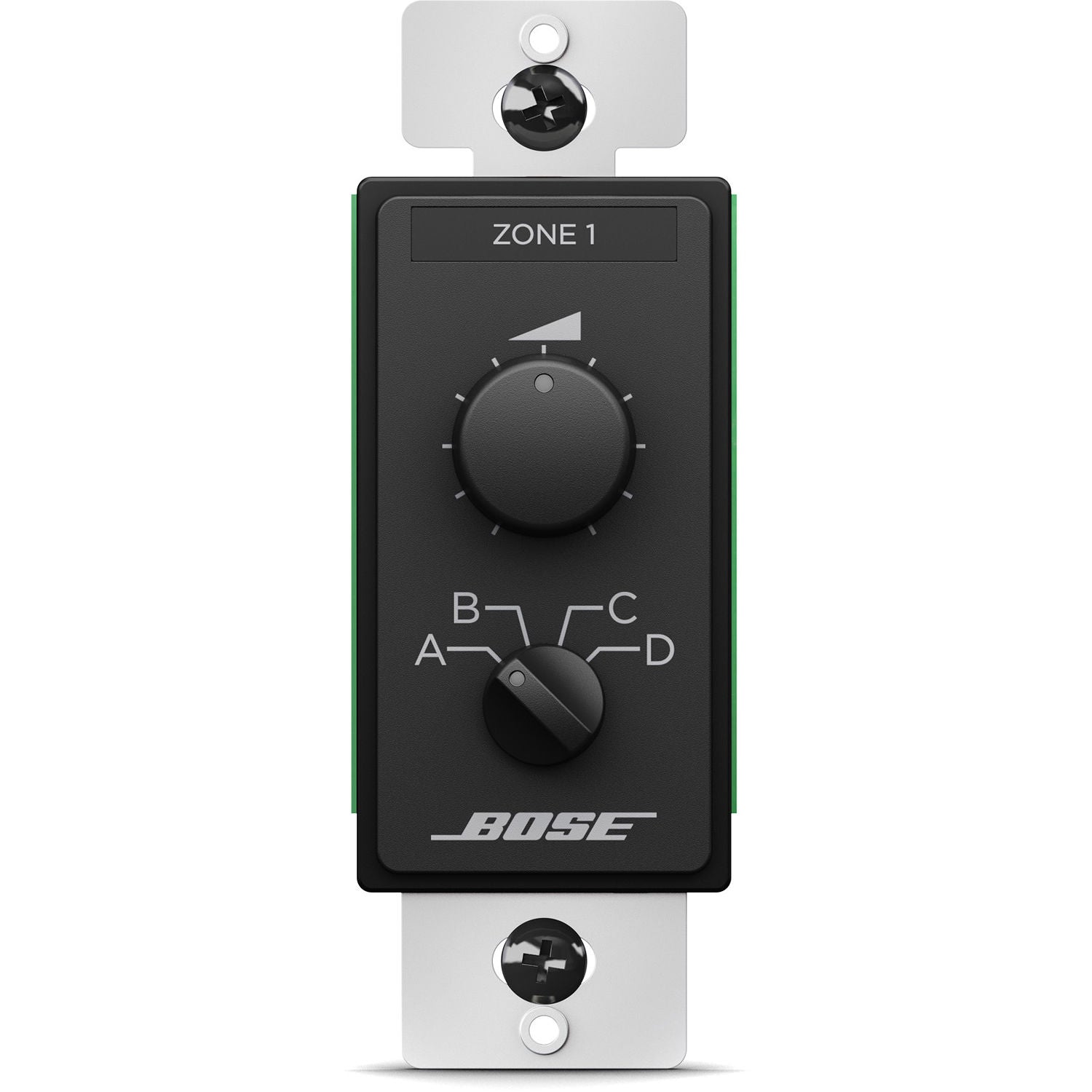

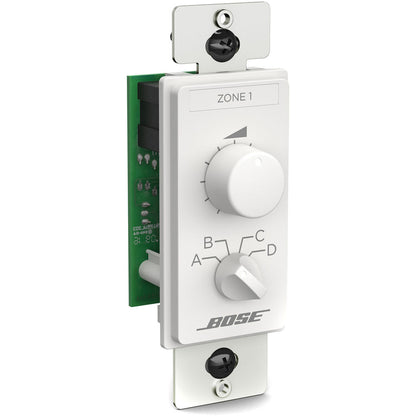

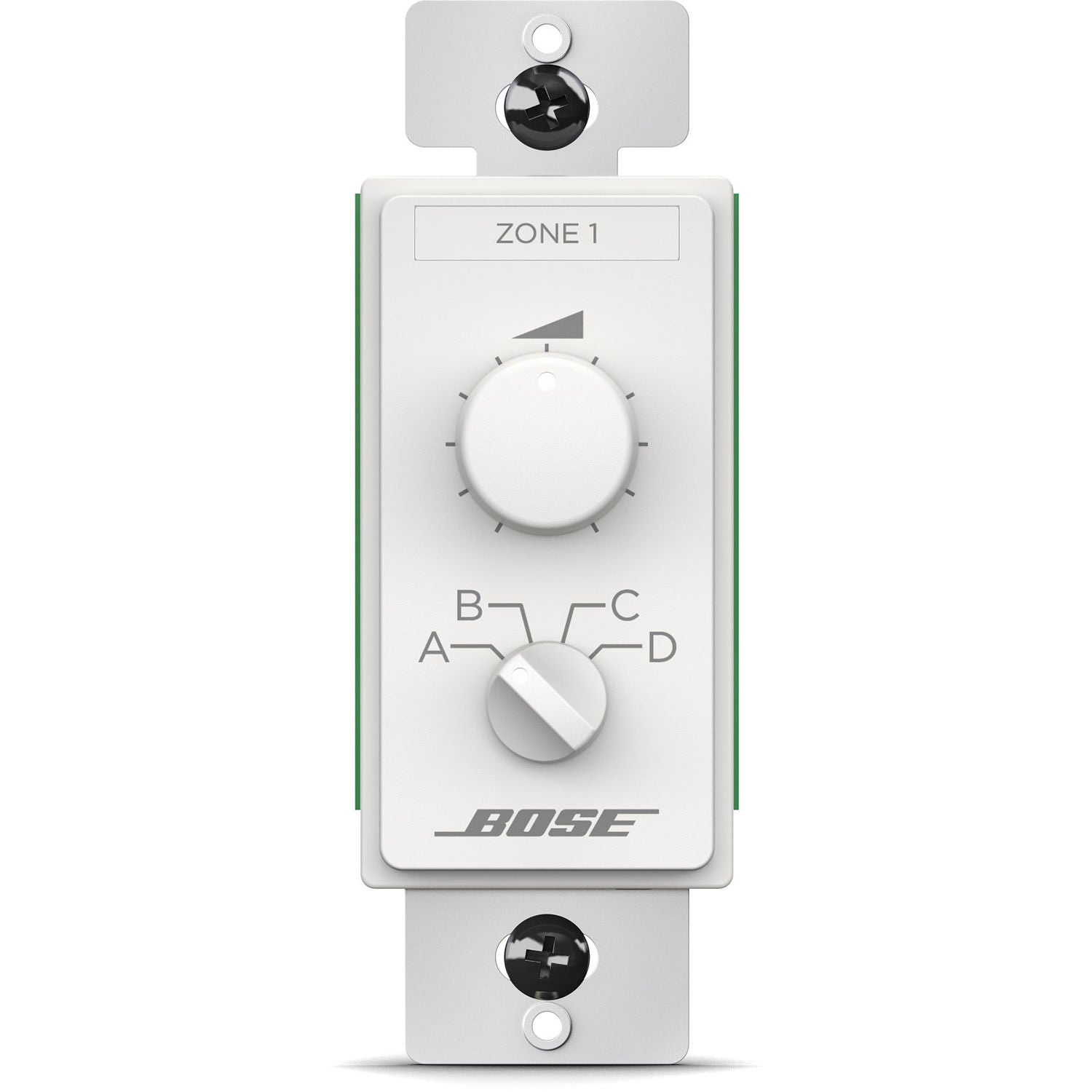

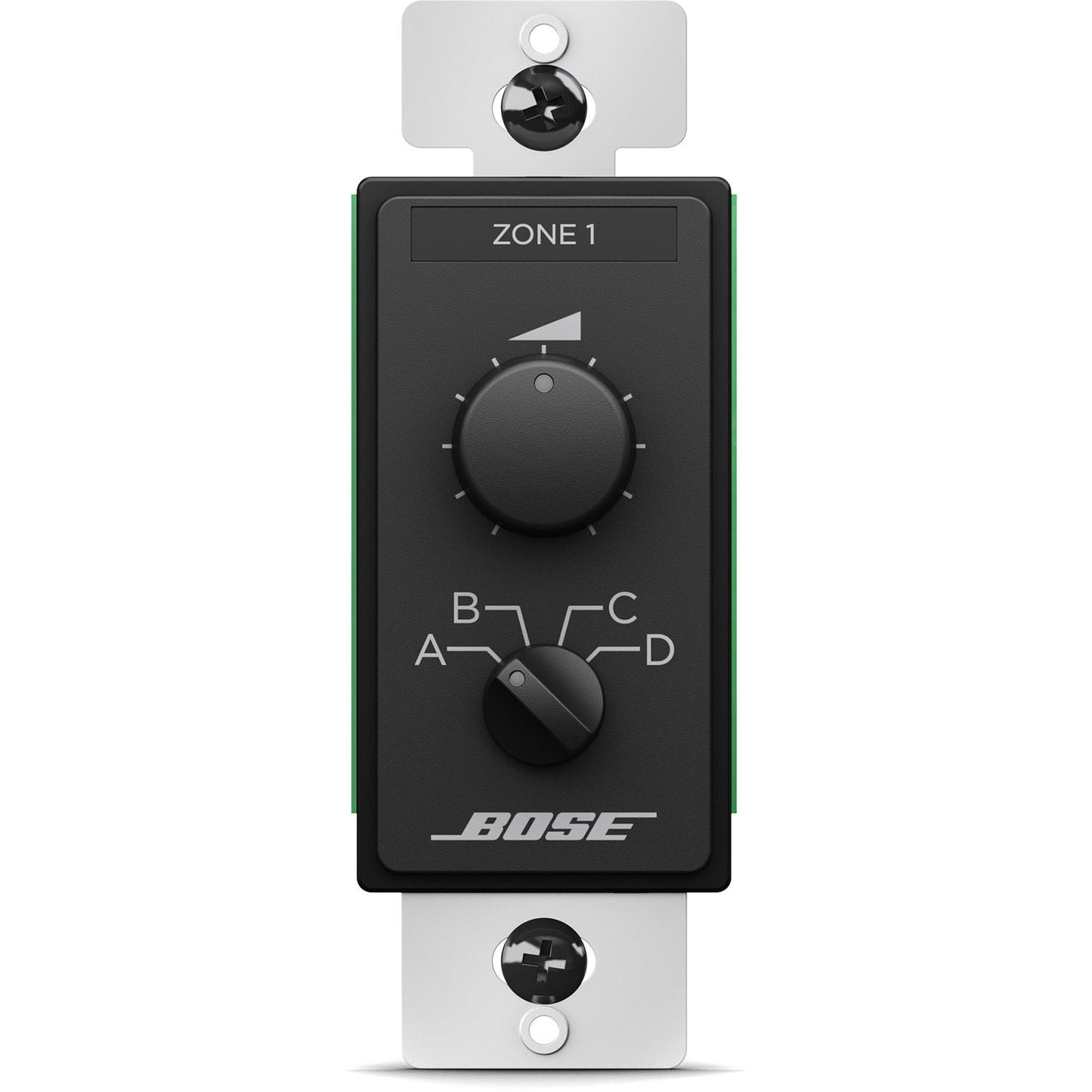

The Bose Professional ControlCenter CC-3 Zone Controller is a remote, end-user interface for use with Bose FreeSpace amplifiers, PowerShare amplifiers, and ControlSpace processors. This passive controller features a linear potentiometer with a large knob for volume control, plus a four-position switch for A/B/C/D source selection. Channel selection is achieved via the 8 x DIP switch bank.
The unit fits 1-gang electrical boxes and supports Decora-style wall plate covers (available separately). The CC-3 uses Cat 5 wiring and can be daisy-chained via the two RJ-45 connectors for simplified wiring. Included is a sheet of color-matched, pre-printed labels, with two blanks for custom labeling.
BOSE ControlCenter CC-3 Controller
Key Specifications
Compatibility
FreeSpace IZA 250-LZ and IZA 190-HZ Amplifiers FreeSpace IZA 2120-LZ/HZ and ZA 2120-LZ/HZ Amplifiers FreeSpace DXA 2120 Amplifier PowerShare PS602 and PS604 Amplifiers ControlSpace ESP-00 II, ESP-880, ESP-1240, ESP-4120, and ESP-1600 Engineered Sound Processors
Connections
Connectors

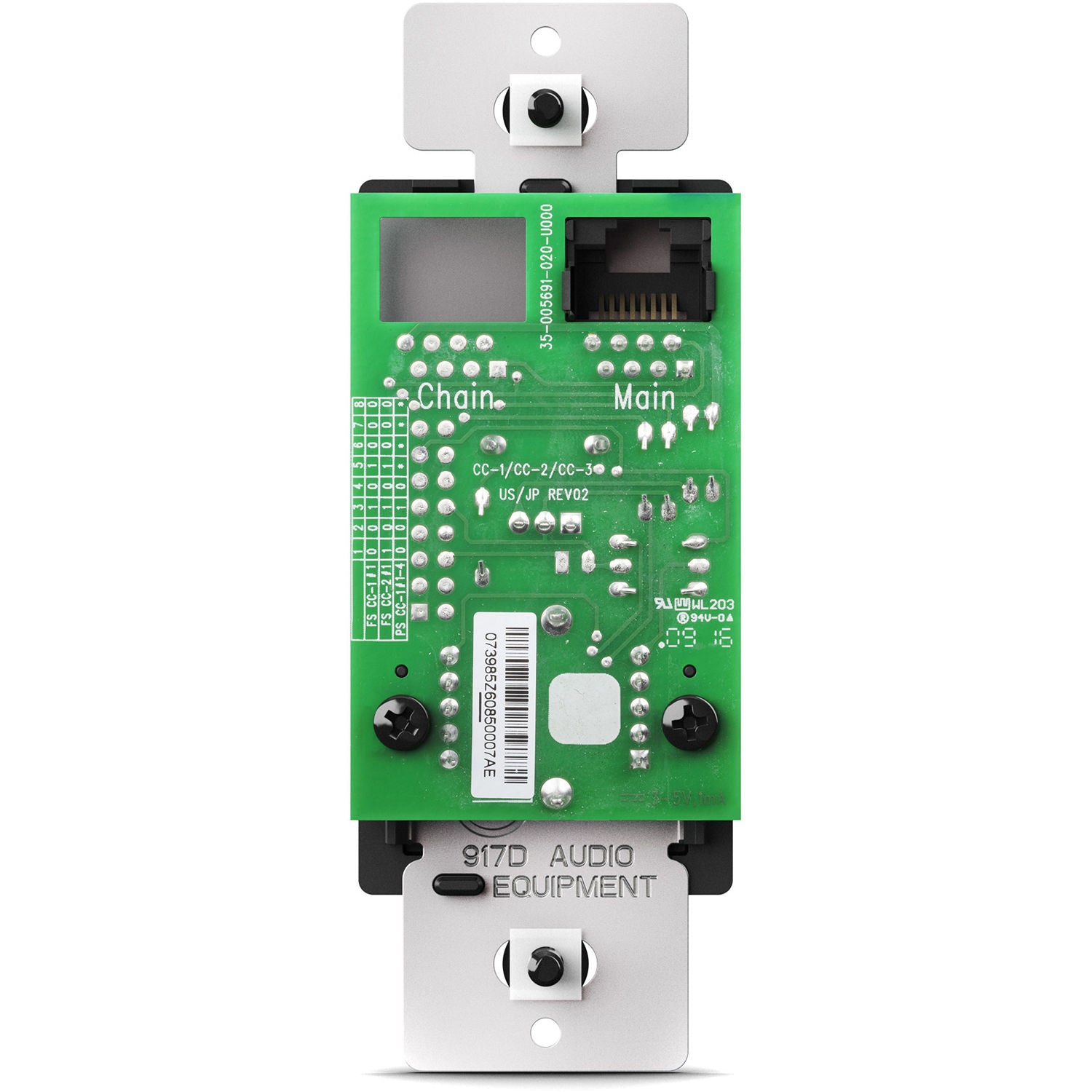

2 × RJ-45, Allows for Daisy-Chaining, TIA/EIA 568B Wiring Standard
Controls & Settings
Settings
Channel Selection via 8 DIP Switch Bank
Type
Passive Controller with Linear Potentiometer (0 Ω to 10 kΩ) and 4-Position Switch
Electrical
Cable Requirements
Cat5
Maximum Cable Length
2000 ft / 609 m for FreeSpace and PowerShare Amplifiers 500 ft / 152 m for ControlSpace Processors (Shielded Cable) 100 ft / 30 m for ControlSpace Processors (Unshielded Cable)
