Key Specifications

Cable Requirements

Cat 5e, unshielded twisted-pair (UTP)

Maximum Controller Quantity

16 per CSP processor, 32 per ControlSpace network

Connectors

(1) RJ-45

Power Range

Power over Ethernet (PoE) required

General

Compatible With

ControlSpace ESP-880A, ControlSpace EX-1280, ControlSpace EX-440C, ControlSpace EX-1280C, CSP-428, CSP-1248, DS4 Ceiling Audio Solution, ES1 Ceiling Audio Solution

Indicators and Controls

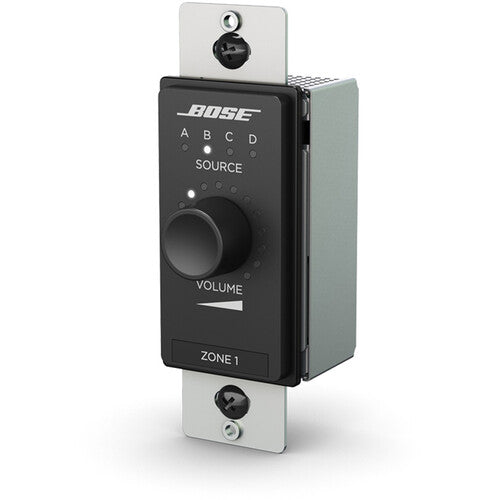

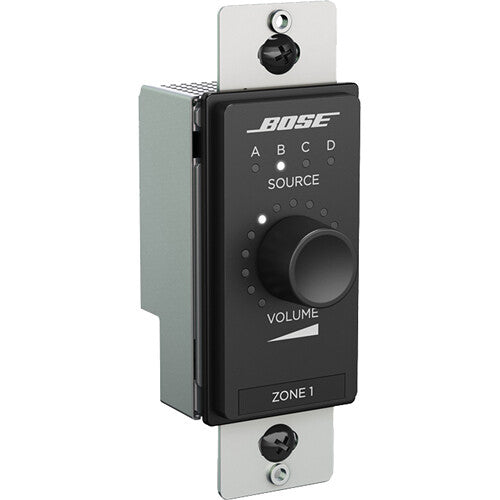

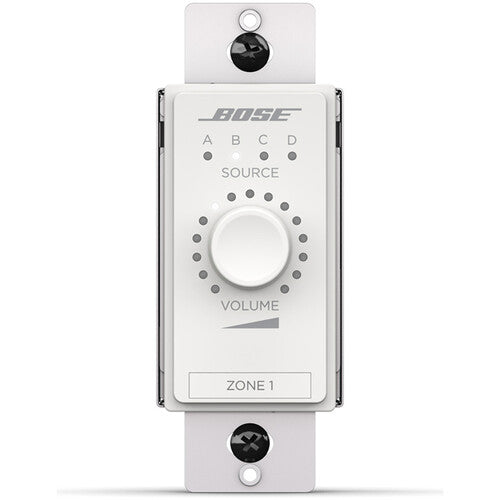

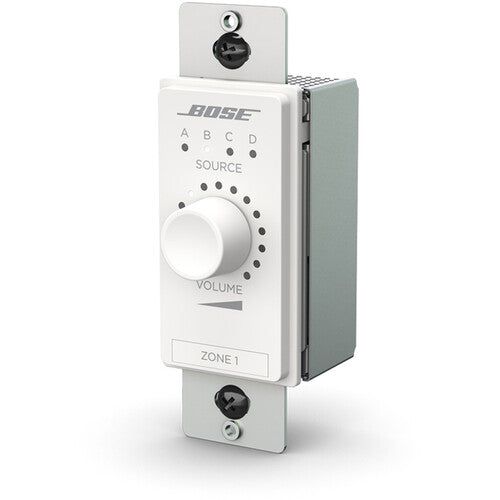

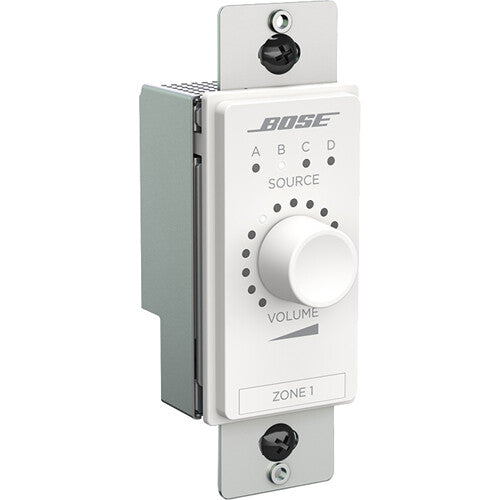

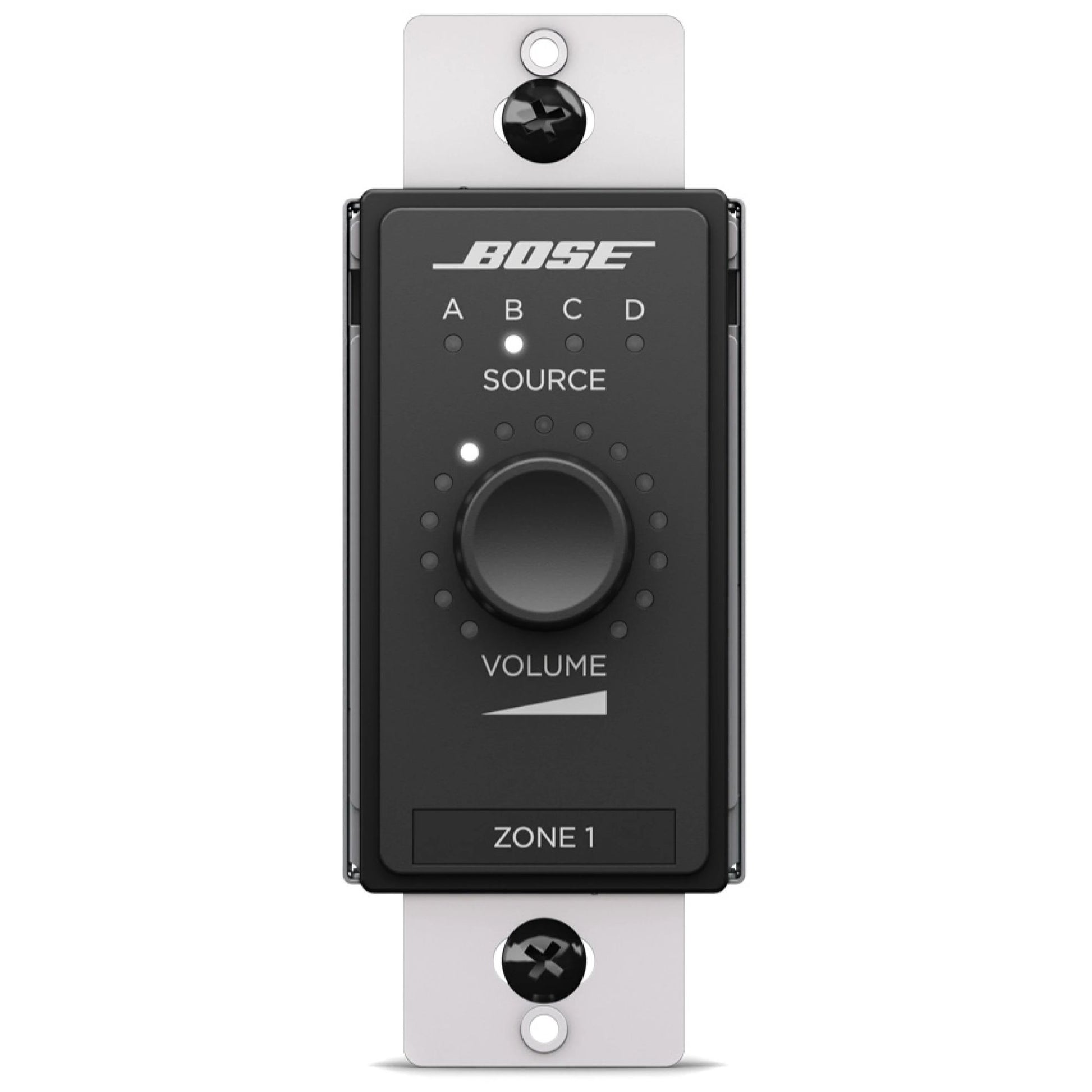

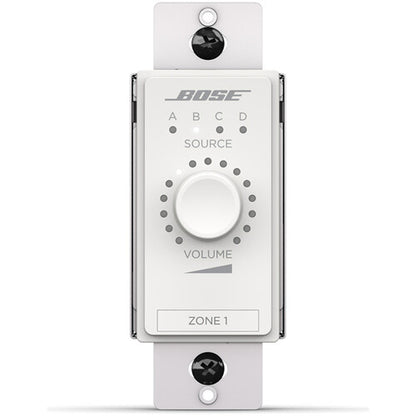

Controls (Front Panel)

(1) volume/source selection/mute knob (rotary/push)

LED Status Indicators

(1) volume level LED ring
(2) source selection LEDs (CC-2D)
(4) source selection LEDs (CC-3D)

Physical

Colors

Black, White

Suspension/Mounting

1-gang electrical box (North America, Europe, Japan)

Operating Temperature Range

0 °C to 40 °C (32 °F to 104 °F)

Product Dimensions (H × W × D)

North America: 4.1 × 1.8 × 1.8 in (105 × 40 × 46 mm)
Europe: 3.4 × 3.4 × 1.7 in (86 × 86 × 43 mm)
Japan: 4.3 × 1.7 × 1.9 in (110 × 42 × 48 mm)
