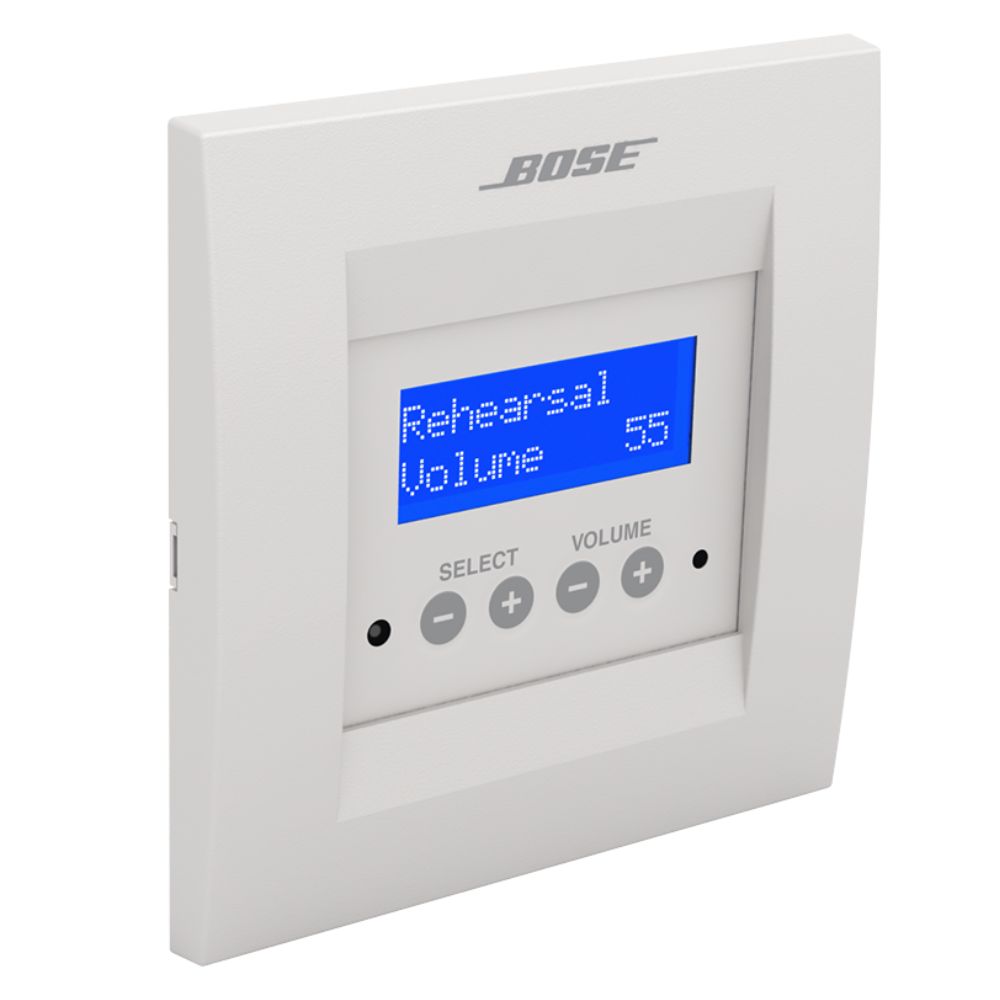

BOSE ControlSpace CC-16 Zone Controller
BOSE ControlSpace CC-16 Zone Controller
|
Key Specifications |
|
|
EMC |
ICES-003 Class B, EN55103-1, EN55103-2, FCC Part 15 Class B |
|
Electrical |
|
|
Cable Requirements |
Cat 5 (24–18 AWG), unshielded twisted-pair (UTP) |
|
Maximum Controller Quantity |
15 per ControlSpace ESP processor |
|
Maximum Cable Length |
2000 ft (609 m) |
|
Connectors |
(1) Euroblock, 6 pins |
|
Power Range |
8–18 VDC, 100 mA |
|
General |
|
|
Compatible With |
ControlSpace ESP-880A, ControlSpace EX-1280, ControlSpace EX-1280C, DS4 Ceiling Audio Solution |
|
Indicators and Controls |
|
|
Controls (Front Panel) |
(2) volume buttons (+, –), (2) select buttons (+, –) |
|
Display |
122 × 32 pixel LCD, backlit blue |
|
Physical |
|
|
Colors |
White |
|
Suspension/Mounting |
2-gang electrical box (North America, Japan) |
|
Product Dimensions (H × W × D) |
4.8 × 4.7 × 1.5 in (121 × 118 × 37 mm) |
|
Product Codes |
|
|
41761 |
ControlCenter CC-16, White |
|
Included in Packaging |
|
|
(1) ControlSpace CC-16 |
|
BOSE ControlSpace CC-16 Zone Controller Accessories
- No accessories available.
