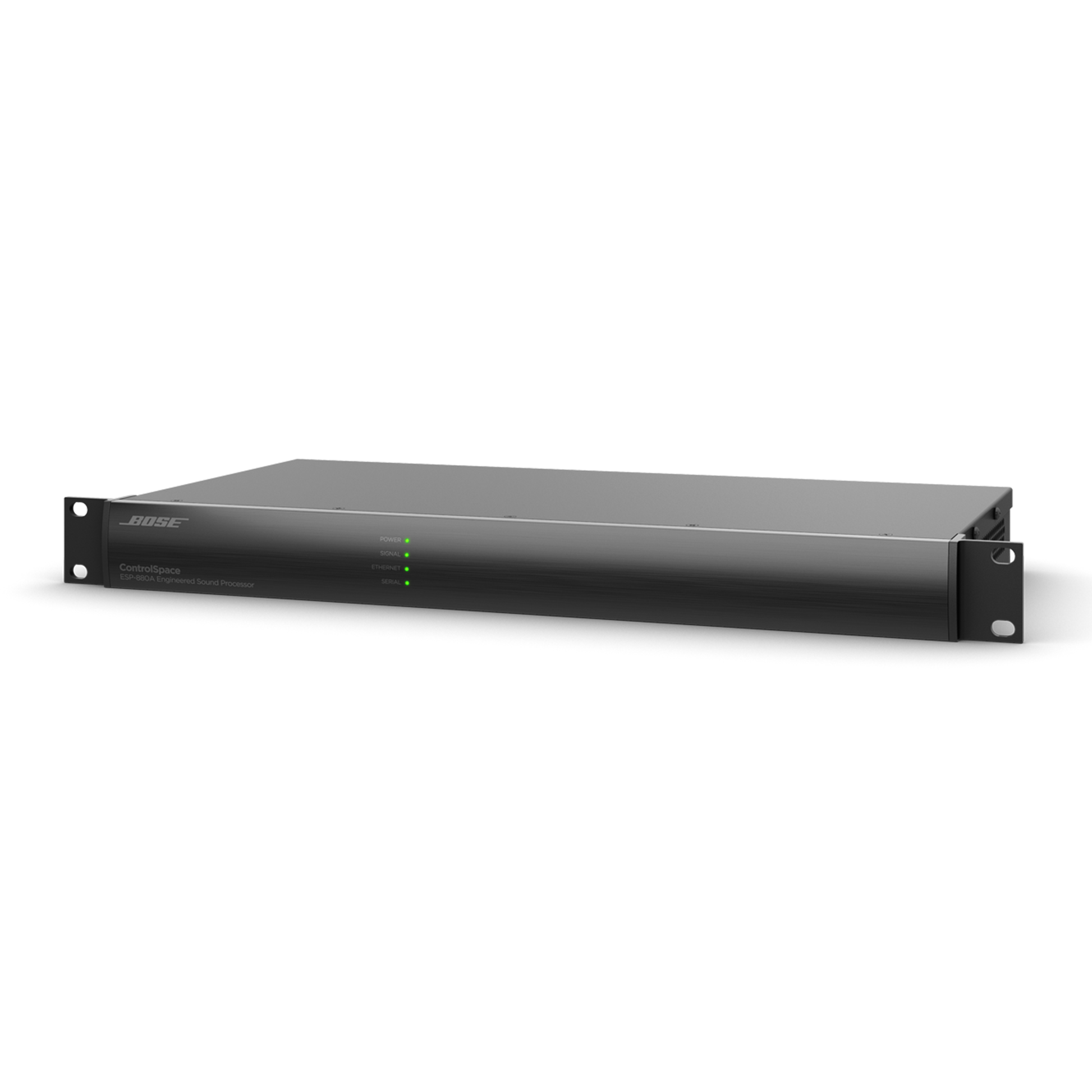

Key Specifications

Signal Processor / CPU

32-Bit Fixed / Floating-Point DSP + ARM, 456 MHz

Maximum Calculation

3.6 GIPS / 2.7 GFLOPS

Delay

43 s

Audio Latency

860 μs (Analog In to Analog Out)

A/D and D/A Converters

24-Bit

Sample Rate

48 kHz

Audio Performance

Frequency Response

20 Hz – 20 kHz (+0.3 / -0.1 dB)

THD+N

<0.002% at +4 dBu (A-Weighted, 20 Hz – 20 kHz)

Channel Separation (Crosstalk)

<-105 dB at +4 dBu Input and Output Level, 1 kHz

Dynamic Range

>115 dB A-Weighted (20 Hz – 20 kHz, Analog Through)

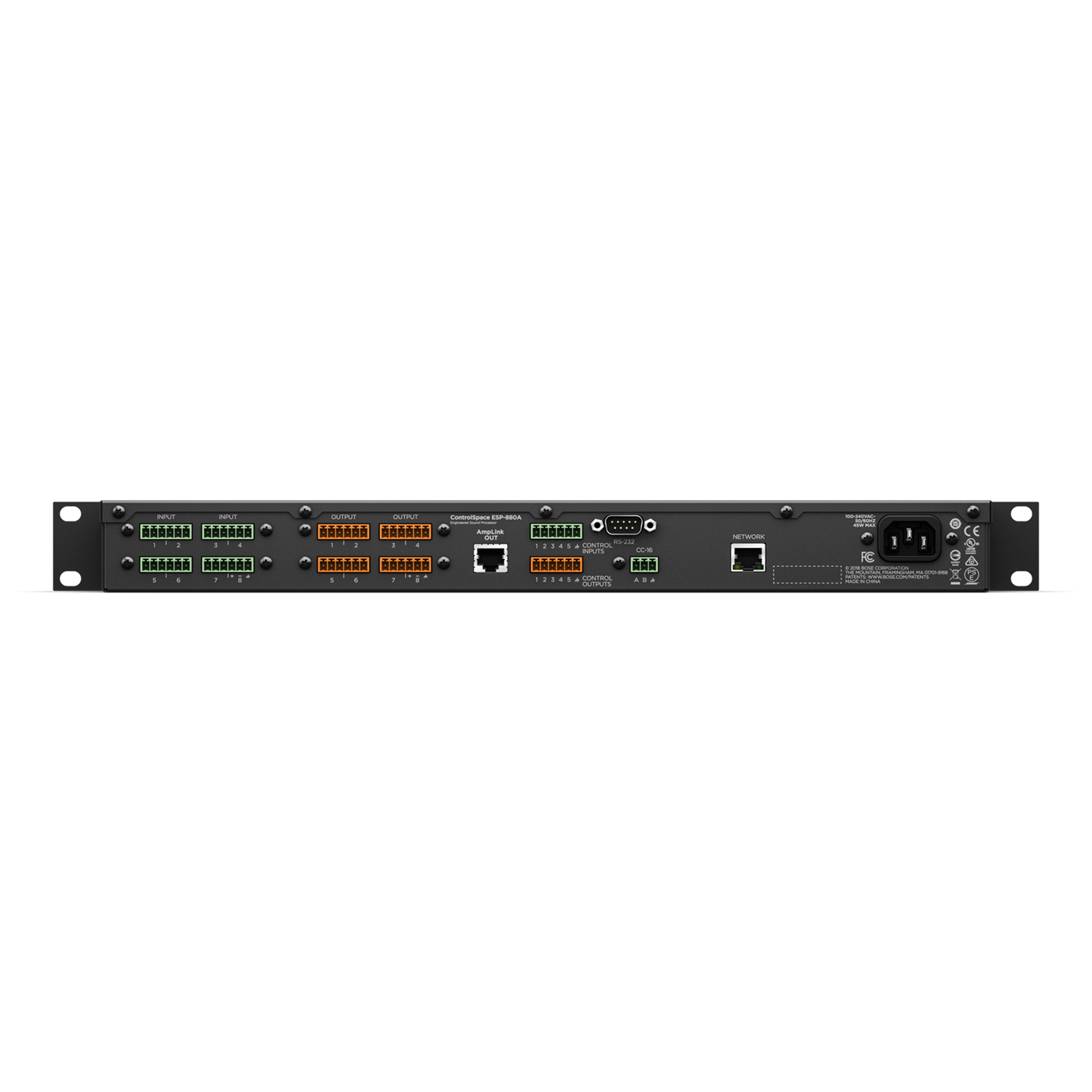

Audio Input

Input Channels

8 Analog (Balanced, Mic/Line Level)

Connectors

0.15" / 3.81 mm Phoenix Contact, 6-Pin

Input Impedance

12 kΩ at 1 kHz (with or without Phantom Power)

Maximum Input Level

+24 dBu

Equivalent Input Noise

<-119 dBu (22 Hz – 20 kHz, 150 Ω Input, 64 dB Gain)

Phantom Power

+48 VDC, 10 mA, Selectable per Input

Pre-Gain Settings

0 / 14 / 24 / 32 / 44 / 54 / 64 dB

Audio Output

Output Channels

8 Analog (Balanced, Line Level), 8 AmpLink

Connectors

0.15" / 3.81 mm Phoenix Contact, 6-Pin (Analog), AmpLink RJ-45

Output Impedance

66 Ω

Maximum Output Level

+24 dBu

Control Inputs

Inputs (Control)

5 Analog or Digital Inputs, 2 kΩ Pull-Up, 0.15" / 3.81 mm Phoenix Contact, 6-Pin

Analog Input Voltage Range

0 – 3.3 V (Max 5 V)

Digital Input Voltage Range

0 – 3.3 V (Threshold = 1.6 V)

Control Output

Outputs (Control)

5 Digital Outputs, 0.15" / 3.81 mm Phoenix Contact, 6-Pin

Output Voltage High

8 V (Open Circuit), 2.5 V at 10 mA

Output Voltage Low

<1 V at 100 mA, Push-Pull

Output Current

10 mA Source, 100 mA Sink (24 VDC Max External Supply Voltage)

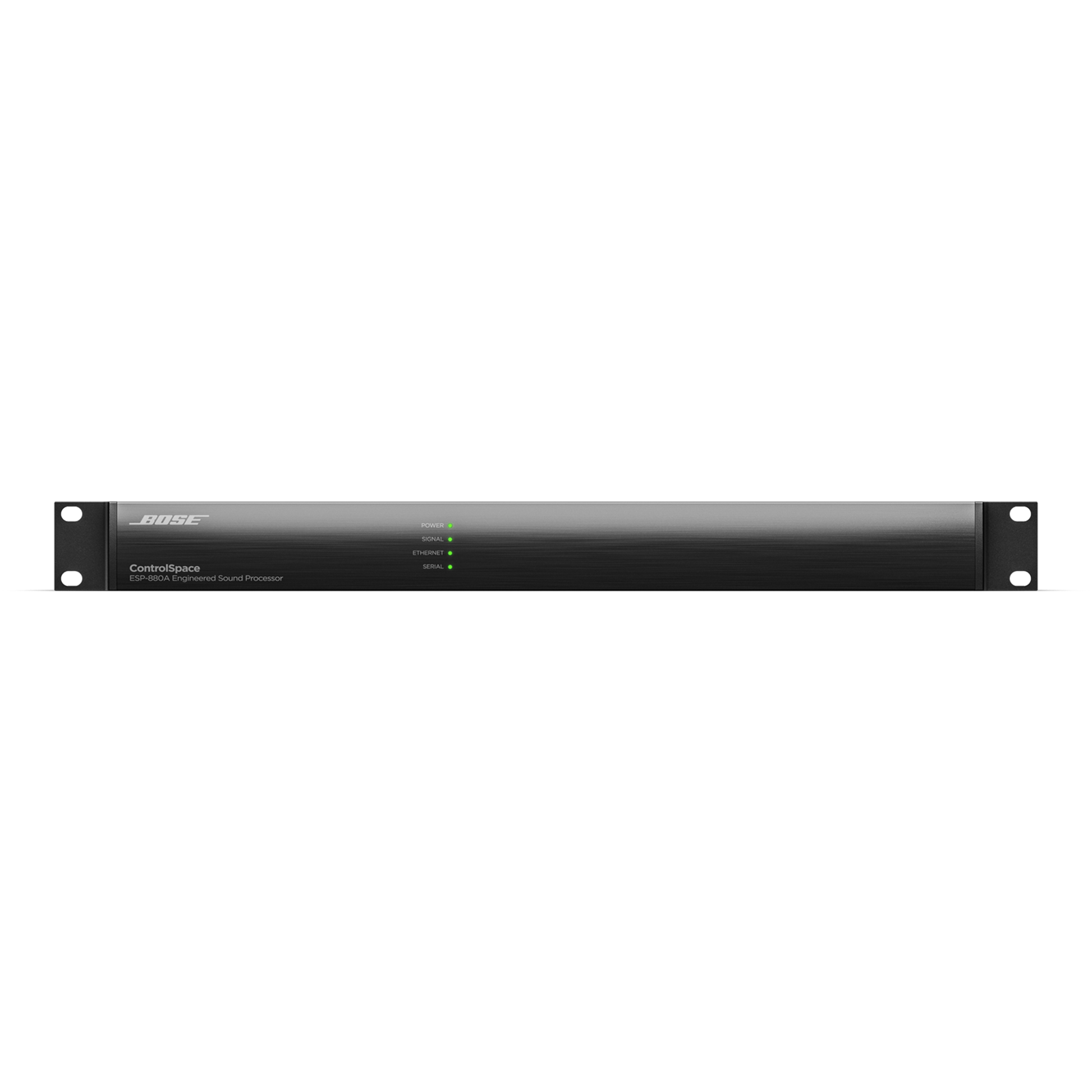

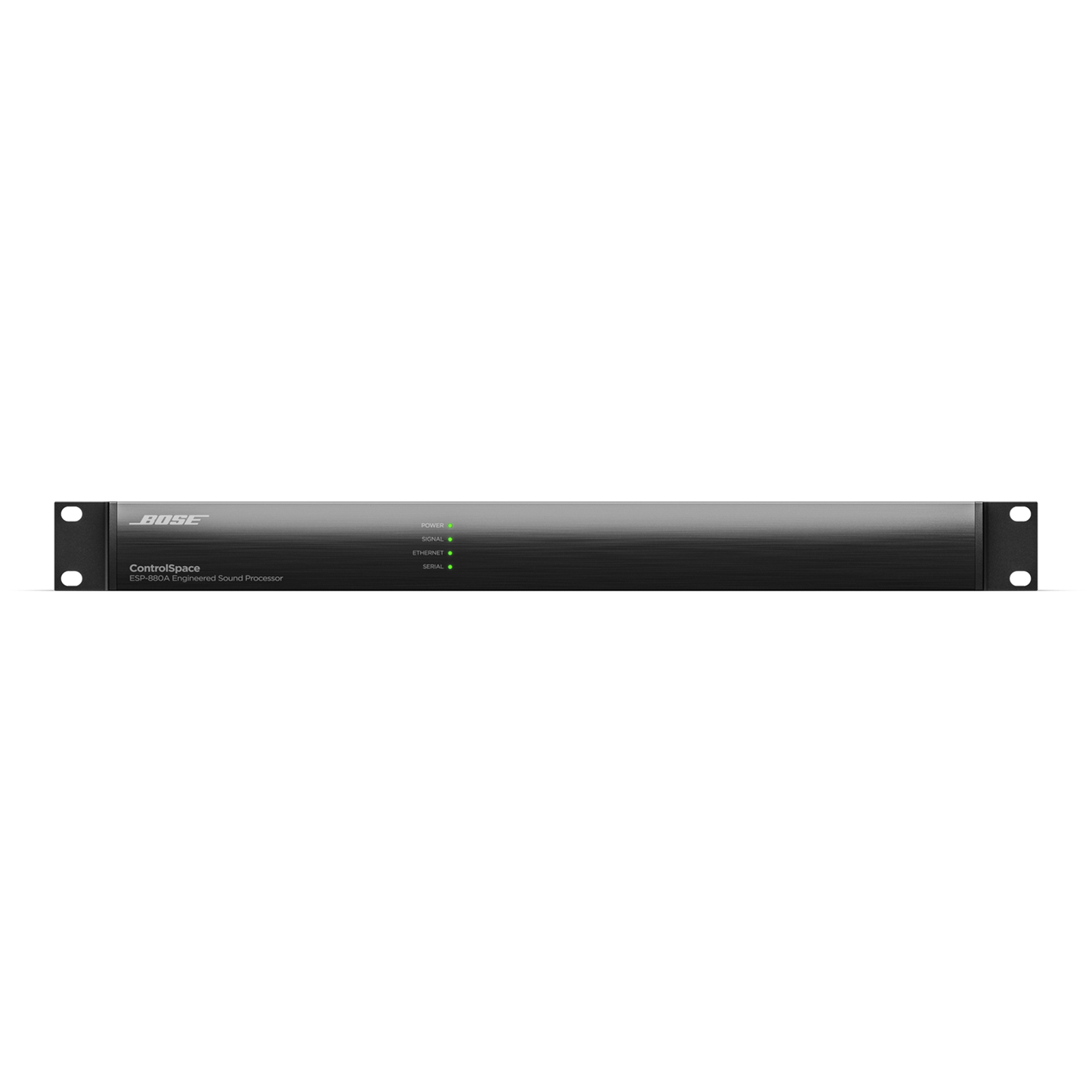

Indicators & Controls

LED Status Indicators

Power/Status, Signal, Ethernet, Serial (RS-232 + CC-16)

Audio Signal Indication

Green (-60 to -20 dBFS), Yellow (-20 to -2 dBFS), Red (-2 to 0 dBFS)

General

PC Configuration Software

ControlSpace Designer Software

Network Control

Ethernet (RJ-45), 100 MB

Communications Ports

RS-232 (DB9M, DTE), Bose CC-16 (0.15" / 3.81 mm Phoenix Contact, 3-Pin)

Operating Conditions

Temperature

32 – 104°F / 0 – 40°C

Cooling

Active, Side Venting

Power

Mains Voltage

85 – 264 VAC, 50/60 Hz

AC Power Consumption

<37 VA Typical

Mains Connector

IEC 60320-C14 (Inlet)

Power Dissipation

22 W (75 BTU/Hr, 19 kCal/Hr)

Dimensions

Size (HxWxD)

1.7 × 19.0 × 8.5" / 4.3 × 48.2 × 21.6 cm

Weight

5.8 lb / 2.6 kg
