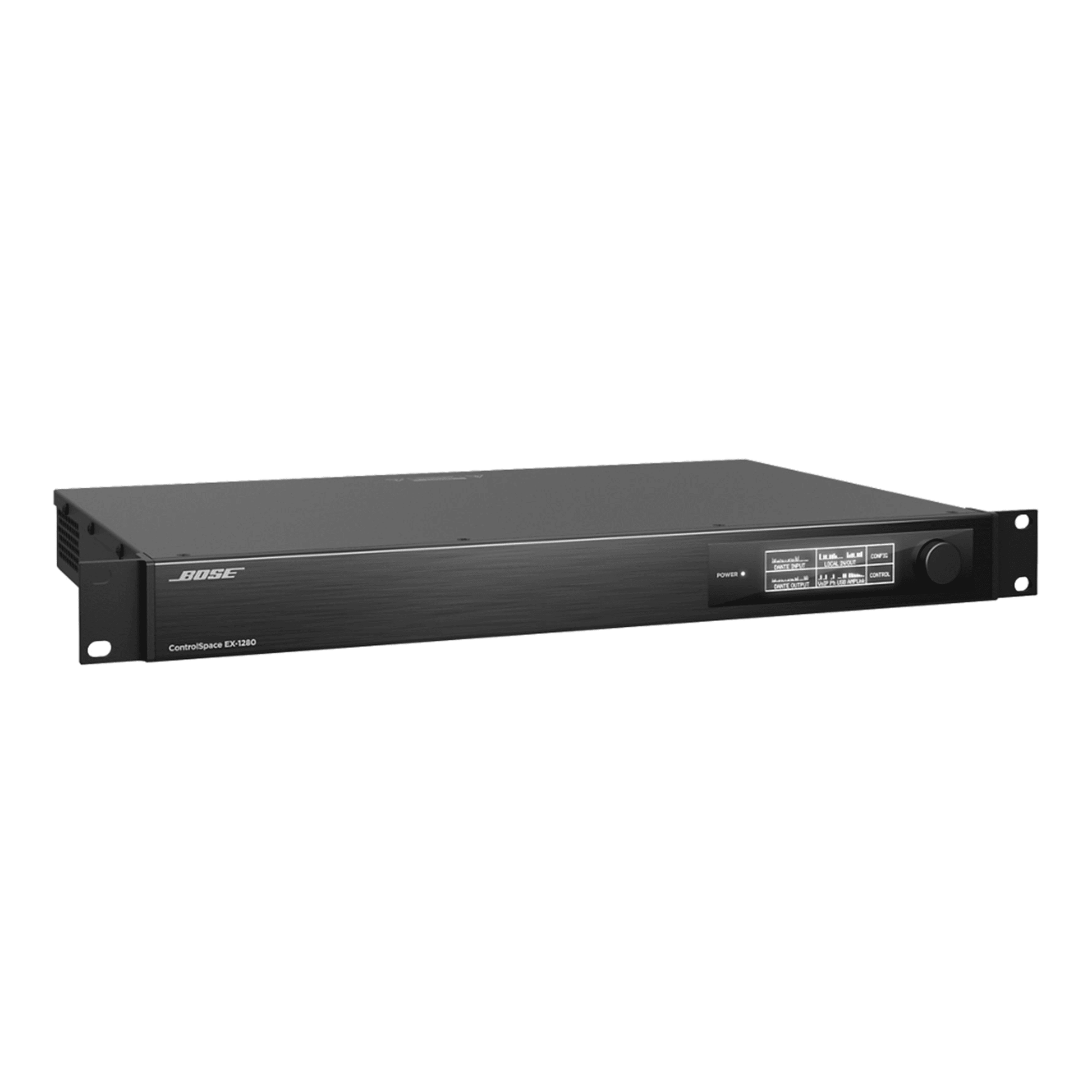

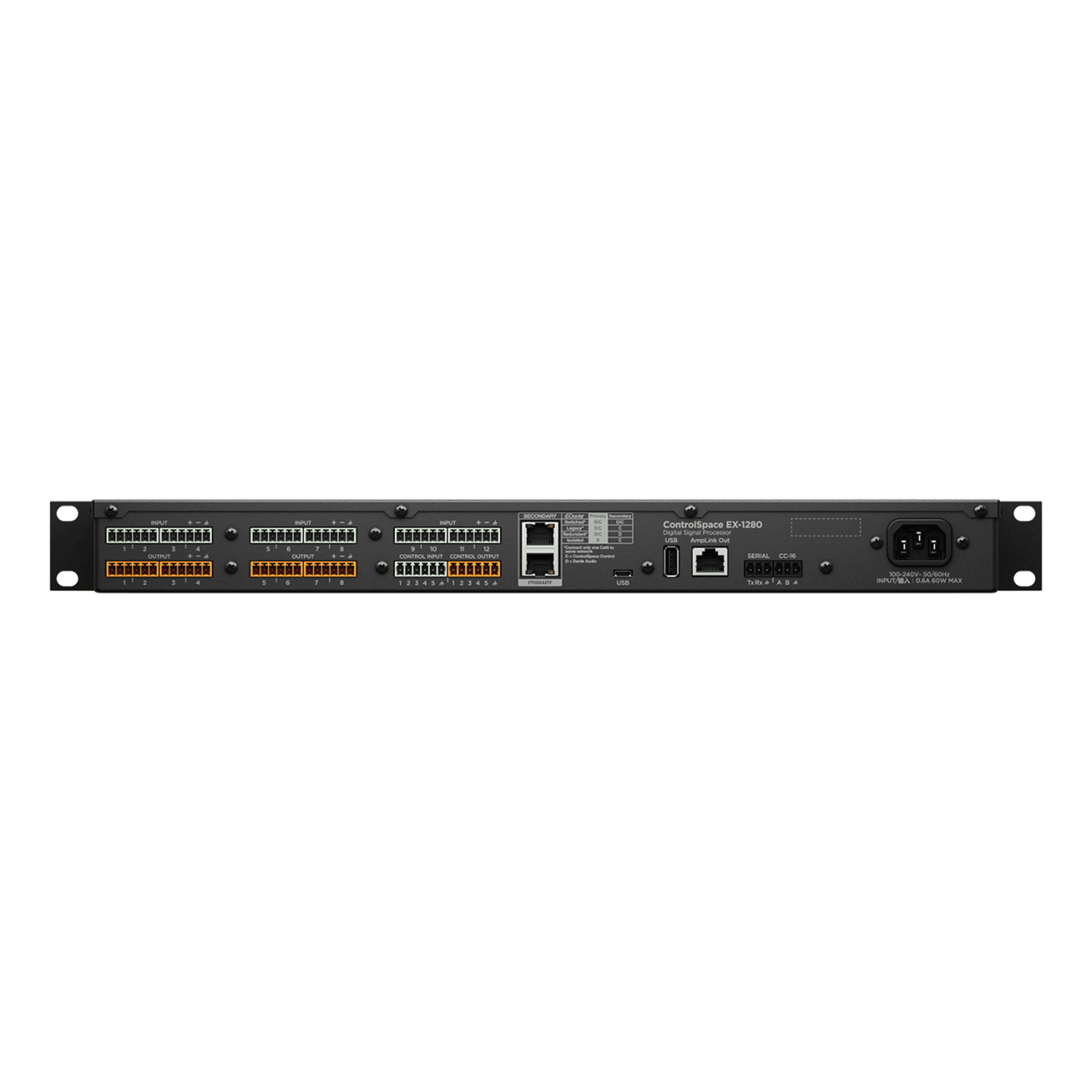

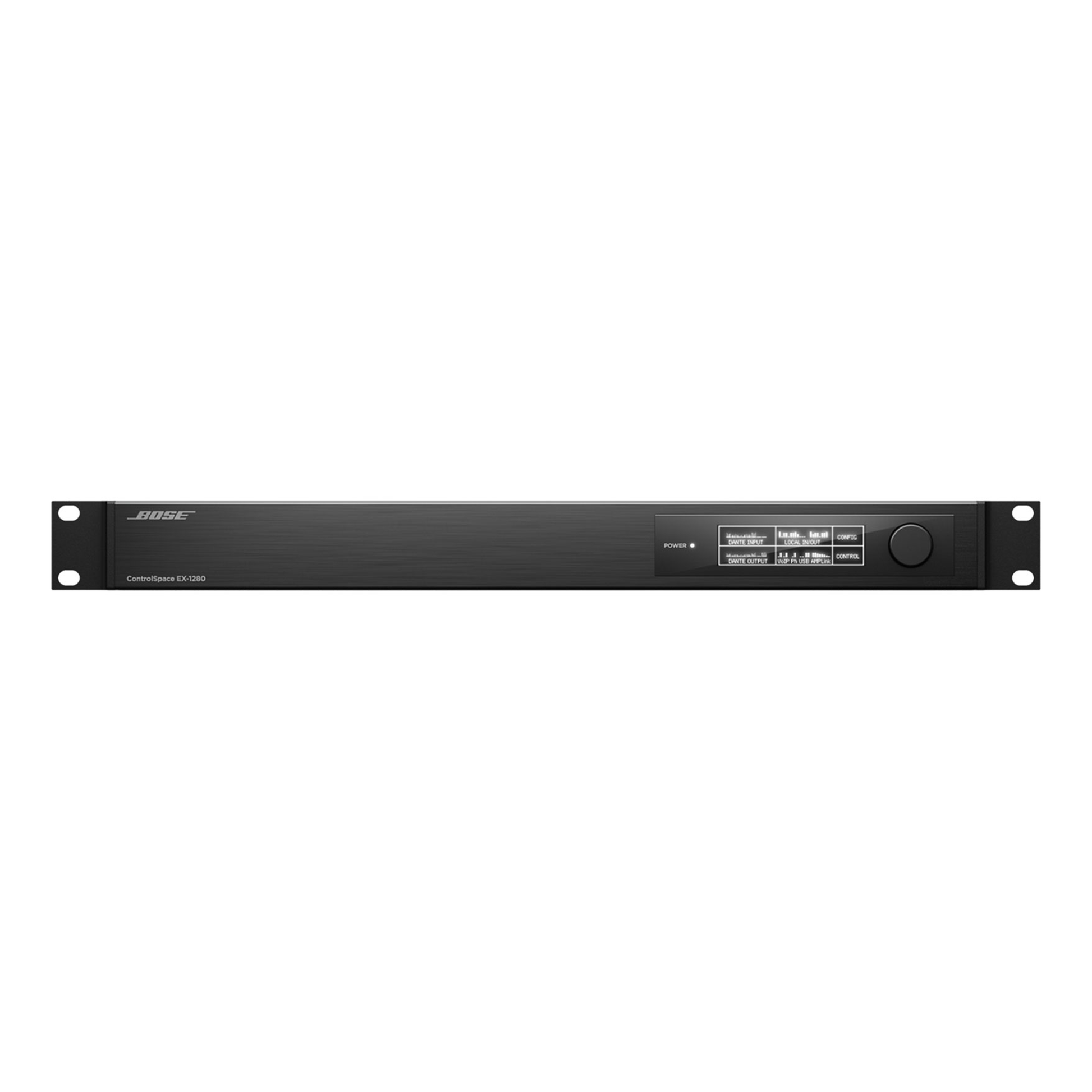

BOSE ControlSpace EX-1280
BOSE ControlSpace EX-1280
|
Key Specifications |
|
|
Signal Processor / CPU |
32-Bit Fixed / Floating-Point DSP + ARM, 456 MHz |
|
Maximum Calculation |
3.6 GIPS / 2.7 GFLOPS |
|
Delay |
43 s |
|
Audio Latency |
1.05 ms (Analog In to Analog Out, Without AEC) |
|
A/D and D/A Converters |
24-Bit |
|
Sample Rate |
48 kHz |
|
Analog Audio Inputs |
|
|
Input Channels |
12 Balanced, Mic/Line Level |
|
Connectors |
0.15" / 3.81 mm Detachable Euroblock, 6-Pin |
|
Input Impedance |
12 kΩ at 1 kHz (with or without Phantom Power Active) |
|
Maximum Input Level |
+24 dBu |
|
Equivalent Input Noise |
-118 dB at 44 dB Gain Setting |
|
Phantom Power |
+48 VDC, 10 mA, Selectable per Input |
|
Pre-Gain Settings |
0 / 14 / 24 / 32 / 44 / 54 / 64 dB |
|
Analog Audio Outputs |
|
|
Output Channels |
8 Analog (Balanced, Line Level) |
|
Connectors |
0.15" / 3.81 mm Euroblock, 6-Pin |
|
Output Impedance |
200 Ω |
|
Maximum Output Level |
+24 dBu |
|
Audio Performance |
|
|
Frequency Response |
18 Hz – 20 kHz (+0.8 / -0.2 dB Ref 1 kHz) |
|
THD+N |
<0.003% at +4 dBu (A-weighted, 20 Hz – 18 kHz) |
|
Channel Separation (Crosstalk) |
<-105 dB at +4 dBu, 1 kHz Input Signal |
|
Dynamic Range |
>115 dB (A-weighted, 20 Hz – 20 kHz, Analog Input to Analog Output) |
|
Audio Over IP |
|
|
Dante |
64 x 64, Primary / Secondary |
|
Digital Audio Outputs |
|
|
AmpLink (Output Only) |
8 Low Latency (<21 µs), 48 kHz (Requires Shielded Cat 5/6) |
|
USB Device |
Micro-B Type, Stereo In/Out |
|
USB Host |
Type A (For Future Use) |
|
Control Inputs |
|
|
Inputs (Control) |
5 Analog or Digital Inputs, 2 kΩ Internal Pull-Up to 5 V, 0.15" / 3.81 mm Detachable Euroblock, 6-Pin |
|
Analog Input Voltage Range |
0 – 3.3 V (Max 5 V) |
|
Digital Input Voltage Range |
0 – 3.3 V (Threshold = 1.6 V) |
|
Control Output |
|
|
Outputs (Control) |
5 Digital Outputs, 0.15" / 3.81 mm Detachable Euroblock, 6-Pin |
|
Output Voltage High / Low |
8 V (Open Circuit), 2.5 V at 10 mA; Low: <1 V at 100 mA, Push-Pull |
|
Indicators & Controls |
|
|
Display |
256 x 64 OLED with Rotary Encoder |
|
LED Status Indicators |
Power/Status |
|
Audio Signal Indication |
On Display |
|
General |
|
|
PC Configuration Software |
ControlSpace Designer Software Version 5.5 or Later |
|
Network Control |
Ethernet (RJ-45), 1 Gbps |
|
RS-232/485 Ports |
RS-232 (DTE) and Bose CC-16 (RS-485 Master), 0.15" / 3.81 mm Detachable Euroblock, 3-Pin |
|
Operating Temperature |
|
|
Temperature |
32 – 104°F / 0 – 40°C |
|
Cooling System |
|
|
Cooling |
2 Variable-Speed Fans, Side Venting |
|
Compliance |
|
|
Safety |
UL60065 (8th Edition), CAN/CSA-C22.2 No.60065 (8th Edition), IEC/EN60065 (8th Edition), UL62368-1 (2nd Edition), CAN/CSA C22.2 No.62368-1-14 (2nd Edition), IEC/EN 62368-1 (2nd Edition) |
|
EMC |
EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55035:2017, FCC Part 15B Class A, AS/NZS CISPR 32:2015, ICES-003 Class A, CISPR13 |
|
Power |
|
|
Mains Voltage |
85 – 264 VAC, 50/60 Hz |
|
AC Power Consumption |
35 W Typical at 104°F (40°C) Ambient |
|
Mains Connector |
IEC 60320-C14 (Inlet) |
|
Power Dissipation |
60 W (205 BTU, 52 kcal) |
|
Dimensions |
|
|
Size (HxWxD) |
1.7 × 19.0 × 11.1" / 4.3 × 48.3 × 28.2 cm |
|
Weight |
7.1 lb / 3.2 kg |
