Key Specifications

Max I/O Capacity

18x Input / 6x Output

Number of Analog Input Channels

18

Number of Mic Preamps

No

Number of Analog Output Channels

6

Faders & Level Adjustment

No

Built-In Effects

4x Stereo Effect (Type Unspecified)

Analog Inputs

8x XLR 3-Pin Balanced Mic/Line Input

8x Combo XLR-1/4" 3-Pin Balanced/Unbalanced Mic/Line Input

2x 1/4" TRS Balanced Line Input (1 Stereo Pair)

Analog Outputs

2x XLR 3-Pin Balanced Main Output (1 Stereo Pair)

6x 1/4" TRS Balanced/Unbalanced Mix Outputs

2x 1/4" TRS Unbalanced Stereo Headphone Outputs

Digital I/O

1x RJ45 (Network)

USB I/O

1x USB-A (Audio Playback, Audio Streaming, External Memory, Service)

1x USB-B 2.0 (Host Connection)

Wireless

Wi-Fi

*Built-In

Rack Mountable

Yes

Mixer

Max I/O Capacity

18x Input / 6x Output

Number of Analog Input Channels

18

Number of Mic Preamps

No

Number of Analog Output Channels

6

Mix Routing

1x Stereo Main LRC

6x Mono Bus

Groups

No

Presets

No

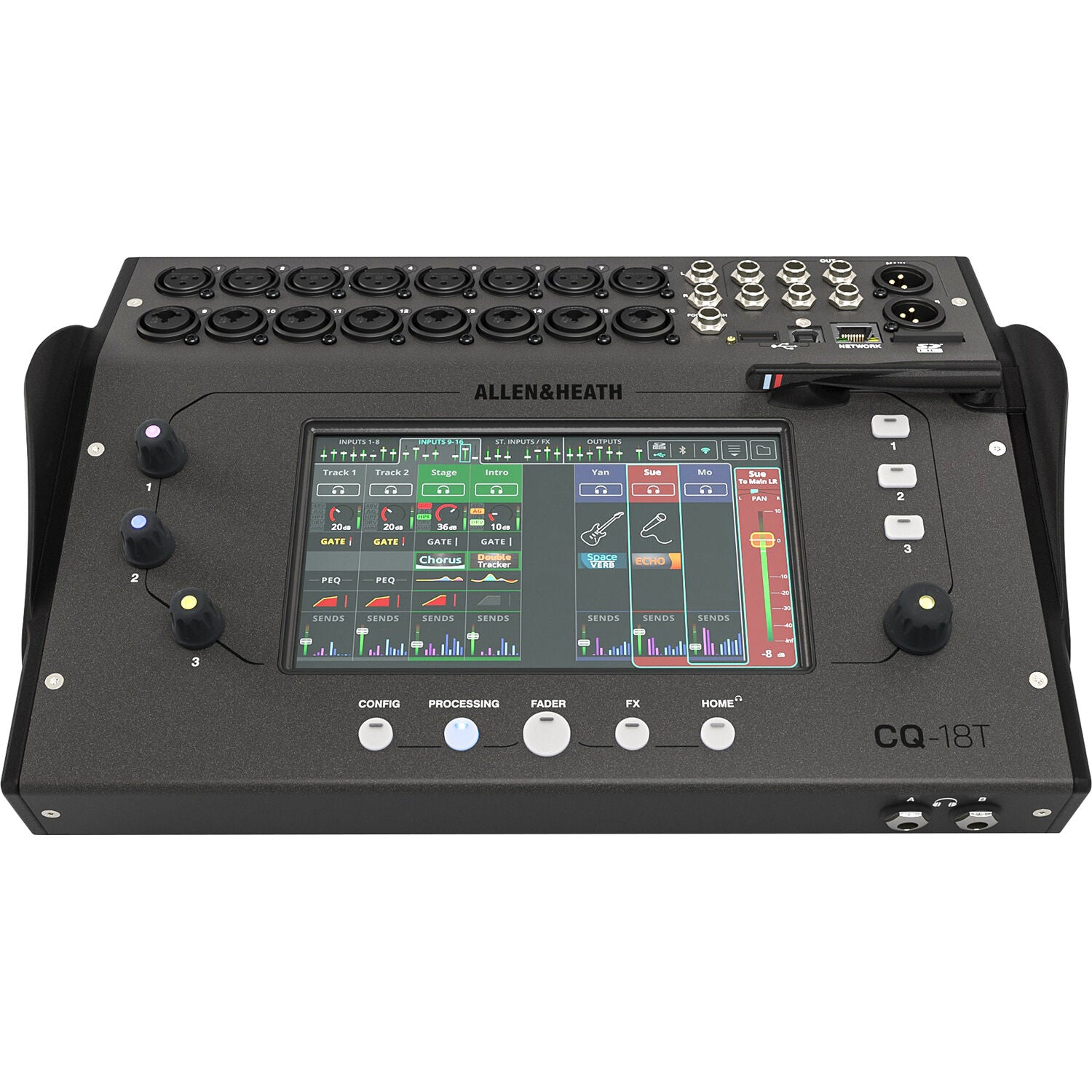

Display

7" Touchscreen (Backlit)

Faders & Level Adjustment

No

Signal Processing

Input Polarity

Normal/Reverse

Dynamic Processing

Compressor, Gate

Solo/Mute

Solo, Mute per Input Channel, Bus, Master

Built-In Effects

4x Stereo Effect (Type Unspecified)

Automatic Mic Mixing

Yes

Digital Audio

Sample Rates

96 kHz

Connectivity

Analog Inputs

8x XLR 3-Pin Balanced Mic/Line Input

8x Combo XLR-1/4" 3-Pin Balanced/Unbalanced Mic/Line Input

2x 1/4" TRS Balanced Line Input (1 Stereo Pair)

Analog Outputs

2x XLR 3-Pin Balanced Main Output (1 Stereo Pair)

6x 1/4" TRS Balanced/Unbalanced Mix Outputs

2x 1/4" TRS Unbalanced Stereo Headphone Outputs

Phantom Power

+48 V

Digital I/O

1x RJ45 (Network)

MIDI I/O

No

USB I/O

1x USB-A (Audio Playback, Audio Streaming, External Memory, Service)

1x USB-B 2.0 (Host Connection)

USB I/O Capacity

24x Input / 22x Output

Wireless

Wi-Fi

*Built-In

Mobile App Compatible

Yes: Android & iOS

App Name: CQ-MixPad

Functionality: Access Stored Files, Adjust Settings, Remote Control

External Display I/O

No

Recording

Max Multitrack Recording

24 Tracks

Media Support

SD

Power

Input Power

100 to 240 VAC, 50/60 Hz

12 VDC at 4 A

Physical

Rack Mountable

Yes

Rackmount Size

6 RU (with Non-Included Hardware)

Dimensions

13.6 x 9.5 x 3.5" / 34.6 x 24.2 x 8.8 cm

Weight

6.6 lb / 3 kg

Packaging Info

Package Weight

9.795 lb

Box Dimensions (LxWxH)

16.5 x 12.2 x 8.4"
