Key Specifications

Mixer

• Max I/O Capacity: 20x Input / 8x Output
• Number of Analog Input Channels: 20 (16 Mono / 2 Stereo)
• Number of Mic Preamps: 16
• Number of Analog Output Channels: 8
• Mix Routing: 1x Stereo Main LRC, 1x Stereo Subgroup, 6x Mono Bus
• Groups: No
• Presets: No
• Faders & Level Adjustment: No

Signal Processing

• Dynamic Processing: Compressor, Gate
• Solo/Mute: Solo, Mute per Input Channel, Bus, Master
• Built-In Effects: 4x Stereo Effect (Type Unspecified)
• Automatic Mic Mixing: Yes

Digital Audio

• Sample Rates: 96 kHz

Connectivity

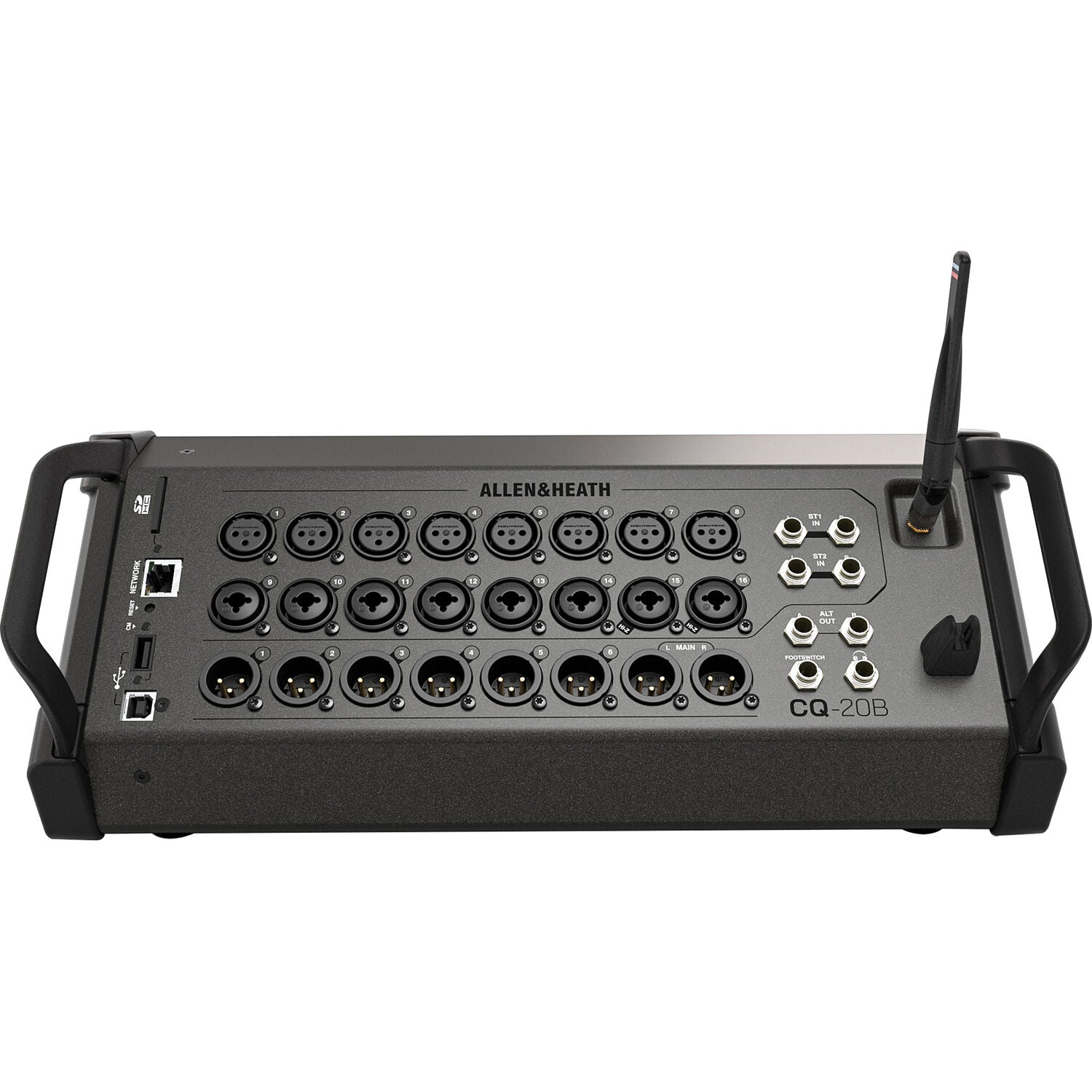

• Analog Inputs: 8x XLR 3-Pin Balanced Mic/Line Input, 8x Combo XLR-1/4" Balanced/Unbalanced Mic/Line Input, 4x 1/4" TRS Balanced/Unbalanced Stereo Line Input (2 Stereo Pair)
• Analog Outputs: 2x XLR 3-Pin Stereo Main Output (1 Stereo Pair), 2x 1/4" TRS Balanced/Unbalanced Alt Output, 6x XLR 3-Pin Balanced/Unbalanced Mix Output, 1x 1/4" TRS Unbalanced Stereo Headphone Output
• Phantom Power: +48 V
• Digital I/O: 1x RJ45 (Network)
• MIDI I/O: No
• USB I/O: 1x USB-A (Audio Playback, Audio Streaming, External Memory, Service), 1x USB-B 2.0 (Host Connection)
• USB I/O Capacity: 24x Input / 24x Output
• Other I/O: 1x 1/4" TRS Footswitch Input
• Wireless: Bluetooth / Wi-Fi
• External Display I/O: No

Recording

• Max Multitrack Recording: 24 Tracks
• Media Support: SD

Power

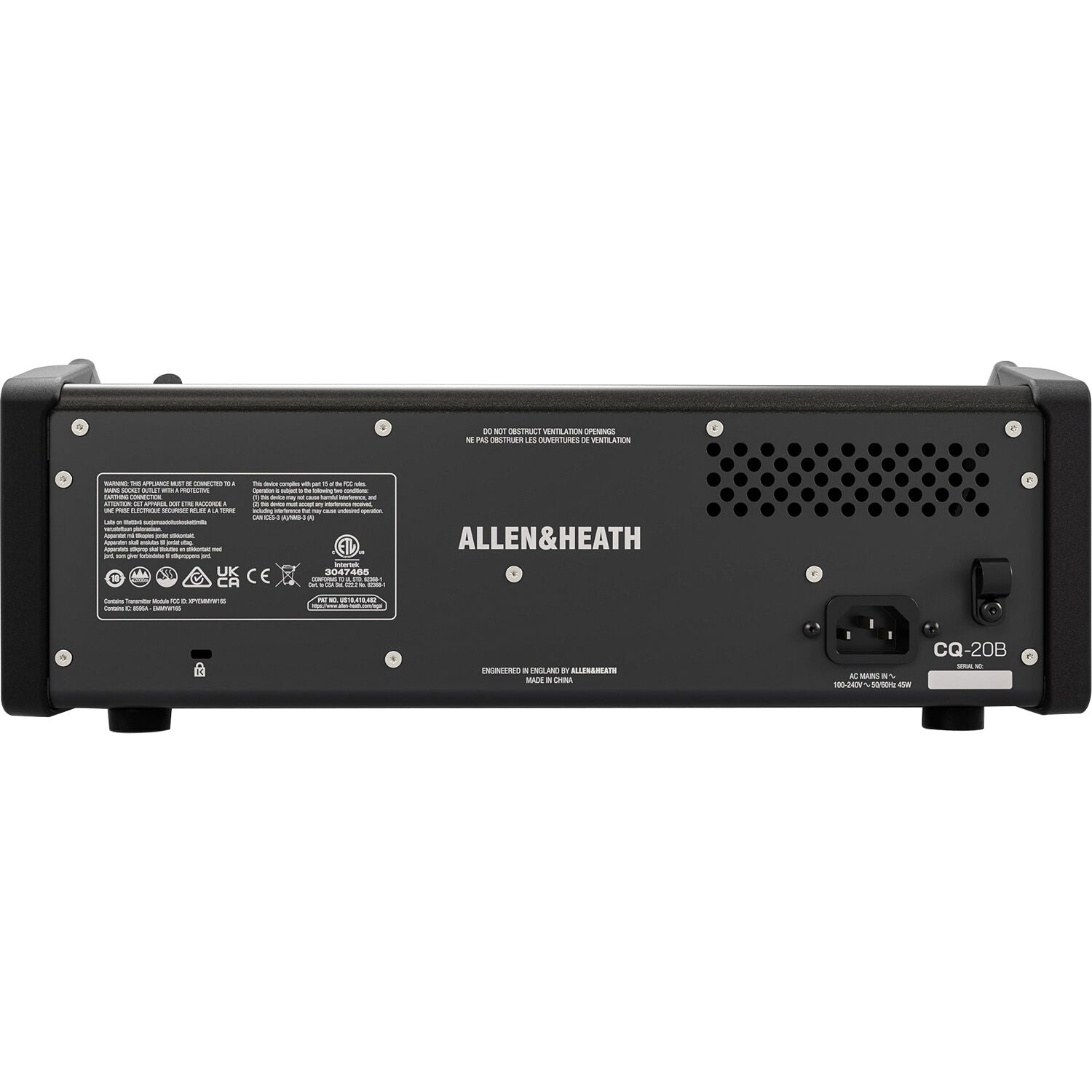

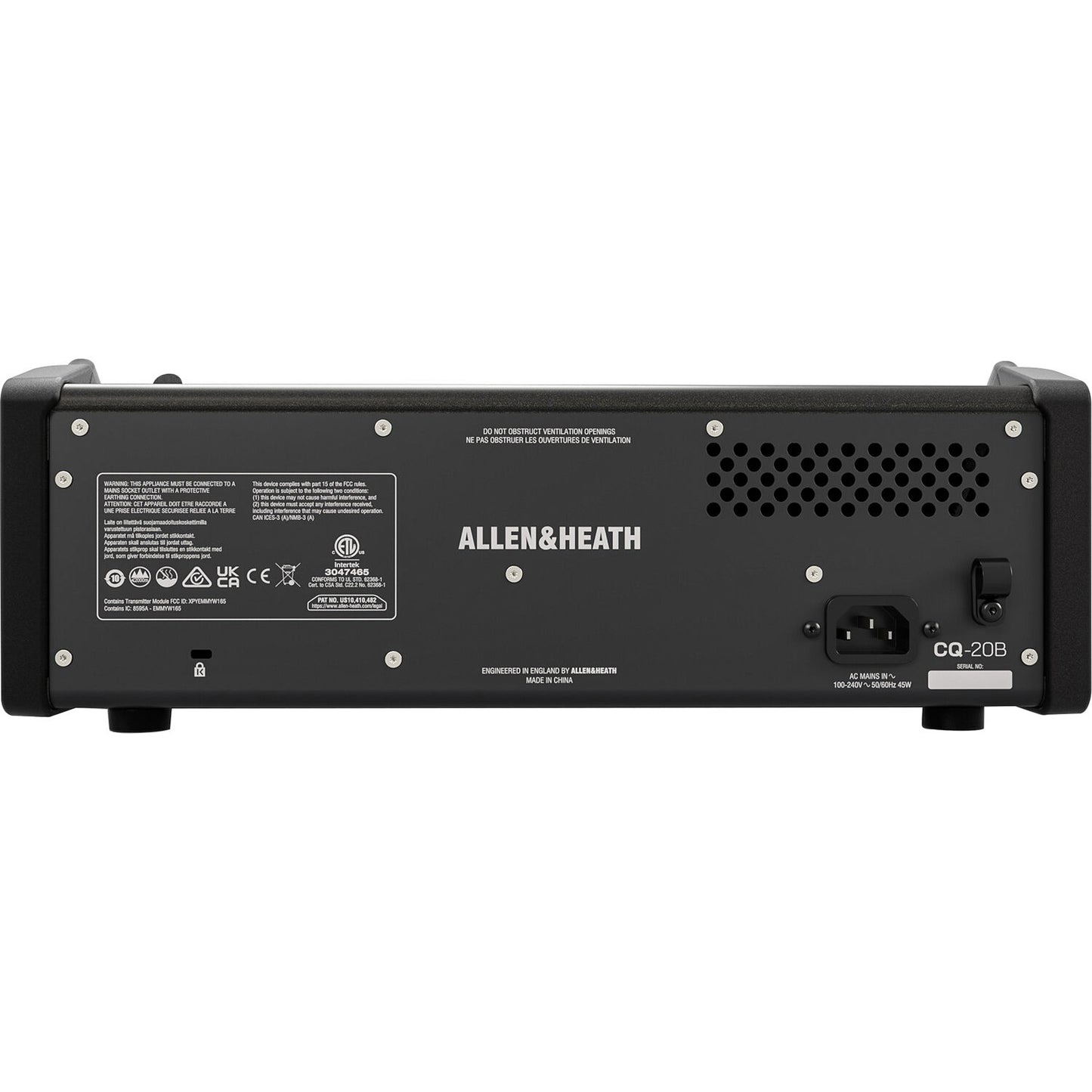

• Input Power: 100 to 240 VAC, 50 / 60 Hz

Physical

• Rack Mountable: Yes
• Rackmount Size: 4 U (with Non-Included Hardware)
• Dimensions: 14.6 x 6 x 5.2" / 372 x 153 x 133 mm
• Weight: 5.7 lb / 2.6 kg

Packaging Info

• Package Weight: 10 lb
• Box Dimensions (L x W x H): 17.6 x 10.6 x 10.1"
