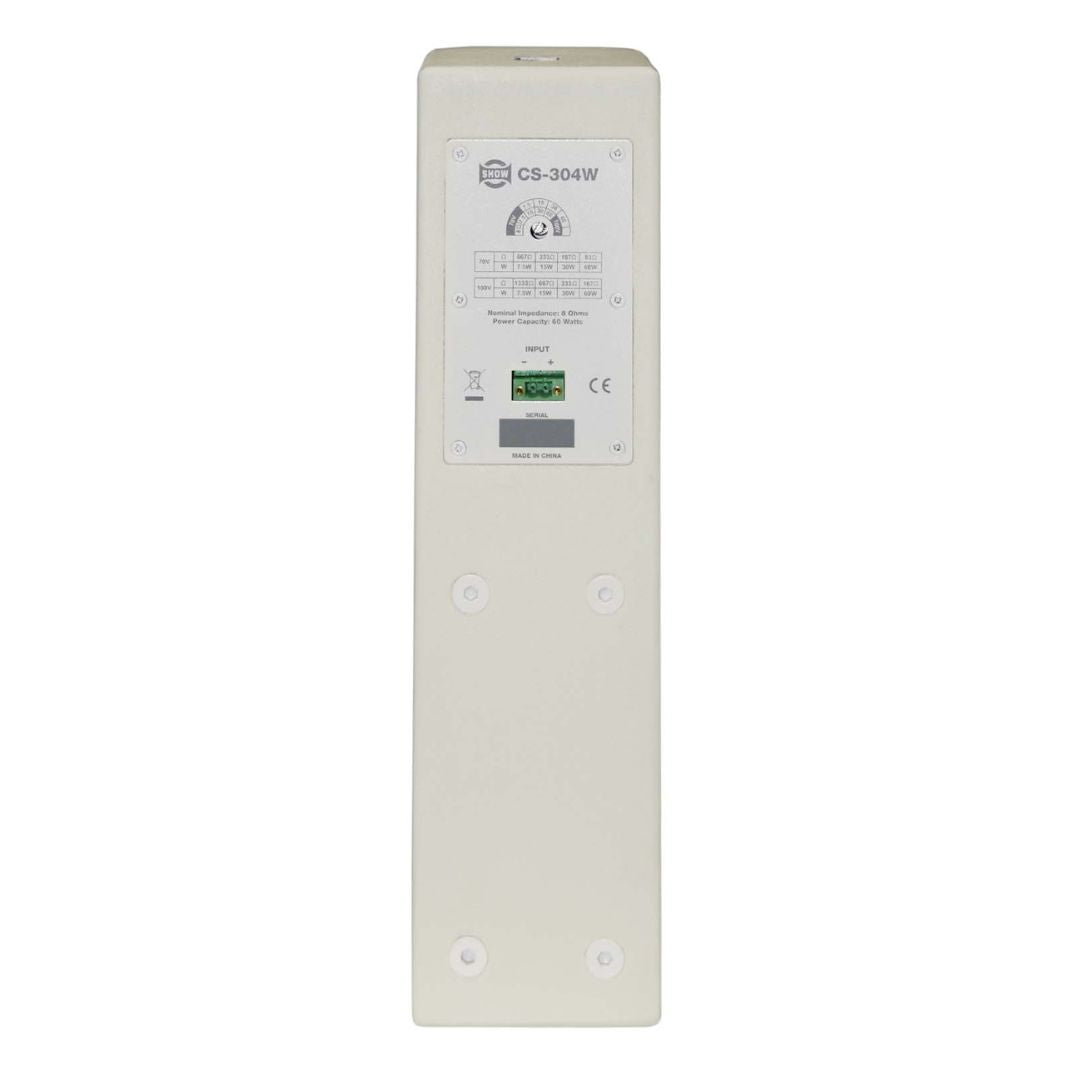

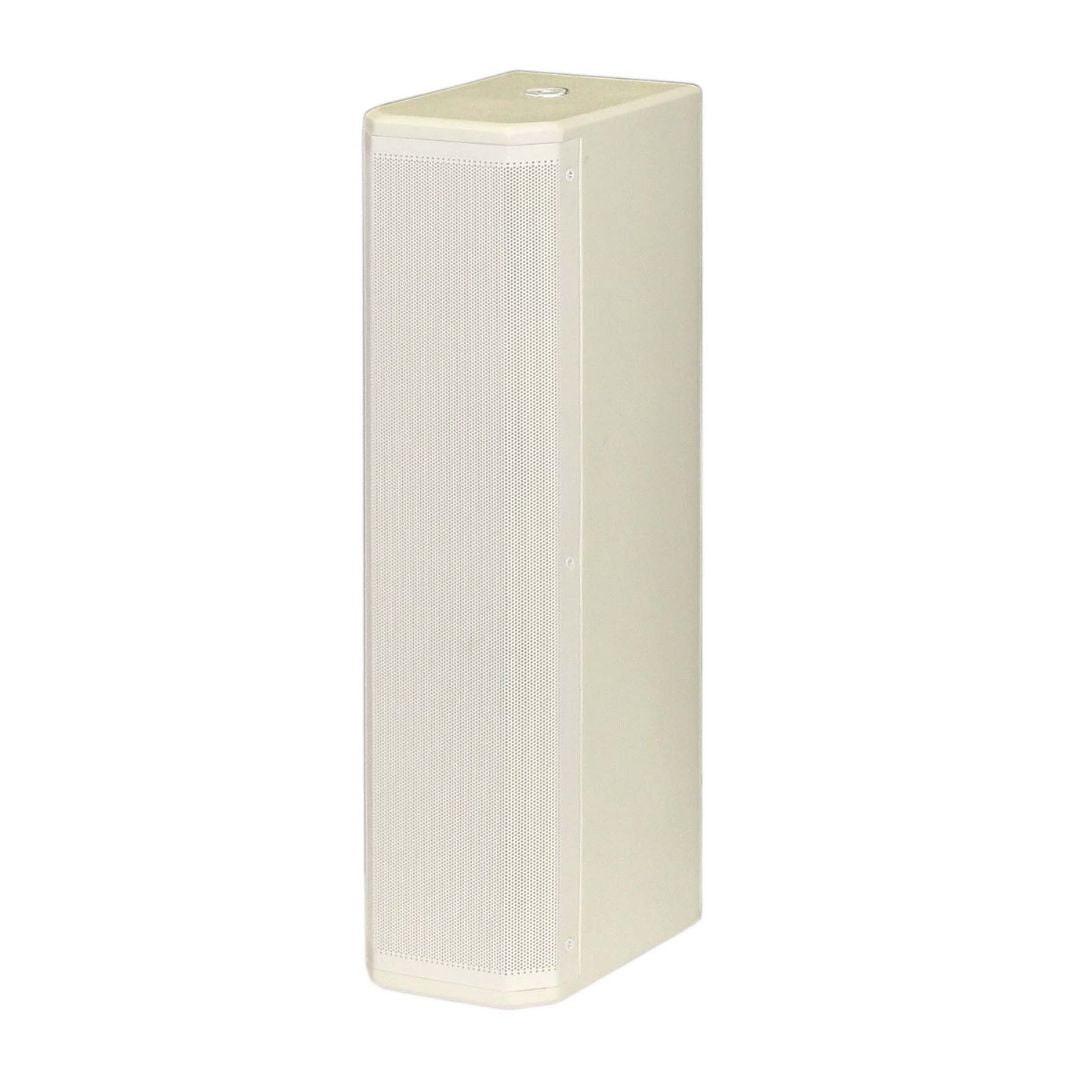

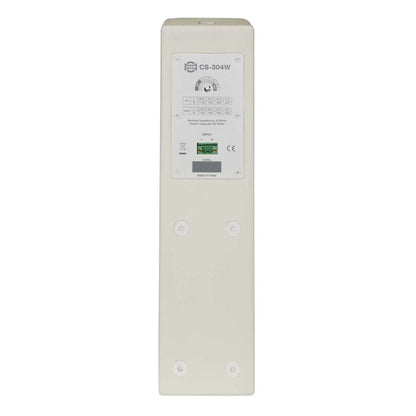

SHOW CS-304
SHOW CS-304
|
Key Specifications |
|
|
Product Model |
CS-304 (Passive) |
|
System Type |
Column Array Speaker |
|
Drivers / Transducers |
4x 3" Full Range Speakers (20 mm Voice Coil) |
|
Enclosure Construction |
Plywood Cabinet, Resistant Paint Finish, 0.8 mm Metal Grille |
|
Suspension & Mounting |
6x M8 Rigid Mounting Points |
|
Power & Electrical Specifications |
|
|
Input Line Voltage |
70V / 100V Distributed Line |
|
Transformer Power Taps |
5 W / 10 W / 20 W / 40 W |
|
Power Handling (8 Ω Bypass) |
60 W RMS / 120 W Program |
|
System Tapped Impedance |
70V: 1000 Ω / 500 Ω / 250 Ω / 125 Ω |
|
Acoustic & Performance Specifications |
|
|
Sensitivity (1W @ 1m) |
93 dB |
|
Maximum Peak SPL (@ 1m) |
114 dB (Calculated @ 8 Ω) |
|
Frequency Response (-6 dB) |
180 Hz to 18 kHz |
|
Coverage Angle (H×V) |
90° Horizontal x 20° Vertical (@ 4 kHz) |
|
Connectivity & Physical Specifications |
|
|
Connector Type |
Phoenix Euroblock Terminal |
|
Item Dimensions (H×W×D) |
378mm x 98mm x 130mm (14.8" x 3.9" x 5.1") |
|
Net Weight |
4.4 kg (9.7 lbs) |
