CS3041

1 6

Ideal for speech reproduction, shape designed to enable corner installation
Music power/RMS: 30/15W
Four 50 mm (2") diameter extended range speakers and one tweeter 25 mm (1")

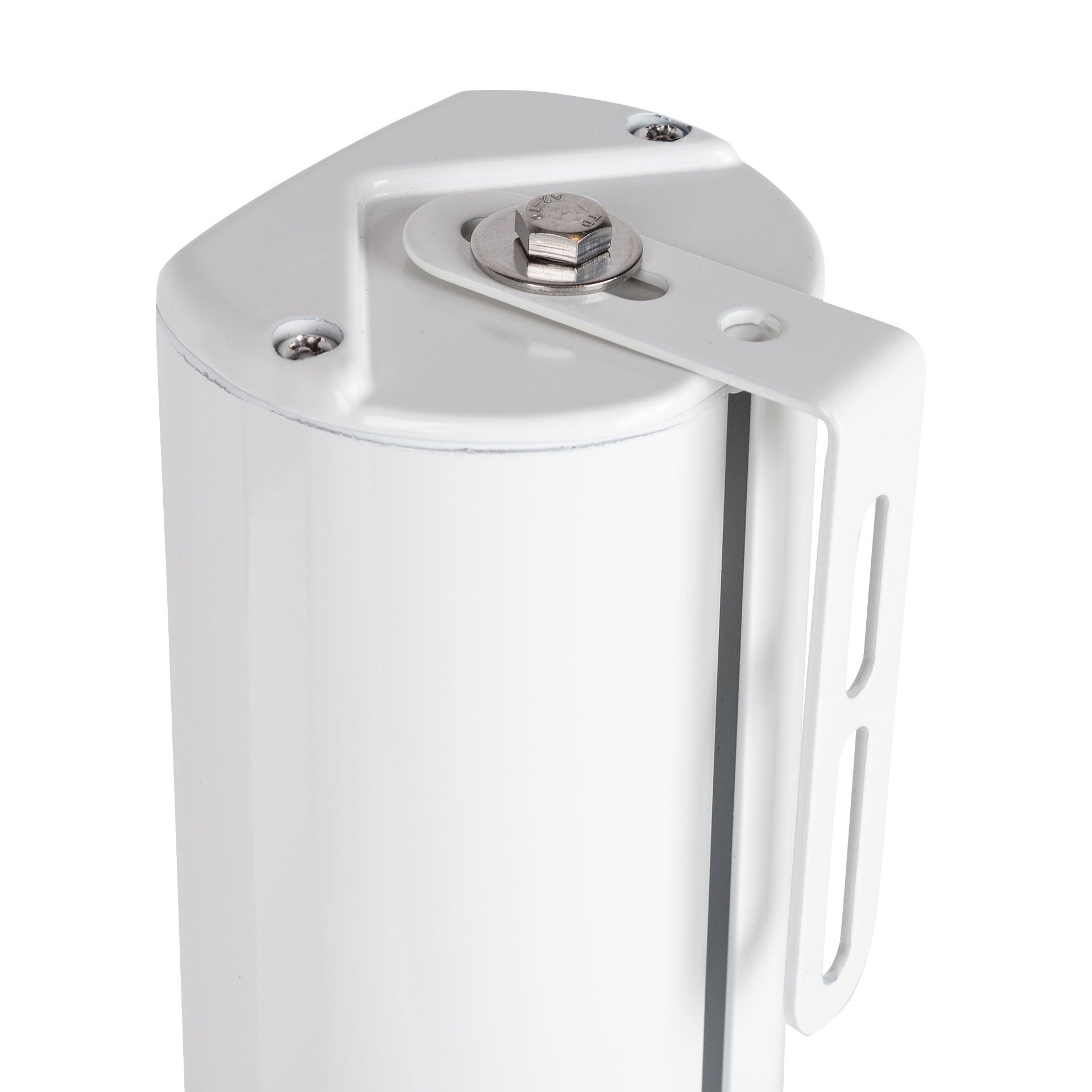

Body in extruded aluminium bake-painted RAL 9016 White and front metal grille RAL9016 White, includes accessory for wall mounting
Built-in multi-tapped transformer (20 - 15 - 10 W) for 100 V constant voltage connection
16 Ohm input that can be selected on the terminal block

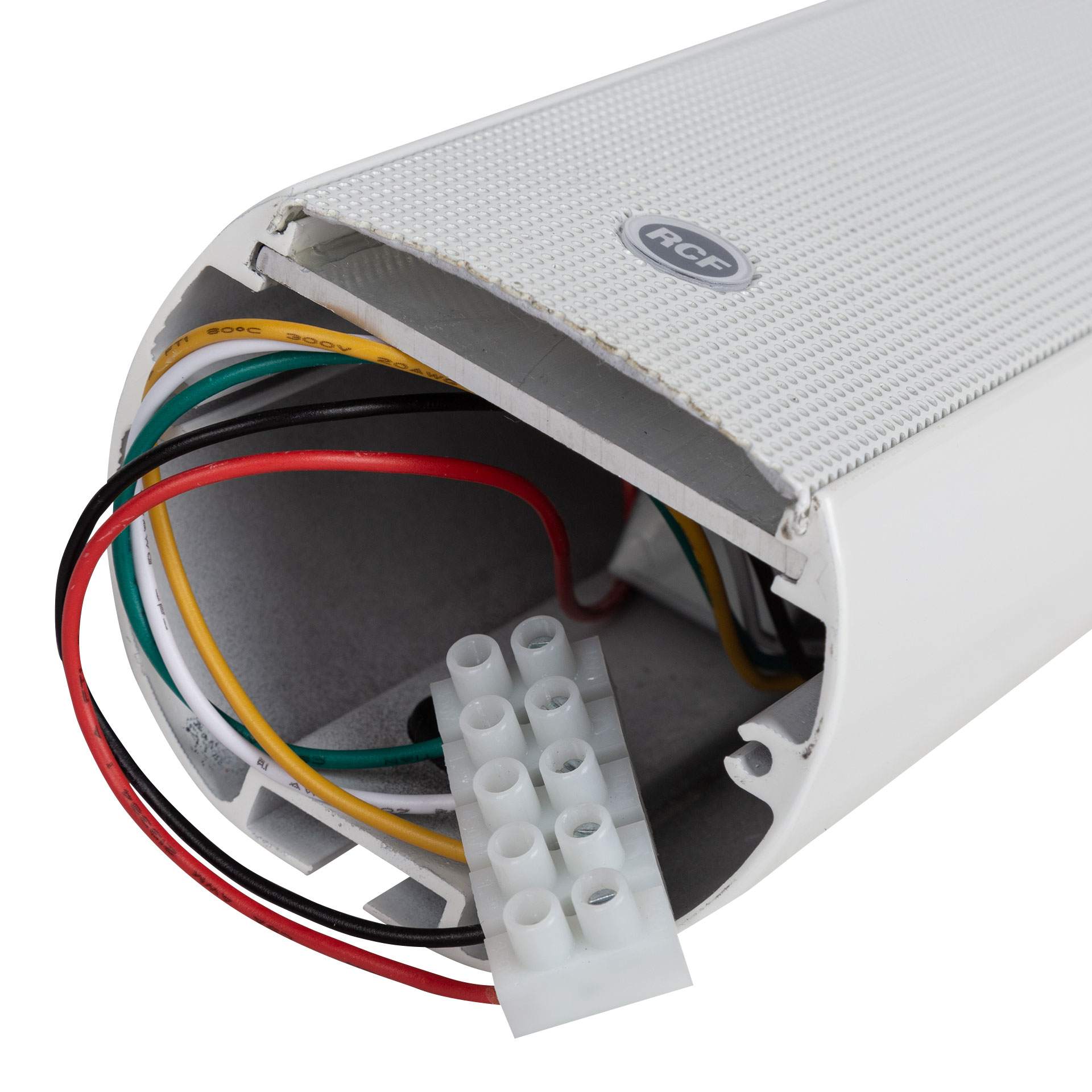

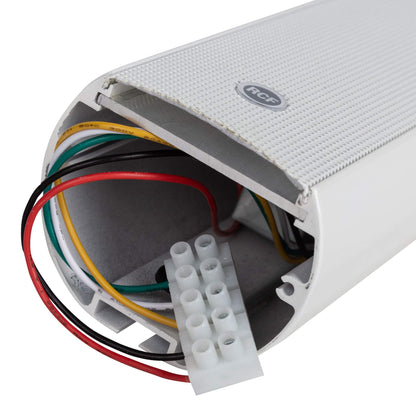

Audio connection on screw terminal block

RCF

₱13,000.00 VAT INC.

₱13,000.00

UNIT: PIECE/S

Product Code: SKU:RCF-CS3041-CHN-163

Ideal for speech reproduction, shape designed to enable corner installation
Music power/RMS: 30/15W
Four 50 mm (2") diameter extended range speakers and one tweeter 25 mm (1")
Body in extruded aluminium bake-painted RAL 9016 White and front metal grille RAL9016 White, includes accessory for wall mounting
Built-in multi-tapped transformer (20 - 15 - 10 W) for 100 V constant voltage connection
16 Ohm input that can be selected on the terminal block
Audio connection on screw terminal block

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

RCF CS3041

Key Specifications
Frequency Response (-10 dB)	200 Hz - 18000 Hz
Max SPL @ 1m	102 dB
Coverage Angle (H x V)	180° x 70°
System Sensitivity	89 dB
Power Section
Power Handling	20 W RMS / 80 W PEAK
Nominal Impedance	16 Ω
Constant Voltage Transformer	100 V
Power Selection (Taps)	20 W (500 Ω), 15 W (667 Ω), 10 W (1000 Ω)
Transducers
Dome Tweeter	1 x 1.0''
Woofer	4 x 2.0'' Extended Range
Physical Specifications
Cabinet Material / Color	Aluminum / White (RAL 9016)
Hardware / Grille	Wall mount bracket included / Steel grille
Dimensions (H x W x D)	430 x 78 x 66 mm / 16.93 x 3.07 x 2.6 inches
Weight	1.71 kg / 3.77 lbs
Shipping Information
Package Height / Weight	450 mm (17.72") / 2.24 kg (4.94 lbs)
