Key Specifications

Product / Speaker Type

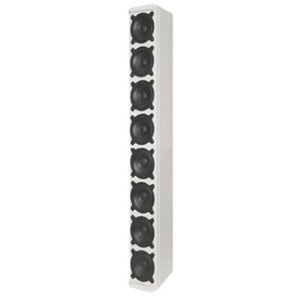

8 x 3" Full-Range Column Array Speaker with Line Transformer

Enclosure Material & Construction

Plywood Cabinet with Protective Iron Mesh Grille

Acoustic & Transducer Specifications

Transducer Array

8x 3" Full-Range Drivers

Power Handling (8 Ω)

120 W RMS / 240 W Program (60 W @ 8 Ω depending on rating spec)

Sensitivity (1W/1m)

95 dB

Maximum Sound Pressure Level (SPL)

115.5 dB

Frequency Response

180 Hz to 18 kHz

Electrical & Connectivity Specifications

70V / 100V Transformer Taps

7.5 W, 15 W, 30 W, 60 W

Connector & Controls

Phoenix Connector with Rotary Switch for Tap Selection

Dimensions & Weight Specifications

Item Dimensions (H×W×D)

730mm x 98mm x 130mm

Item Weight

7.5 kg (16.5 lbs)
