CS3082

Ideal for speech reproduction, shape designed to enable corner installation
Music power/RMS: 60/30W
Eight 50 mm (2") diameter extended range speakers and two tweeter 25 mm (1")

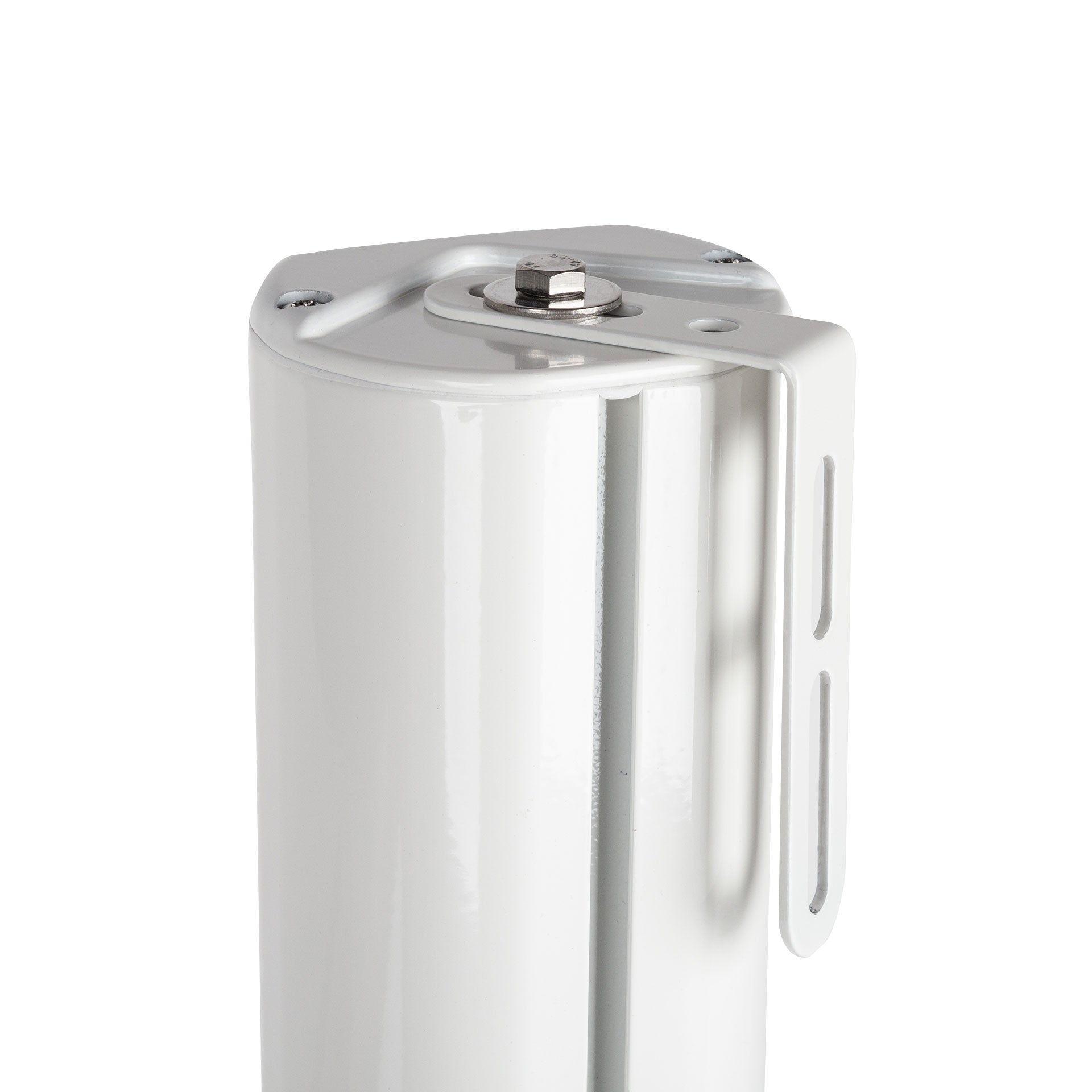

Body in extruded aluminium bake-painted RAL 9016 White and front metal grille RAL 9016 White, includes accessory for wall mounting
Built-in multi-tapped transformer (30 - 20 - 10 W) for 100 V constant voltage connection
8 Ohm input that can be selected on the terminal block
Audio connection on screw terminal block

₱16,000.00 VAT INC.

₱16,000.00

UNIT: PIECE/S

Product Code: SKU:RCF-CS3082-CHN-952

Ideal for speech reproduction, shape designed to enable corner installation
Music power/RMS: 60/30W
Eight 50 mm (2") diameter extended range speakers and two tweeter 25 mm (1")
Body in extruded aluminium bake-painted RAL 9016 White and front metal grille RAL 9016 White, includes accessory for wall mounting
Built-in multi-tapped transformer (30 - 20 - 10 W) for 100 V constant voltage connection
8 Ohm input that can be selected on the terminal block

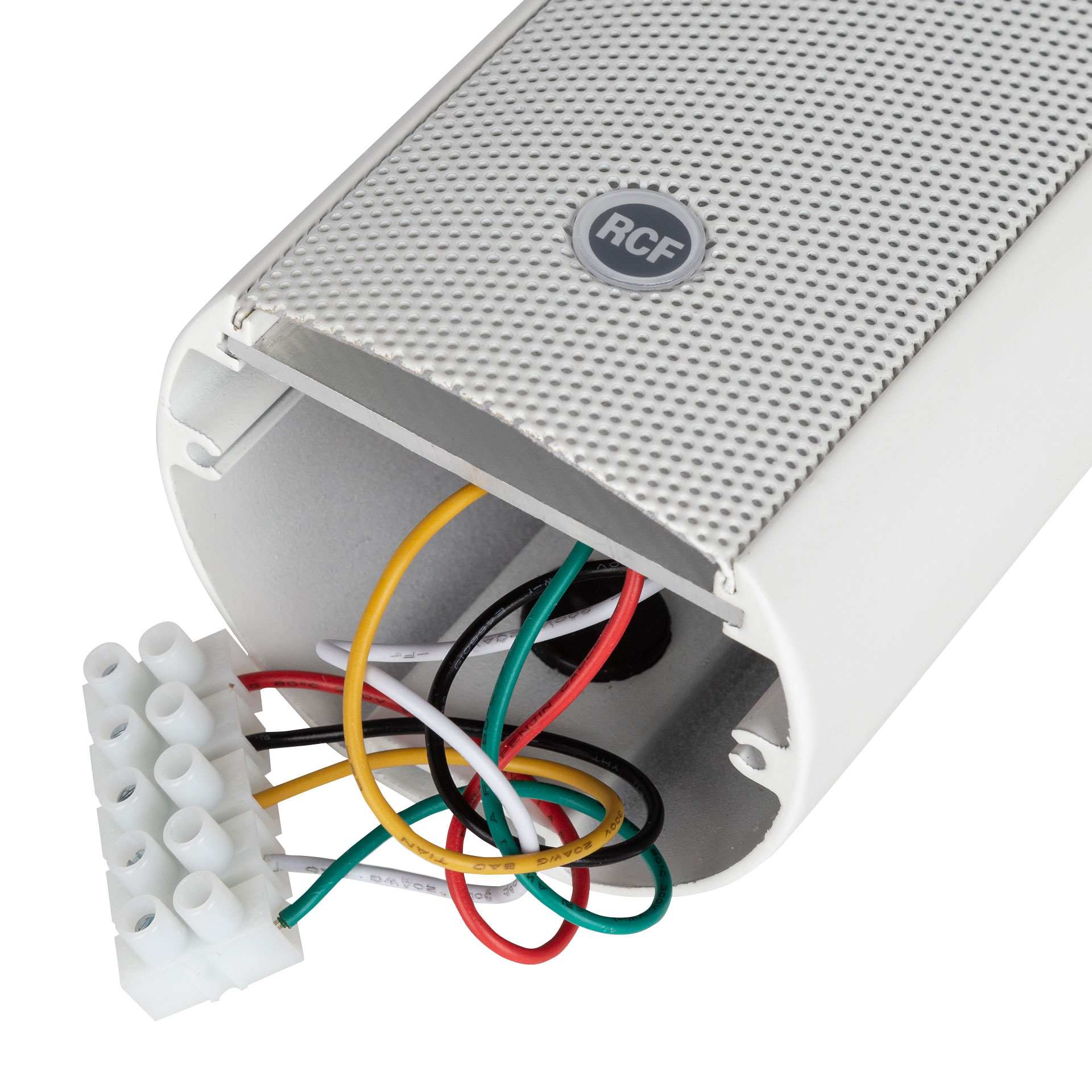

Audio connection on screw terminal block

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

RCF CS3082

Key Specifications
Frequency Response (-10 dB)	200 Hz - 20000 Hz
Max SPL @ 1m	106 dB
Coverage Angle (H x V)	180° x 30°
System Sensitivity	91 dB
Power Section
Power Handling	30 W RMS / 120 W PEAK
Nominal Impedance	8 Ω
Constant Voltage Transformer	100 V
Power Selection (Taps)	30 W (333 Ω), 20 W (500 Ω), 10 W (1000 Ω)
Transducers
Dome Tweeter	2 x 1.0''
Woofer	8 x 2.0'' Extended Range
Physical Specifications
Cabinet Material / Color	Extruded Aluminum / White (RAL 9016)
Hardware / Grille	Wall mount bracket included / Steel grille
Dimensions (H x W x D)	670 x 78 x 66 mm / 26.38 x 3.07 x 2.6 inches
Weight	2.7 kg / 5.95 lbs
Shipping Information
Package Height / Weight	700 mm (27.56") / 3.4 kg (7.5 lbs)
