Key Specifications

Product / Speaker Type

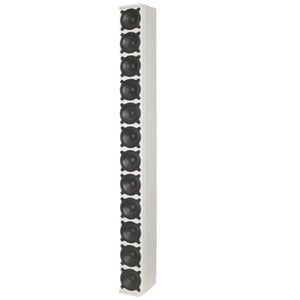

Column Array Speaker

Enclosure Material & Construction

Plywood Cabinet with Resistant Paint, 0.8mm Metal Grille

Mounting

12 x M8 Suspension Points

Acoustic & Transducer Specifications

Transducer Array

12x 3" Full-Range Drivers (20 mm Voice Coil)

Power Handling (8 Ω)

180 W RMS / 360 W Program

Sensitivity (1W/1m)

99 dB

Maximum Sound Pressure Level (SPL)

125 dB

Frequency Response (-6dB)

180 Hz to 18 kHz

Coverage Angle (H × V)

90° x 60° @ 4 kHz

Electrical & Connectivity Specifications

Line Transformer Voltage

70V / 100V Distributed Line

Selectable Power Taps

15 W, 30 W, 60 W, 120 W

Connector Type

Phoenix Connectors

Dimensions & Weight Specifications

Item Dimensions (H×W×D)

1082mm x 98mm x 142mm (42.6" x 3.9" x 5.6")

Net Weight

12.2 kg (26.8 lbs)
