Key Specifications

Model Name / Number

CSB-40A

System Type

Active Speaker Cabinet

External Controls

Volume Control, Power Switch

Color / Finish

Black

Acoustic & Transducer Specifications

Power Rating (RMS)

40 W (RMS)

Full Range Speaker

4" (106 mm) Driver | Voice Coil Diameter: 1" (25.4 mm)

Frequency Response

76 Hz to 18 kHz (-10 dB) / 88 Hz to 18 kHz

Nominal Impedance

4 Ω

Sensitivity (SPL at 1m / 1W)

90 dB (±3 dB)

Connectivity & Interfaces

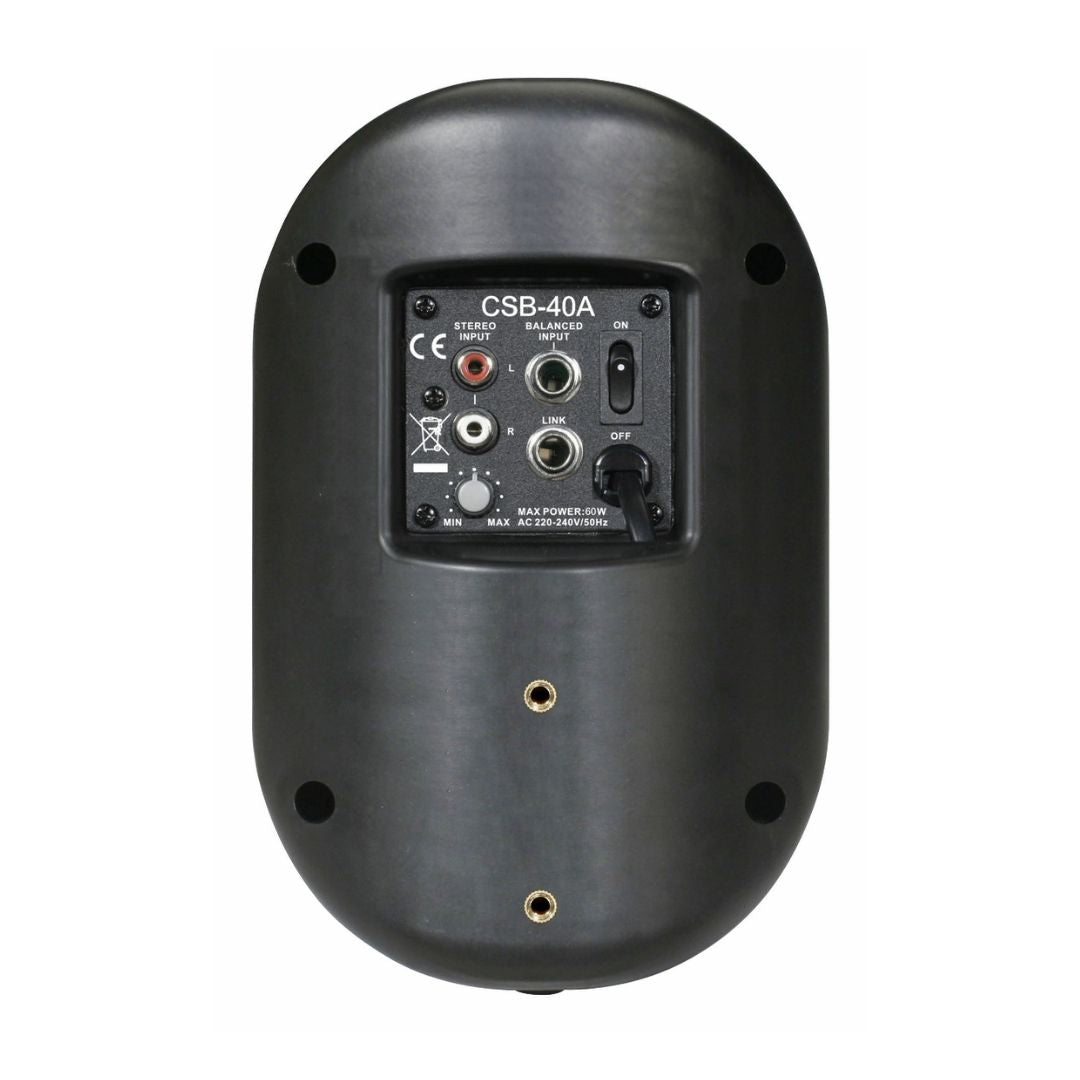

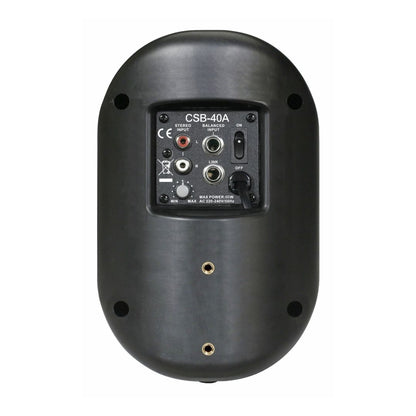

Input Connectors

RCA Stereo Input, 1/4" (6.3 mm) Balanced Input

Output / Link Connector

1/4" (6.3 mm) Output Link Jack

Dimensions & Weight Specifications

Item Dimensions (W×D×H)

136mm x 140mm x 206mm (5.35" x 5.51" x 8.11")

Item Weight

2.4 kg (5.29 lbs)
