Key Specifications

Amplifier

• Form Factor/Type: Rackmount
• Number of Channels: 4 Input / 1 Output
• Amplifier Power Rating: 4 Ohms / 8 Ohms: 120 W per Channel (1 kHz, 0.5% THD), 15 W per Channel
• Load Impedance / Voltage: 4 Ohms (Minimum), 70 V (40 Ohms Minimum), 100 V (80 Ohms Minimum)

Performance

• Frequency Response: Amplifier: 20 Hz to 20 kHz ±2 dB (Low-Z), 80 Hz to 15 kHz ±2 dB (70/100 V); Line Output: 20 Hz to 20 kHz ±1 dB
• Input Sensitivity: Mic: 3 mVrms; Line: 775 mVrms; RCA: 300 mVrms
• I/O Impedance: Mic Input: 400 Ohms; Line Input: 20 Kilohms (Balanced); RCA Input: 50 Kilohms
• Output Level: Line Output: 5 Vrms (10-Kilohm Load)
• VCA Control: Yes
• Insertion Loss: 1 dB Maximum
• SNR: > 90 dB
• THD: < 0.5% (20 Hz to 20 kHz, Main Output), 0.05% (Line Output)
• Crosstalk: -70 dB (1 kHz)

Signal Processing

• DSP: Yes
• EQ: 2-Band
• Compressor: Yes
• Limiting: Yes

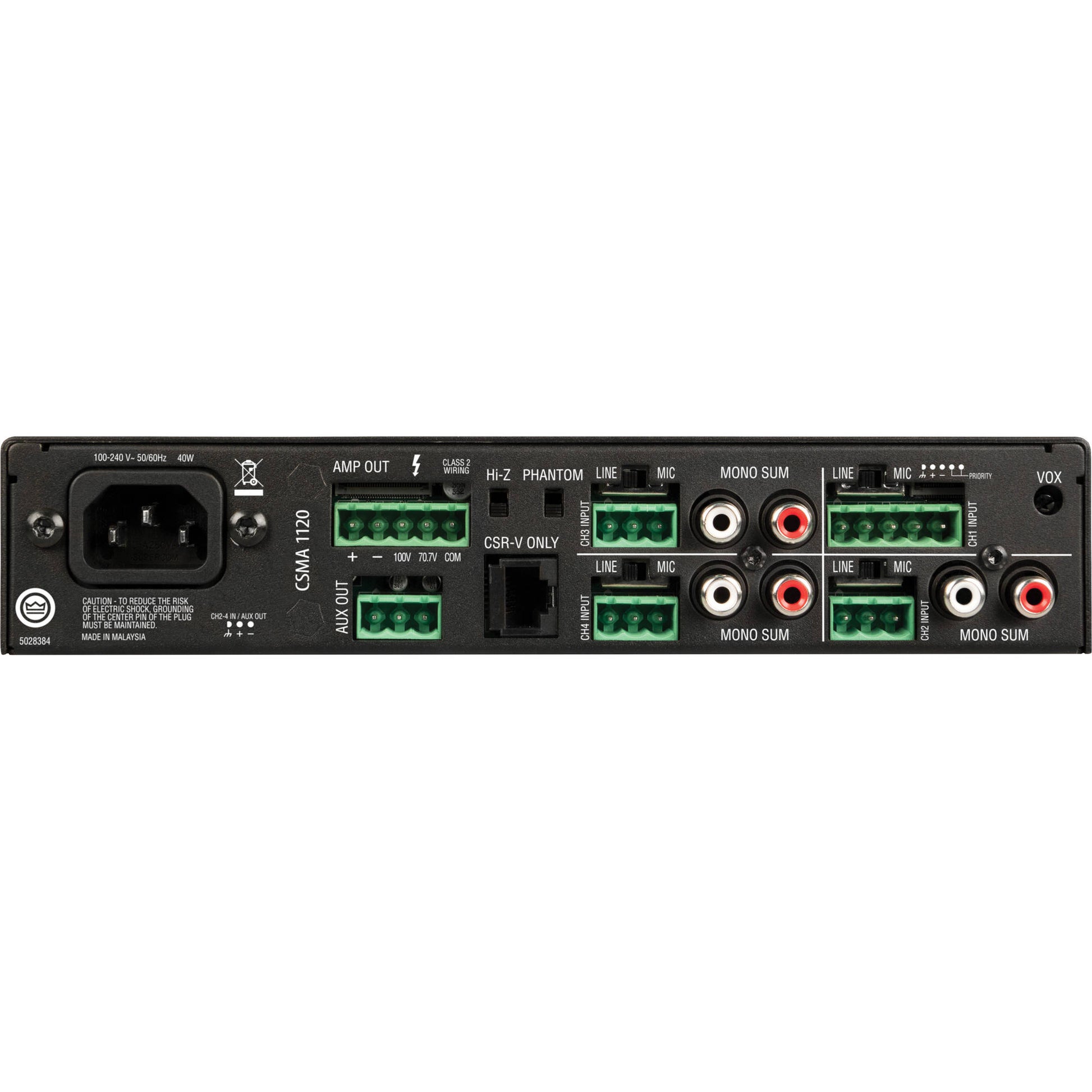

Connectivity

• Audio I/O: 1x Block 3-Pin Aux/Line Output, 3x Block 3-Pin Line/Mic Input, 3x Stereo RCA Unbalanced Input, 1x Block 5-Pin Priority Input
• Digital Audio I/O: No
• Network I/O: No
• Other I/O: 1x RJ45 Remote/Volume
• Speaker Outputs: 1x Block 5-Pin 4-Ohm/8-Ohm/16-Ohm/70 V/100 V Main
• USB I/O: No
• Phantom Power: 27 VDC
• Media/Memory Card Slot: No

Power

• AC Input Power: 100 to 240 VAC, 50 / 60 Hz
• AC Power Connector: 1x IEC
• AC Outlet: Yes

Physical

• Rackmount Size: 1 U (1/2-Rack)
• Operating Conditions: 32 to 95°F / 0 to 35°C up to 95% Humidity
• Storage Conditions: -4 to 185°F / -20 to 85°C
• Dimensions: 8.6 x 1.7 x 11.9" / 21.9 x 4.3 x 30.3 cm
• Weight: 7.1 lb / 3.2 kg

Packaging Info

• Package Weight: 10.4 lb
• Box Dimensions (L x W x H): 16 x 12 x 5"
