Key Specifications

Product Model

dbx CT-3

Product Type

Advanced Multi-Format Cable Tester

Chassis Design

Detachable/Split Chassis (for long-run testing)

Supported Connector Formats

Network & Telecom

RJ45 (8P8C) & RJ11 (6P6C)

Audio & Instrument

XLR, 1/4" TRS/TS, 1/8" (3.5mm), RCA

Data & Lighting

MIDI (5-pin DIN), DMX (5-pin)

Video & Specialized

BNC, Speaker Twist, Banana Type

Diagnostic Features

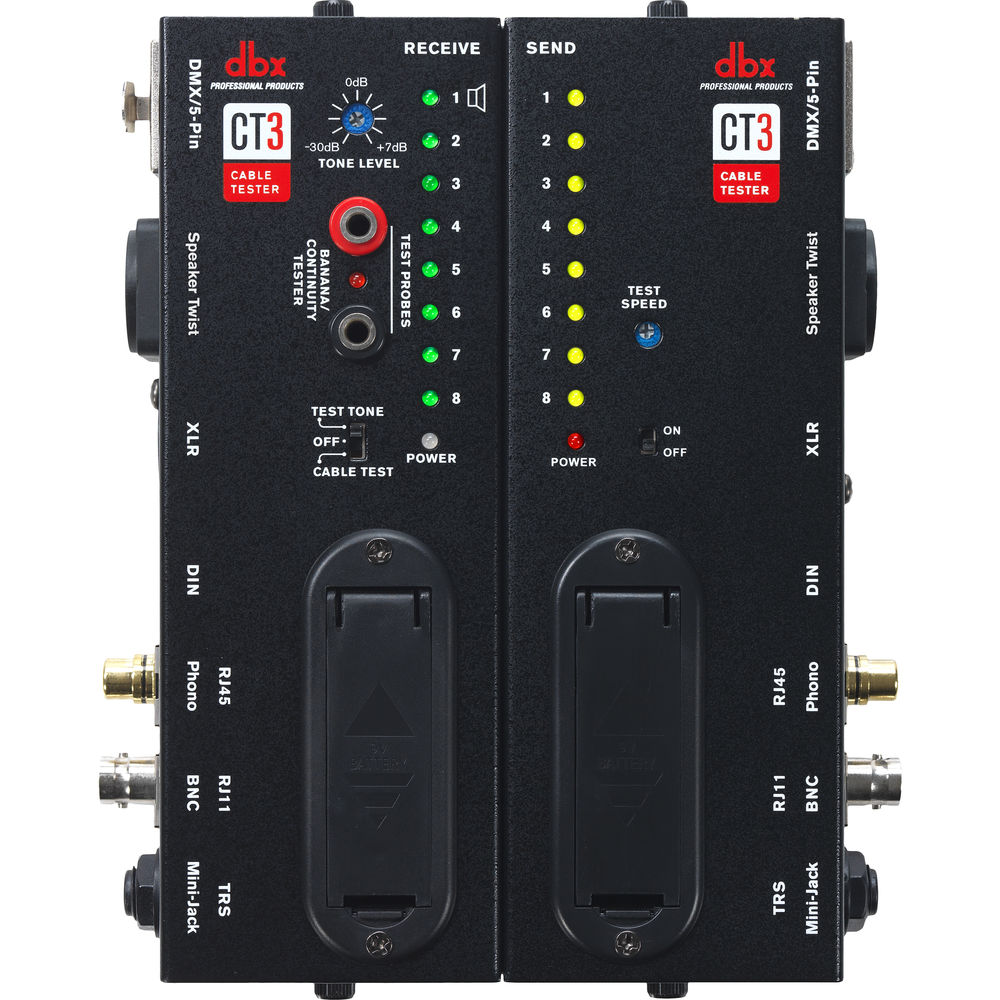

Visual Interface

LED Continuity Matrix (8 LEDs)

Test Capabilities

Continuity, Cross-wire, Open/Short Detection

Signal Tone

Integrated Tone Generator for Line Checks

Physical & Power

Power Source

2x 9V Batteries (one per side, not included)

Dimensions

8.9 x 14 x 3.7 cm (3.5" x 5.5" x 1.5")

Net Weight

0.7 kg (1.5 lbs)
