Key Specifications

Speaker Type

Passive Loudspeaker

Configuration

2-Way

Total Passive Power Handling

350 W RMS / 700 W Program / 1400 W Peak

Nominal Impedance

Passive: 8 Ohms
Bi-Amp: LF 8 Ohms / HF 16 Ohms

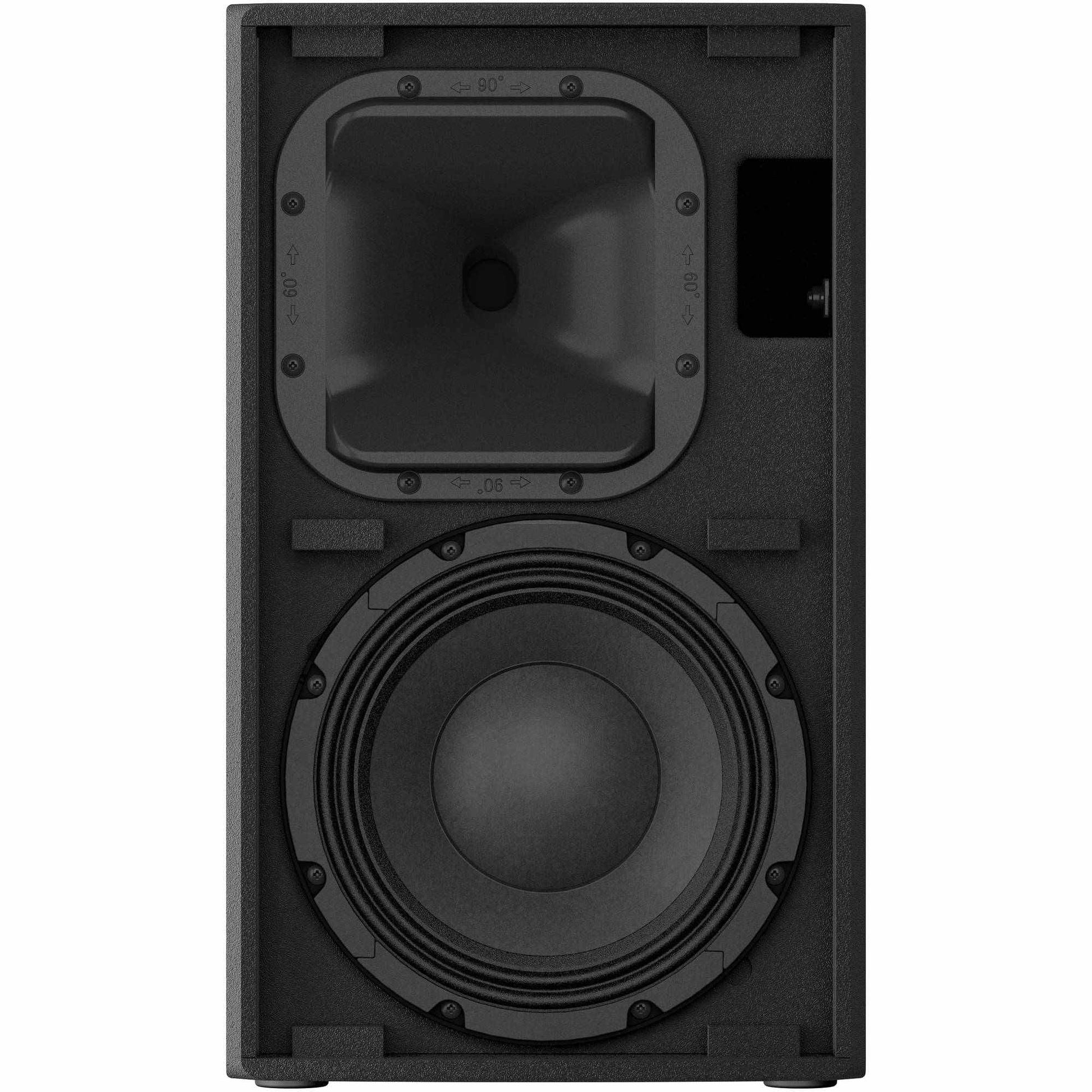

Drivers

LF Driver

1× 10" Woofer
3" Voice Coil
Neodymium Magnet

HF Driver

1× Titanium Compression Driver (Rotatable Horn)
1" Throat
2" Voice Coil
Neodymium Magnet

Performance

Frequency Range

43 Hz – 20 kHz (-10 dB)

Maximum SPL

127 dB Peak (Passive)
127 dB Peak (LF, Bi-Amp)
131 dB Peak (HF, Bi-Amp)

Sensitivity

95 dB SPL (Passive / Bi-Amp LF)
108 dB SPL (Bi-Amp HF)

Coverage Angle

90° × 60° (Rotatable Horn)

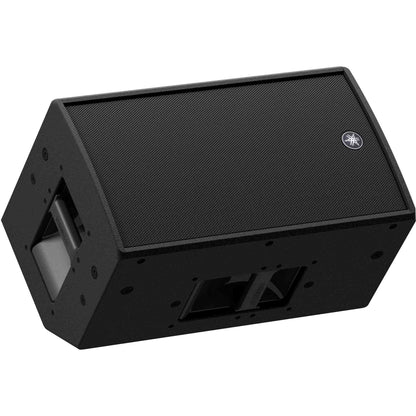

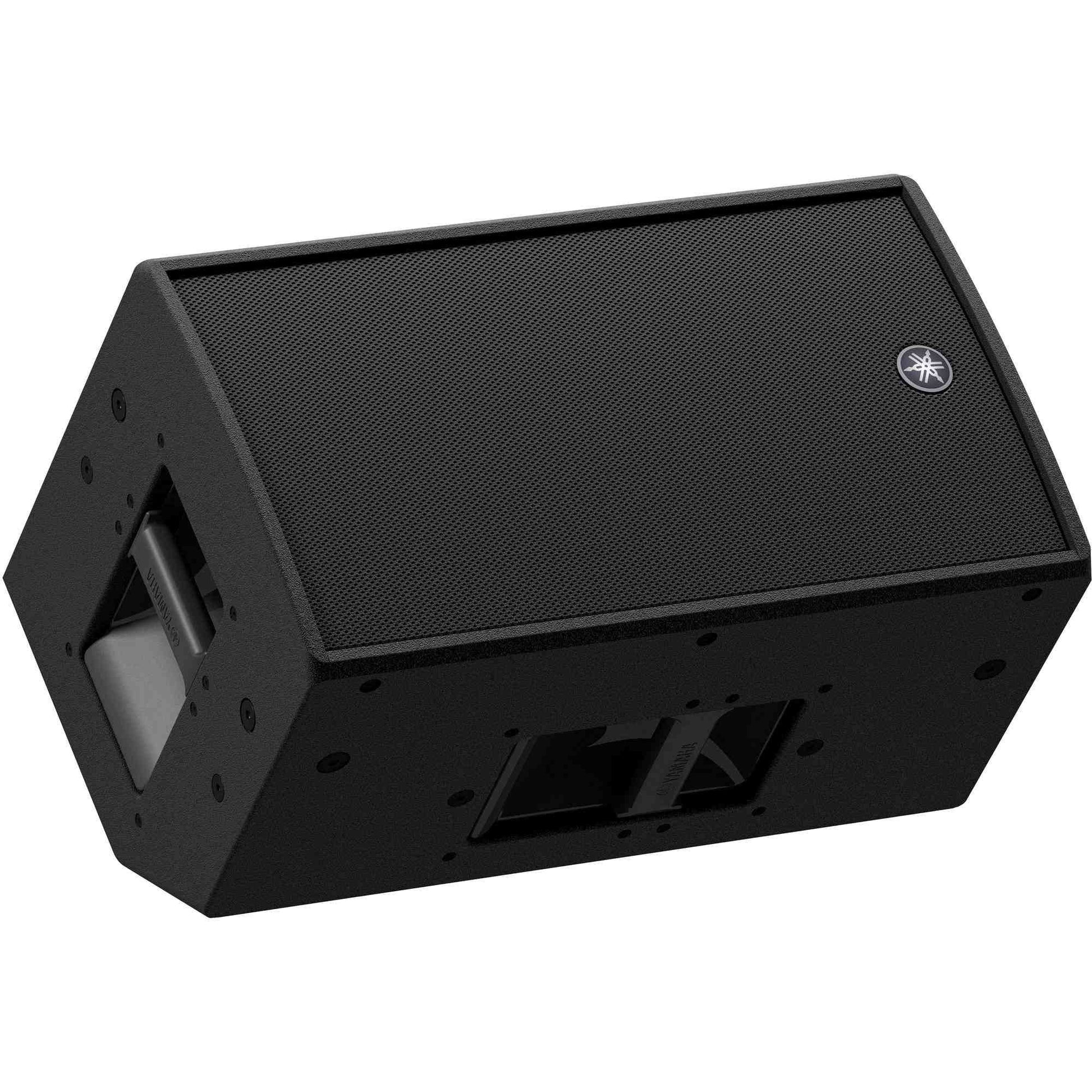

60° × 90° (Monitor)

Signal Processing

Crossover Frequency

2500 Hz

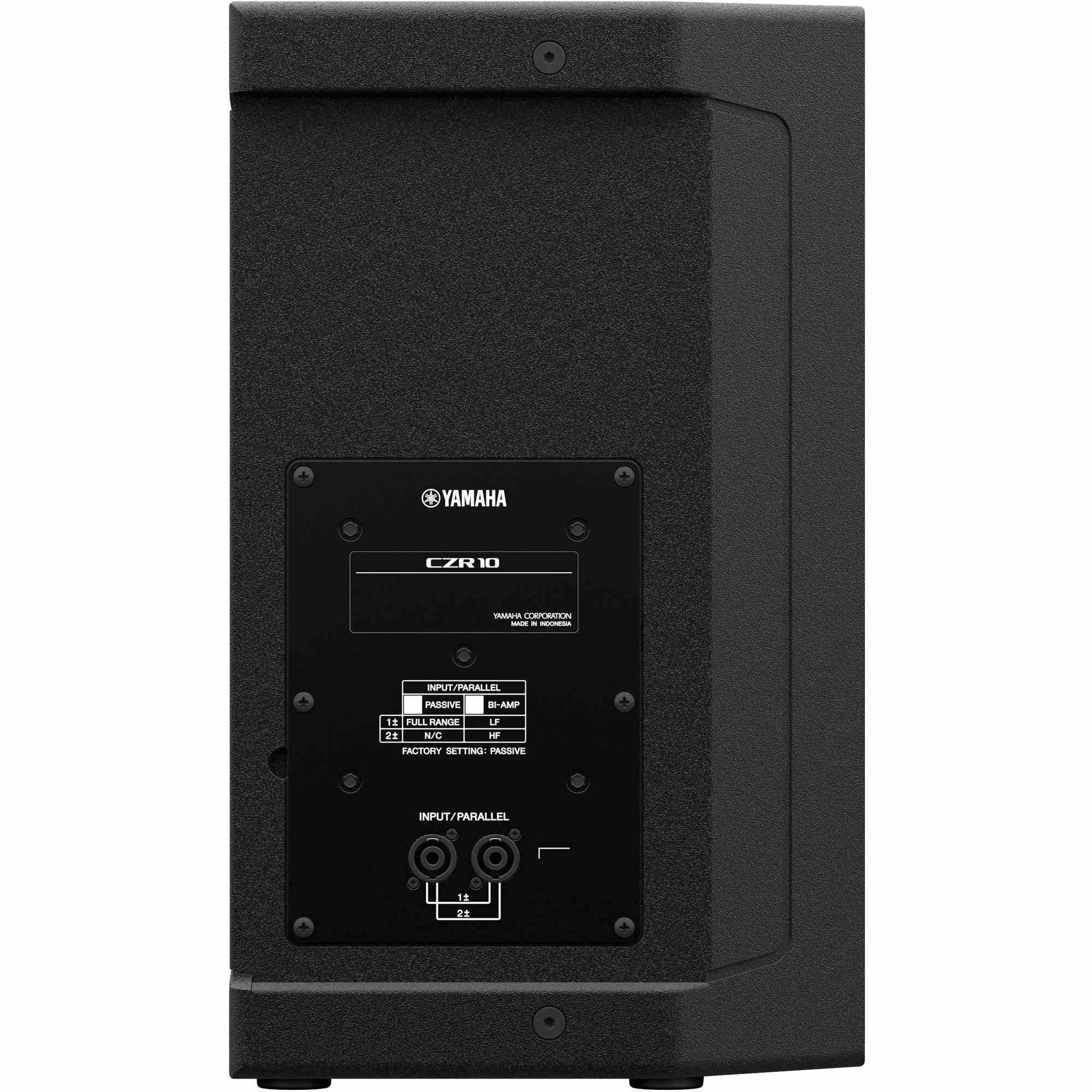

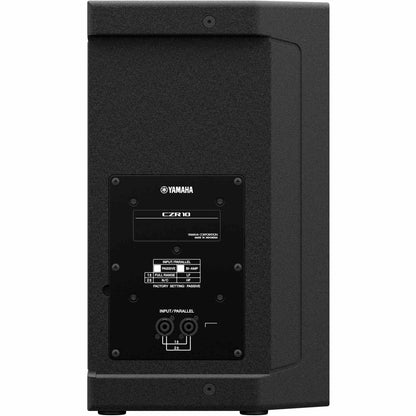

Connectivity

Audio I/O

2× speakON NL4

Physical

Color

Black

Mounting

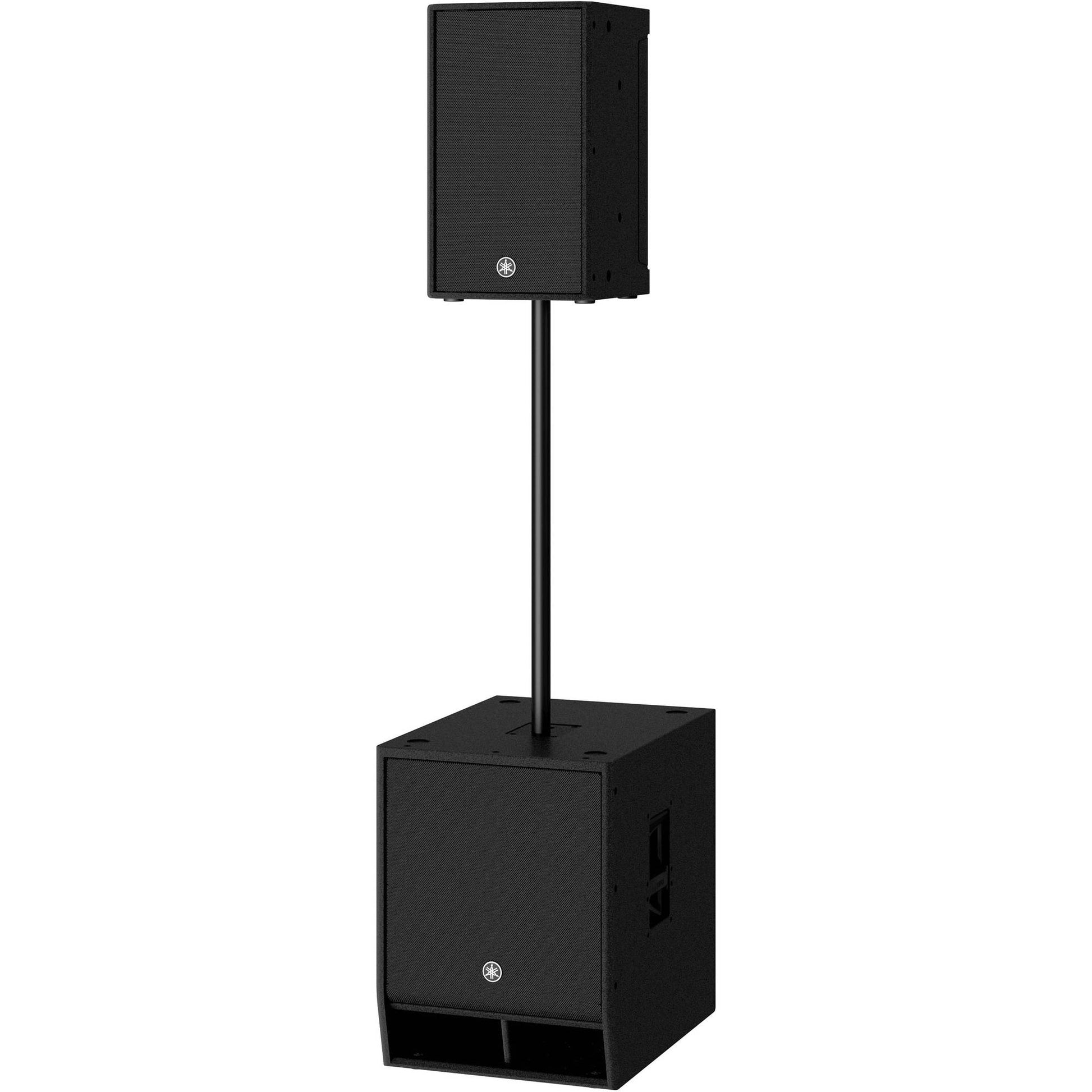

Stand Mount (Dual-Angle 35 mm Pole Socket)

Suspension Points

8× M10 Fly Points
2× M8 Fly Points

Handles

1× Each Side

Construction Material

Plywood

Environmental Resistance

No

Dimensions (H × W × D)

12.4 × 21.1 × 13.6"
315 × 537 × 345 mm

Weight

30.9 lb / 14 kg

Packaging

Package Weight

38.815 lb

Box Dimensions (L × W × H)

26.1 × 16.6 × 16.4"
