Key Specifications

Speaker Type

Passive Loudspeaker

Configuration

2-Way

Total Passive Power Handling

400 W RMS / 800 W Program / 1600 W Peak

Nominal Impedance

Passive: 8 Ohms
Bi-Amp: LF 8 Ohms / HF 16 Ohms

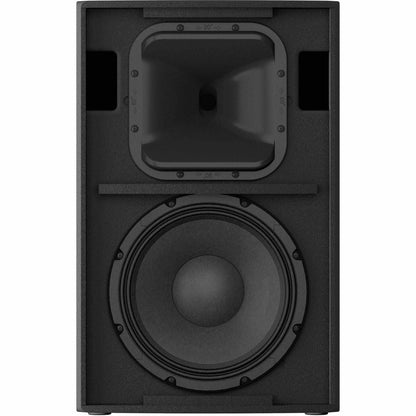

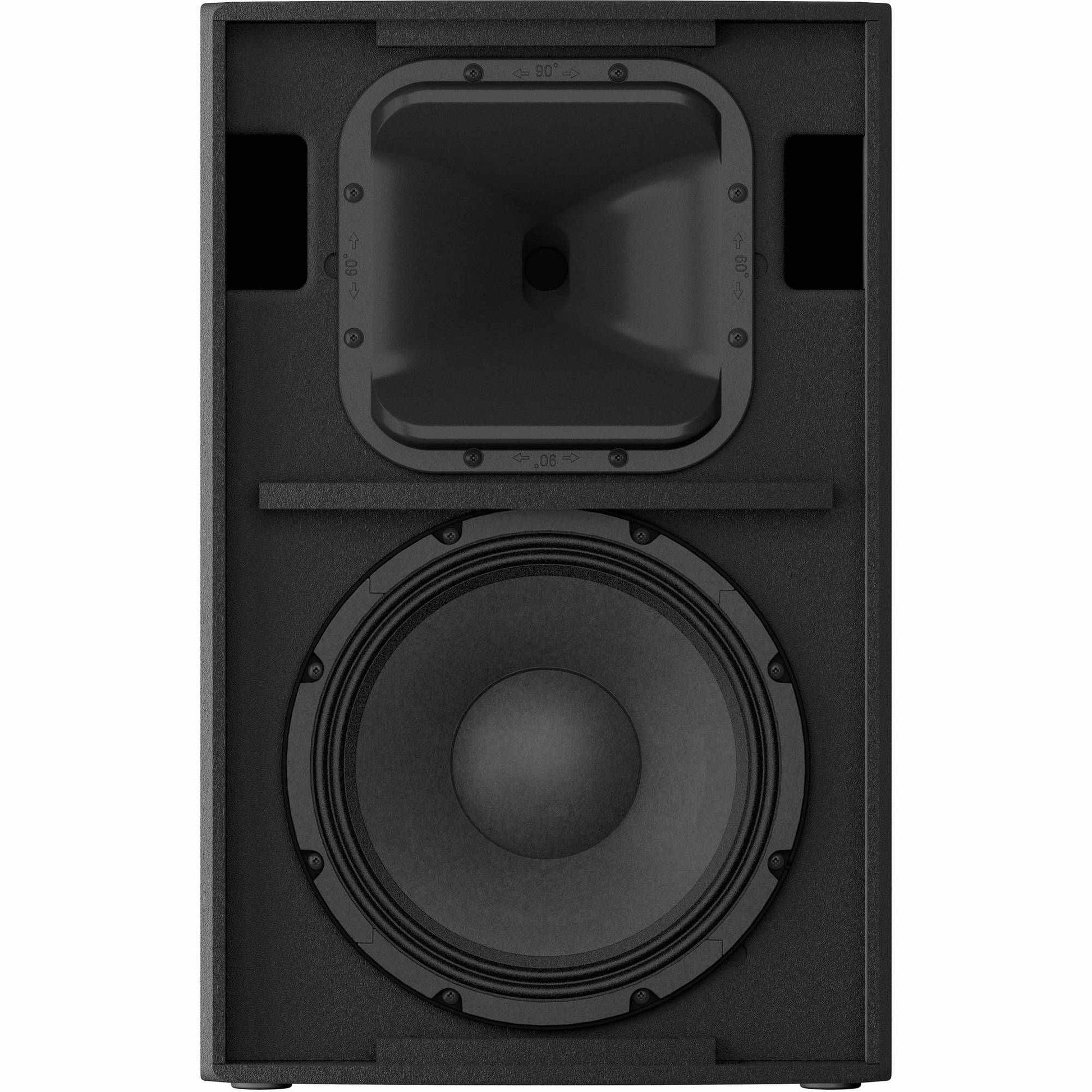

Drivers

LF Driver

1× 15" Woofer
3" Voice Coil
Neodymium Magnet

HF Driver

1× Titanium Compression Driver (Rotatable Horn)
1" Throat
2" Voice Coil
Neodymium Magnet

Performance

Frequency Range

43 Hz – 20 kHz (-10 dB)

Maximum SPL

129 dB Peak (Passive)
131 dB Peak (LF, Bi-Amp)
131 dB Peak (HF, Bi-Amp)

Sensitivity

97 dB SPL (Passive)
99 dB (Bi-Amp LF)
108 dB SPL (Bi-Amp HF)

Coverage Angle

90° × 50° (Rotatable Horn)

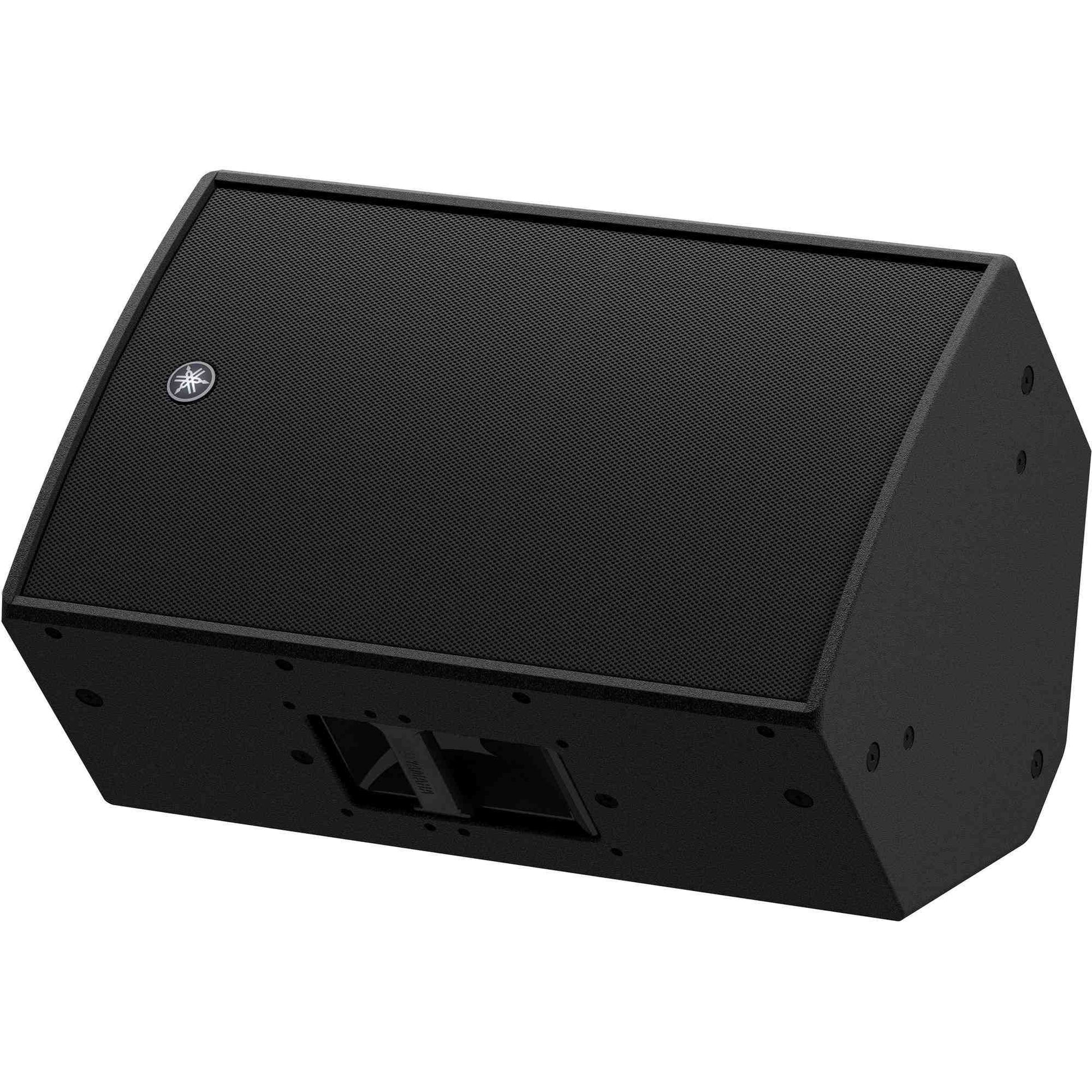

90° × 50° (Monitor)

Signal Processing

Crossover Frequency

2000 Hz

Connectivity

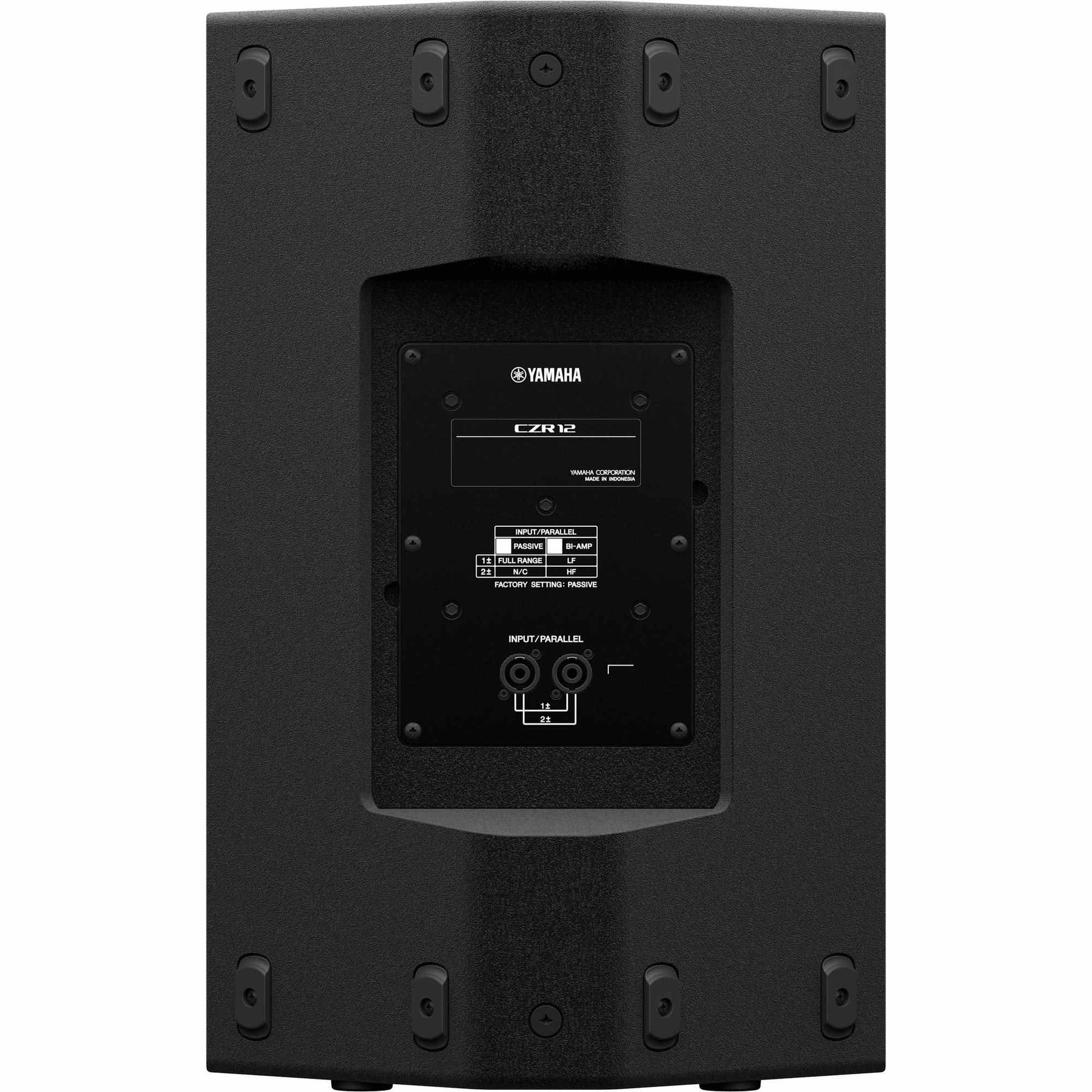

Audio I/O

2× speakON NL4

Physical

Color

Black

Mounting

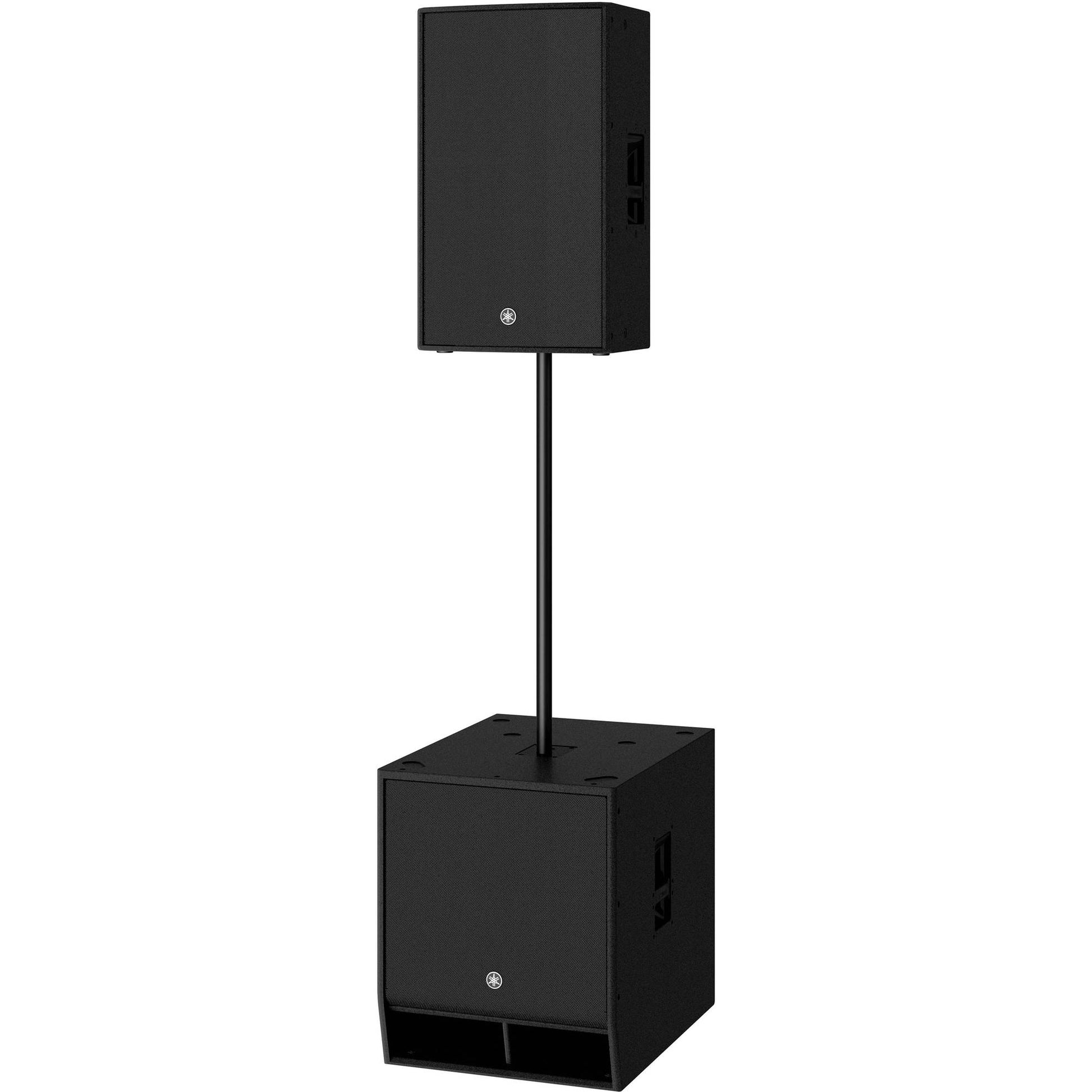

Stand Mount (Dual-Angle 35 mm Pole Socket)

Suspension Points

12× M10 Fly Points

Handles

1× Each Side

Construction Material

Plywood

Environmental Resistance

No

Dimensions (H × W × D)

17.7 × 30 × 18.1"
450 × 762 × 460 mm

Weight

47 lb / 21.3 kg

Packaging

Package Weight

59.5 lb

Box Dimensions (L × W × H)

35 × 21.7 × 21.7"
