Key Specifications

Power Ratings & Amplification

Amplification System

Class D

Power Output (8 Ω, 4-Ch)

650 W × 4

Power Output (4 Ω, 4-Ch)

1000 W × 4

Bridged Power (8 Ω, 2-Ch)

2000 W × 2

Power Consumption

2000 W (2/3 rated, 8 Ω/ch)

Power Source

100 - 240 V AC, 50/60 Hz

Performance Specifications

Frequency Response

20 Hz - 20 kHz (±3 dB)

THD / Distortion

≤ 0.1 %

Signal-to-Noise Ratio

≥ 100 dB

Input Sensitivity

0.775 V / 1.0 V / 32 dB (Selectable)

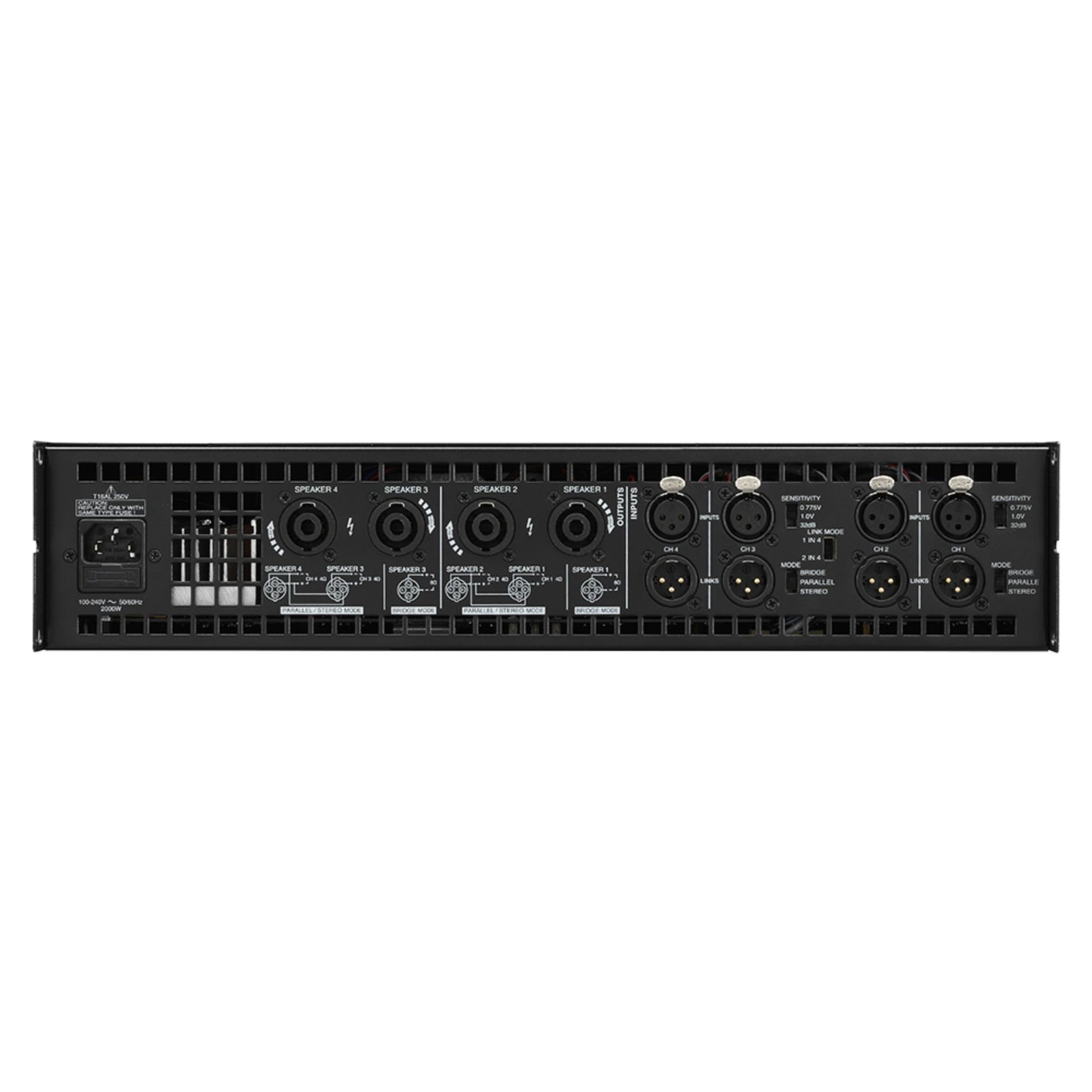

Connectivity & Monitoring

Audio Inputs

4x XLR-F (20 kΩ Balanced / 10 kΩ Unbalanced)

Link Outputs

4x XLR-M

Speaker Outputs

NL4 SPEAKON Connectors

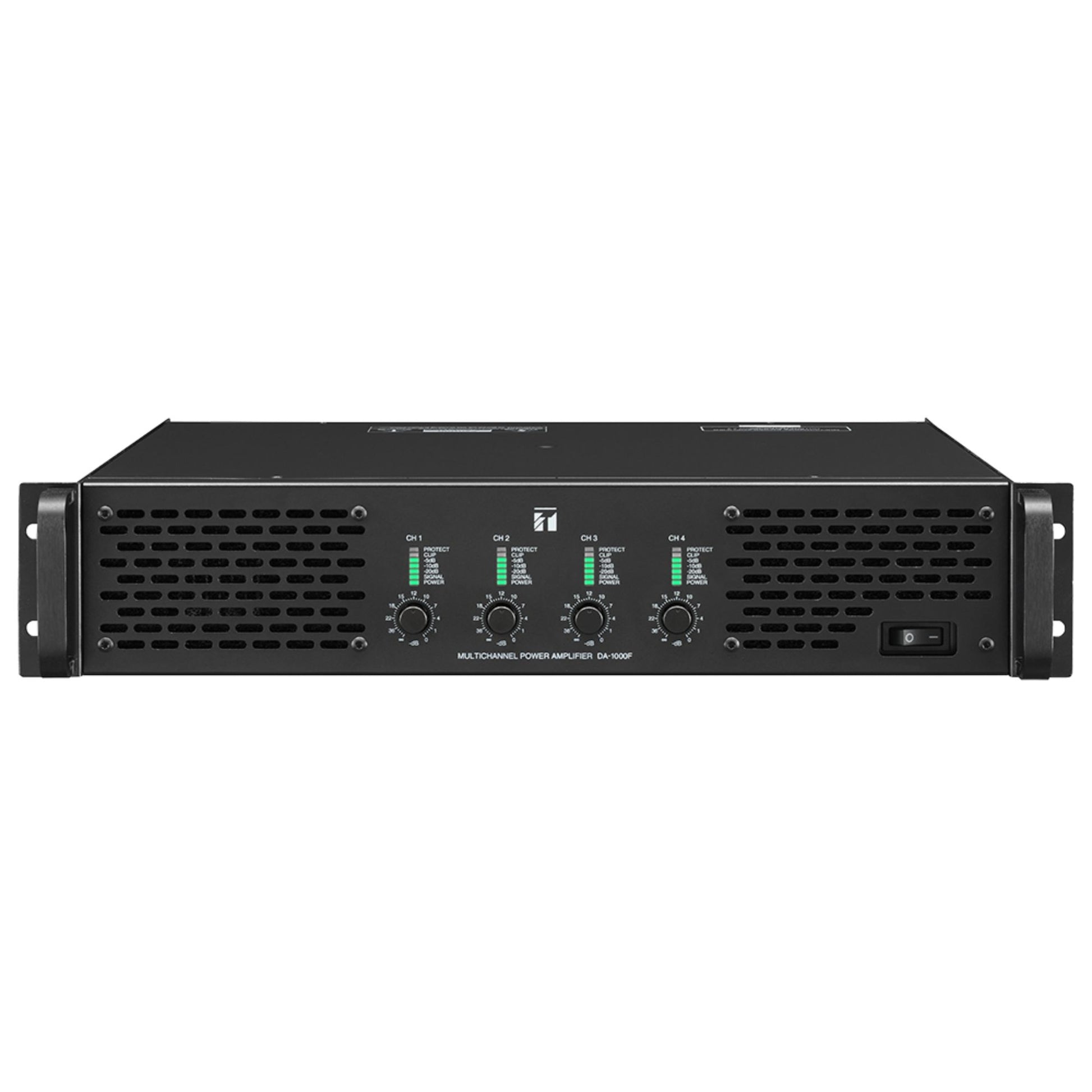

Indicators (per channel)

7-LED Display (Protect, Clip, -5/-10/-20dB, Signal, Power)

Physical & Environmental

Dimensions (W x H x D)

483 × 89 × 461 mm (19" Rack, 2U)

Net Weight

9.2 kg (20.28 lb)

Cooling / Finish

Forced Air (Front to Rear) / Black Plated Steel
