Key Specifications

Power Ratings & Amplification

Amplification System

Class D

Power Output (8 Ω, Stereo)

700 W × 2 channels

Power Output (4 Ω, Stereo)

1250 W × 2 channels

Power Output (8 Ω, Bridged)

2500 W × 1 channel

Power Consumption

1100 W (Rated)

Power Source

100 - 240 V AC, 50/60 Hz

Performance Specifications

Frequency Response

20 Hz - 20 kHz (±3 dB)

THD / Distortion

≤ 0.15 %

Signal-to-Noise Ratio

≥ 100 dB

Input Sensitivity

Selectable: 0.775V / 1.0V / 32dB

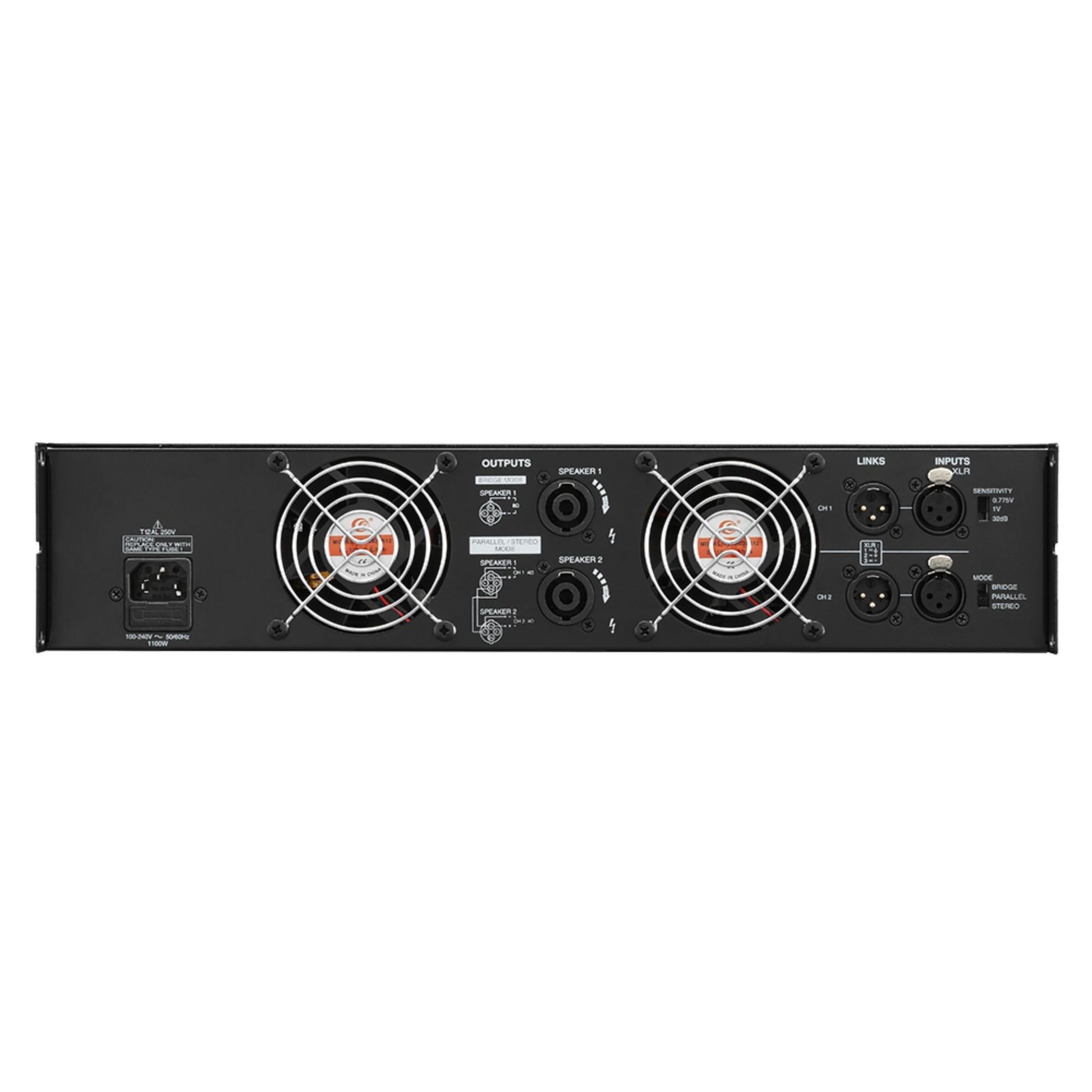

Connectivity & Monitoring

Audio Inputs

2x XLR-F (20kΩ Balanced / 10kΩ Unbalanced)

Link Outputs

2x XLR-M

Speaker Outputs

NL4 SPEAKON Connectors

LED Indicators

Protect, Clip, -5dB, -10dB, -20dB, Signal, Power

Physical & Environmental

Dimensions (W x H x D)

483 × 89 × 305 mm (19" Rackmount, 2U)

Weight

Non-CE: 6.1 kg | CE Model: 6.4 kg

Cooling

Forced Air (Front to Rear)

Finish

Plated steel sheet, black
