Key Specifications

Power Ratings & Output Configuration

Form Factor / Type

Rackmount

Number of Channels

4

Load Impedance Support

4 / 8 Ohms

Power Output (4 Ohms)

4x 550 W

Power Output (8 Ohms)

4x 350 W

Bridged Power (8 Ohms)

2x 1100 W

Performance Specifications

Frequency Response

20 Hz to 20 kHz +1/-2 dB

SNR / Noise Floor

100 dB SNR

THD / Distortion

≤ 0.15% (Full Range)

Connectivity & Processing

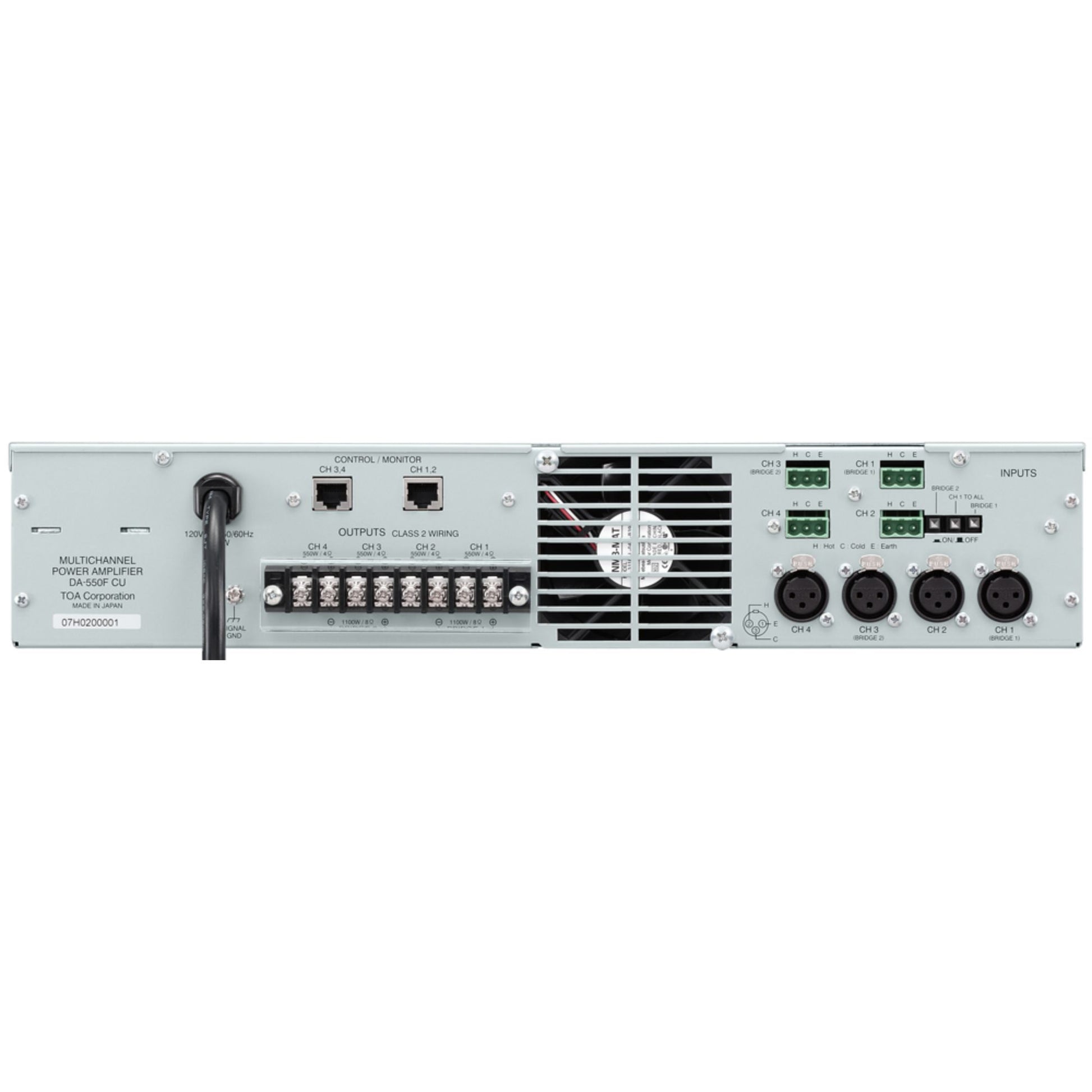

Analog Audio Inputs

4x XLR 3-Pin / 4x Block 3-Pin Input

Analog Audio Outputs

1x Screw Terminal 8-Pin Output

Signal Processing / DSP

None / No

Network / Wireless / USB

No

Electrical & Physical

Power Consumption

480 W

Cooling System

Convection

Display Indicators

Single-LED Indicators Only

Dimensions

19 x 15.9 x 3.5" / 483 x 404 x 89 mm

Net Weight

19.4 lb / 8.8 kg

Package Weight / Box Size

26.57 lb / 24.1 x 23.8 x 7.7"
