Key Specifications

Controls

• Center Panel:
  • 4 x Trackball
  • 30 x Pre-Labeled Key
  • 30 x Dial
• Side Panels:

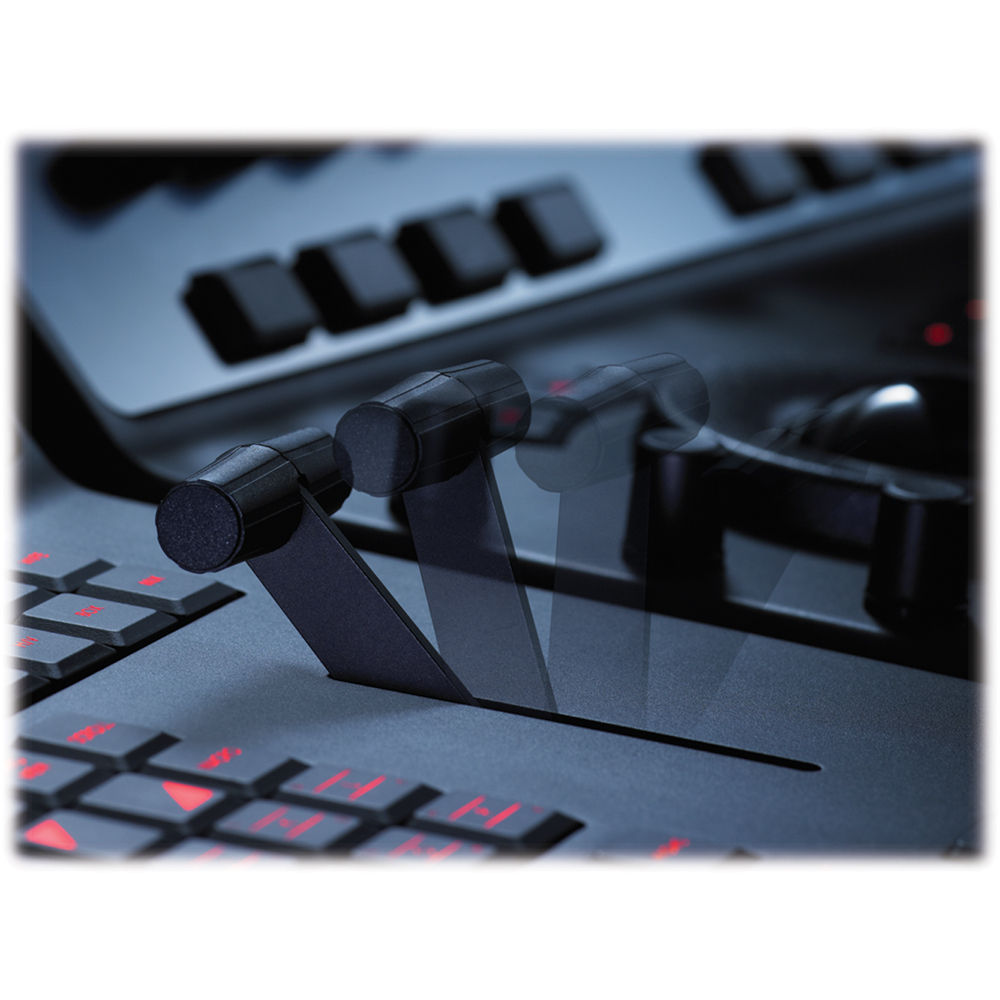

  • 1 x Slider
  • 94 x Pre-Labeled Key
  • 5 x Dial
  • 86 x Pre-Labeled Key

Display

• 5 x LCD

Inputs / Outputs

• USB I/O:
  • Center Panel: 1x USB Type-B Female Input, 2x USB Type-A Female Output, 2x USB Type-A Female Input, 1x Mini-USB Female Input
  • Side Panels: 1x USB Type-B Female Input, 1x Mini-USB Female Input
• Power I/O:
  • Center Panel: 1x 3W3 D-Sub Input, 2x 3W3 D-Sub Output
  • Side Panels: 1x 3W3 D-Sub Input

Power

• Power Source: AC Adapter with Power Brick (Included)
• Input Power: 100 to 240 VAC, 50/60 Hz at 1.5
• Power Consumption: 80 W (Maximum)

Physical

• Dimensions:
  • Fully Assembled: 48.75 x 18.5 x 7.69" / 123.83 x 47 x 19.53 cm
  • Center Panel: 22.6 x 18.14 x 7.7" / 57.4 x 46.08 x 19.6 cm
  • Side Panel: 16.6 x 13.1 x 7.7" / 42.2 x 33.3 x 19.6 cm
• Weight:
  • Fully Assembled: 48.06 lb / 21.8 kg

Environmental

• Operating Temp: 32 to 72°F / 0 to 40°C
• Storage Temp: -4 to 140°F / -20 to 60°C
• Operating Humidity: Up to 90%

Compatibility

• OS Compatibility: macOS 10.15+, Windows 10+, CentOS 7.3+
