Key Specifications

Model

DB-EAST-PRE

Inputs

Dual inputs with remote switching ability

Channels

Independent FET and Tube channels with mix control

Control & Switching

Remote drive & mute; Bypass/Mute mode (footswitchable)

Status Indicators

LEDs for Bypass/Mute, Input 1/2, and FET/Tube channels

Equalization, Processing & IR Emulation

Equalization

Bass, Lo-Middle (with switchable Q and operating frequency), Hi-Mid, Treble

Tone Shaping

TILT control

Pre-loaded IRs

Shipped with Nathan's favorite cabs: DBV410 on Input 1 and DBV212 on Input 2

App Integration

LA·IR app for custom IR loading and firmware updates

Connectivity & Expansion

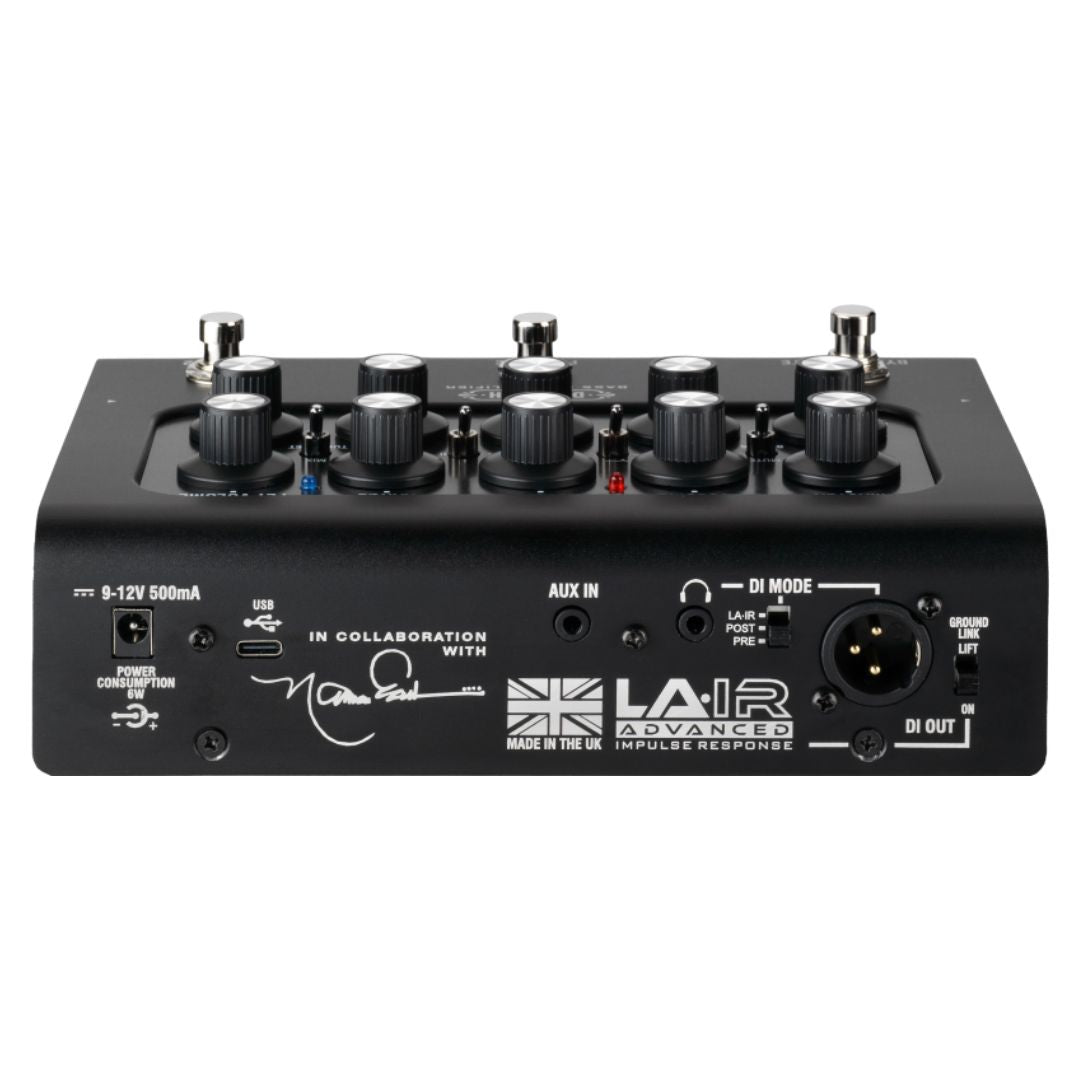

DI Output

Balanced Male XLR DI out with switchable Ground Lift and Source Mode switch (Pre, Post, LA·IR)

USB Audio & Interface

USB Type-C for Class compliant audio streaming @48kHz (Emulated and un-emulated main out) and LA·IR app access

Effects & Audio Routing

FX Loop, Tuner Out, 3.5mm Stereo Aux In jack

Power Requirements

Power Supply

Regulated 9V-12V 500mA DC PSU (Not Included): Centre Negative, 2.1 x 5.5 x 12mm connector type

Dimensions, Weight & Package Contents

Item Dimensions (H×W×D)

67mm x 199mm x 143mm

Item Weight

1.1kg

Carton Dimensions (H×W×D)

129mm x 238mm x 182mm

Carton Weight

1.6kg

What's in the Box

DB-EAST-PRE, USB Type-C 1M Cable, USB A to C Adaptor
