Key Specifications

Product / Accessory Type

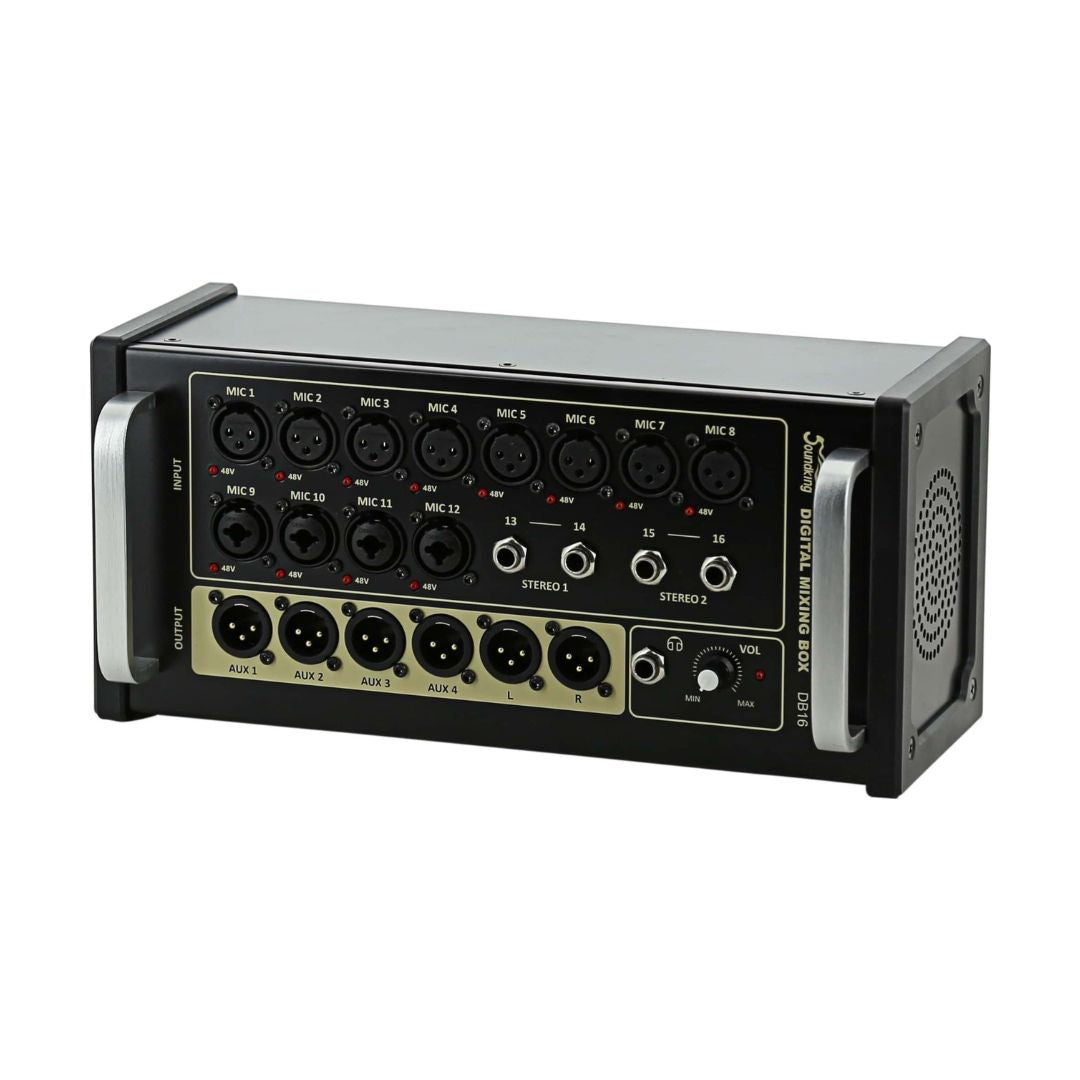

16-Channel Rackmount / Desktop Digital Mixer with Wireless HTML5 Remote Control

Remote Control Architecture

Cross-Platform HTML5 Browser-Based Control (Compatible with iOS, Android, Windows, macOS, Linux via Tablet, PC, or Smartphone)

Scene Memory & Presets

Full Scene Memory Recall & Storage Support

Audio Performance, Processing & DSP Specifications

Digital Signal Processing & AD/DA Conversion

24-Bit Processing Depth, Up to 192 kHz AD/DA Converters

Microphone Preamplifier Gain

Up to 60.0 dB Electronic Gain Range

Channel Processing (All Inputs)

+48V Phantom Power, 4-Band Parametric EQ, High-Pass Filter (HPF), Compressor, Noise Gate, Digital Electronic Gain, Effects Sends

Bussing & Routing Architecture

16 Internal Buses (4x Mono Output Buses, 5x Stereo Output Buses, 1x Stereo Monitor Bus)

Integrated Multi-FX Engines

4x Built-In DSP Effect Engines (2x Reverb Processors, 2x Delay Processors)

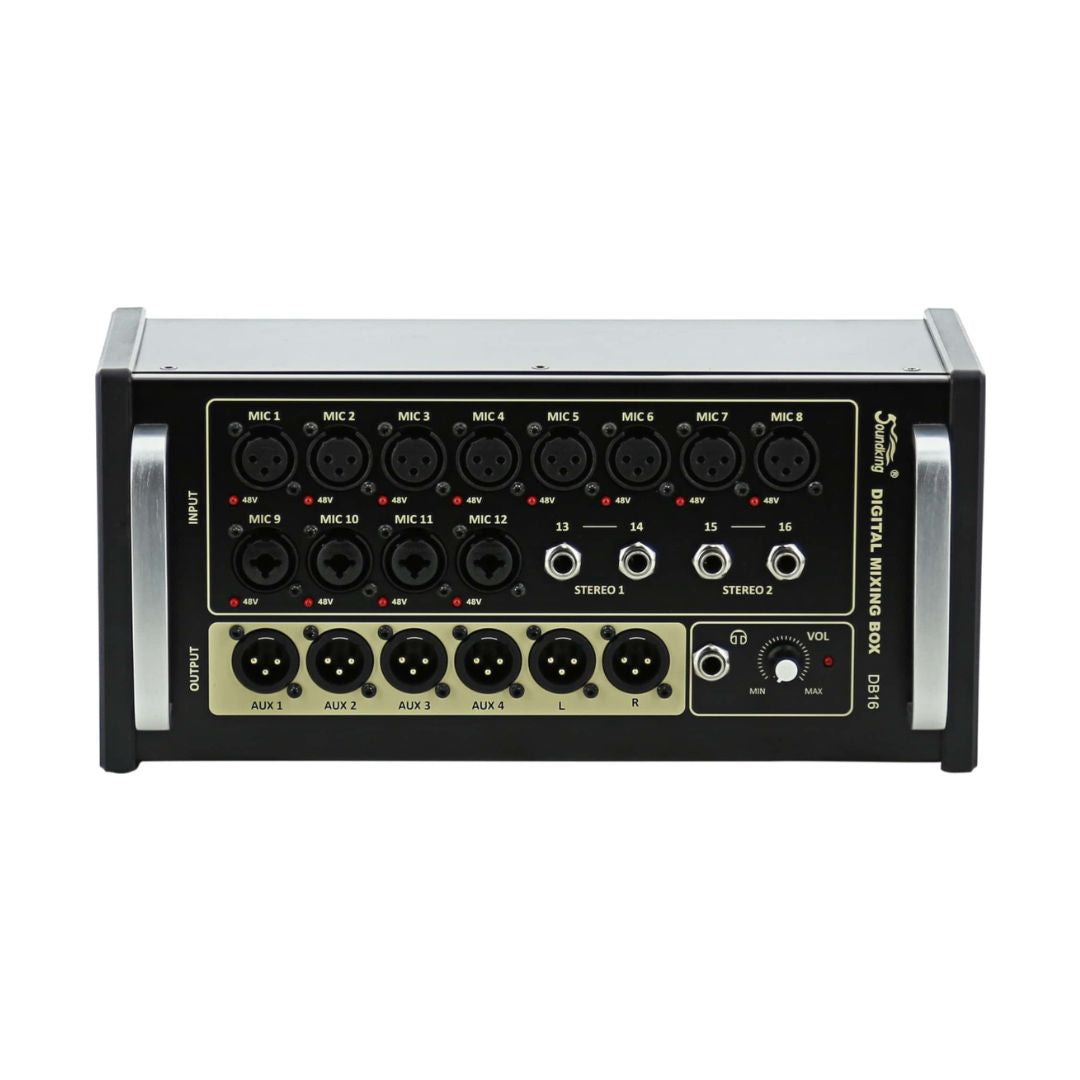

Input Channel & Physical Interface Specifications

Microphone Inputs (MIC IN)

12x Combo XLR / 1/4" (6.35 mm) Jack Inputs

Line Inputs (LINE IN)

2x Stereo Pairs (4x 1/4" / 6.35 mm Jack Inputs)

Auxiliary Mix Busses / Outputs

12x Aux Busses / Aux Outs

Footswitch Interfaces

2x 1/4" (6.35 mm) Jack Footswitch Inputs

Output & Monitoring Interface Specifications

Main & Assignable Analog Outputs

Main Output (L/R) & Assignable Outputs: 6x Total Balanced XLR Outs (including 4x Assignable XLR Outputs)

Monitor & Headphone Interfaces

1x Dedicated Stereo Headphone Output

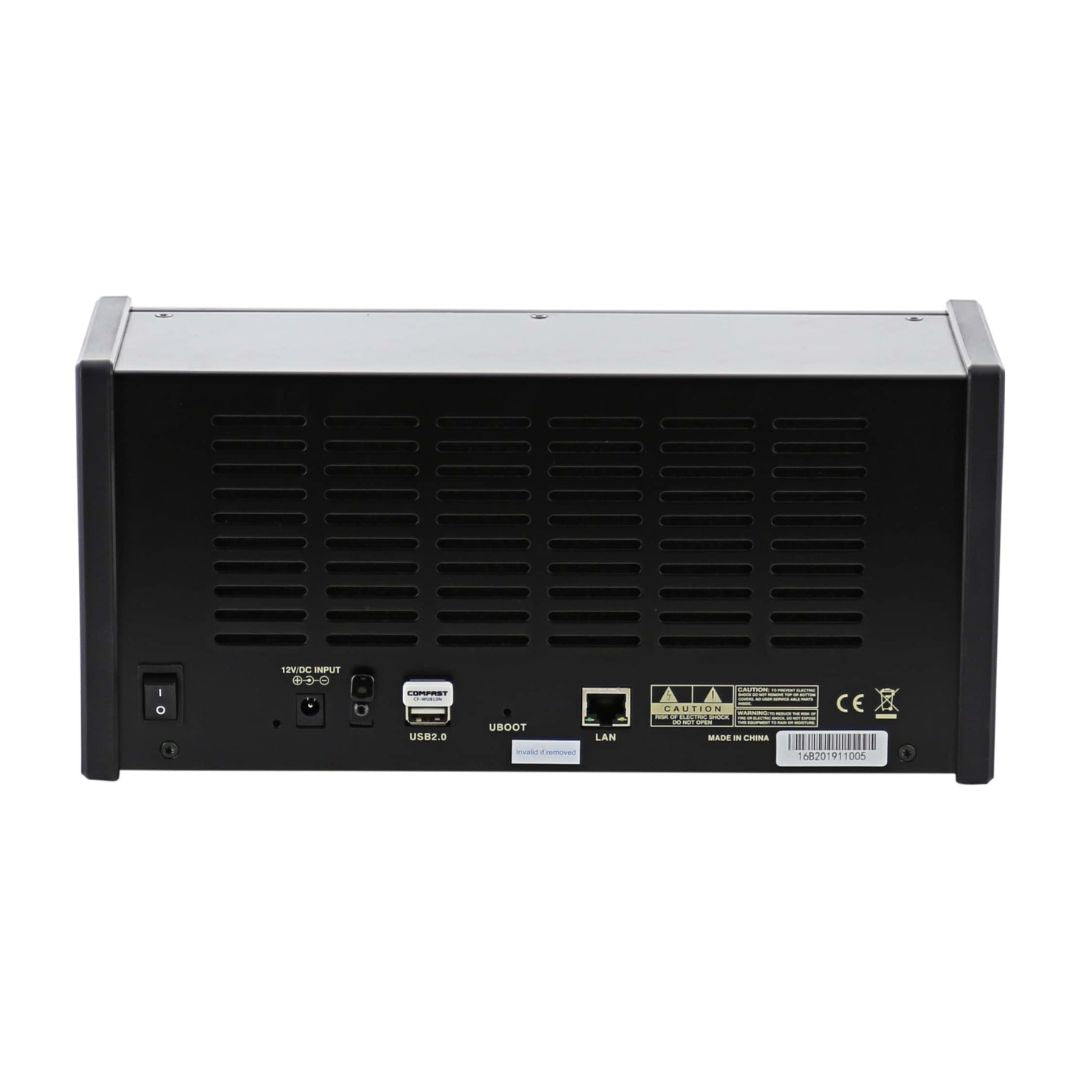

Network, USB & Control Interfaces

Network & Wireless Communication

1x RJ-45 LAN Network Interface, External Wireless USB Module Interface

USB Recording, Playback & System Ports

2x USB Type-A Ports (USB Drive Playback & Recording in WAV/MP3 Formats, Firmware Updates)

Power & Electrical Specifications

Operating Power Requirements

External DC 12 V Adapter (AC 90 V to 240 VAC, 50 / 60 Hz Universal Mains Input)
