DBF100

PRICE FOR INQUIRY

100 watts RMS
12" HH Blue 1220200-4 Professional Woofer
Two Channels. FET and Drive, with mix options for gritty drive whilst maintaining clarity.
Preshape Switch, provides a mid-frequency cut for a scooped sound whilst pushing the tops and lows.
Bass (±12dB), Middle (±12dB) with four switchable voicing options, Treble (±12dB)
TILT function
Precision-crafted 15mm Plywood cabinet for optimal strength, reduced weight, and a resonant, natural tonal character.

LANEY

Price for Inquiry

UNIT: PIECE/S

Product Code: SKU:LANEY-DBF100-CHN-9676

100 watts RMS
12" HH Blue 1220200-4 Professional Woofer
Two Channels. FET and Drive, with mix options for gritty drive whilst maintaining clarity.
Preshape Switch, provides a mid-frequency cut for a scooped sound whilst pushing the tops and lows.
Bass (±12dB), Middle (±12dB) with four switchable voicing options, Treble (±12dB)
TILT function
Precision-crafted 15mm Plywood cabinet for optimal strength, reduced weight, and a resonant, natural tonal character.

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

LANEY DBF100

Key Specifications
Power Output	100 Watts RMS
Woofer	12" HH Blue 1220200-4 Professional Woofer
Channels	Two Channels FET and Drive with Mix Options
Drive Features	Provides gritty drive while maintaining clarity
Preshape Switch	Provides a mid-frequency cut for a scooped sound Enhances highs and lows
EQ Controls	Bass: ±12dB Middle: ±12dB with Four Switchable Voicing Options Treble: ±12dB
Tilt Function	TILT Function
Master Volume	Yes
Cabinet & Construction
Cabinet Material	Precision-crafted 15mm Plywood Cabinet
Cabinet Features	Optimal Strength Reduced Weight Resonant and Natural Tonal Character
Handle	Top Mounted Steel Reinforced Strap Handle
Exterior Finish	Hard Wearing Black Vinyl
Protection	Steel Corners for Enhanced Protection
Front Baffle	Removable Front Baffle

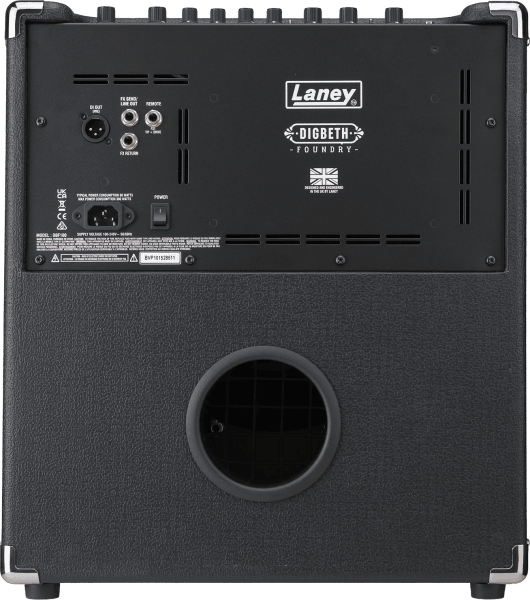

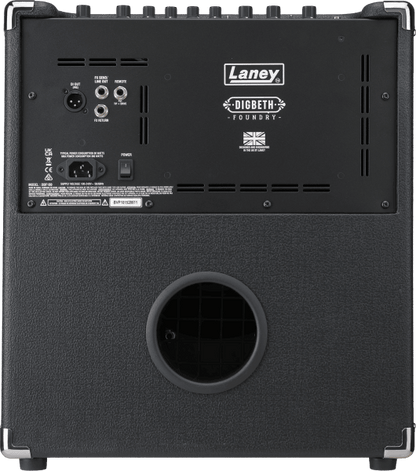

Connectivity
AUX Input	Yes
Headphone Output	3.5mm Stereo Headphone Jack
FX Loop	Yes
FX Send	Doubles as Line Out
D.I. Output	Balanced Male XLR D.I. Output (Pre EQ)
Remote Socket	For Optional FS-1 MINI - Switches Drive
Power Supply
Power Supply Type	Internal Universal Switched Mode Power Supply
Input Voltage	100-200V~ 50/60Hz
Connector	IEC C14 Inlet Connector
Dimensions & Weight
Item Dimensions	475mm x 416mm x 331mm (HWD)
Item Weight	13.2 Kg
Carton Dimensions	545mm x 535mm x 395mm (HWD)
Carton Weight	16.6 Kg
