Key Specifications

Speaker Type

Active Loudspeaker

Configuration

2-Way

Total Output Power

325 W RMS / 700 W Peak

Amplifier Power Rating

Low Frequency (LF)

260 W RMS / 500 W Peak

Mid Frequency (MF)

65 W RMS / 200 W Peak

Drivers

LF Driver

1 × 10" (25.4 cm) Woofer
Voice Coil: 2" (5.1 cm)
Magnet: Ferrite

HF Driver

1 × 1" (25 mm) Compression Driver
Magnet: Ferrite

Performance

Frequency Range / Response

55 Hz – 20 kHz (-10 dB)

Maximum SPL

129 dB SPL

Coverage Angle

90° H × 60° V

Signal Processing

Crossover Frequency

2100 Hz

EQ & Filters

No

Alignment Delay

No

Digital Signal Processing

No

Connectivity

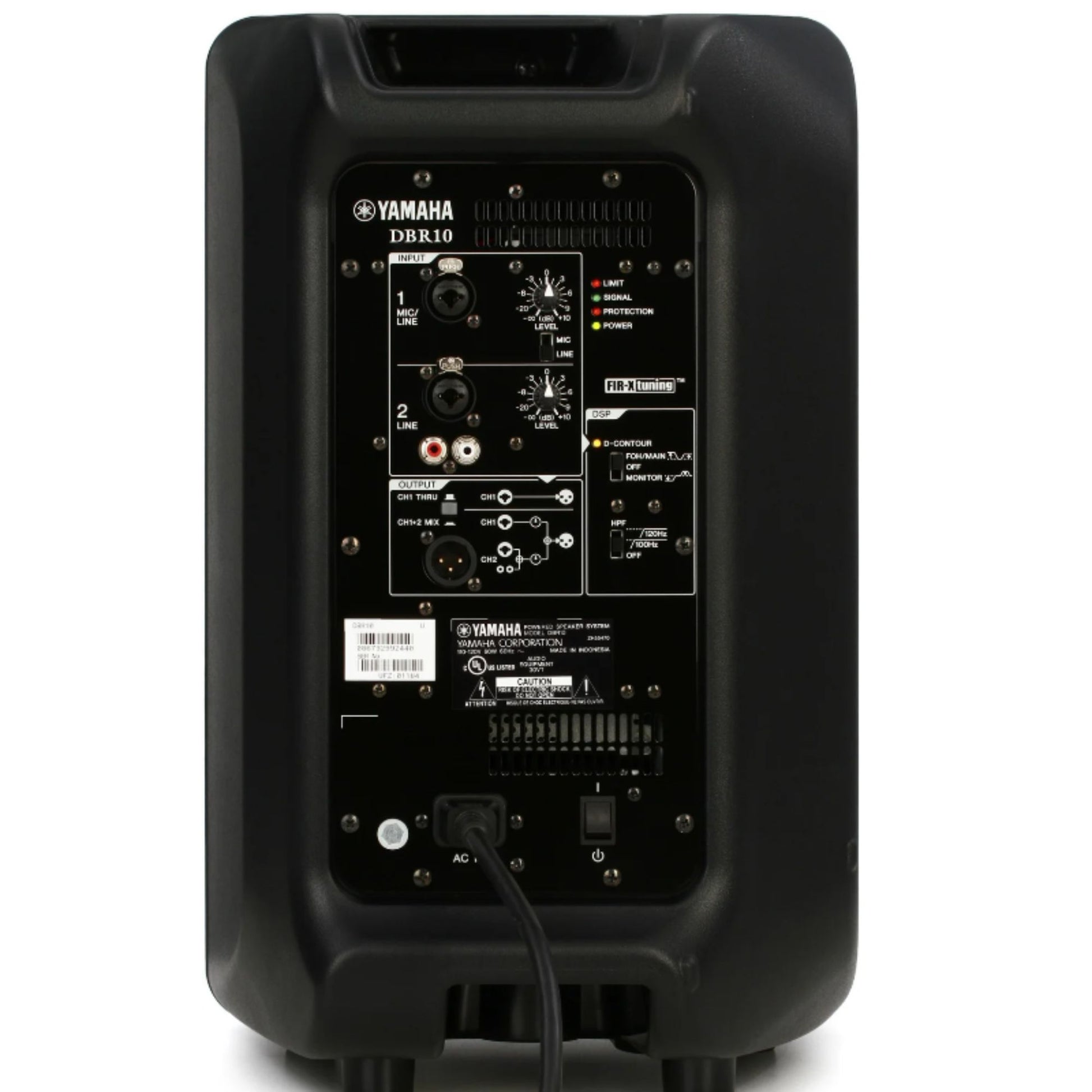

Audio I/O

2 × Combo XLR-1/4" TRS Input
1 × Stereo 2RCA Line Input
1 × XLR 3-Pin Output

Network I/O

No

USB I/O

No

Wireless

No

Mobile App Compatible

No

Power

AC Input Power

100–120 VAC, 50/60 Hz

AC Power I/O

1 × IEC Input

Power Consumption

60 W (1/8 Power), 18 W (Idle)

Physical

Color

Black

Mounting

Stand Mount (1 × 1.38" / 35 mm Pole Socket, Bottom)

Suspension Points

2 × M8 Fly Point (Bottom)

Handles

1 × Top

Construction Material

Plastic

Environmental Resistance

No

Dimensions (H × W × D)

19.4 × 12.1 × 11.4" (493 × 308 × 289 mm)

Weight

23.2 lb (10.5 kg)

Packaging Info

Package Weight

30.75 lb

Box Dimensions (L × W × H)

22.6 × 15.8 × 14.9"
