Key Specifications

Speaker Type

Active Loudspeaker

Configuration

2-Way

Total Output Power

465 W RMS / 1000 W Peak

Amplifier Power Rating

Low Frequency (LF)

400 W RMS / 800 W Peak

Mid Frequency (MF)

65 W RMS / 200 W Peak

Drivers

LF Driver

1 × 15" (38 cm) Woofer
Voice Coil: 2.5" (6.35 cm)
Magnet: Ferrite

HF Driver

1 × 1.4" (35.6 mm) Compression Driver
Magnet: Ferrite

Performance

Frequency Range / Response

50 Hz – 20 kHz (-10 dB)

Maximum SPL

132 dB SPL

Coverage Angle

90° H × 60° V

Signal Processing

Crossover Frequency

2100 Hz

EQ & Filters

No

Alignment Delay

No

Digital Signal Processing

No

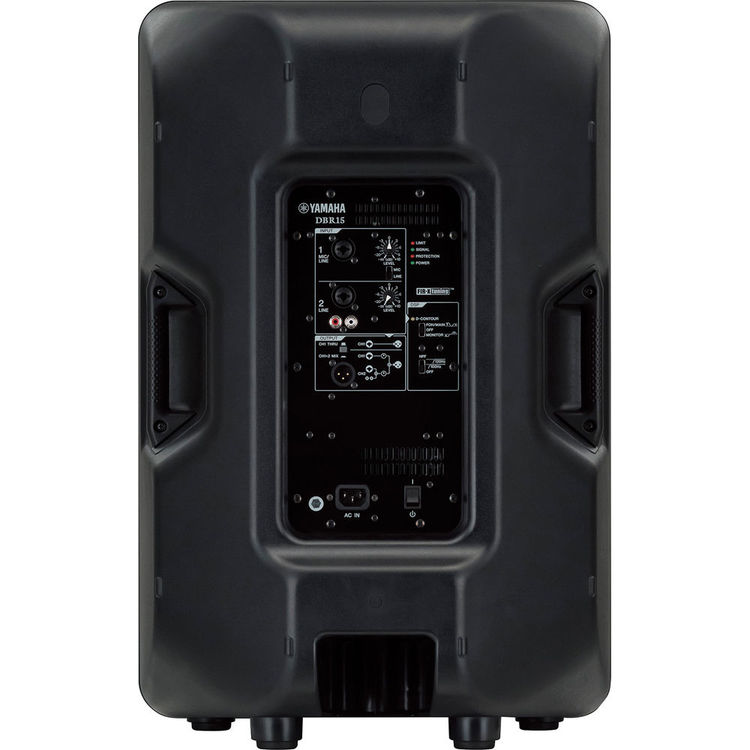

Connectivity

Audio I/O

2 × Combo XLR-1/4" TRS Input
1 × Stereo 2RCA Input
1 × XLR 3-Pin Output

Network I/O

No

USB I/O

No

Wireless

No

Mobile App Compatible

No

Power

AC Input Power

100–120 VAC, 50/60 Hz

AC Power I/O

1 × IEC Input

Power Consumption

74 W (1/8 Power), 18 W (Idle)

Physical

Color

Black

Mounting

Stand Mount (1 × 1.38" / 35 mm Pole Socket, Bottom)

Suspension Points

2 × M8 Fly Point (Bottom), 1 × M8 Fly Point (Rear)

Handles

2 × Side

Construction Material

Plastic

Environmental Resistance

No

Dimensions (H × W × D)

17.9 × 27.6 × 14.9" (455 × 700 × 378 mm)

Weight

42.6 lb (19.3 kg)

Packaging Info

Package Weight

53.5 lb

Box Dimensions (L × W × H)

31 × 21 × 19"
