Key Specifications

Product Model

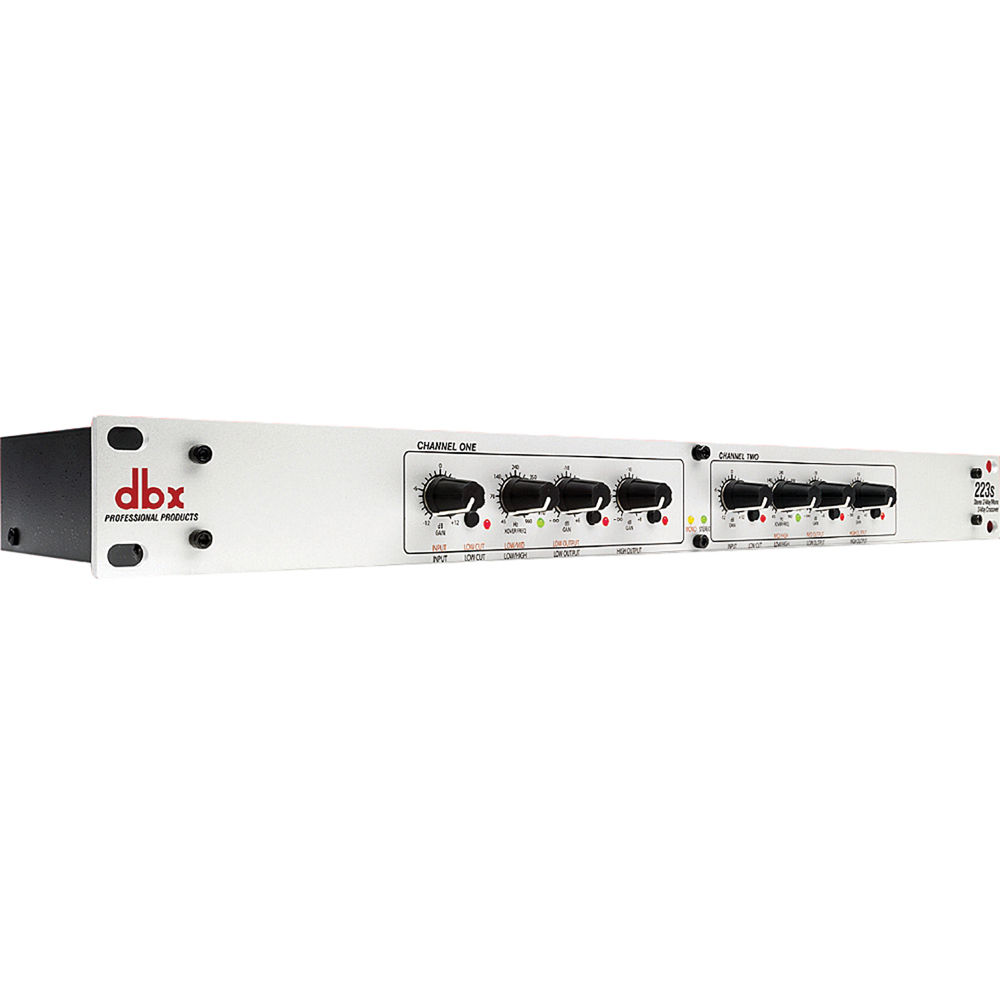

dbx 223xs

Product Type

Stereo 2-Way / Mono 3-Way Crossover

Filter Type

Linkwitz-Riley, 24 dB/octave (State-variable)

Connectors

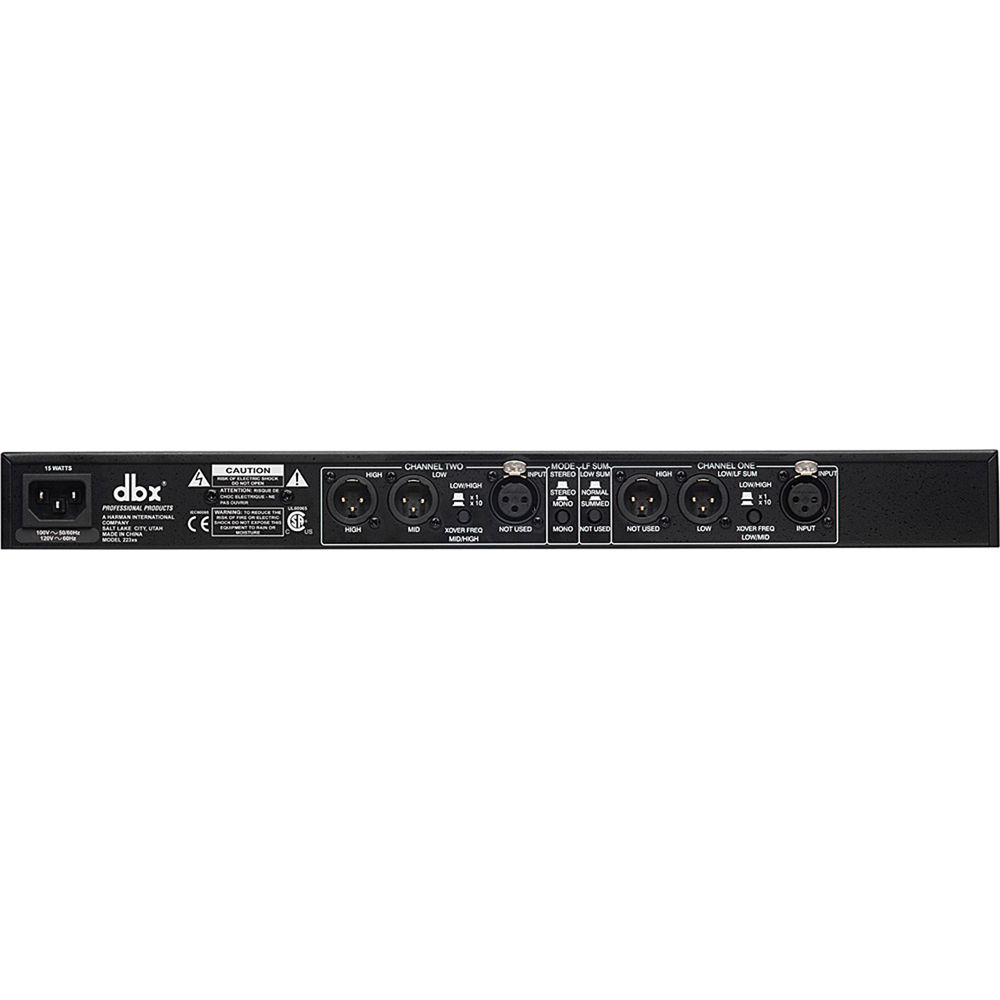

XLR Inputs and Outputs

Acoustic & Electrical Performance

Frequency Response

<3 Hz to >90 kHz (+0/-3.0 dB)

Dynamic Range

>106 dB (Unweighted)

THD + Noise

<0.004% (@ +4 dBu, 1 kHz)

Crosstalk

<-80 dB (20 Hz to 20 kHz)

Crossover Frequencies

Stereo Mode

Low/High: 45 Hz to 960 Hz (or 450 Hz to 9.6 kHz via x10)

Mono Mode

Low/Mid & Mid/High: Variable via x10 switches

LF Sum

Selectable Mono Subwoofer Output

Physical & Power

Rack Space

1U

Dimensions (WxDxH)

483 x 175 x 45 mm (19" x 6.9" x 1.75")

Net Weight

1.7 kg (3.7 lbs)
