Key Specifications

Product Model

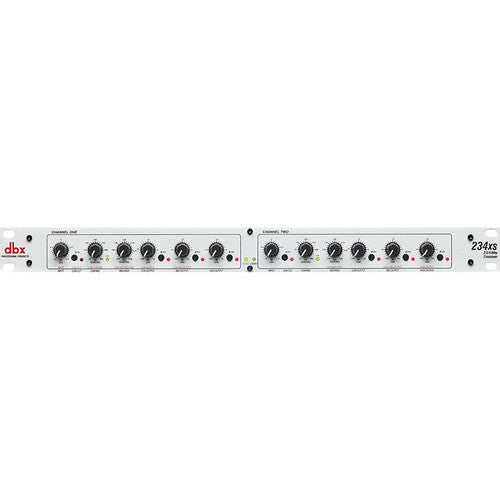

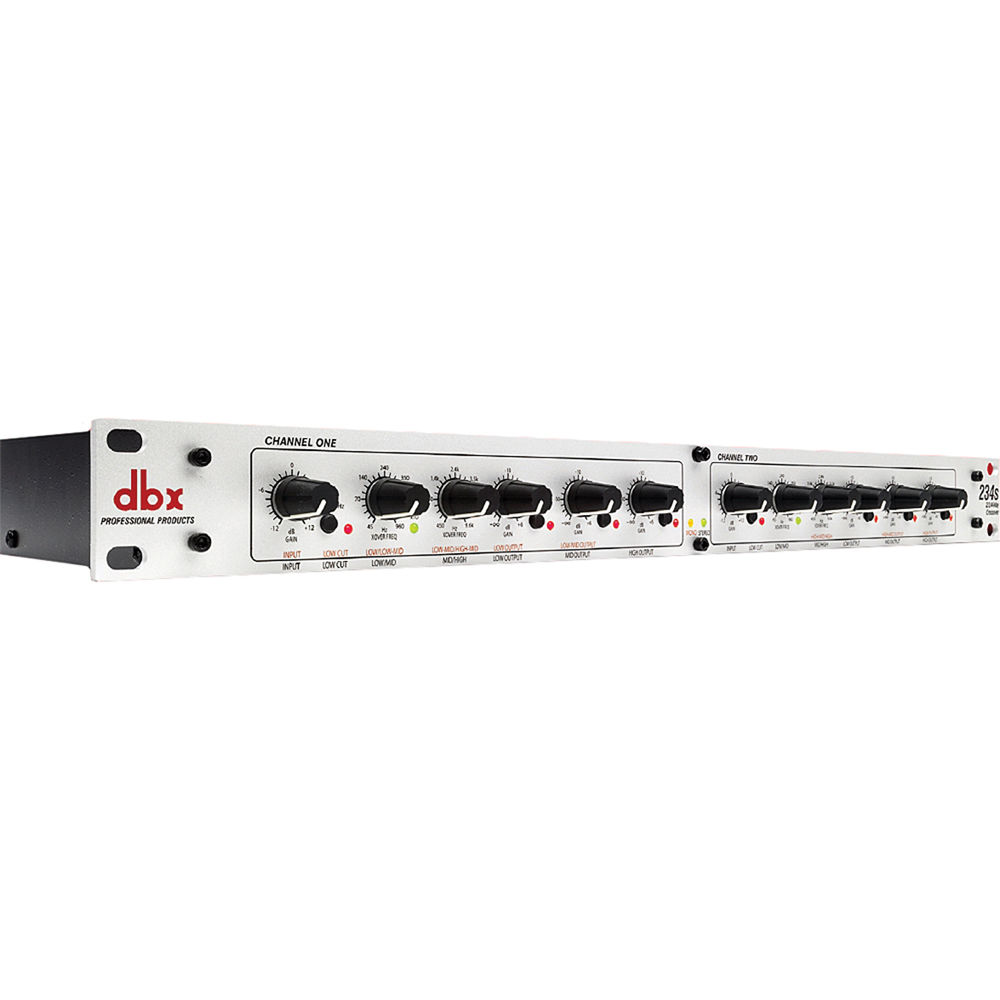

dbx 234xs

Product Type

Stereo 2/3-Way, Mono 4-Way Crossover

Filter Type

Linkwitz-Riley, 24 dB/octave (State-variable)

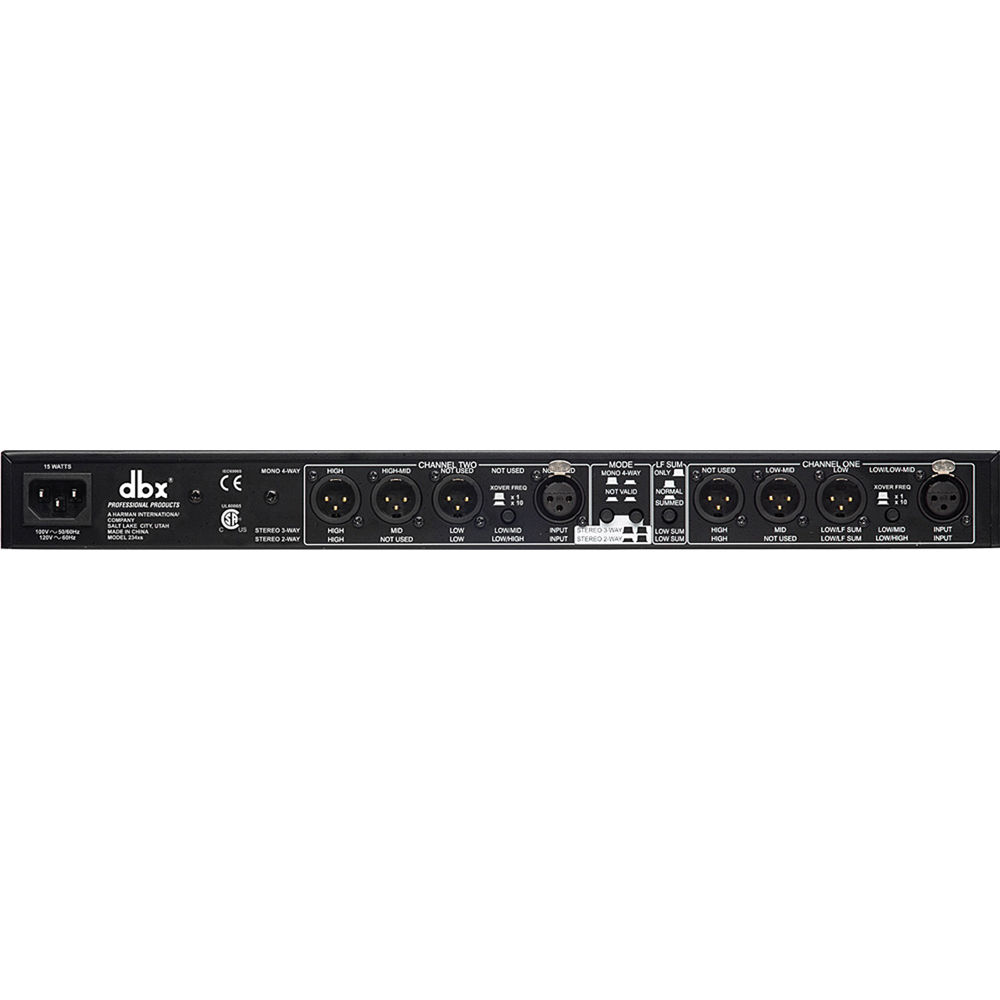

Connectors

XLR Inputs and Outputs (Pin 2 Hot)

Acoustic & Electrical Performance

Frequency Response

<3 Hz to >90 kHz (+0/-3.0 dB)

Dynamic Range

>106 dB (Unweighted)

THD + Noise

<0.004% (@ +4 dBu, 1 kHz)

Crosstalk

<-80 dB (20 Hz to 20 kHz)

Crossover Frequencies

Stereo Mode

2-way or 3-way operation

Mono Mode

4-way operation

Frequency Range

45 Hz to 960 Hz (with x10 multiplier to 9.6 kHz)

Physical & Power

Rack Space

1U

Dimensions (WxDxH)

483 x 175 x 45 mm (19" x 6.9" x 1.75")

Net Weight

1.8 kg (4.0 lbs)
