DBXPA2-V
DBXPA2-V
DBX
Regular price
₱38,000.00 VAT INC.
Regular price
Sale price
₱38,000.00
Unit price
per
UNIT: PIECE/S
Product Code: SKU:DBX-DBXPA2V-CHN-822
Key Features
Authorized Dealer
Certified Quality Products
After-Sales Support
Secure Payments

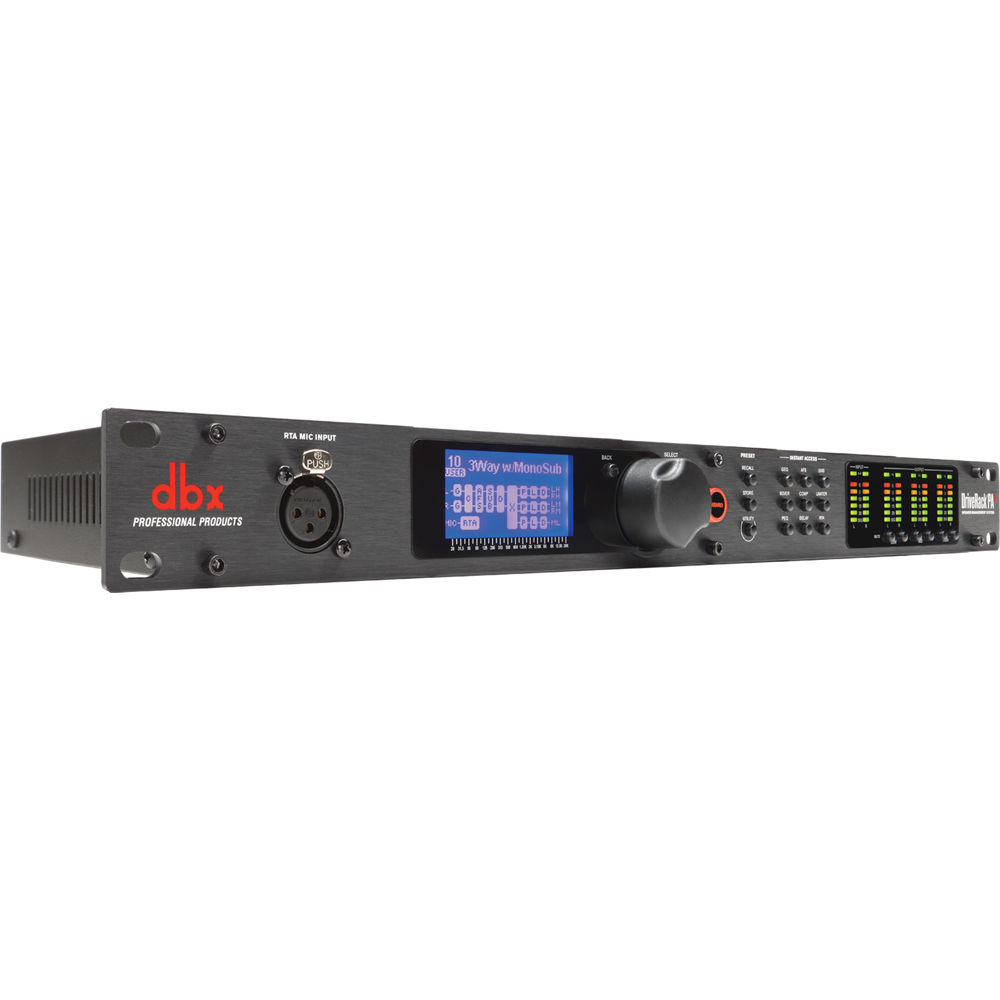

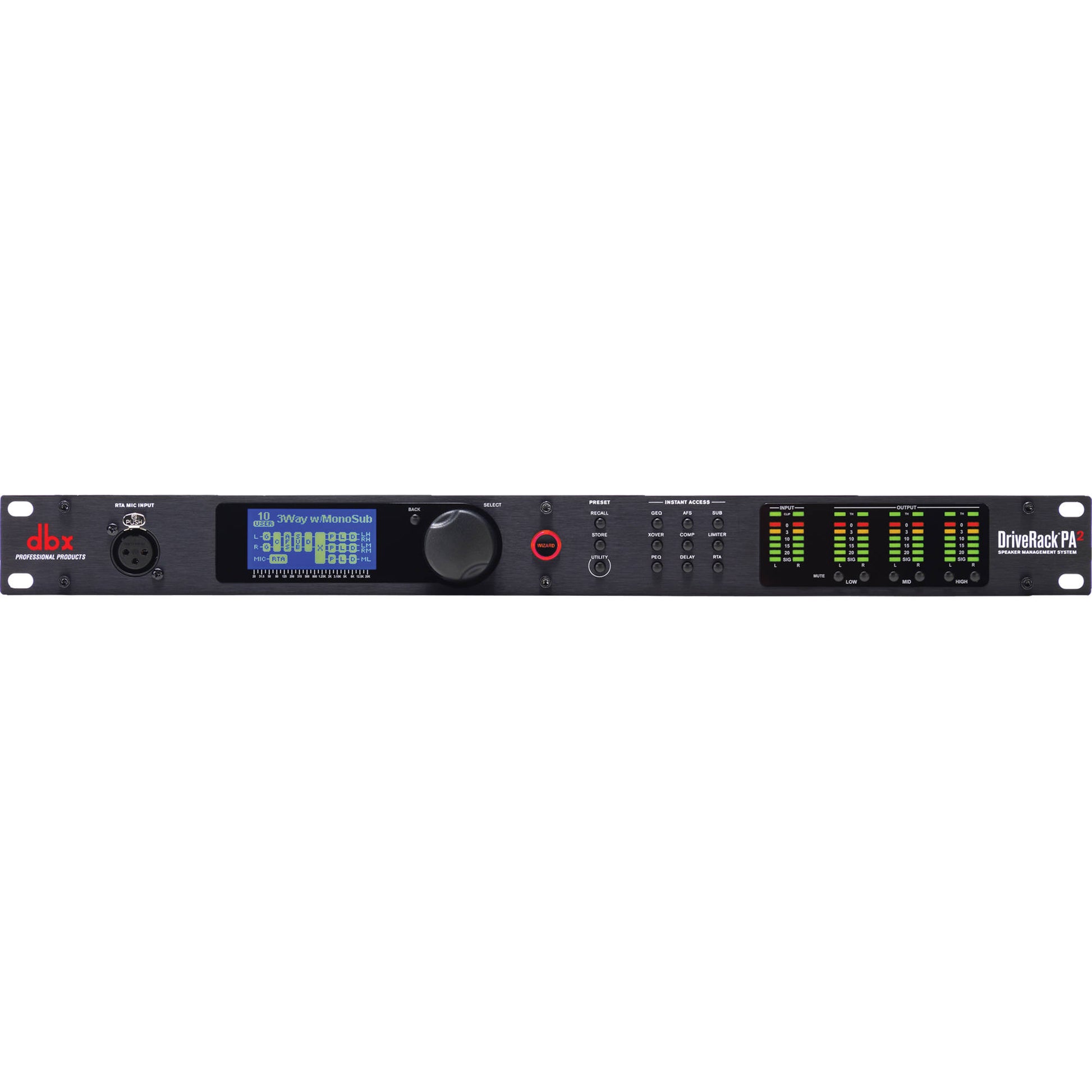

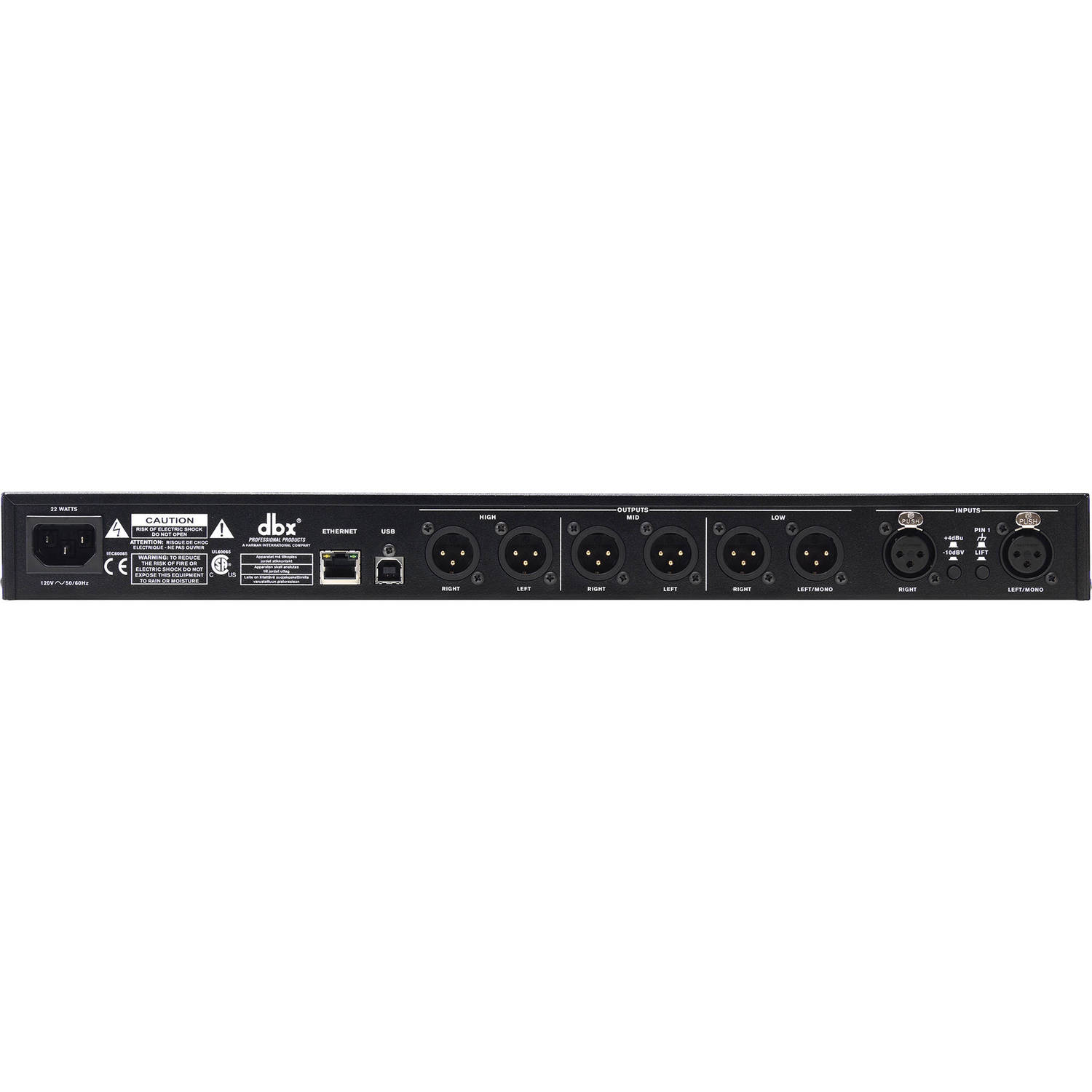

DBX DBXPA2-V
DBX DBXPA2-V
|
Key Specifications |
|
|
Product Model |
dbx DriveRack PA2 |
|
Product Type |
Complete Loudspeaker Management System |
|
Internal Processing |
32-Bit Floating Point |
|
Sample Rate |
48 kHz |
|
Acoustic & Digital Performance |
|
|
Frequency Response |
20 Hz to 20 kHz (+0 / -0.5 dB) |
|
THD + Noise |
0.003% Typical (at +4 dBu) |
|
Dynamic Range |
110 dB A-Weighted (112 dB A/D) |
|
Latency |
1.847 ms (Input to Output) |
|
Inputs / Outputs |
|
|
Analog Inputs |
2x XLR Line Inputs, 1x XLR RTA Mic Input |
|
Analog Outputs |
6x XLR Line Outputs |
|
Max Input/Output |
+20 dBu |
|
Alignment Delay |
10 ms per Output Channel Pair |
|
Physical & Power |
|
|
Dimensions (WxDxH) |
48.3 x 14.6 x 4.4 cm (19" x 5.8" x 1.75") |
|
Net Weight |
2.4 kg (5.3 lbs) |
|
Power Consumption |
22 W |
DBX DBXPA2-V Accessories
- No accessories available.
