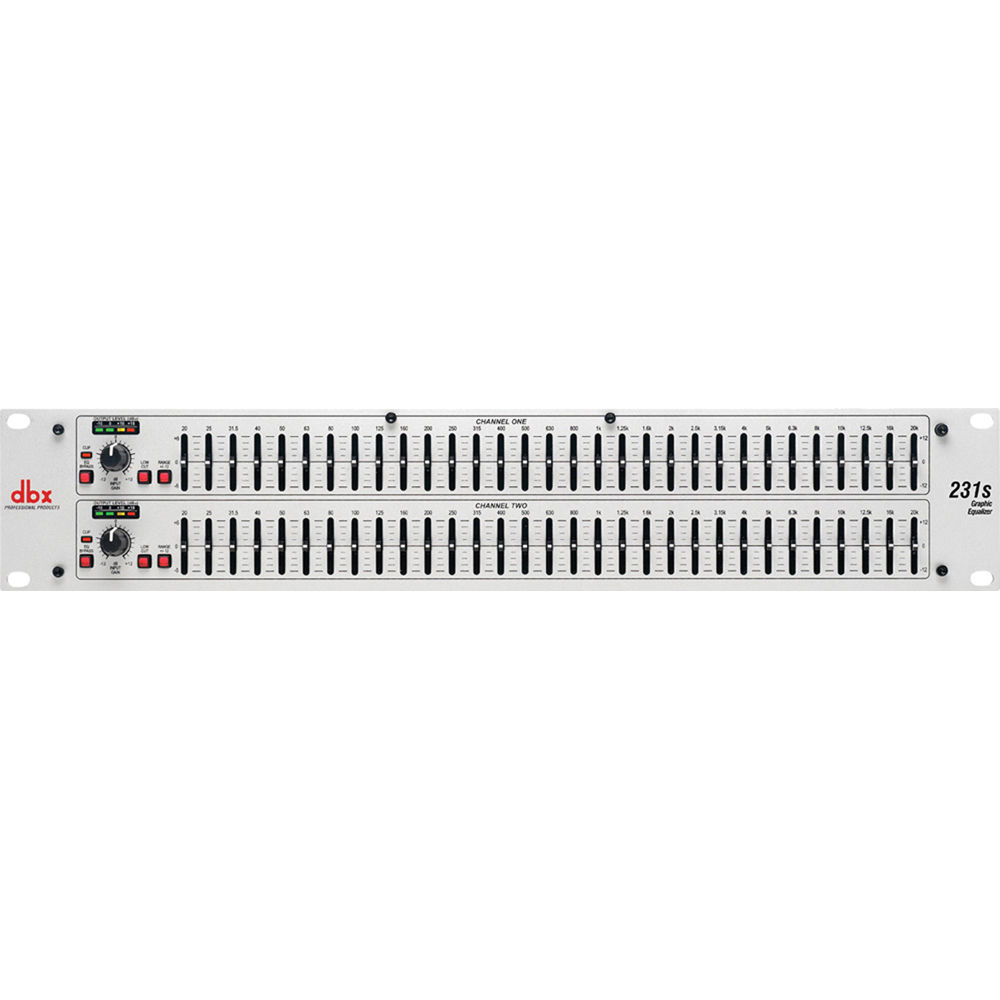

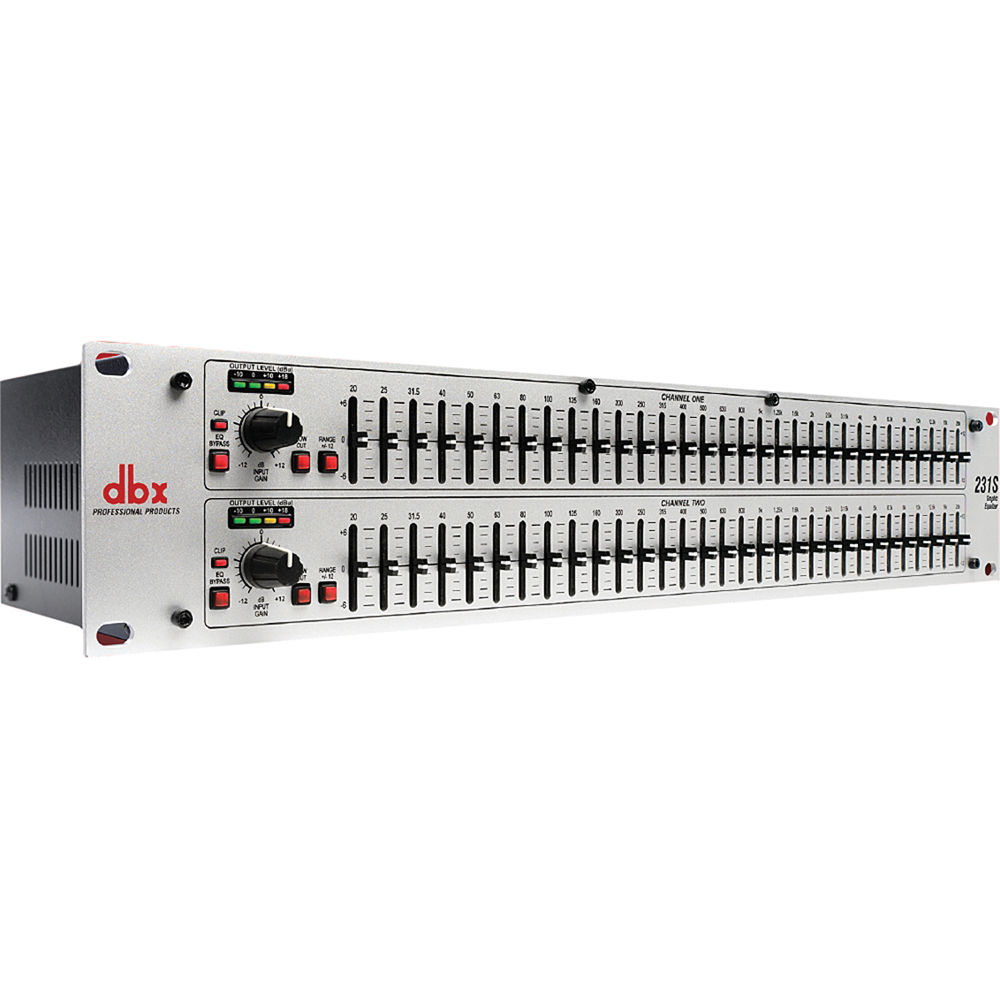

DBX231SV
DBX231SV
DBX
UNIT: PIECE/S
Product Code: SKU:DBX-DBX231SV-CHN-766
Key Features
DBX DBX231SV
DBX DBX231SV
|
Key Specifications |
|
|
Product Model |
dbx 231s |
|
Product Type |
Dual 31-Band Graphic Equalizer |
|
Filter Type |
Constant Q |
|
Frequency Bands |
2x 31, 1/3-octave (ISO Centers) |
|
Acoustic & Electrical Performance |
|
|
Frequency Response |
<10 Hz to >50 kHz (+0.5/-3.0 dB) |
|
Dynamic Range |
>112 dB Typical |
|
THD + Noise |
<0.003% |
|
Signal-to-Noise Ratio |
>95 dB Typical |
|
Connectivity & Hardware |
|
|

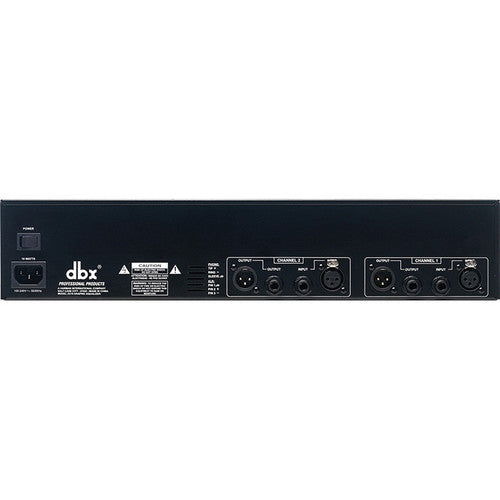

Input/Output Jacks |
XLR (Pin 2 Hot) and 1/4" TRS Phone |
|
Input Impedance |
Balanced 40 kΩ / Unbalanced 20 kΩ |
|
Max Input Level |
>+21 dBu |
|
Control & Switching |
|
|
Slider Throw |
20 mm Non-conductive Sliders |
|
Switchable Range |
±6 dB or ±12 dB Boost/Cut |
|
Low Cut Filter |
50 Hz, 12 dB/octave High-Pass |
|
Physical & Power |
|
|
Rack Space |
2U |
|
Dimensions (WxDxH) |
483 x 152 x 89 mm (19" x 6" x 3.5") |
|
Net Weight |
2.8 kg (6.2 lbs) |
DBX DBX231SV Accessories
- No accessories available.
