Key Specifications

Product Model

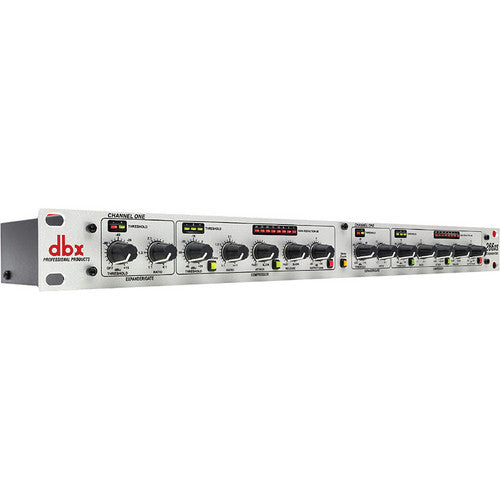

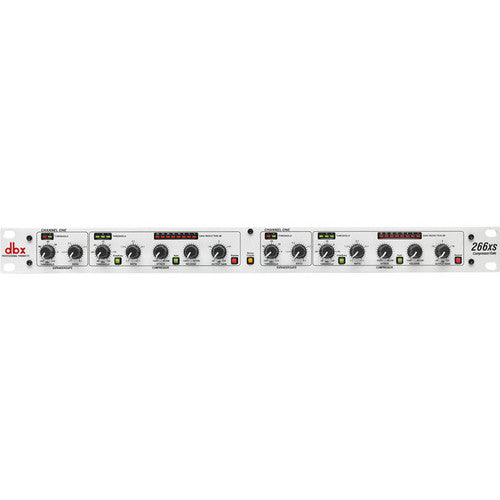

dbx 266xs

Product Type

Dual Compressor / Gate

Number of Channels

2 (Independent or Stereo-Linkable)

Compression Characteristics

OverEasy® or Hard Knee (Selectable)

Acoustic & Electrical Performance

Frequency Response

20 Hz to 20 kHz (+0/-0.5 dB)

Dynamic Range

>114 dB (Unweighted)

THD + Noise

<0.02% Typical (@ 1 kHz)

Signal-to-Noise Ratio

<-93 dBu (Unweighted)

Processing Controls

Compression Ratio

1:1 to ∞:1 (Variable)

Gate Threshold

-60 dBu to +15 dBu

Timing

AutoDynamic™ Program-dependent Attack/Release

Make-up Gain

-20 dB to +20 dB

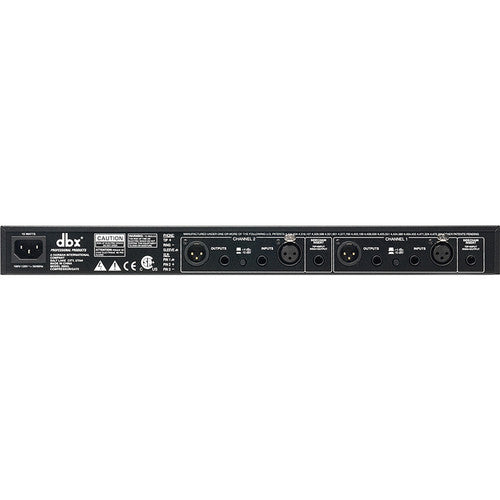

Connectivity & Physical

Input/Output Jacks

XLR (Pin 2 Hot) and 1/4" TRS

Sidechain Connector

1/4" TRS (Tip = Input, Ring = Output)

Rack Space

1U Rack Mountable

Net Weight

2.19 kg (4.84 lbs)
